Toyota Rumion

2021-08 → present · chassis K15B · catalogue 139310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 3 illustrations

Illustrations

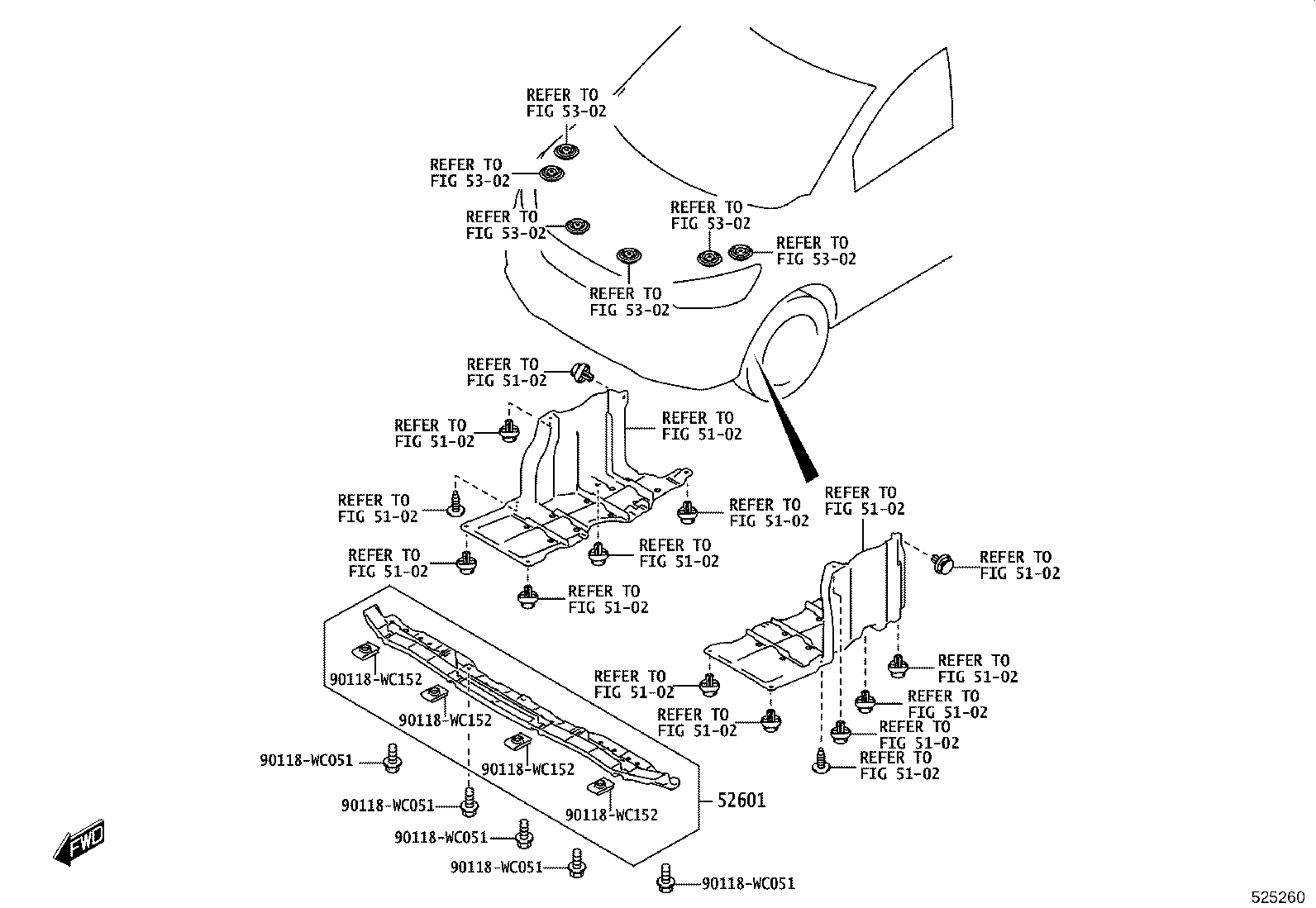

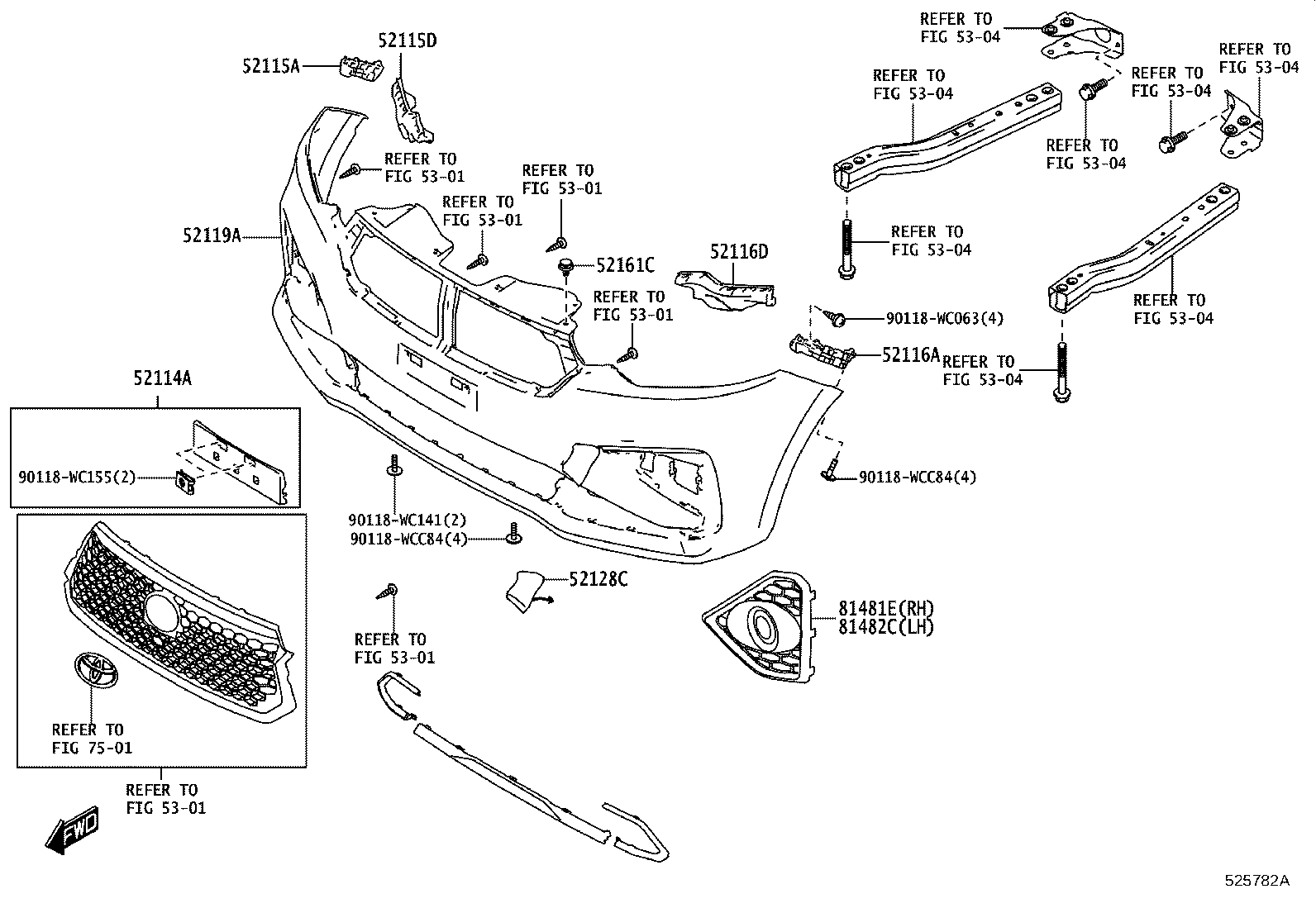

Figure 525259A 525259A 2021-08 → — Figure 525782A 525782A 2022-07 → — Figure 525260 525260 2021-08 → —

Part groups

PNCDescription
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52115D Support, Front Bumper Side, NO.2 RH
52116A Support, Front Bumper Side, LH
52116D Support, Front Bumper Side, NO.2 LH
52119A Cover, Front Bumper
52128C Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52601 Absorber Sub-assy, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53141K Garnish, Fog Lamp Cover, RH
53142F Garnish, Fog Lamp Cover, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
