Toyota Rumion

2021-08 → present · chassis K15B · catalogue 139310 · General

Supported model Data version 2022-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 2 illustrations

Illustrations

537949 2021-08 → —

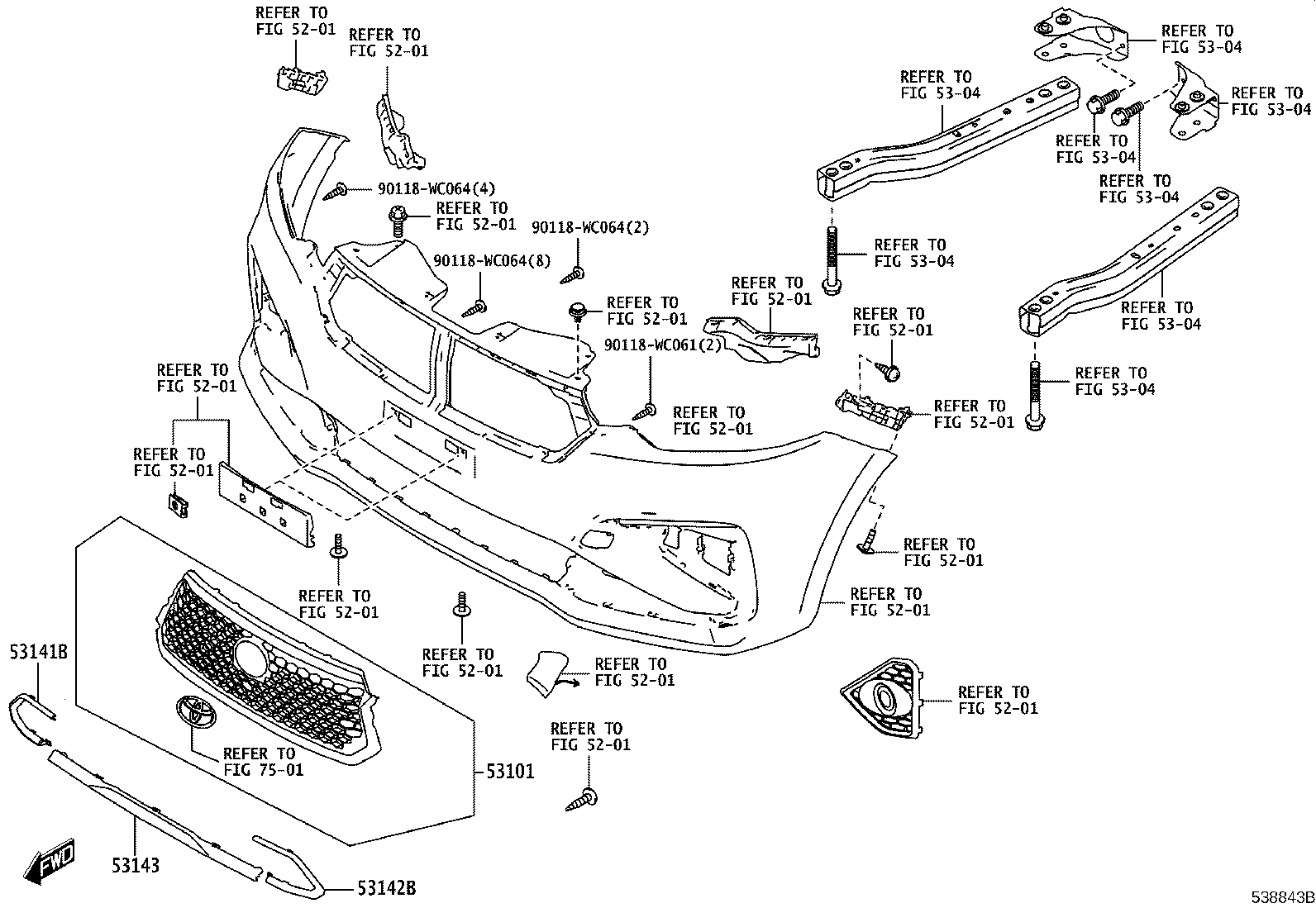

Figure 538843B

538843B 2022-07 → —

Part groups

PNC	Description
53101	Grille Sub-assy, Radiator
53141B	Garnish, Radiator Grille, NO.1
53142B	Radiator Grille Garnish, NO.2
53143	Garnish, Radiator Grille, NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
