Toyota Rumion
2021-08 → present · chassis K15B · catalogue 139310 · General
Supported model
Data version 2022-05
Front Fender Apron & Dash Panel
31 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

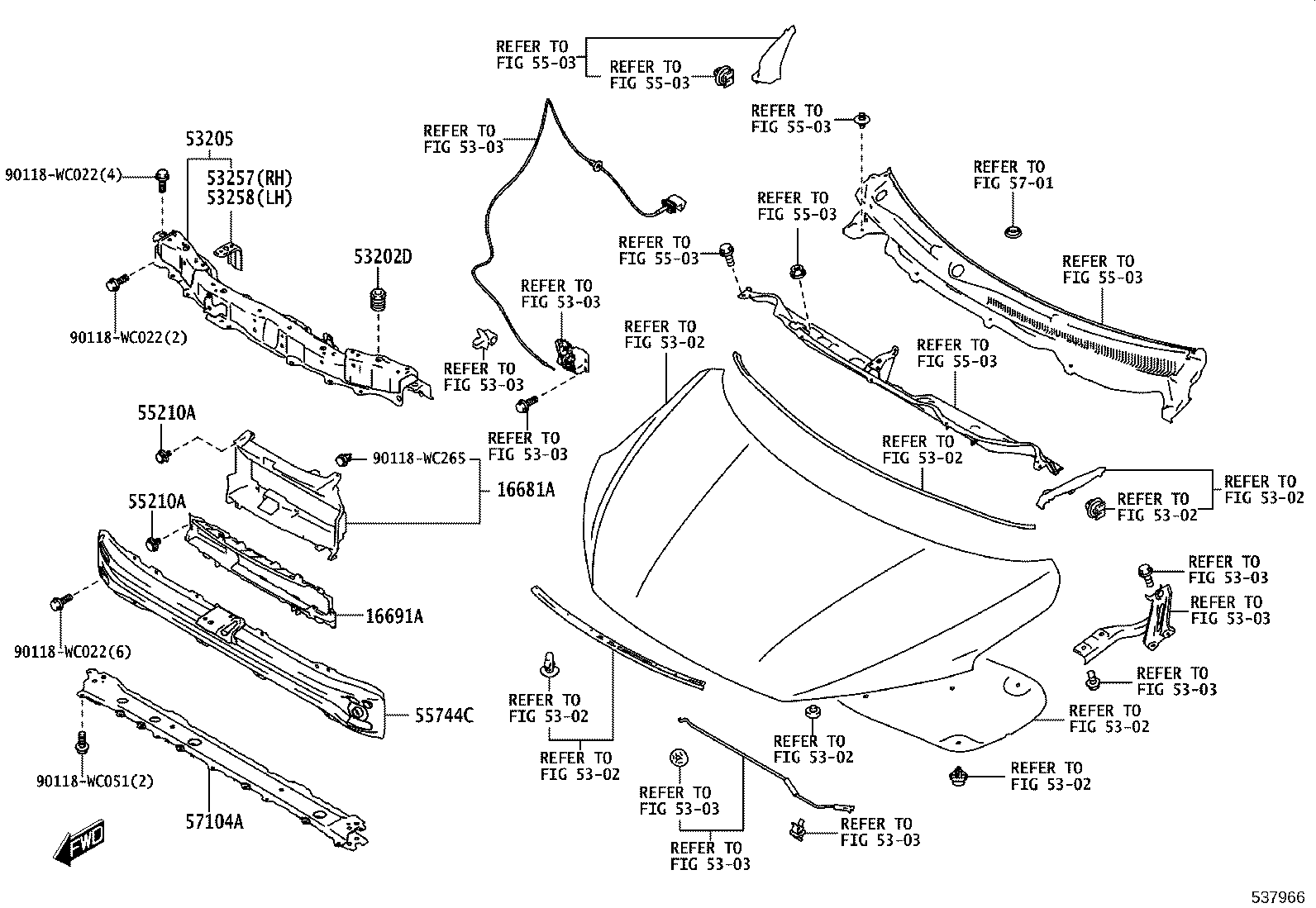

| 16681A | Plate, Radiator Upper Air Guide |
| 16691A | Plate, Radiator Side Air Guide, Front RH |
| 53202D | Cushion, Radiator Support |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53233A | Bracket, Headlamp, NO.1 RH |
| 53234A | Bracket, Headlamp, NO.1 LH |
| 53257 | Bracket, Front End Panel Mounting, RH |
| 53258 | Bracket, Front End Panel Mounting, LH |

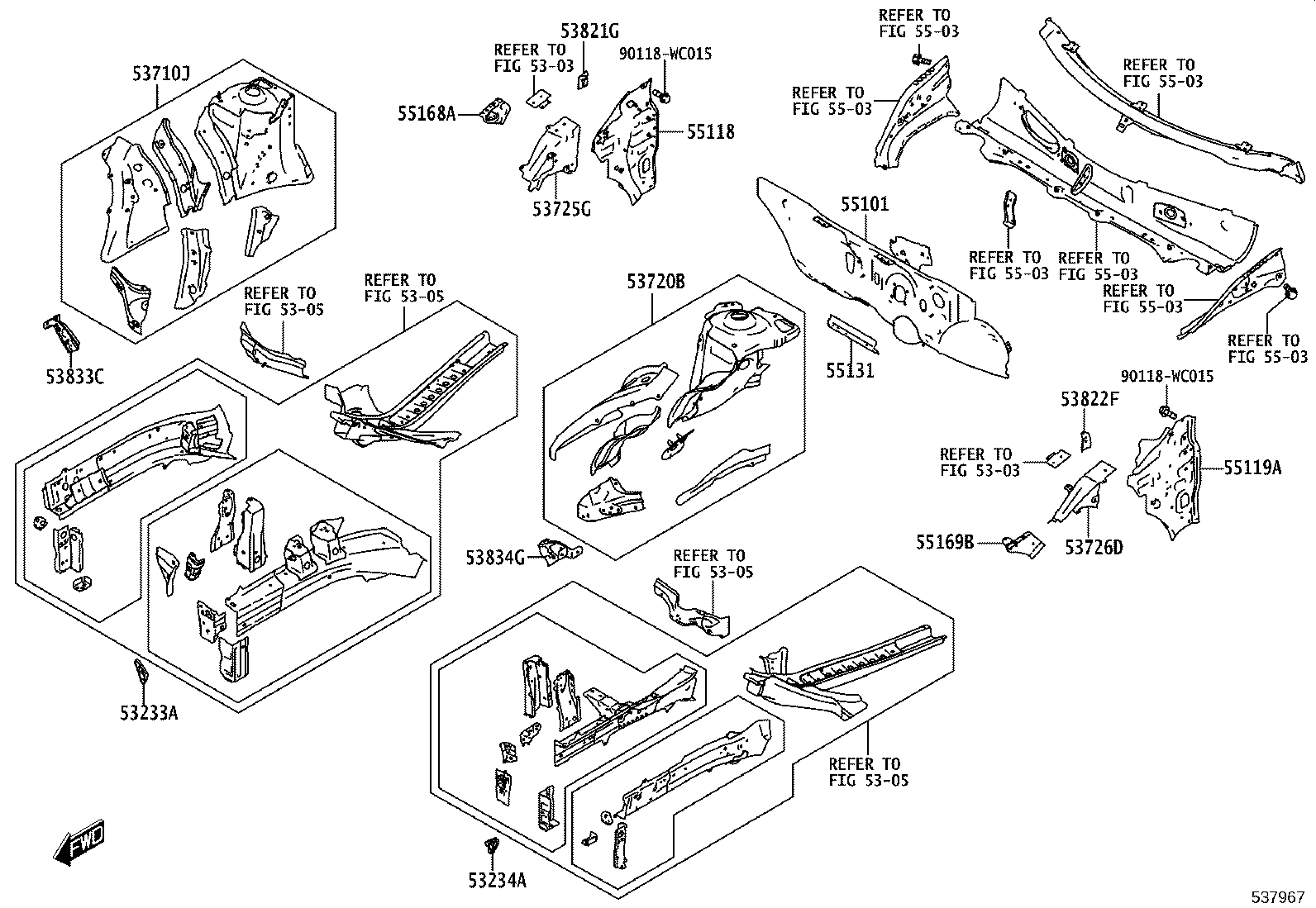

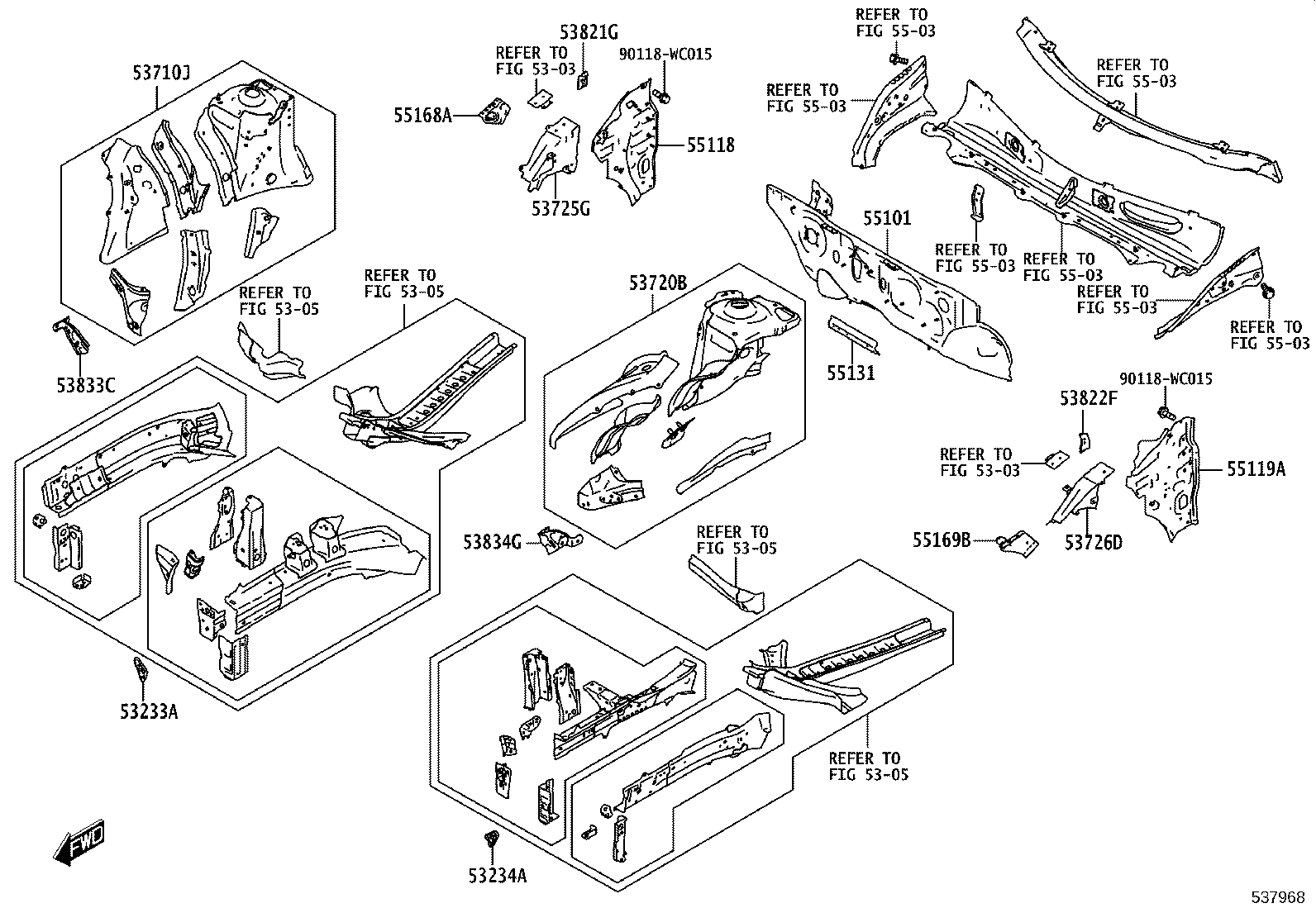

| 53710J | Apron Assy, Front Fender, RH |
| 53720B | Apron Assy, Front Fender, LH |
| 53725G | Apron, Front Fender NO.2 Side, RH |
| 53726D | Apron, Front Fender NO.2 Side, LH |

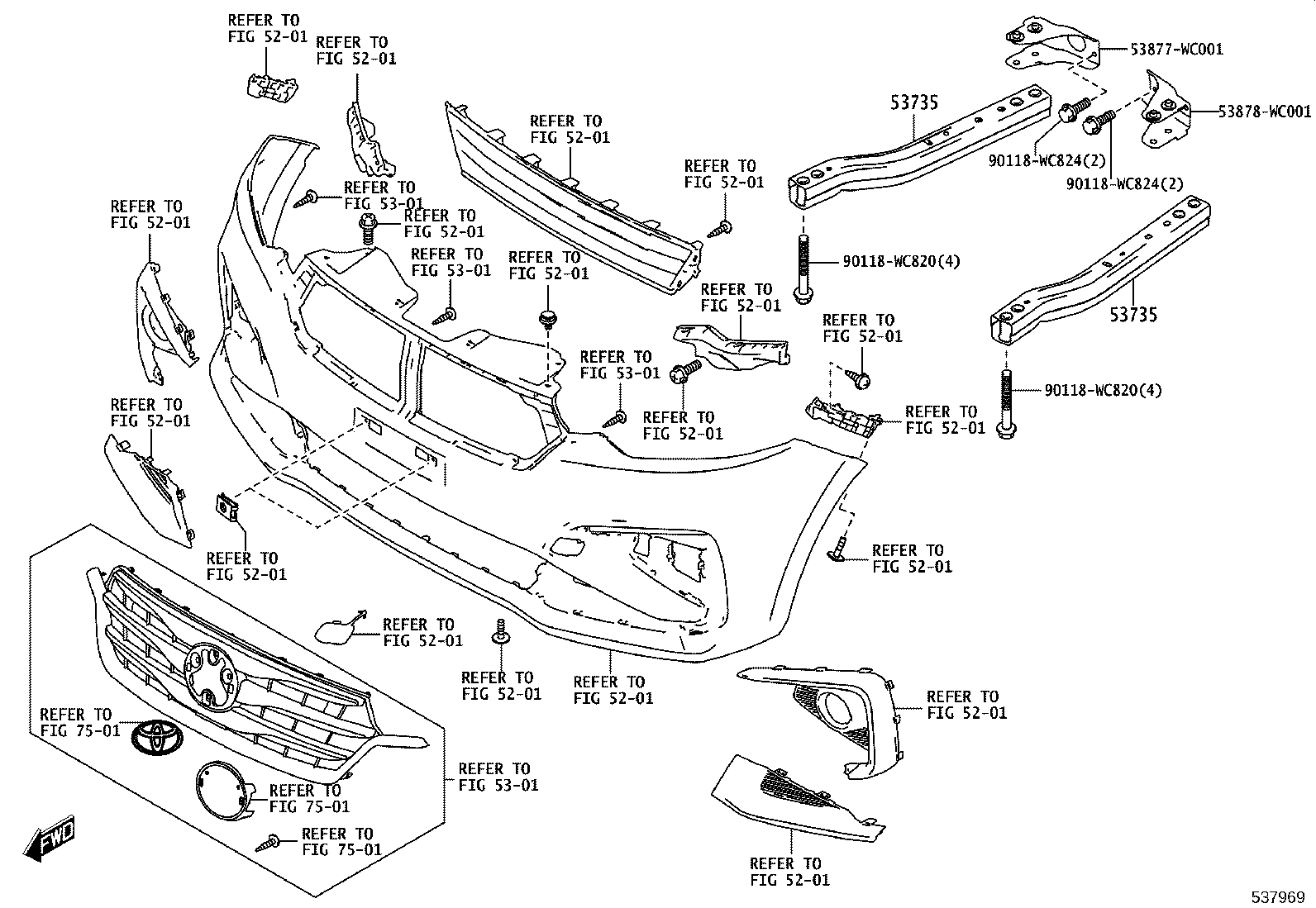

| 53735 | Plate, Front Fender Apron Mounting |
| 53821G | Bracket, Front Fender, Rear RH |
| 53822F | Bracket, Front Fender, Rear LH |
| 53833C | Reinforcement, Front Fender, Lower RH |
| 53834G | Reinforcement, Front Fender, Lower LH |
| 55101 | Panel Sub-assy, Dash |
| 55118 | Extension, Dash Panel, RH |
| 55119A | Extension, Dash Panel, LH |
| 55131 | Reinforcement, Dash Panel |
| 55168A | Bracket, Front Fender Mounting, RH |
| 55169B | Bracket, Front Fender Mounting, LH |

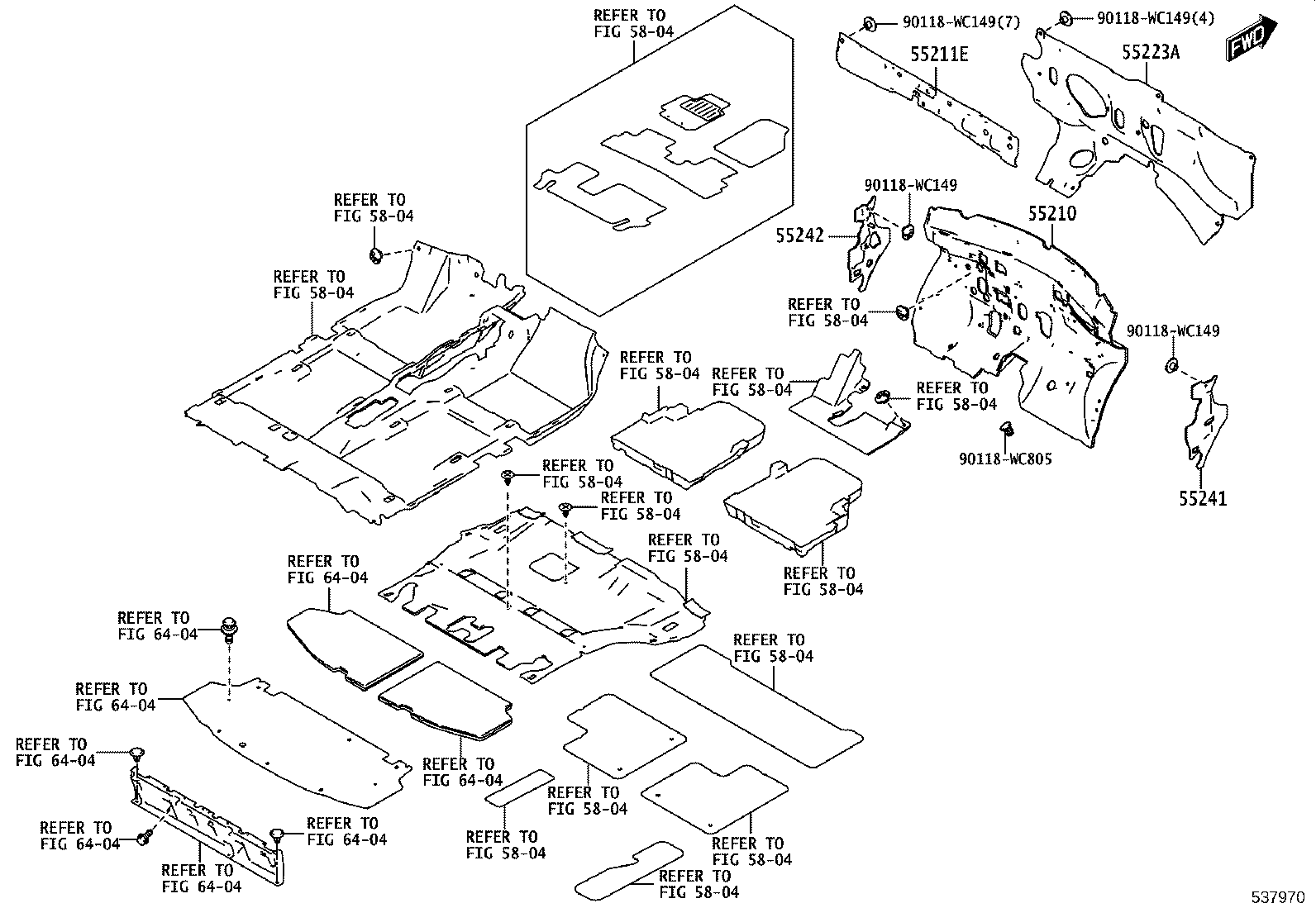

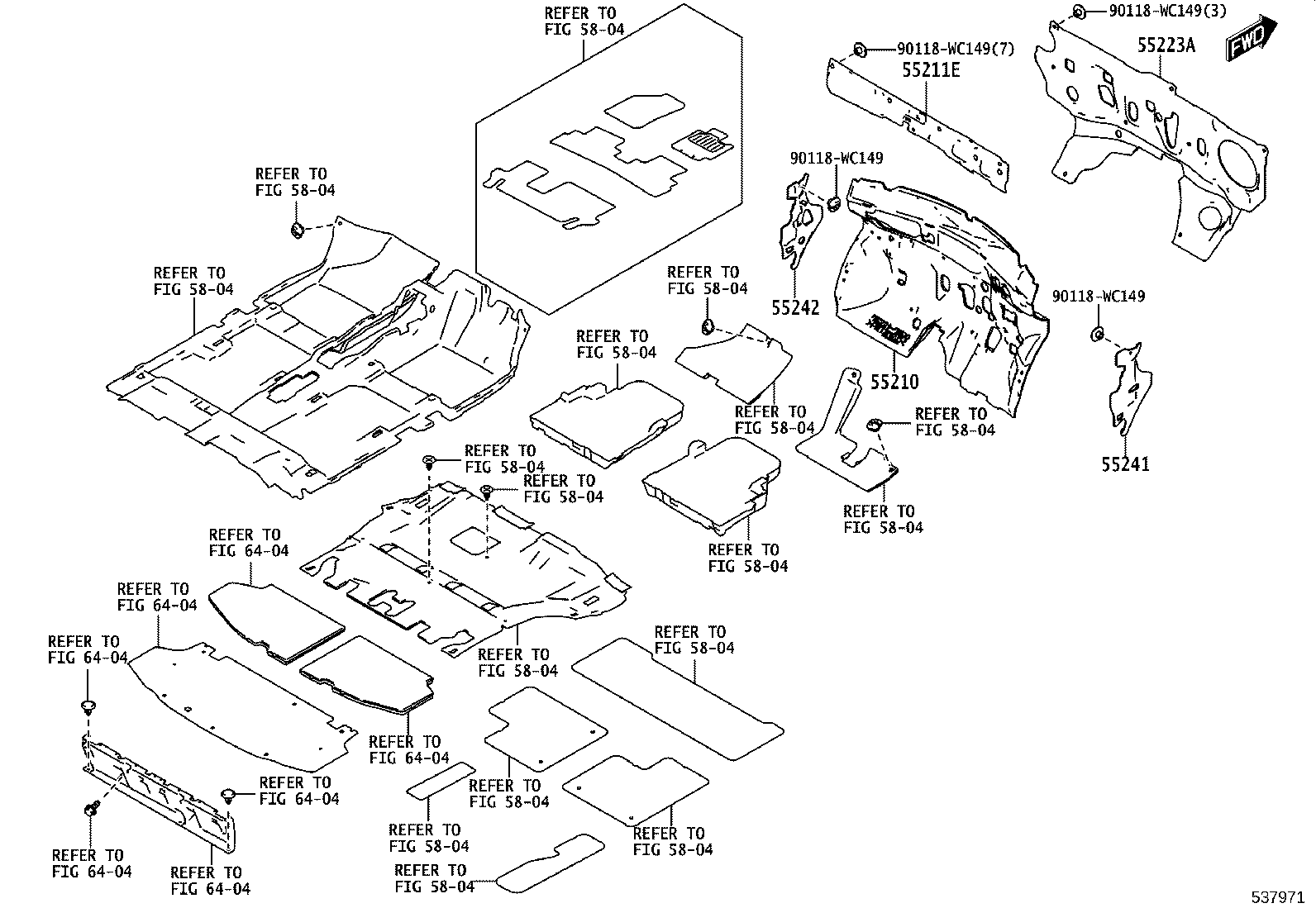

| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55211E | Silencer, Front Panel |
| 55223A | Insulator, Dash Panel, Outer |
| 55241 | Silencer, Front Panel Side, NO.1 RH |
| 55242 | Silencer, Front Panel Side, NO.1 LH |
| 55744C | Member, Front Panel, Upper |
| 57104A | Member Sub-assy, Front Cross |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
