Toyota Rumion

2021-08 → present · chassis K15B · catalogue 139310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

15 part groups · 3 illustrations

Illustrations

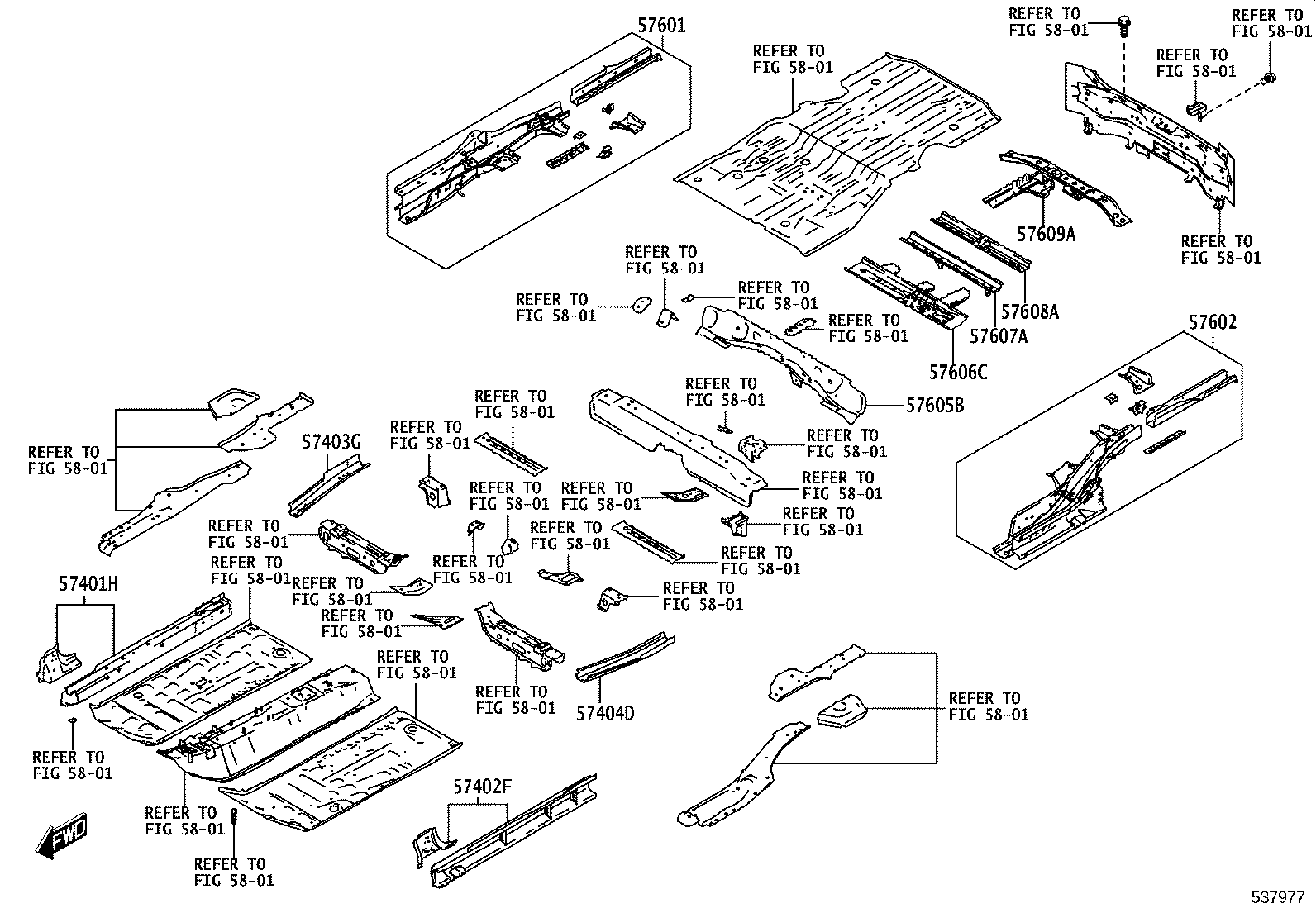

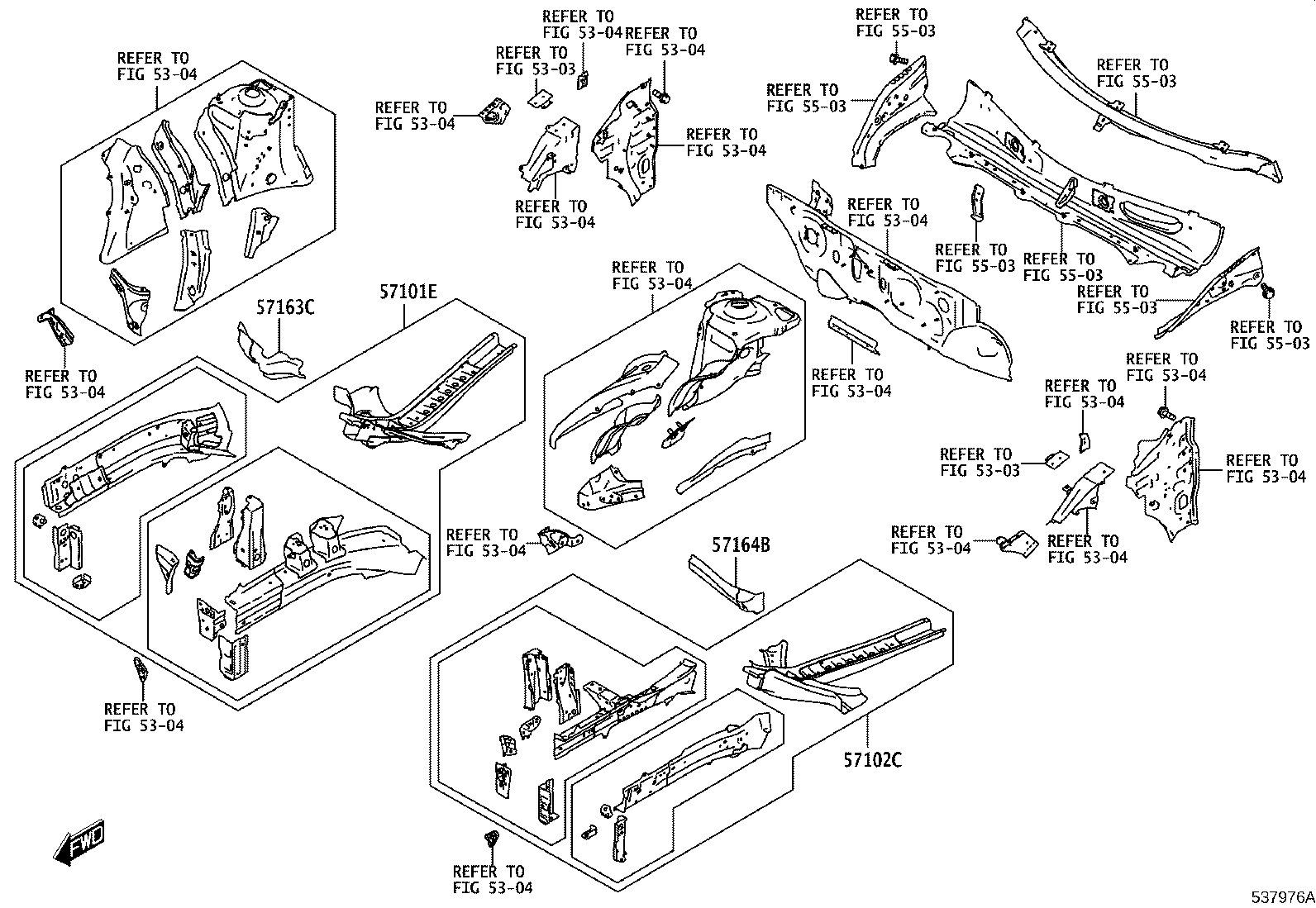

Figure 537975A 537975A 2021-08 → — Figure 537976A 537976A 2021-08 → — Figure 537977 537977 2021-08 → —

Part groups

PNCDescription
57101E Member Sub-assy, Front Side, Inner RH
57102C Member Sub-assy, Front Side, Inner LH
57163C Reinforcement, Front Crossmember, NO.1 RH
57164B Reinforcement, Front Crossmember, NO.1 LH
57401H Member Sub-assy, Floor Side, Inner RH
57402F Member Sub-assy, Floor Side, Inner LH
57403G Member Sub-assy, Floor Side, Inner Rear RH
57404D Member Sub-assy, Floor Side, Inner Rear LH
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57606C Member Sub-assy, Rear Floor Cross, NO.2
57607A Member Sub-assy, Rear Floor Cross, NO.3
57608A Member Sub-assy, Rear Floor Cross, NO.4
57609A Member Sub-assy, Rear Floor Cross, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
