Toyota Rumion

2021-08 → present · chassis K15B · catalogue 139310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

10 part groups · 5 illustrations

Illustrations

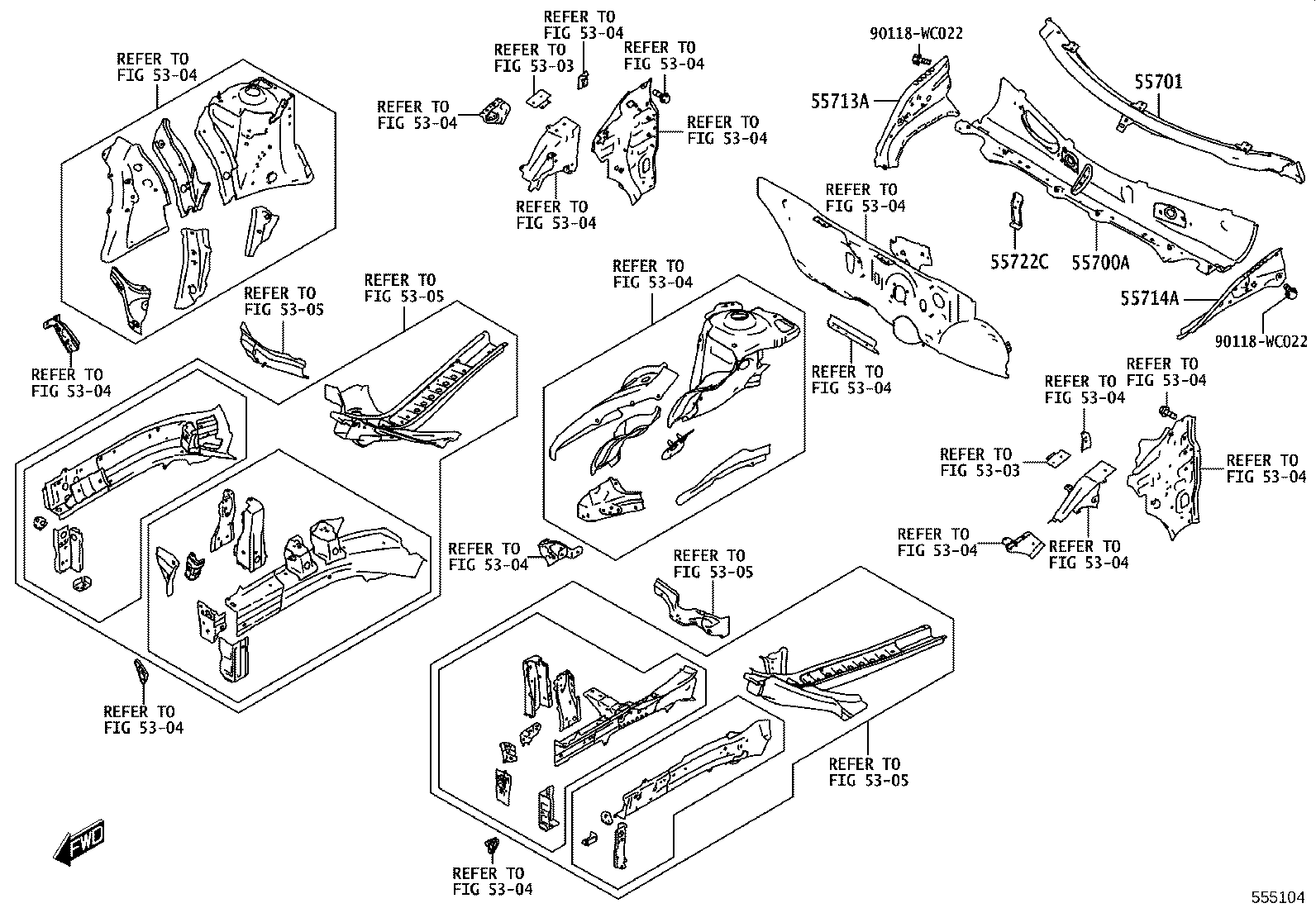

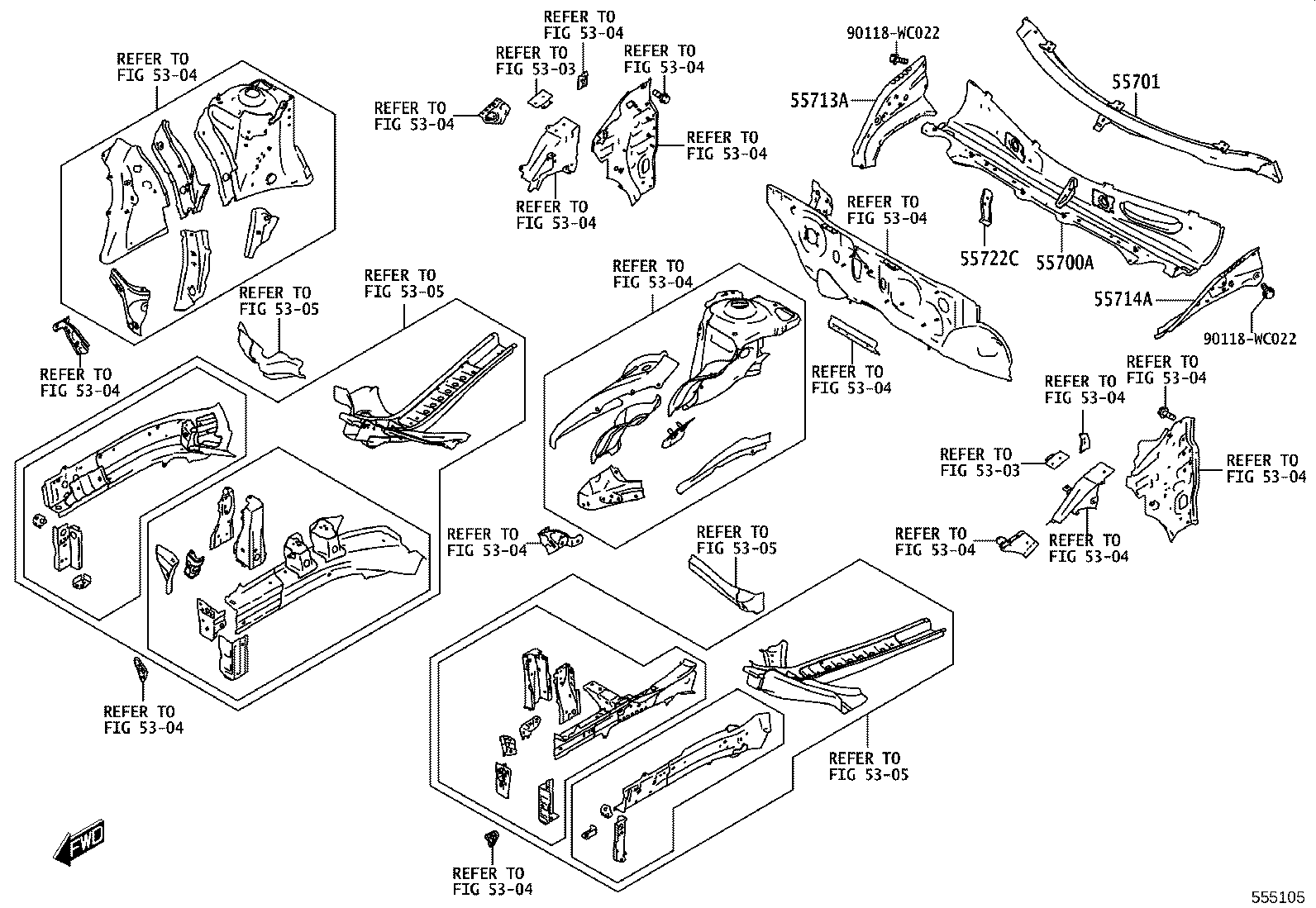

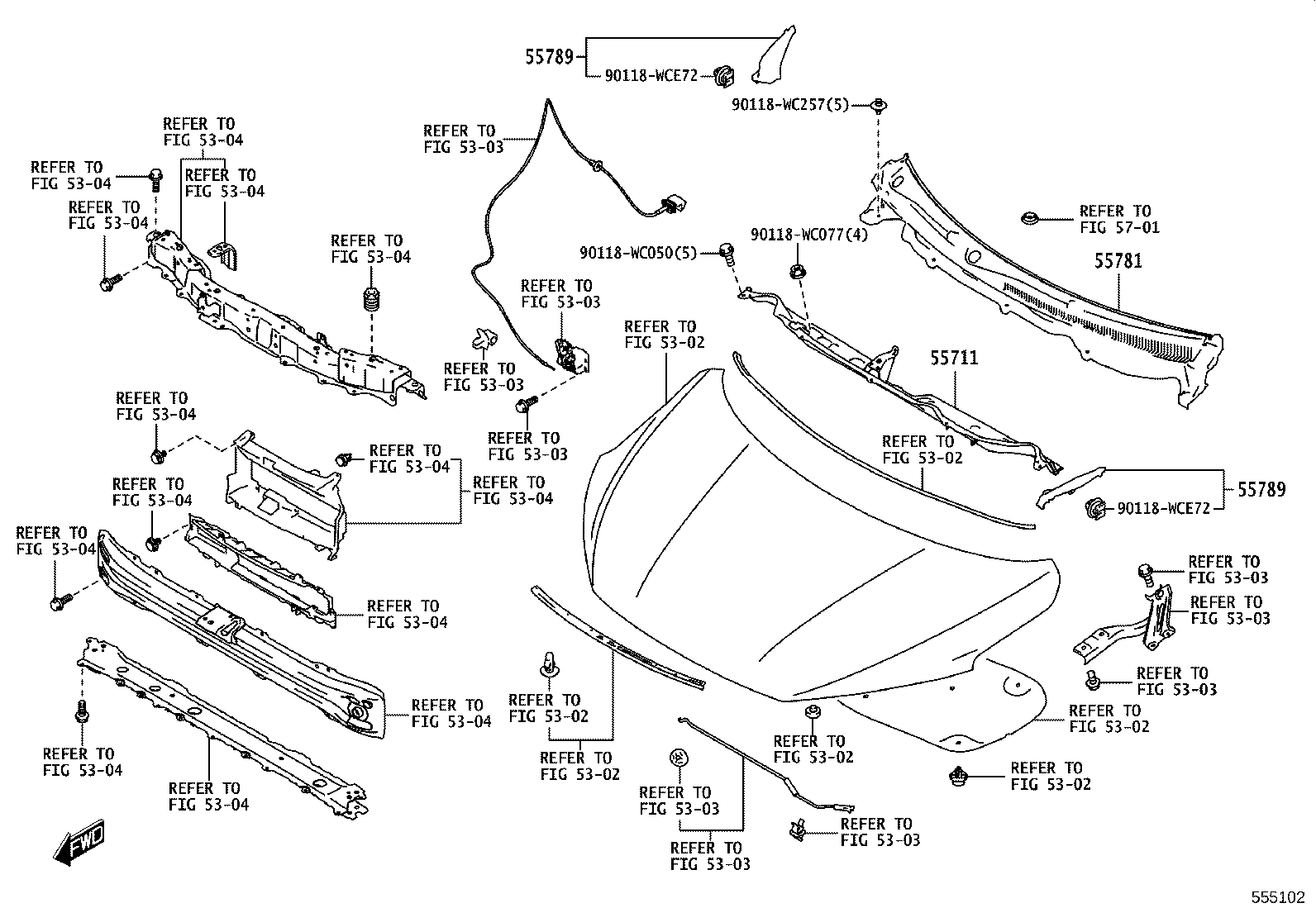

Figure 555101 555101 2021-08 → — Figure 555102 555102 2021-08 → — Figure 555103A 555103A 2021-08 → — Figure 555104 555104 2021-08 → — Figure 555105 555105 2021-08 → —

Part groups

PNCDescription
55700A Panel Assy, Cowl Top
55701 Panel Sub-assy, Cowl
55711 Panel, Cowl Top, Outer
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55722C Brace, Cowl Top TO Cowl, Inner
55781 Louver, Cowl Ventilator
55789 Seal, Cowl Top TO Louver
56111 Glass, Windshield
56117A Dam, Window Glass Adhesive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
