Toyota Rumion

2021-08 → present · chassis K15B · catalogue 139310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

11 part groups · 3 illustrations

Illustrations

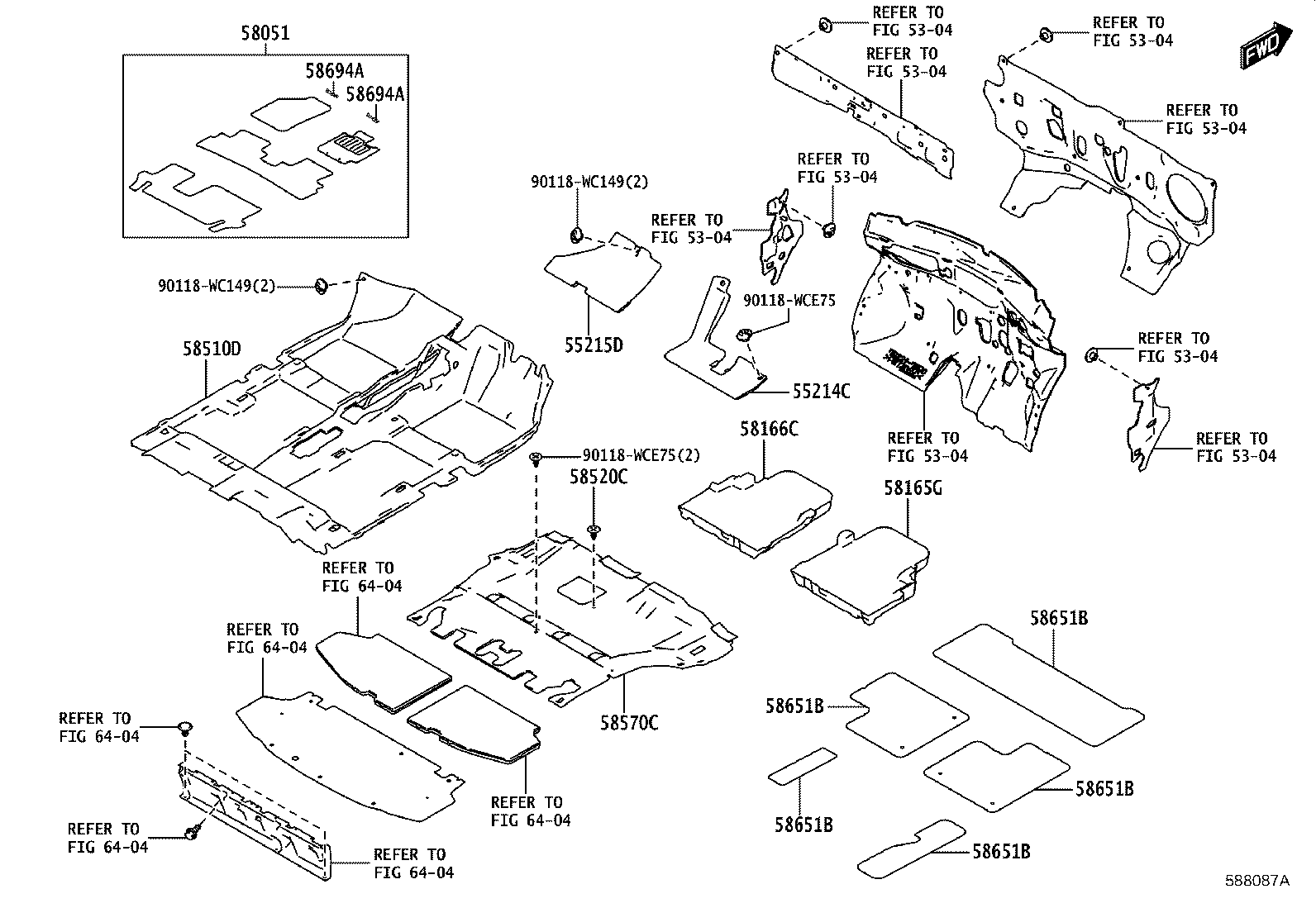

Figure 588086A 588086A 2021-08 → — Figure 588087A 588087A 2021-08 → — Figure 588088 588088 2021-08 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58051 Mat Set, Floor
58165G Cover, Front Floor, RH
58166C Cover, Front Floor, LH
58510D Carpet Assy, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58570C Carpet Assy, Rear Floor
58651B Sheet, Rear Floor Silencer, NO.1
58694A Plate, Mat Set, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
