Toyota Rumion

2021-08 → present · chassis K15B · catalogue 139310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

9 part groups · 2 illustrations

Illustrations

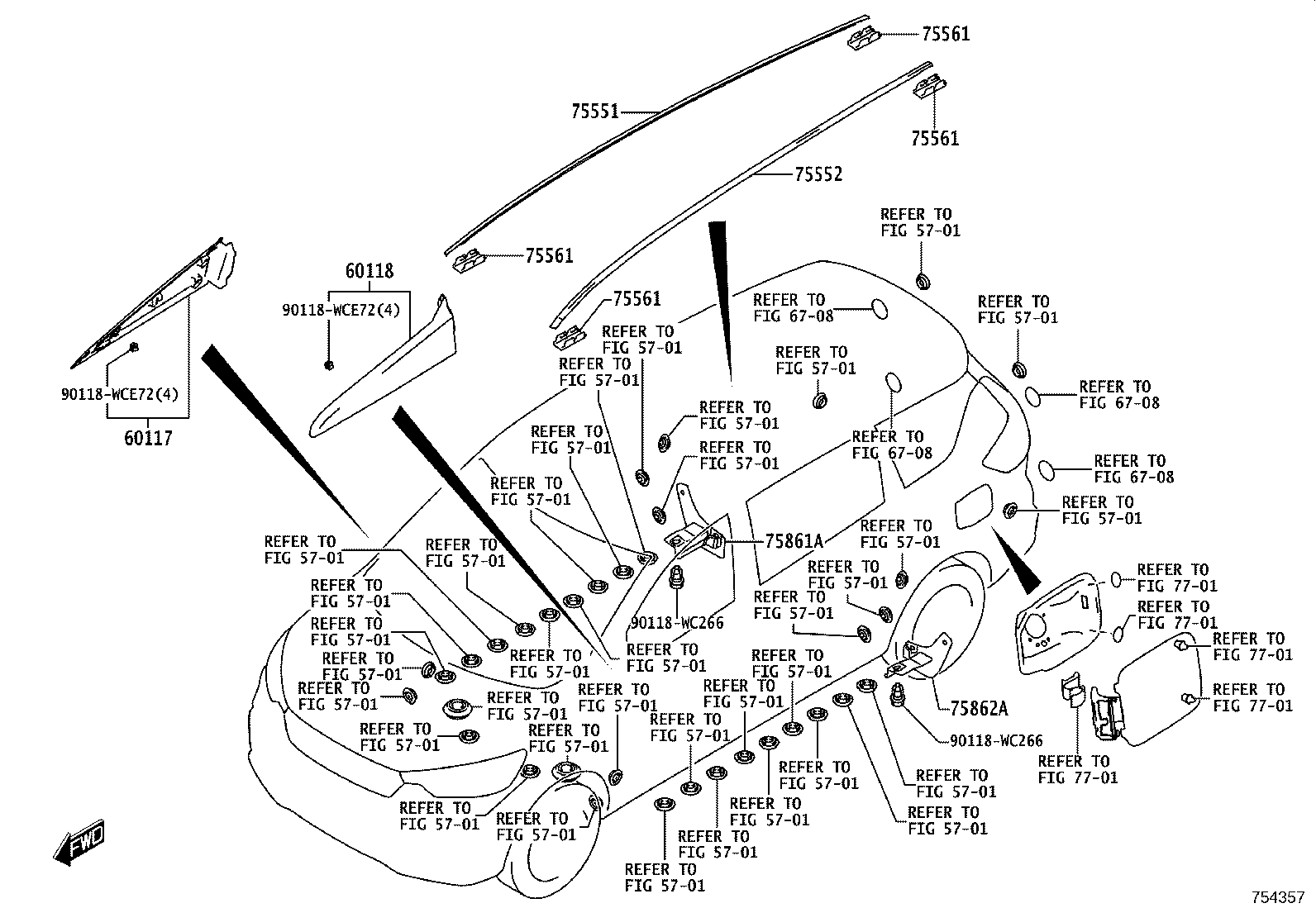

Figure 754356 754356 2021-08 → — Figure 754357 754357 2021-08 → —

Part groups

PNCDescription
60117 Cover Sub-assy, Front Pillar, Upr RH
60118 Cover Sub-assy, Front Pillar, Upr LH
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75765B Moulding, Rear Door Window Frame, RH(REAR PILLAR SIDE)
75766B Moulding, Rear Door Window Frame, LH(REAR PILLAR SIDE)
75861A Protector, Rocker Panel Moulding, NO.1
75862A Protector, Rocker Panel Moulding, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
