Toyota Rumion

2021-08 → present · chassis K15B · catalogue 139310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

1 part groups · 4 illustrations

Illustrations

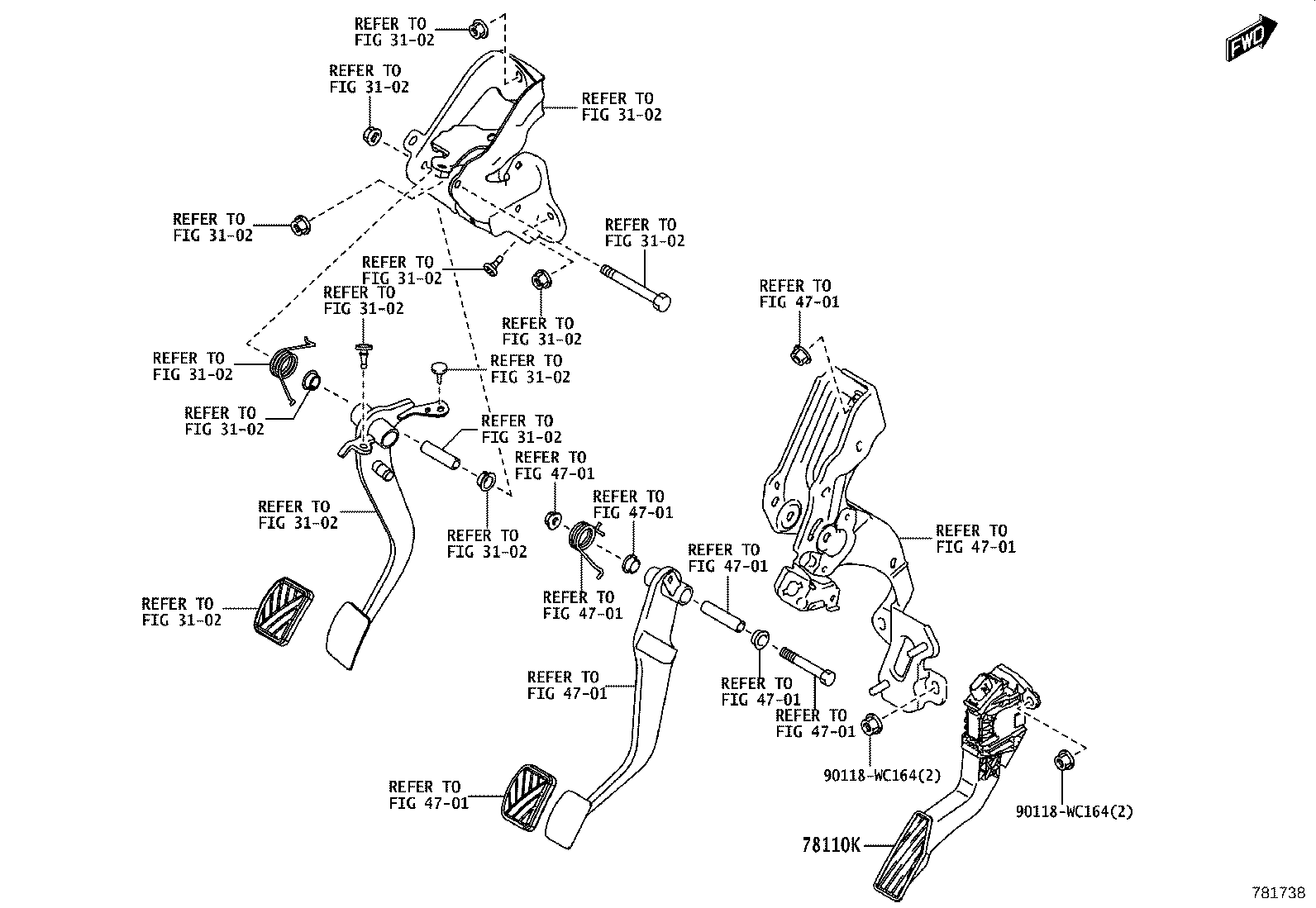

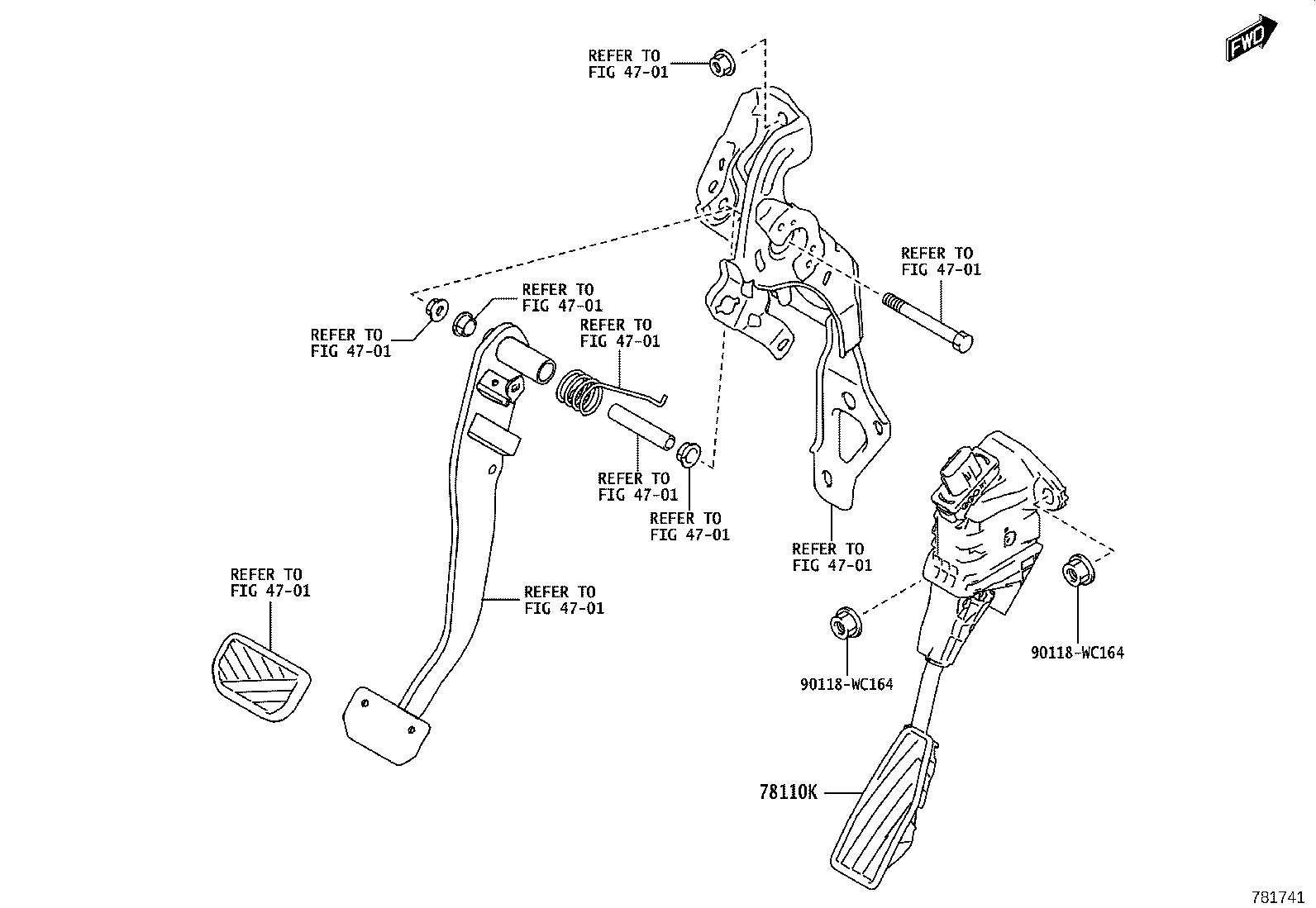

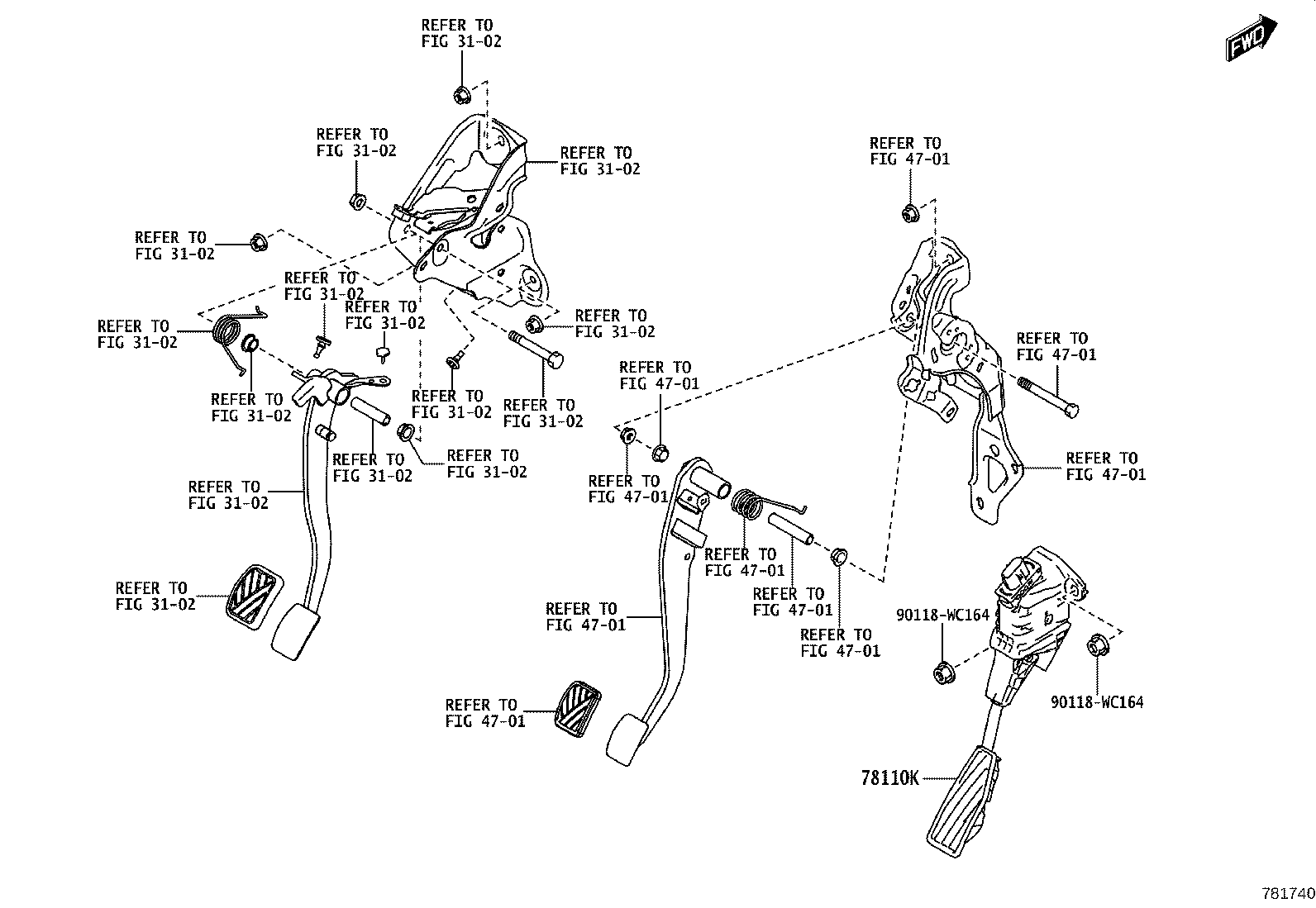

Figure 781739 781739 2021-08 → — Figure 781741 781741 2021-08 → — Figure 781738 781738 2021-08 → — Figure 781740 781740 2021-08 → —

Part groups

PNCDescription
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
