Toyota Rumion

2021-08 → present · chassis K15B · catalogue 139310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

2 part groups · 3 illustrations

Illustrations

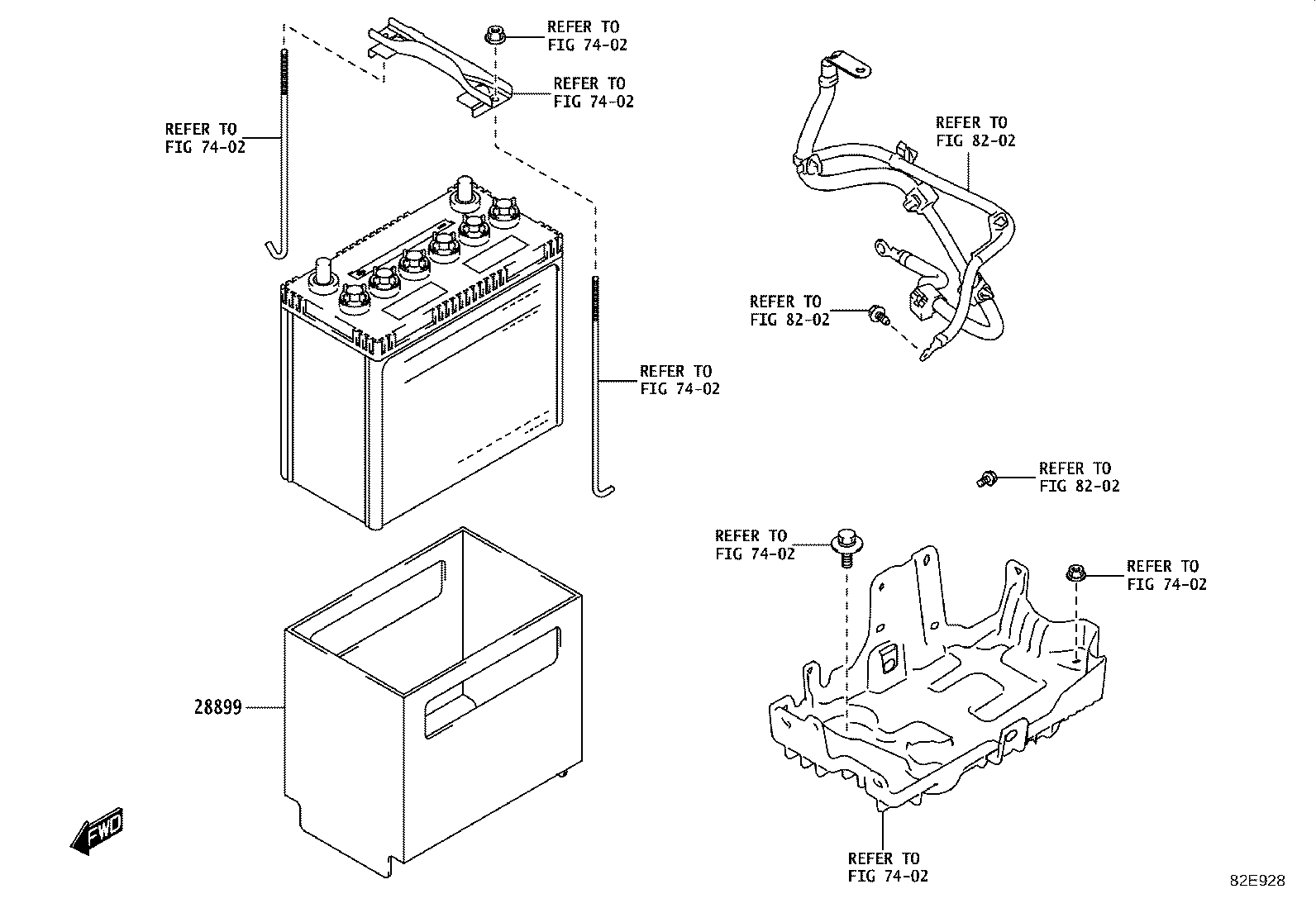

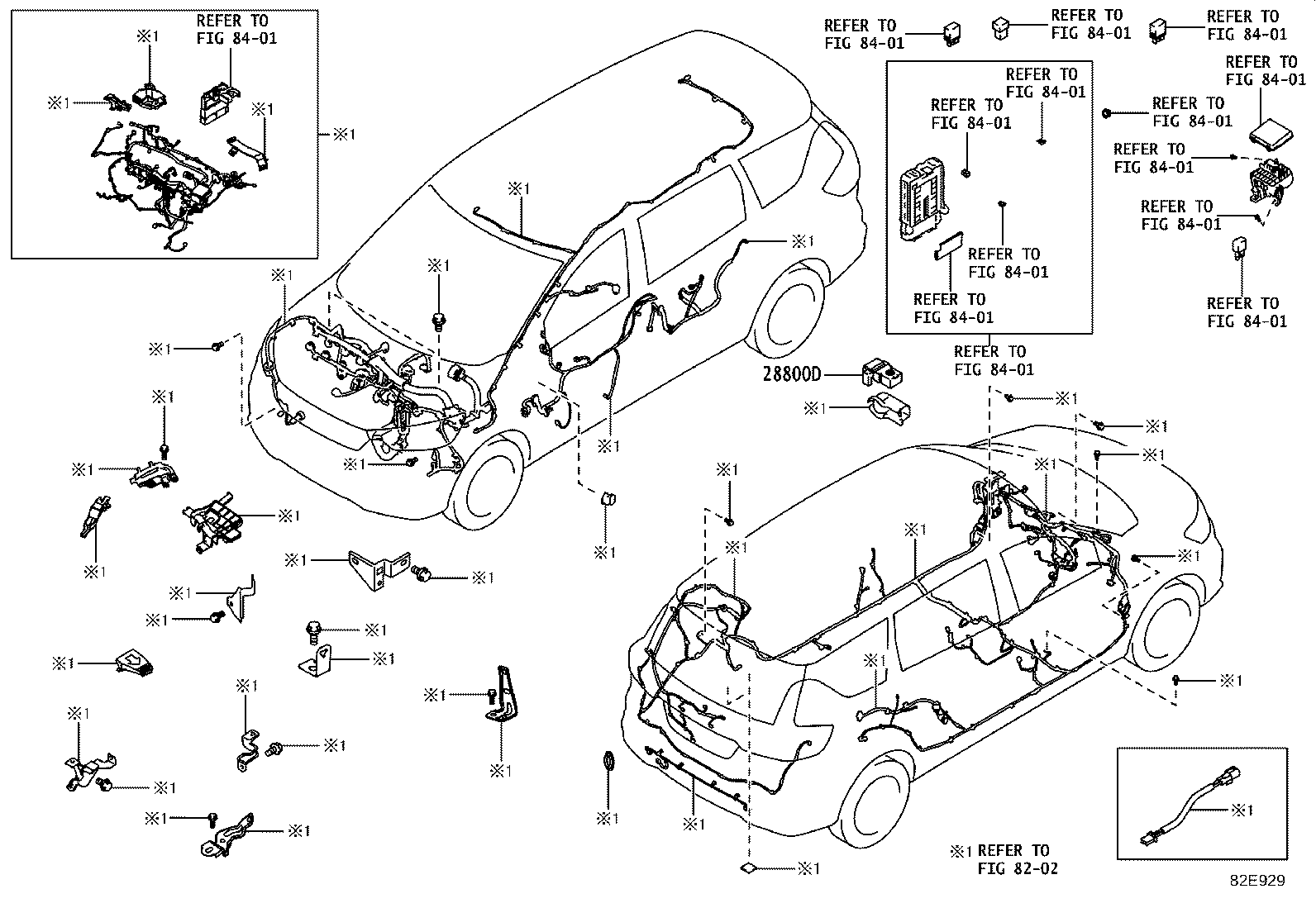

Figure 82E927 82E927 2021-07 → — Figure 82E928 82E928 2021-08 → — Figure 82E929 82E929 2021-07 → —

Part groups

PNCDescription
28800D Cover, Connector(FOR BATTERY TERMINAL)
28899 Insulator, Battery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
