Toyota Rumion

2021-08 → present · chassis K15B · catalogue 139310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

22 part groups · 3 illustrations

Illustrations

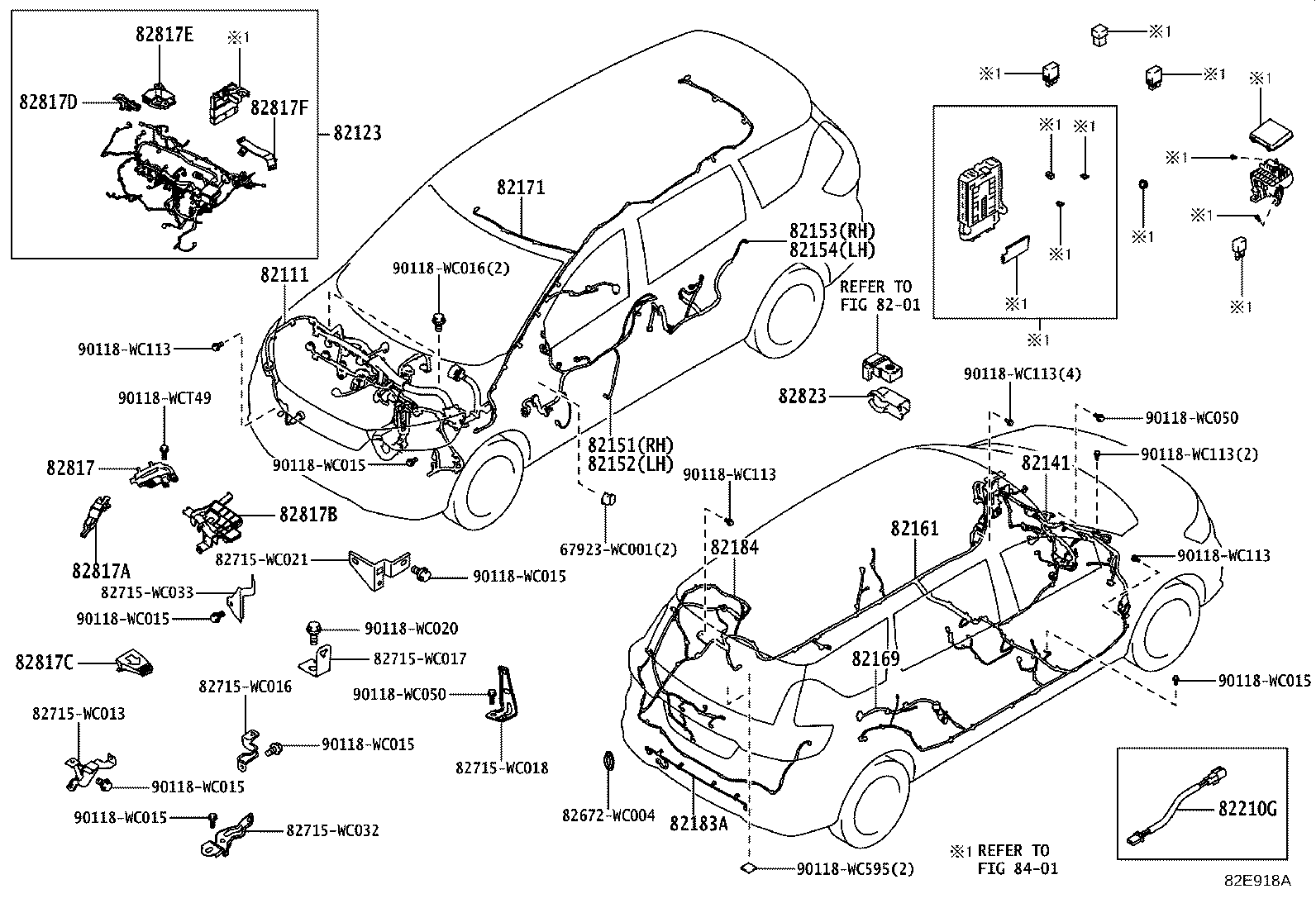

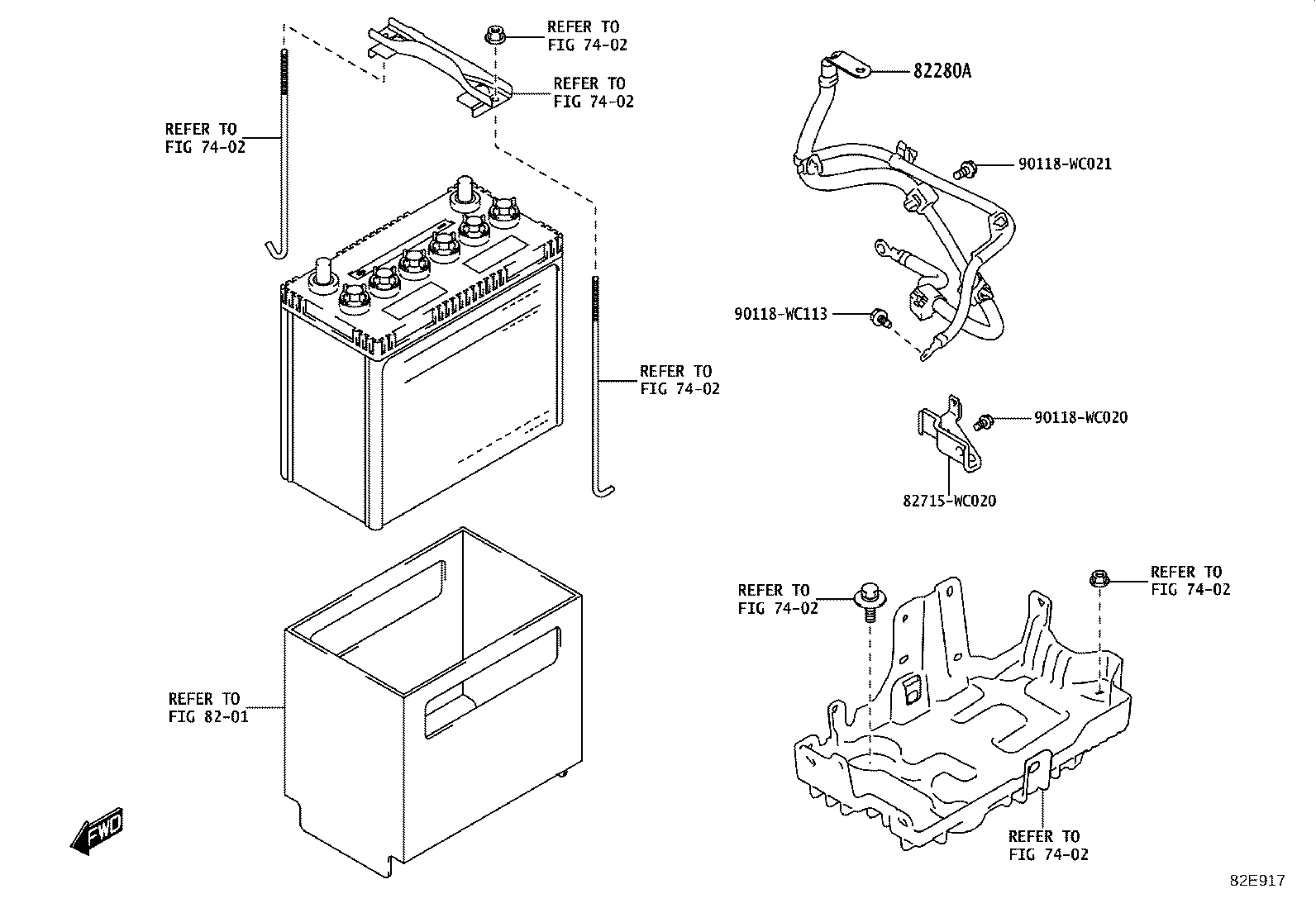

Figure 82E916 82E916 2021-08 → — Figure 82E917 82E917 2021-08 → — Figure 82E918A 82E918A 2021-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82183A Wire, Rear Bumper
82184 Wire, Back Door, NO.1
82210G Wire, Short
82280A Wire Assy, Battery TO Cowl Top Side
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
