Toyota Rumion

2021-08 → present · chassis K15B · catalogue 139310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

47 part groups · 18 illustrations

Illustrations

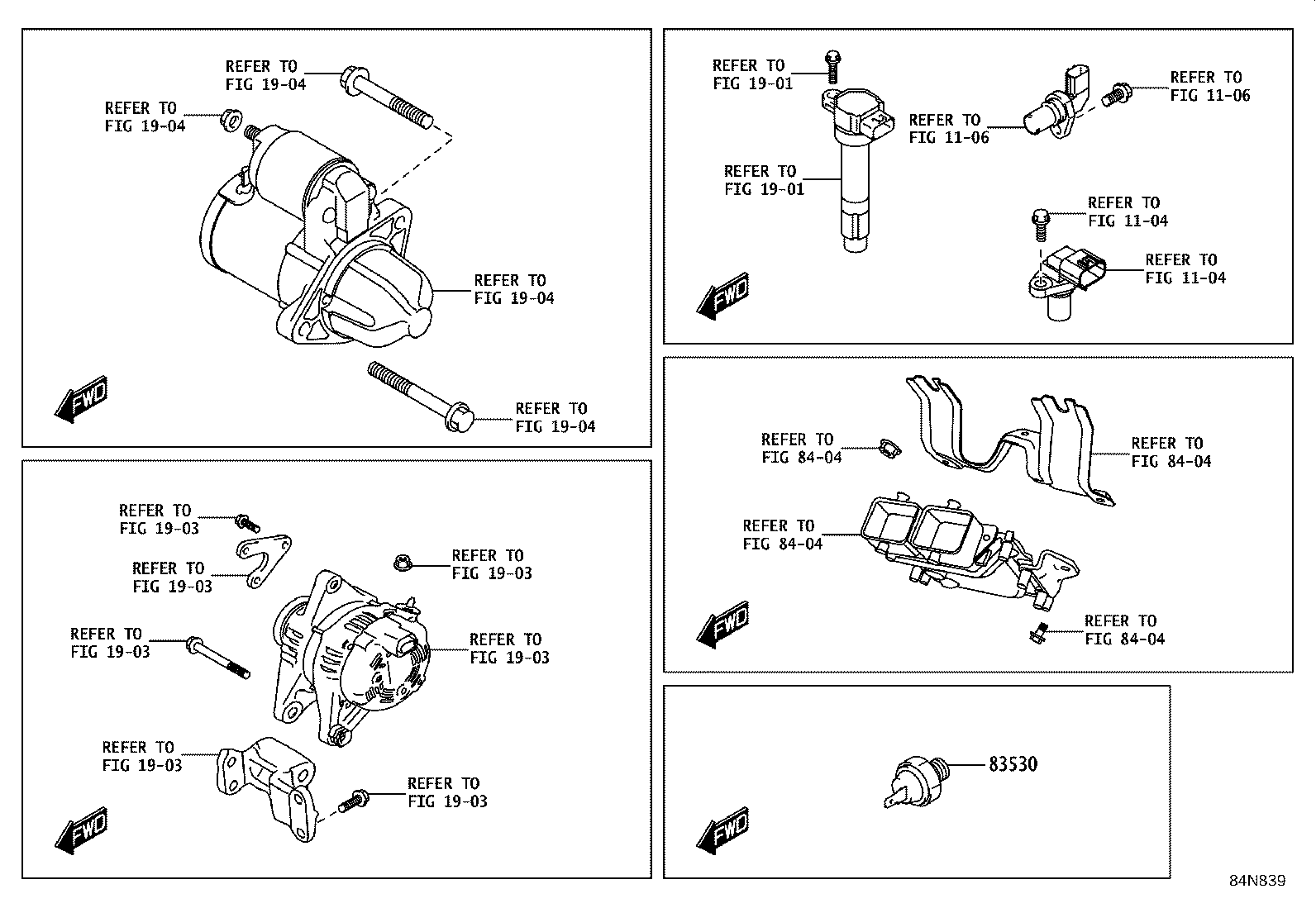

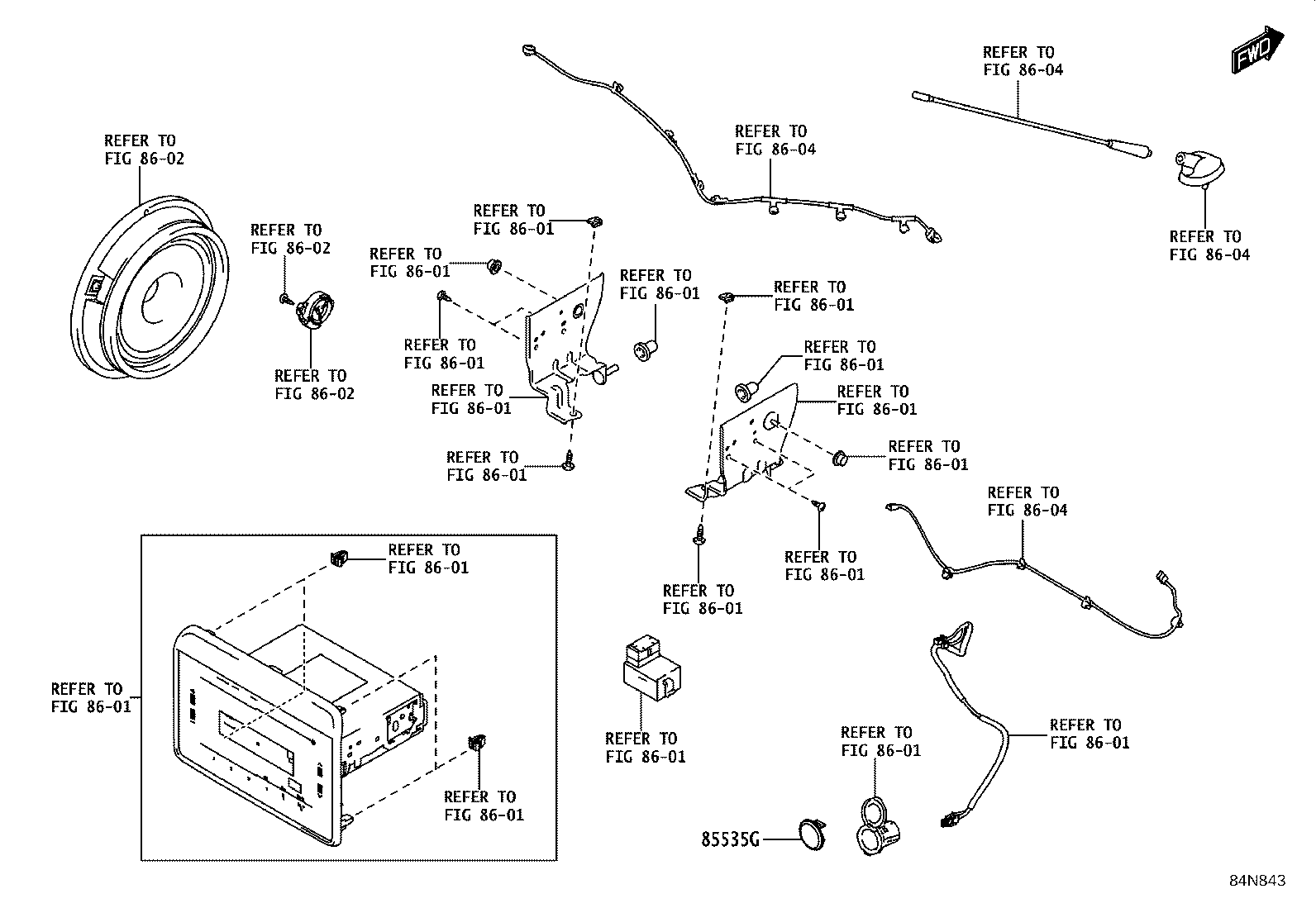

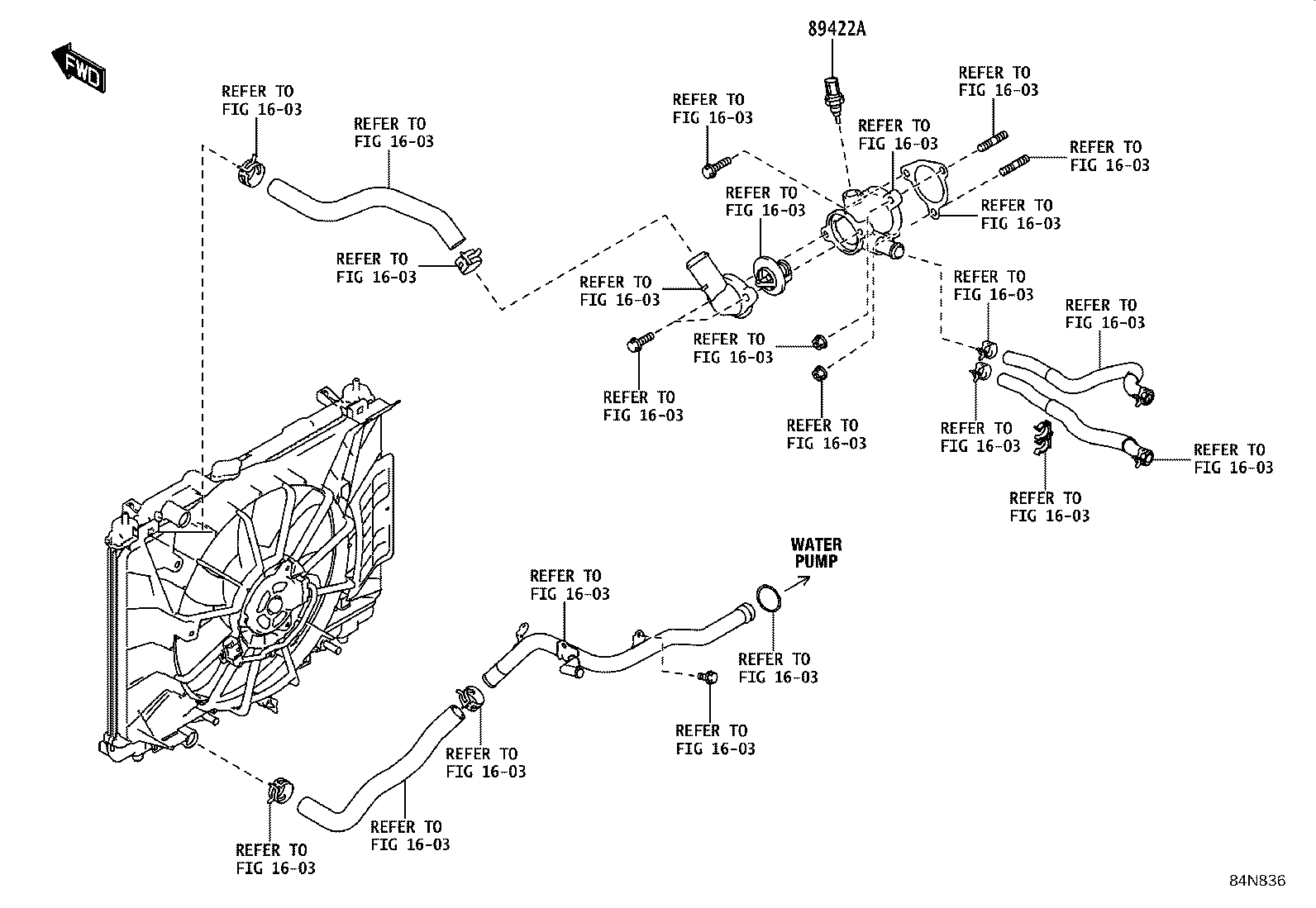

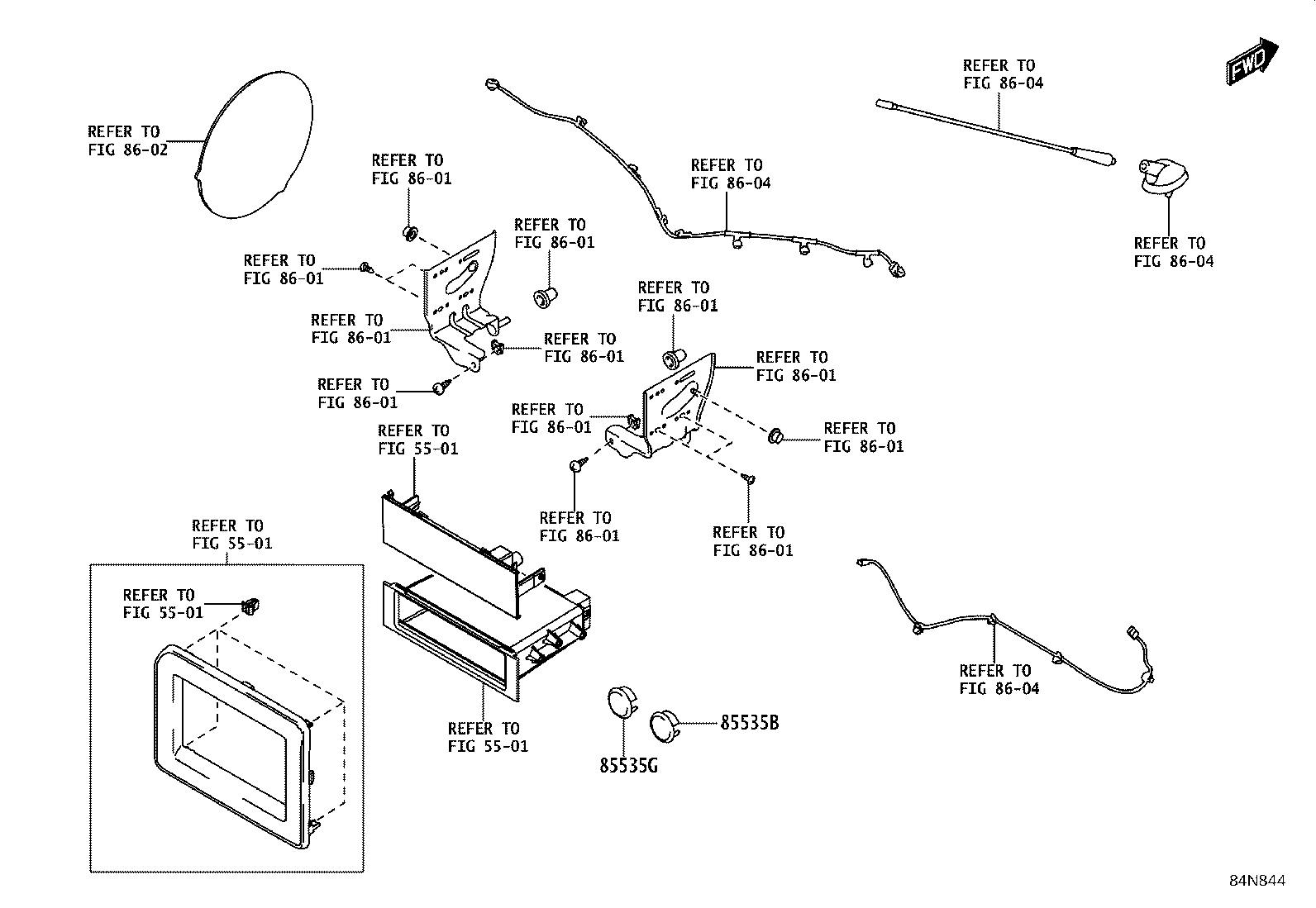

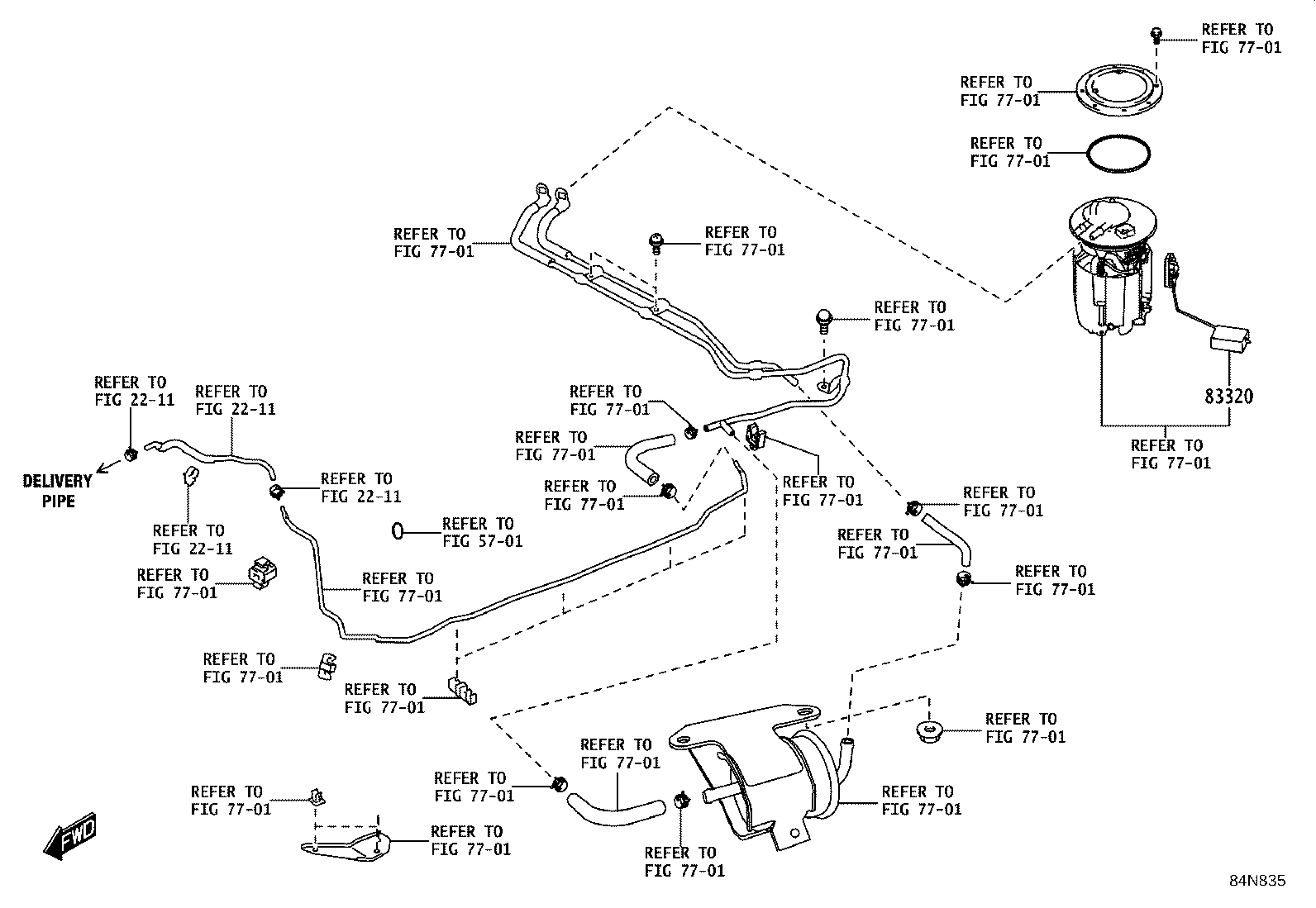

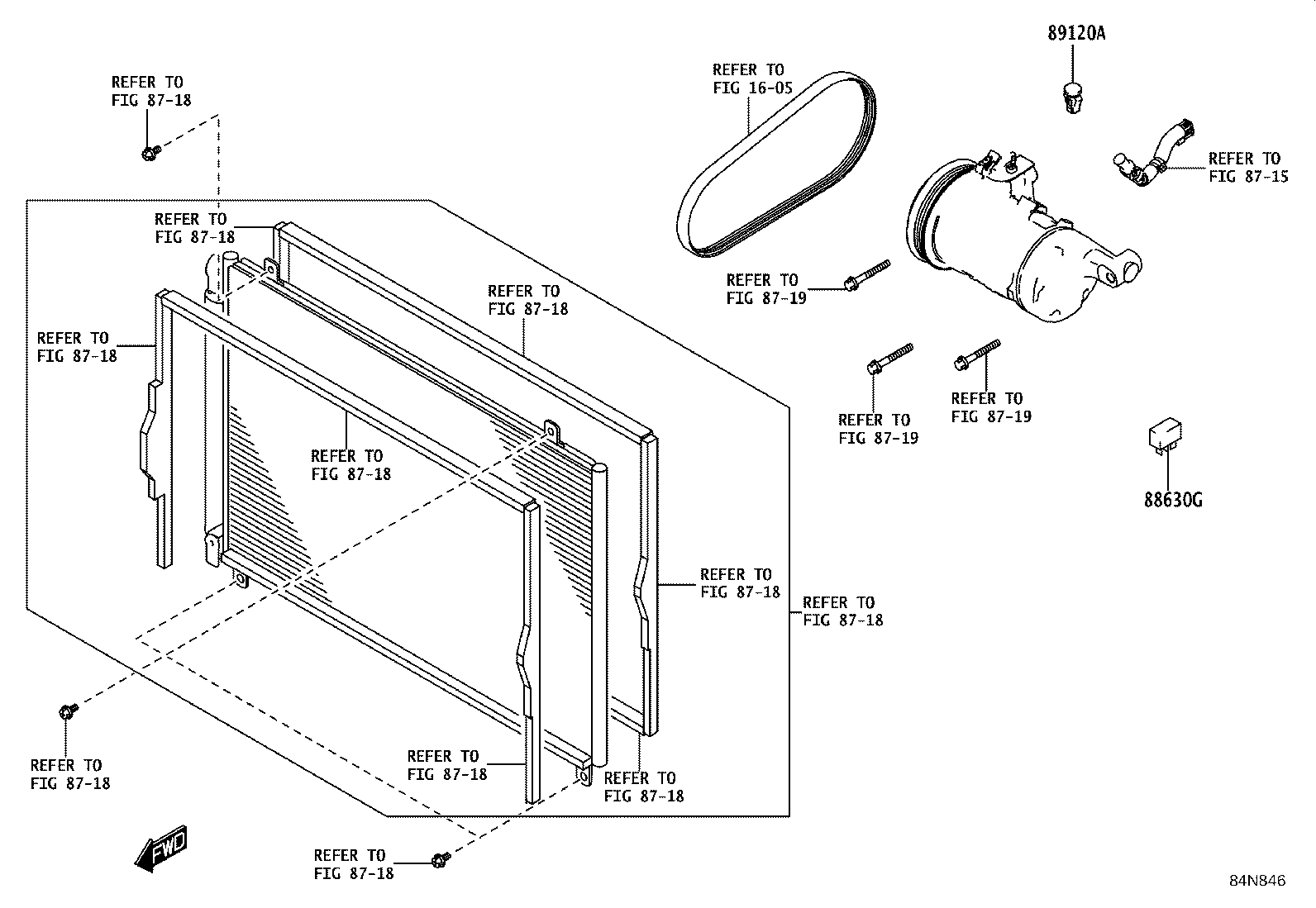

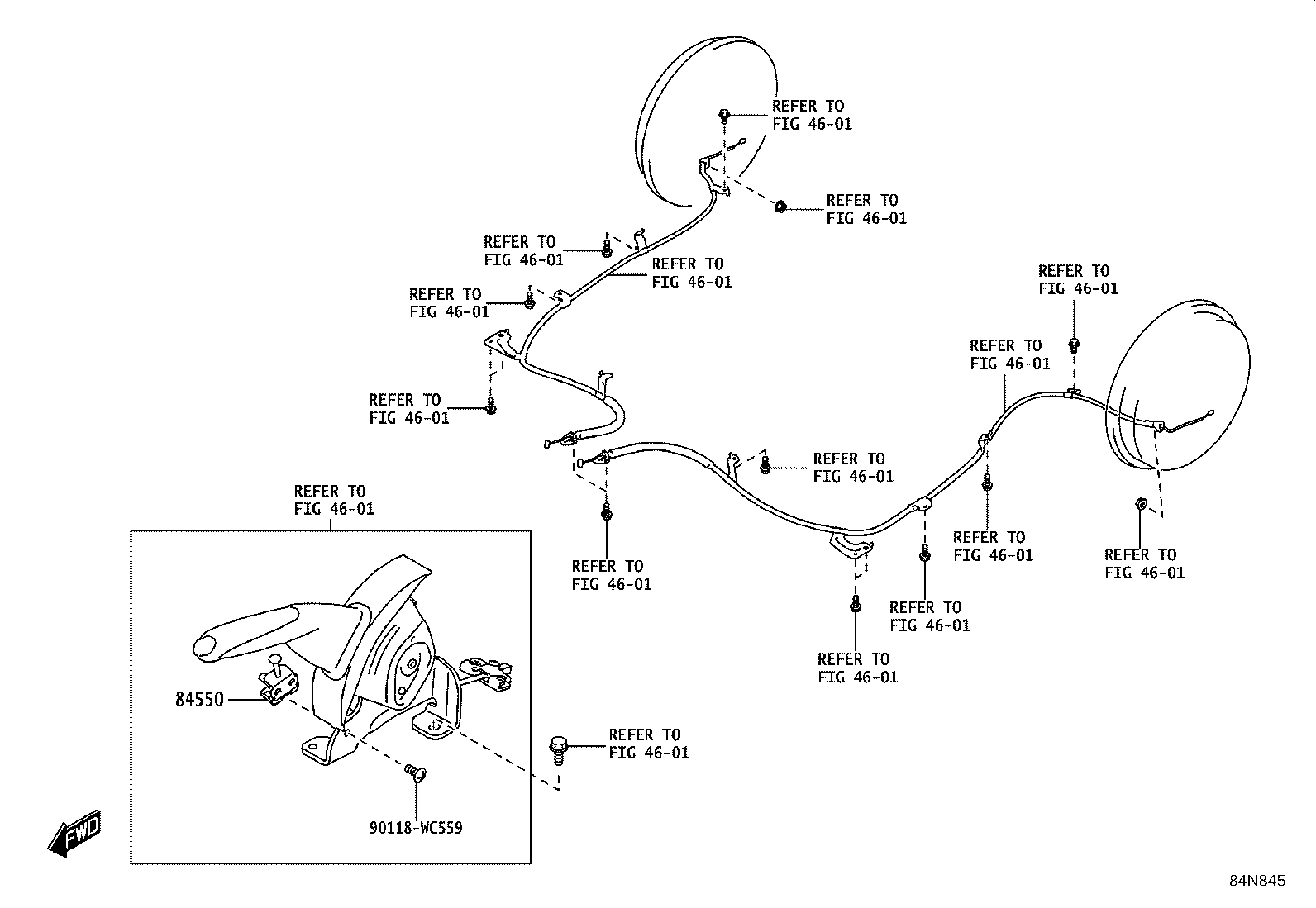

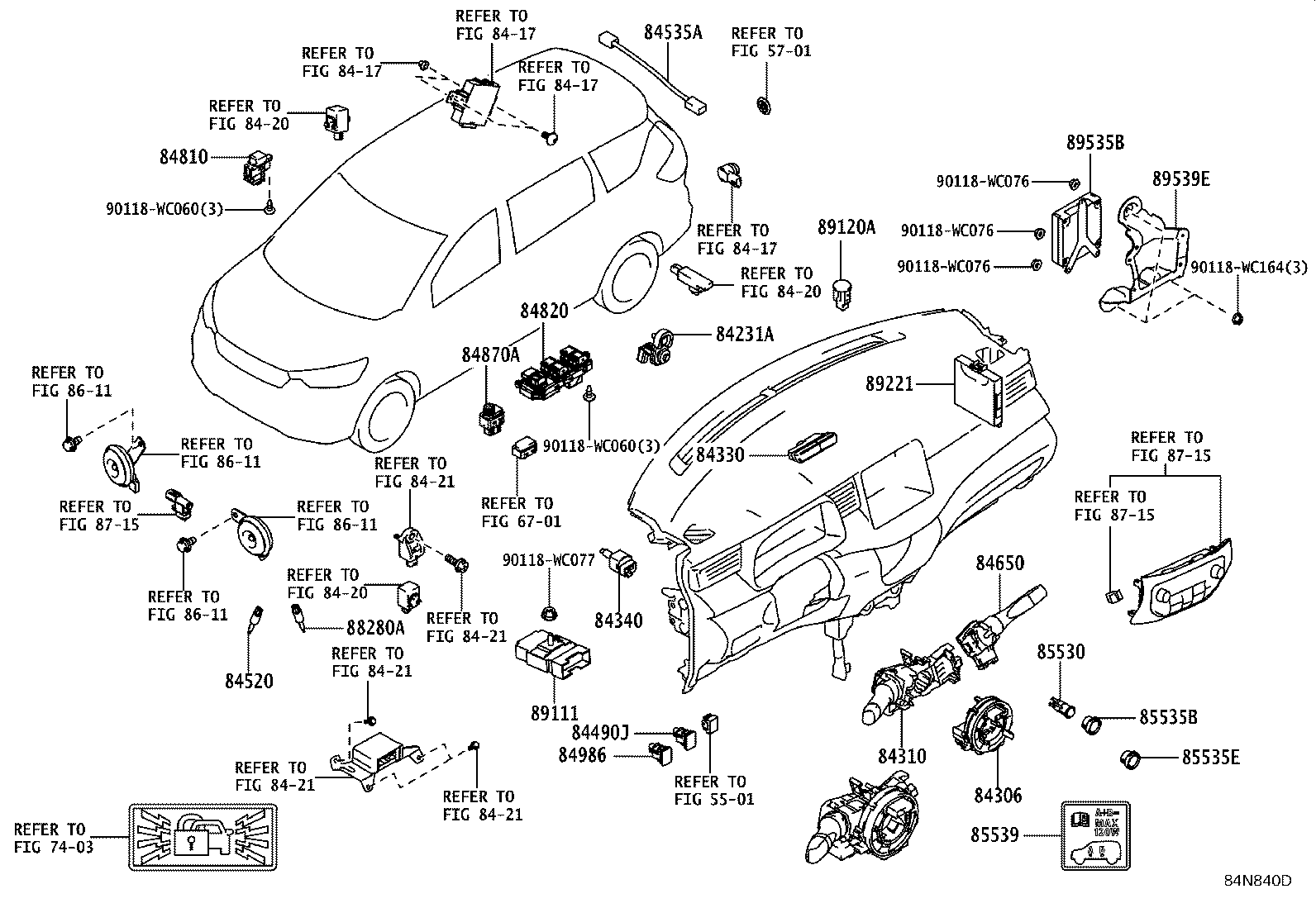

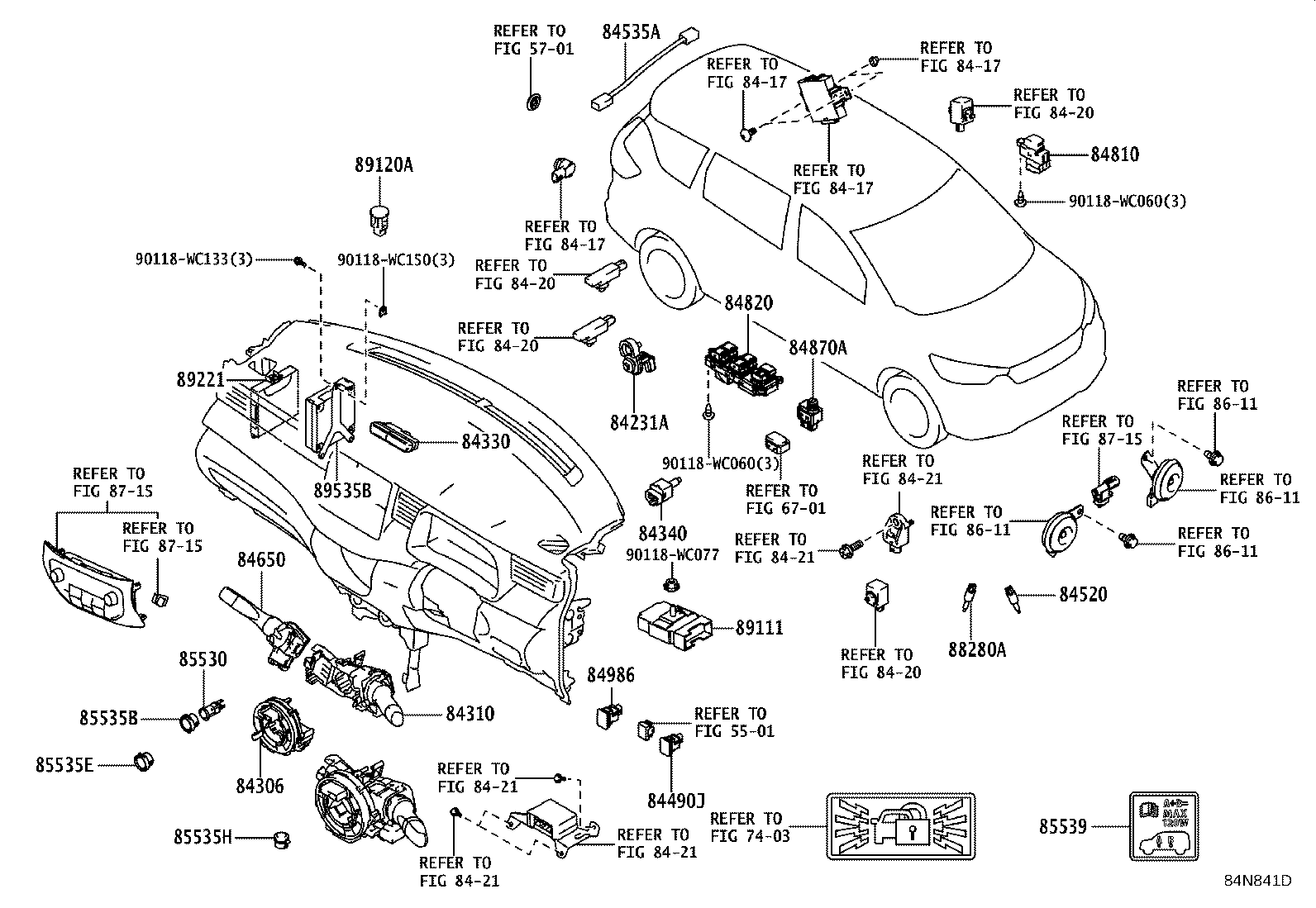

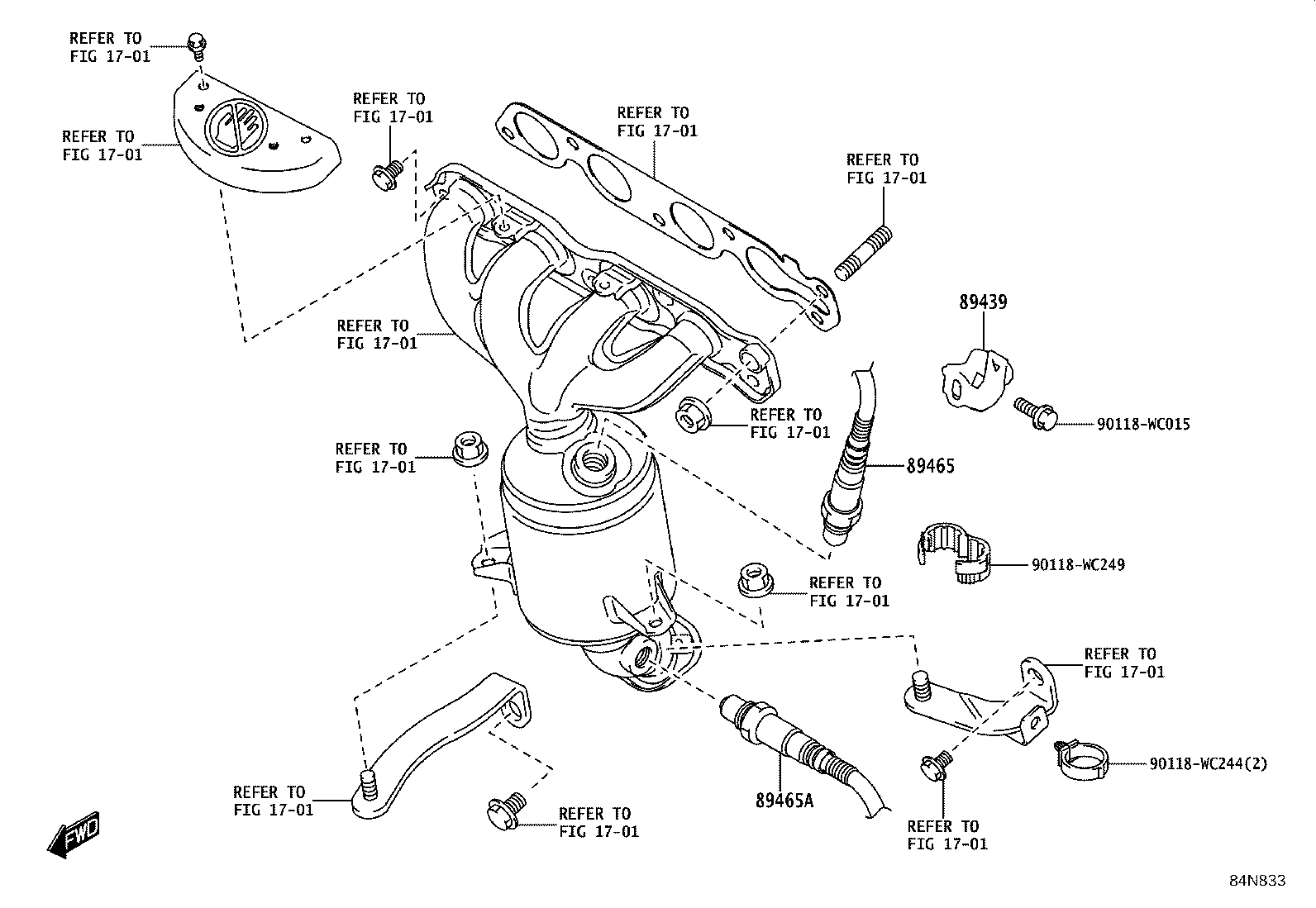

Figure 84N829 84N829 2021-08 → — Figure 84N830 84N830 2021-08 → — Figure 84N831 84N831 2021-08 → — Figure 84N832 84N832 2021-08 → — Figure 84N833 84N833 2021-08 → — Figure 84N834 84N834 2021-08 → — Figure 84N835 84N835 2021-08 → — Figure 84N836 84N836 2021-08 → — Figure 84N837A 84N837A 2021-08 → — Figure 84N838A 84N838A 2021-08 → — Figure 84N839 84N839 2021-08 → — Figure 84N840D 84N840D 2021-08 → — Figure 84N841D 84N841D 2021-08 → — Figure 84N842 84N842 2021-08 → — Figure 84N843 84N843 2021-08 → — Figure 84N844 84N844 2021-08 → — Figure 84N845 84N845 2021-08 → — Figure 84N846 84N846 2021-08 → —

Part groups

PNCDescription
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82620A Block Assy, Fusible Link
82661 Cover, Relay Block, NO.1
82672A Cover, Junction Block
82730 Block Assy, Instrument Panel Junction

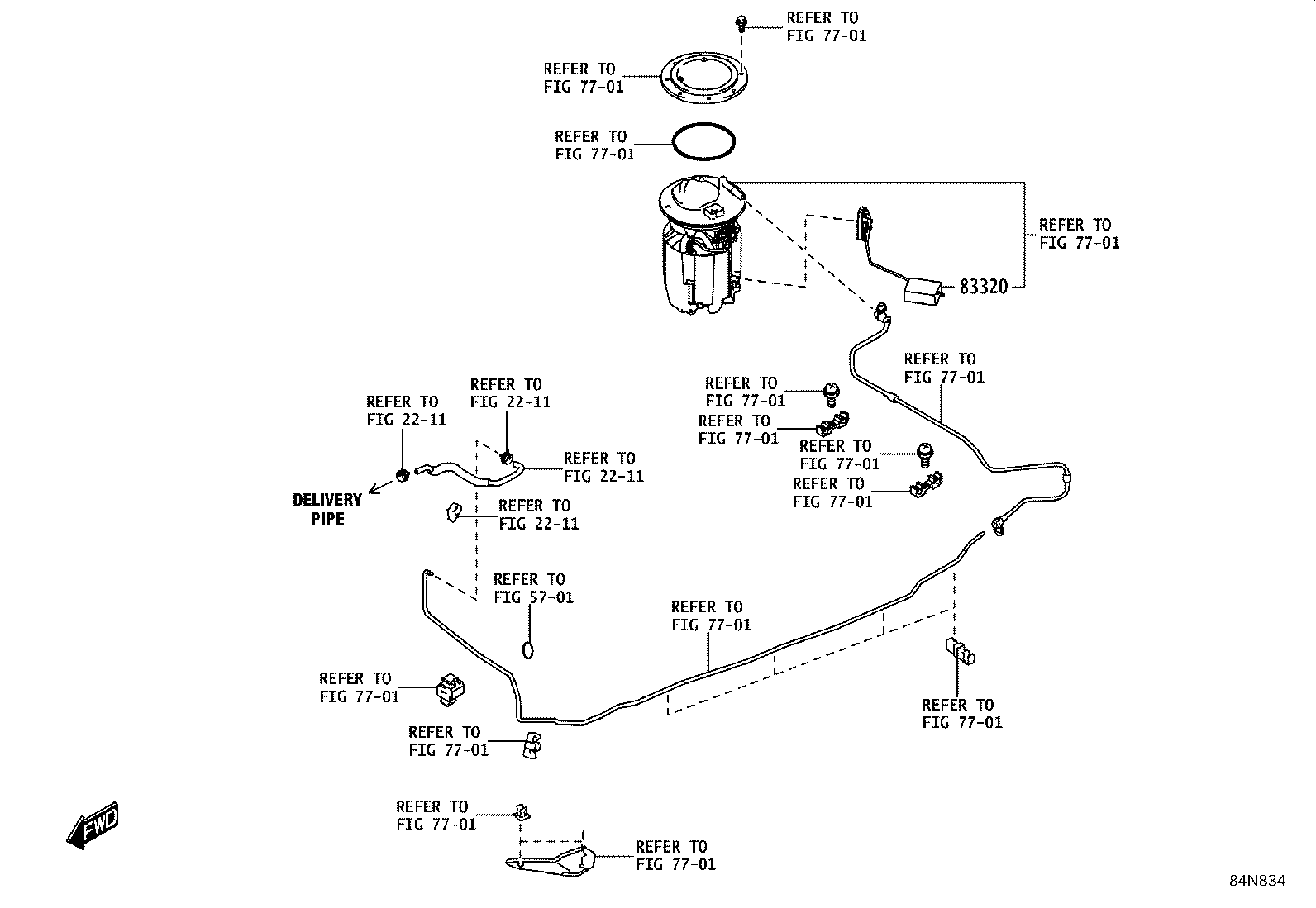

83320 Gage Assy, Fuel Sender

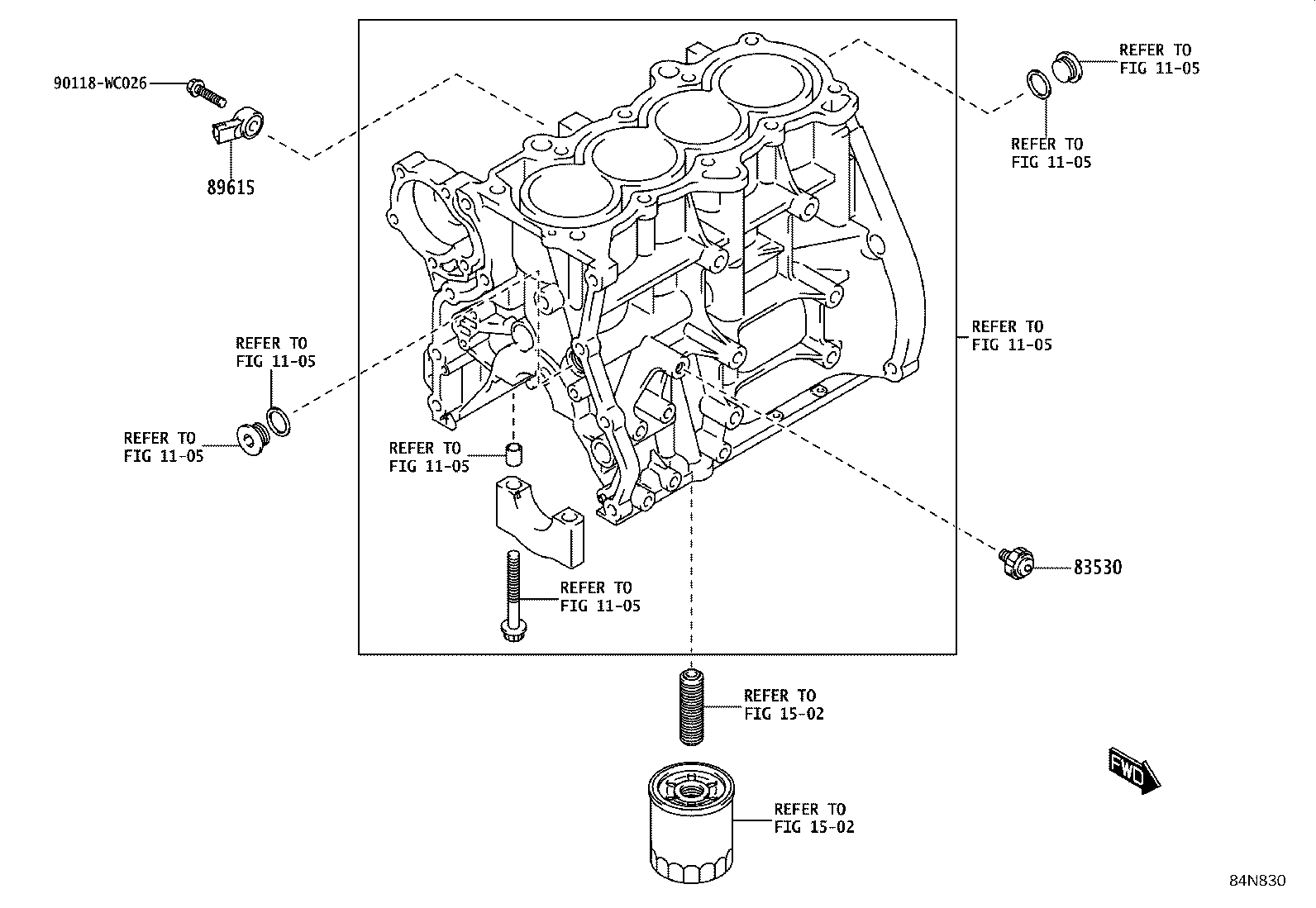

83530 Switch Assy, Oil Pressure (FOR ENGINE)

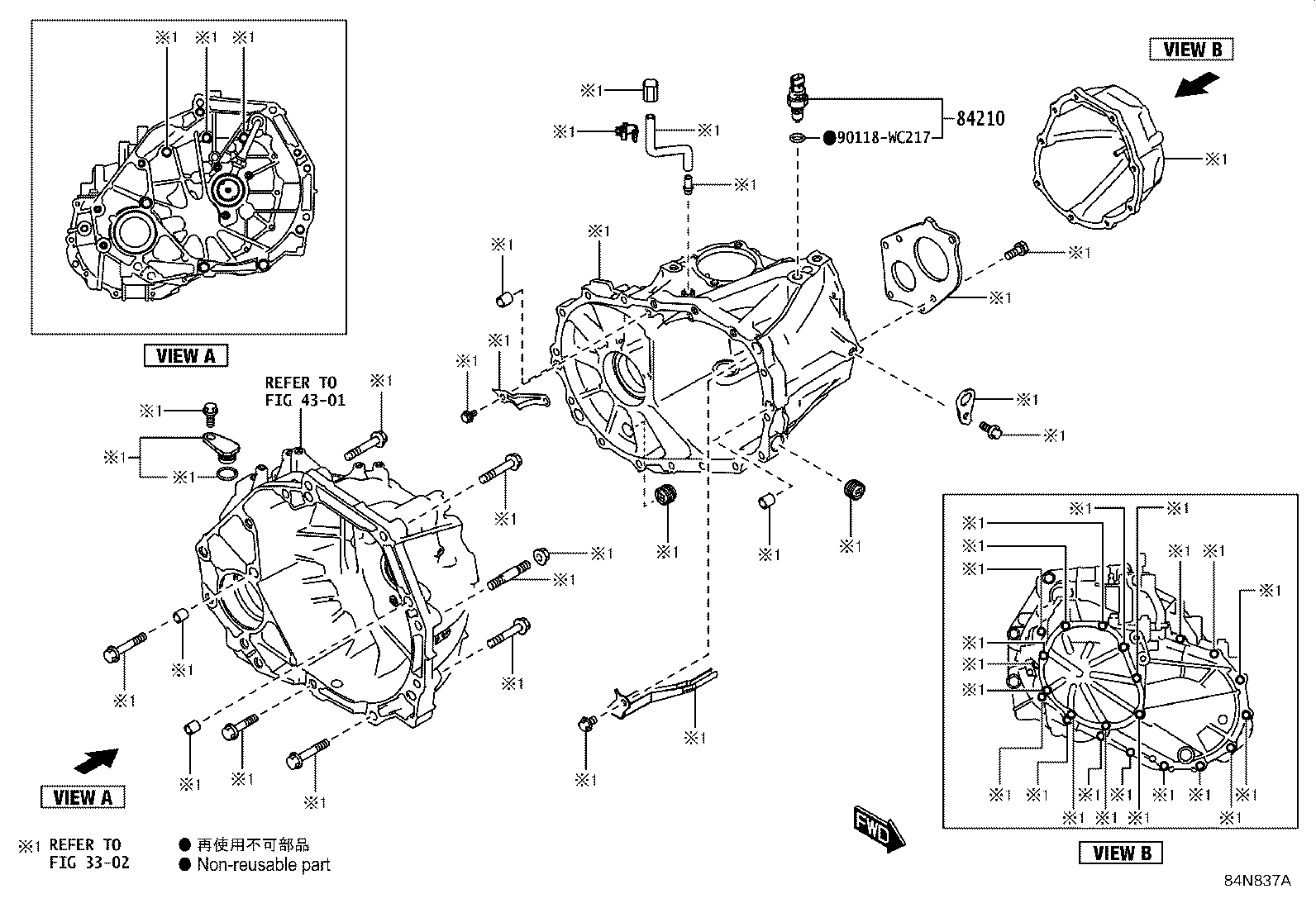

84210 Switch Assy, Back-up Lamp
84231A Switch, Courtesy Lamp
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84490J Switch Assy, Clearance Sonar
84520 Switch Assy, Clutch Start
84535A Switch, Door Lock

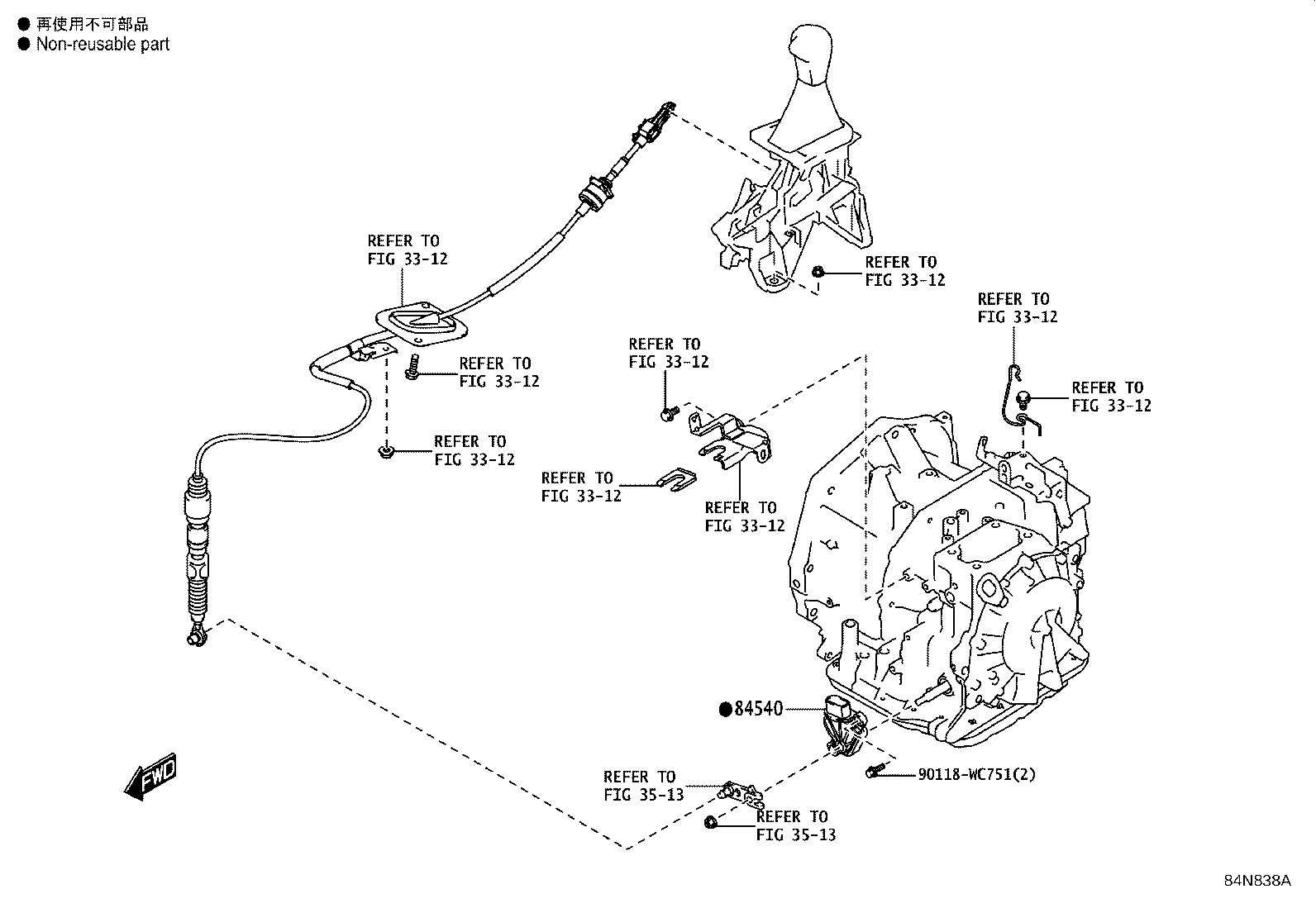

84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84986 Switch, Vehicle Stability Control
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85535G Cap, Power Outlet Socket
85535H Cover, Power Outlet Socket, NO.3
85539 Label, Power Outlet Notice
88280A Switch Assy, Clutch
88630G Relay Assy, Cooler
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body

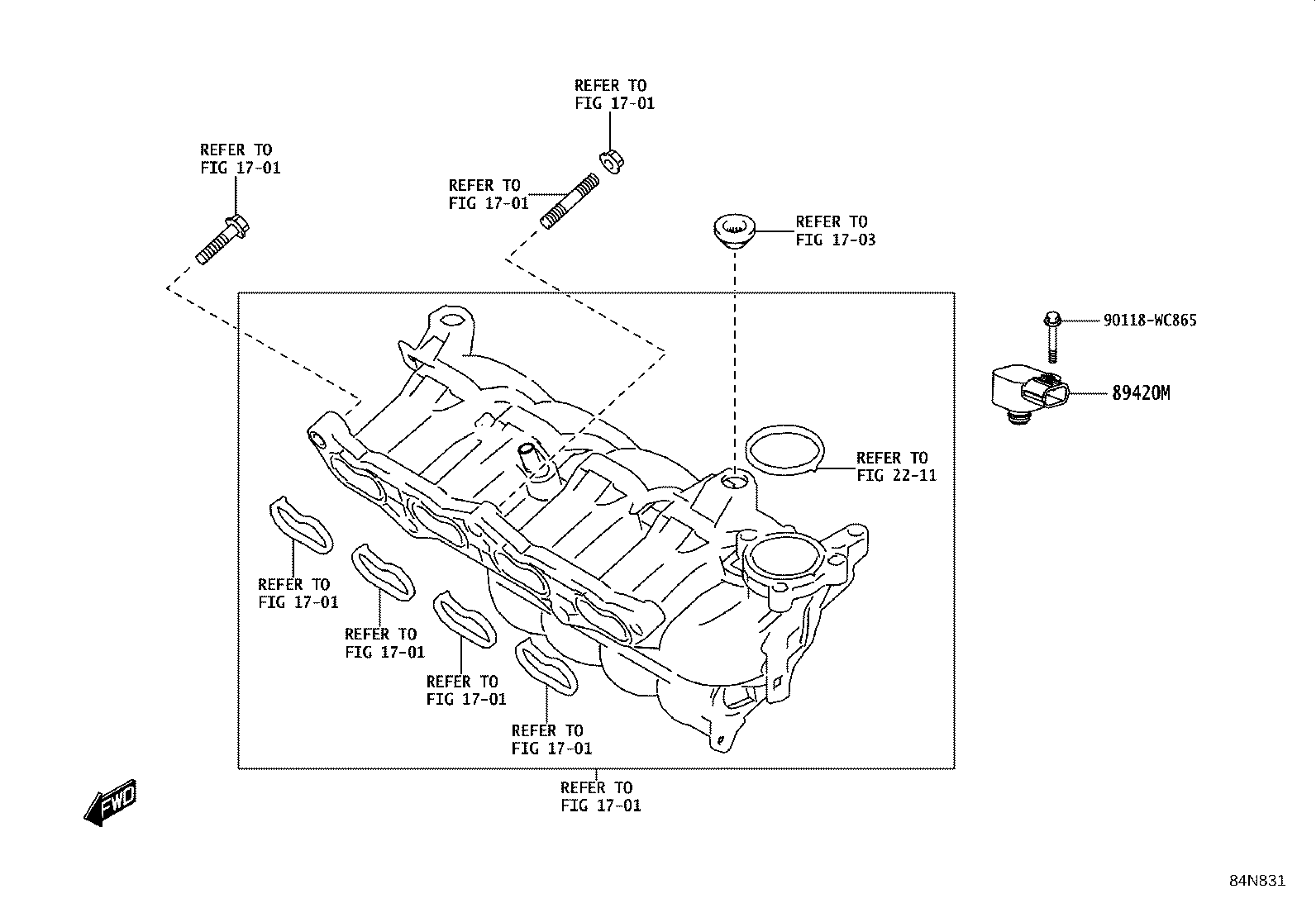

89420M Sensor Assy, Air Pressure
89422A Sensor, Water Temperature

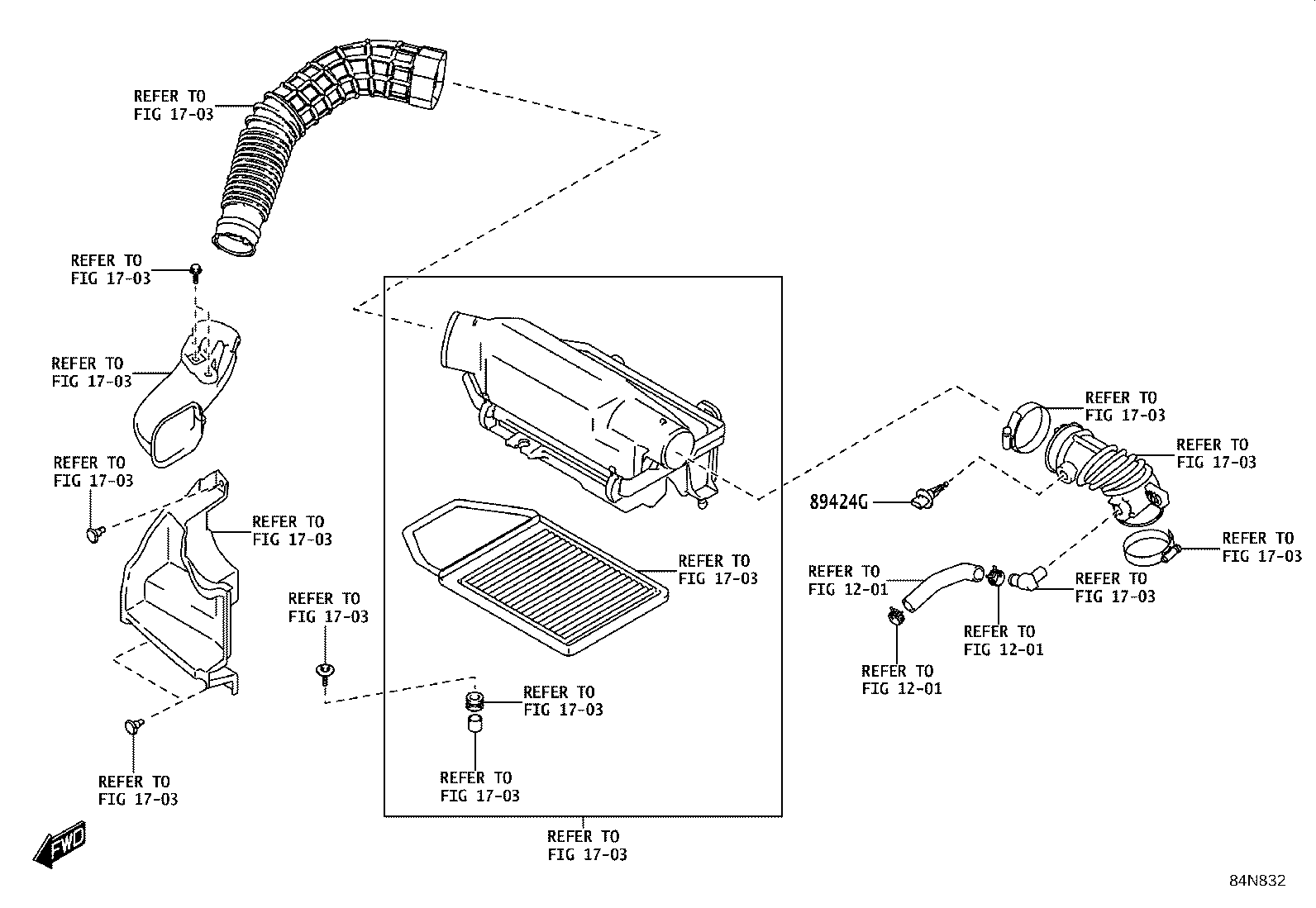

89424G Sensor, Inlet Air Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89535B Computer, Transmission Control
89539E Bracket, Computer

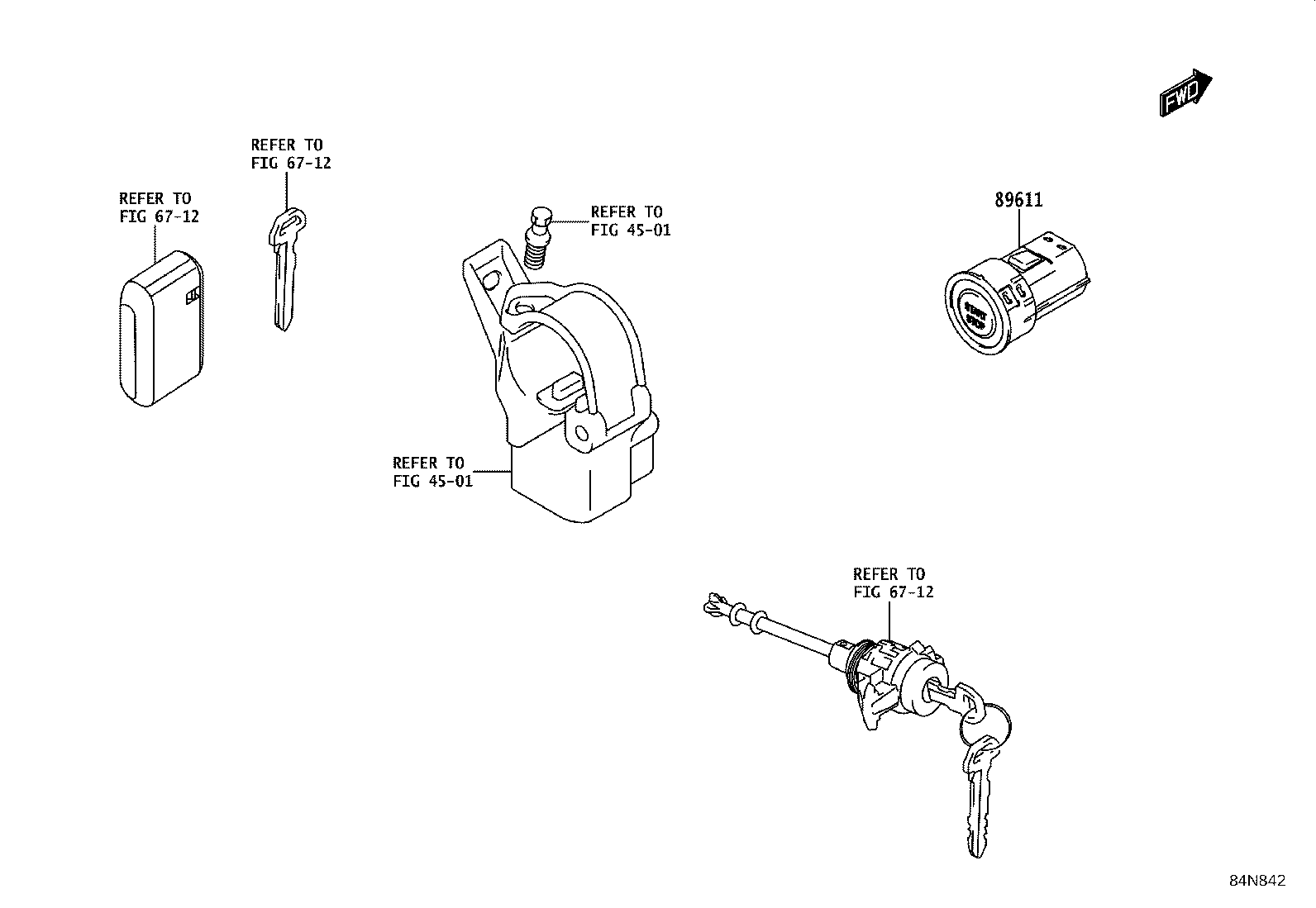

89611 Switch, Push Start
89615 Sensor, Knock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
