Toyota Rumion
2021-08 → present · chassis K15B · catalogue 139310 · General
Supported model
Data version 2022-05
Rear Washer

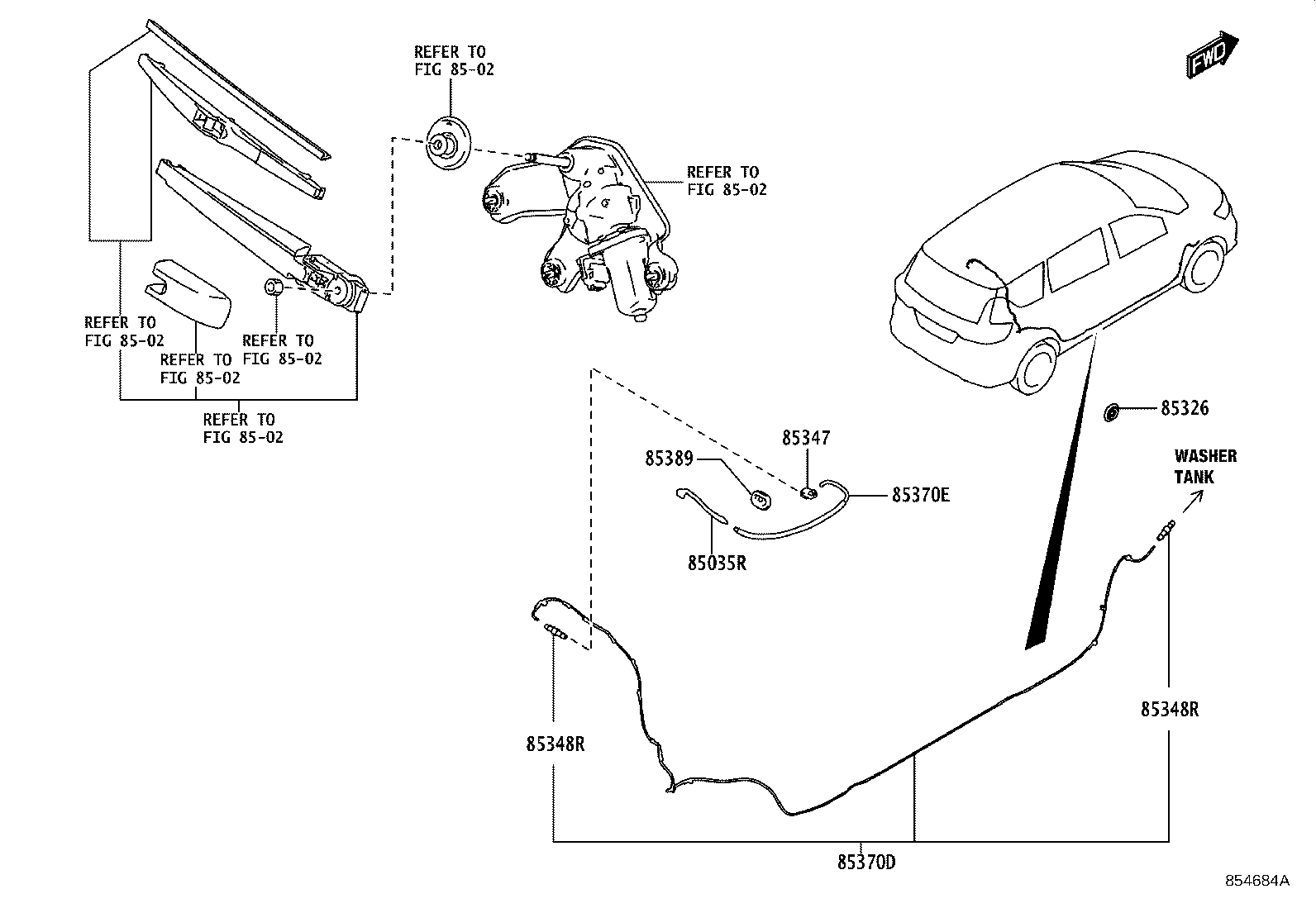

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85035R | Nozzle Sub-assy, Rear Washer |
| 85310R | Motor Assy, Rear Washer |
| 85326 | Packing, Washer |
| 85330S | Bush, Rear Washer Jar |
| 85347 | Packing, Rear Washer |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85370D | Hose Assy, Rear Washer, NO.1 |
| 85370E | Hose Assy, Rear Washer, NO.2 |
| 85389 | Packing, Windshield Washer Hose, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
