Toyota Rumion
2021-08 → present · chassis K15B · catalogue 139310 · General
Supported model
Data version 2022-05
Heating & Air Conditioning - Cooler Unit

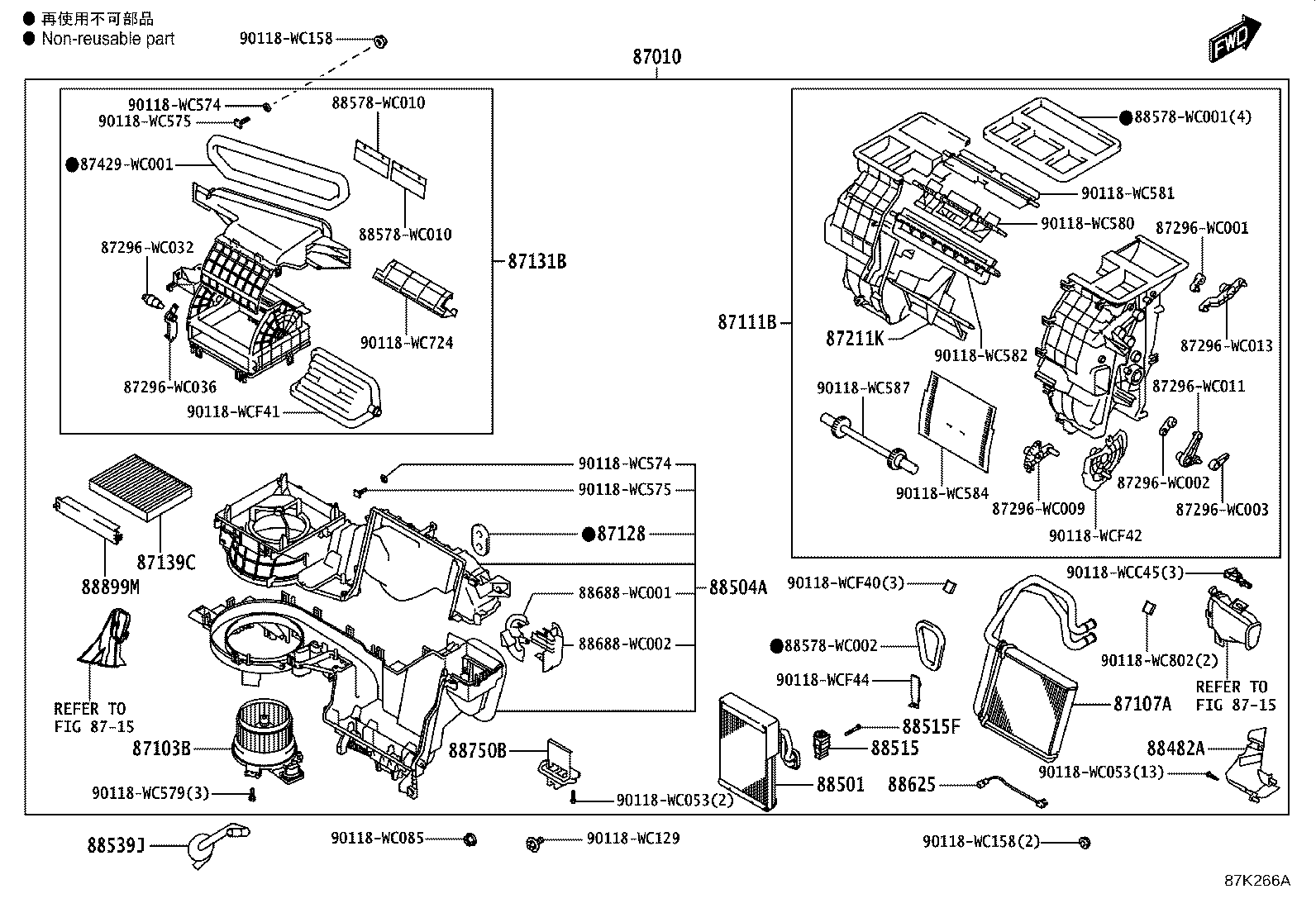

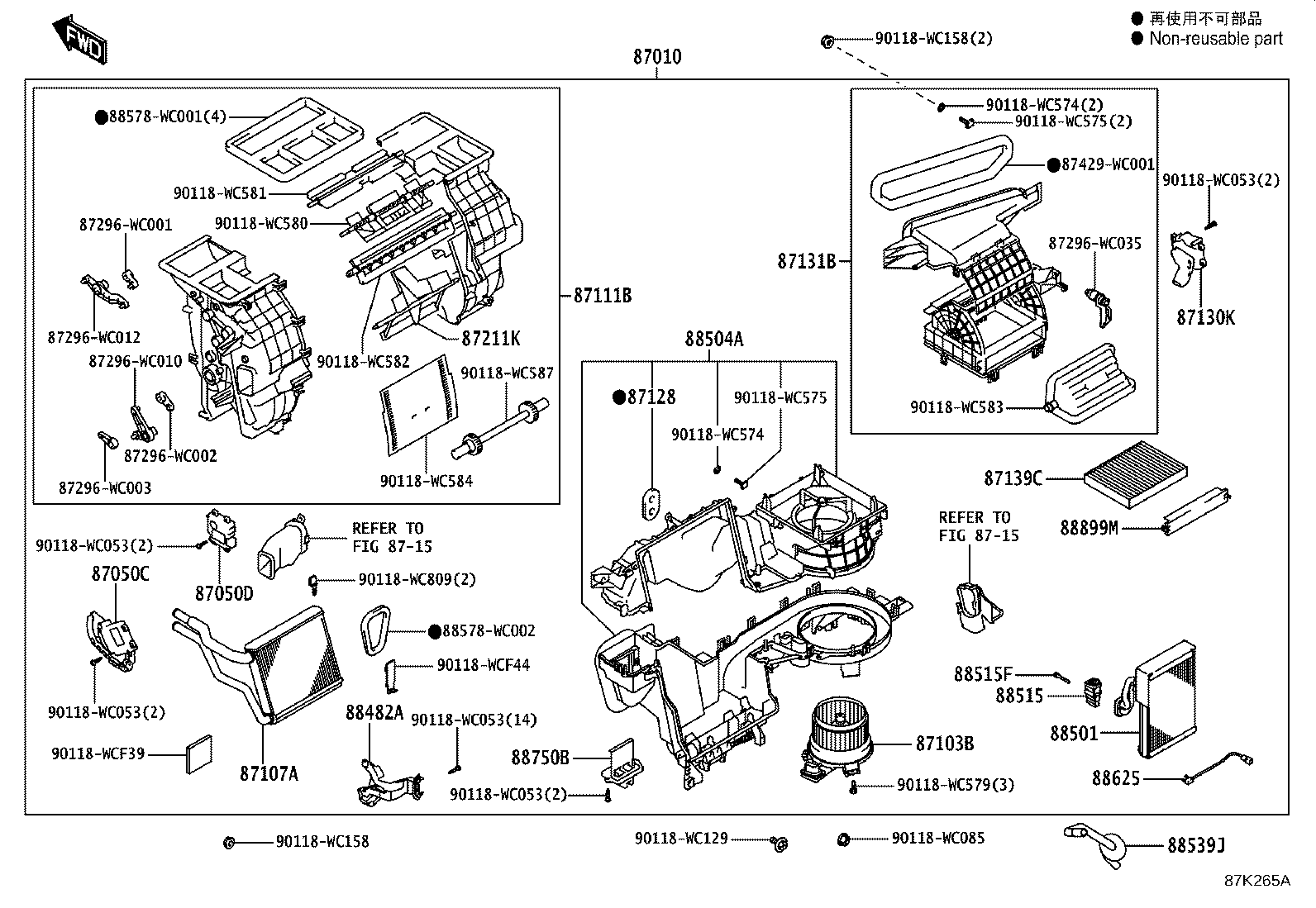

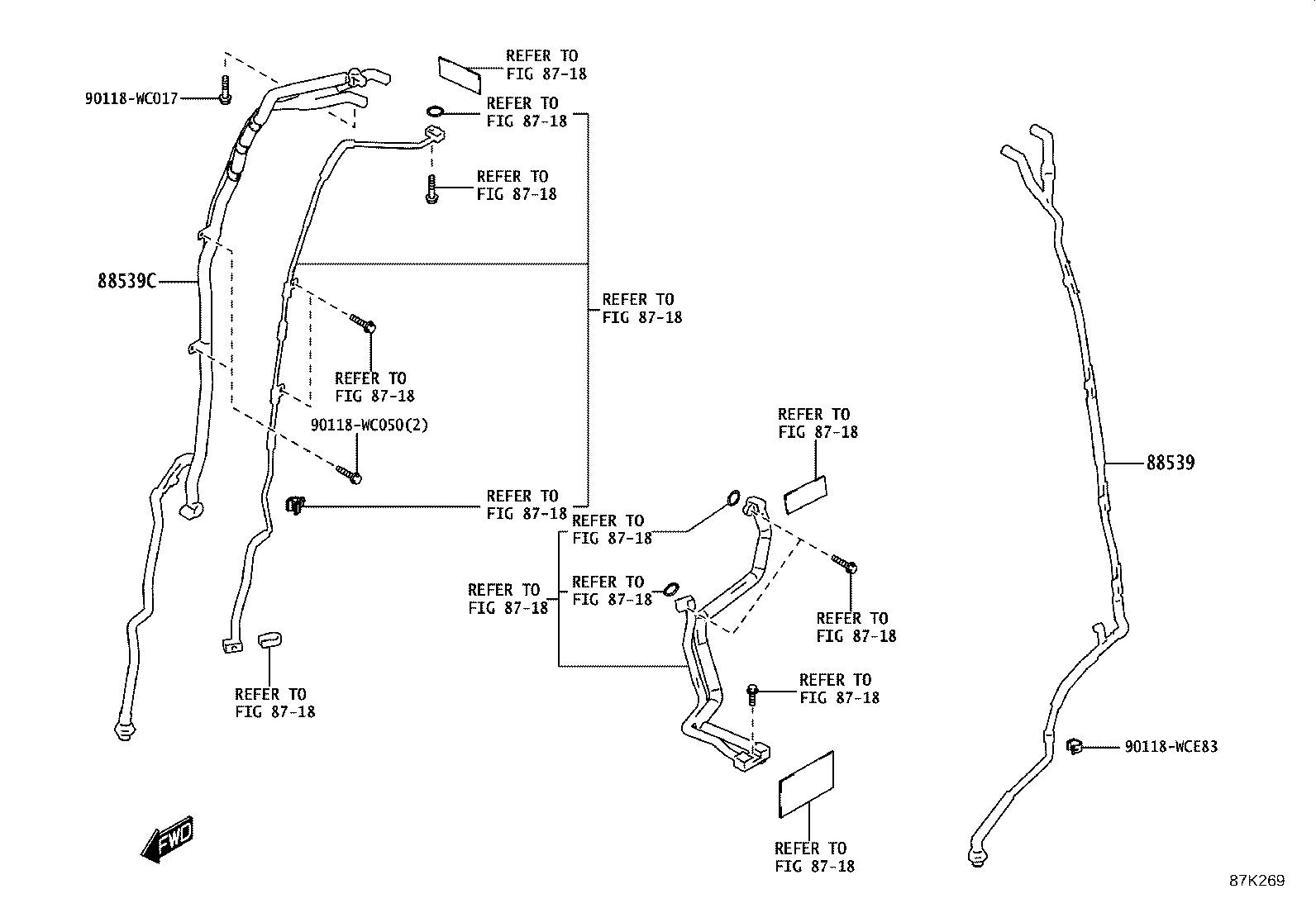

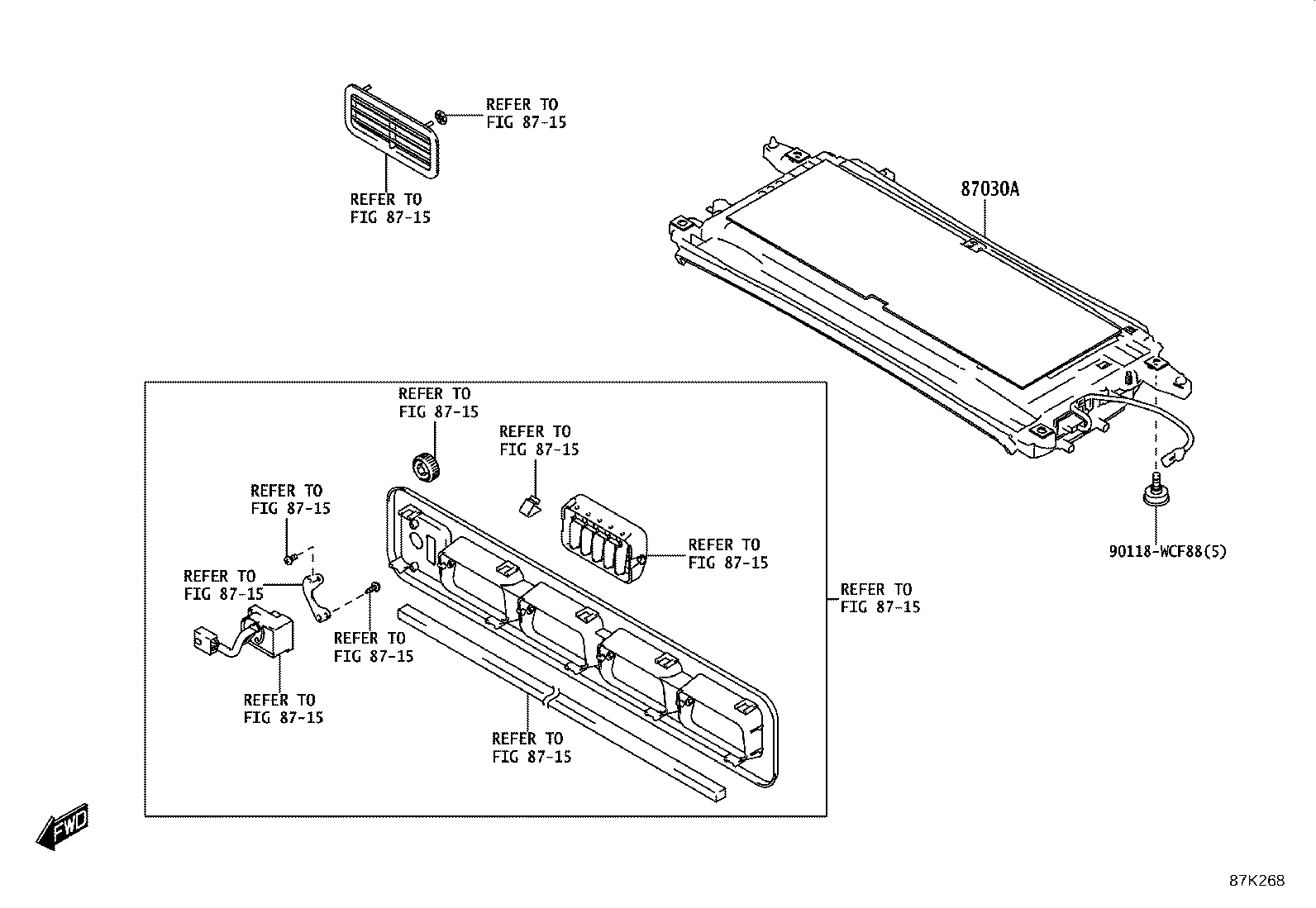

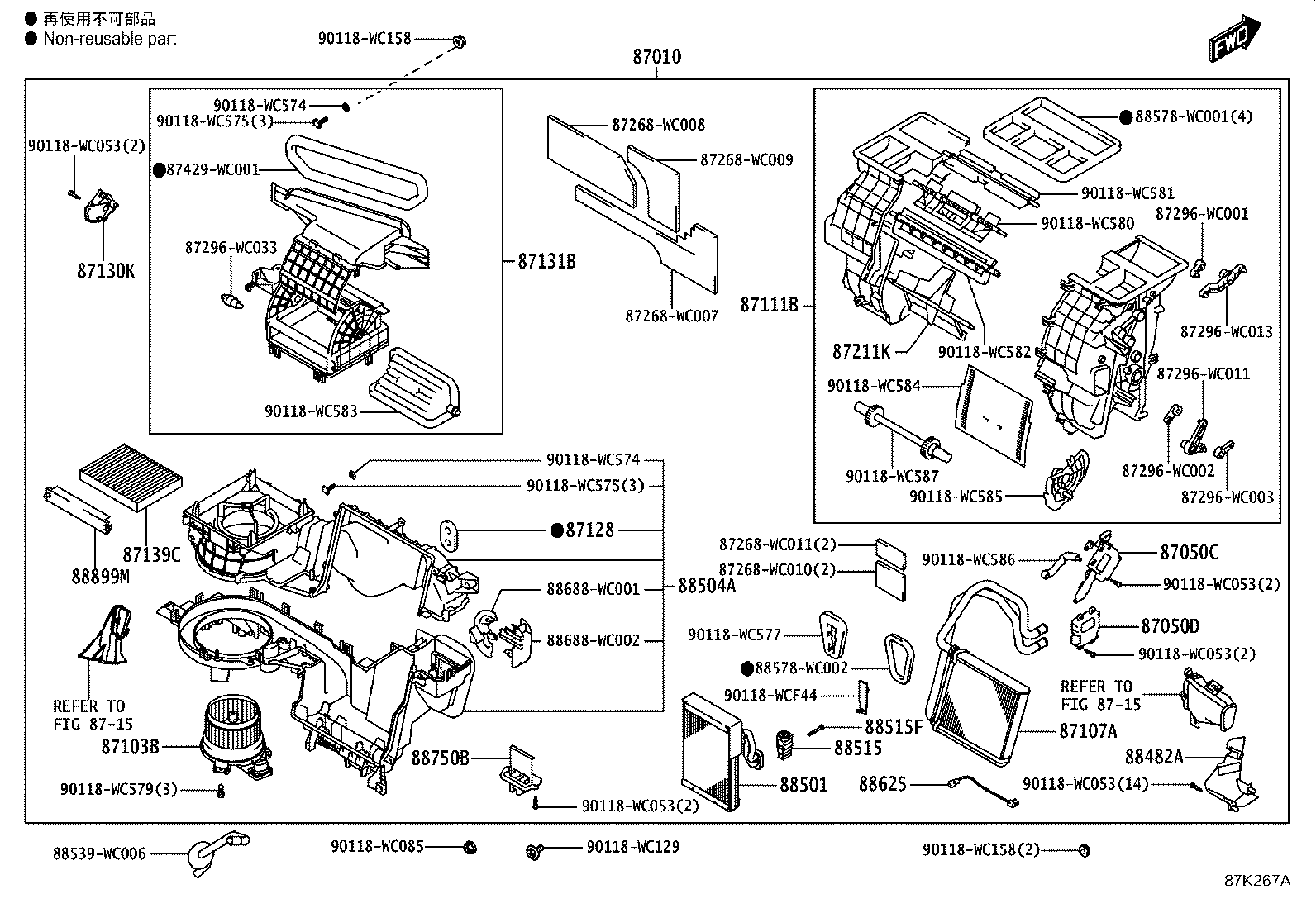

23 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 87010 | Unit Assy, Air Conditioner |
| 87030A | Unit Assy, Cooling, Rear |
| 87050C | Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 |
| 87050D | Damper Servo Sub-assy, Air Conditioner Radiator, NO.2 |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87111B | Case, Heater |
| 87128 | Grommet, Heater |
| 87130K | Damper Servo Sub-assy, Blower, NO.1 |
| 87131B | Case, Heater Blower |
| 87139C | Filter, Clean Air |
| 87211K | Duct, Air |
| 88482A | Cover |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88504A | Case Sub-assy, Blower |
| 88515 | Valve, Cooler Expansion |
| 88515F | Bolt(FOR COOLER EXPANSION VALVE) |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88539J | Hose, Drain Cooler |
| 88625 | Thermistor, Cooler, NO.1 |
| 88750B | Transistor Assy, Blower Resistor |
| 88899M | Plate, Cover(FOR AIR FILTER) |
PNC is the six-character part-group number the factory catalogue files
