Toyota Belta
2021-07 → present · chassis K15B · catalogue 13A310 · General
Supported model
Data version 2022-05
Cylinder Head
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |

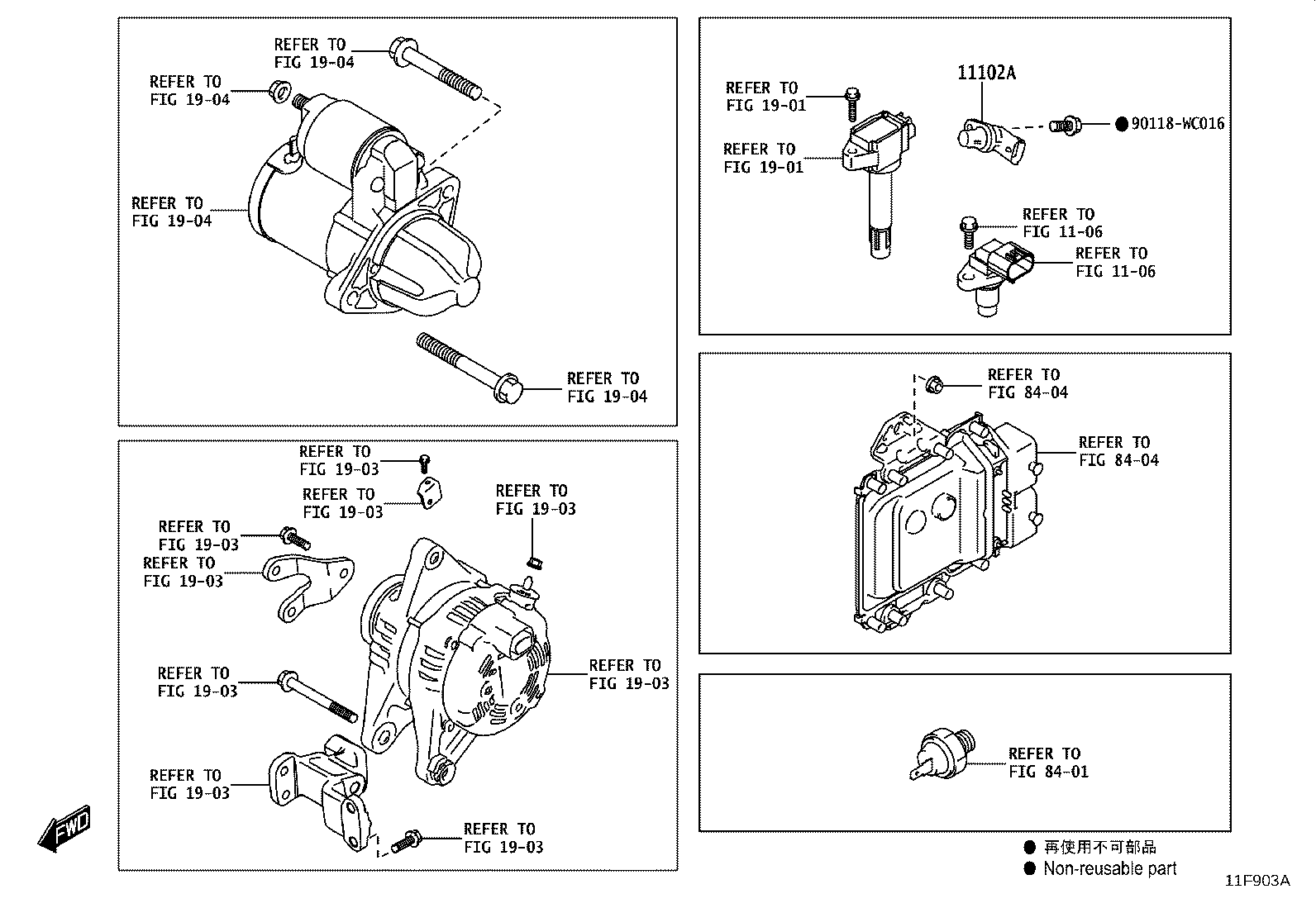

| 11102A | Sensor, Camshaft Position |
| 11115 | Gasket, Cylinder Head |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117J | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11119A | Pin, Straight, NO.1 |
| 11122 | Bush, Intake Valve Guide |
| 11126 | Bush, Exhaust Valve Guide |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11151H | Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING) |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11213 | Gasket, Cylinder Head Cover |
| 12108 | Cap Sub-assy, Oil Filler |
| 15301B | Gage Sub-assy, Oil Level |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
