Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

12 part groups · 3 illustrations

Illustrations

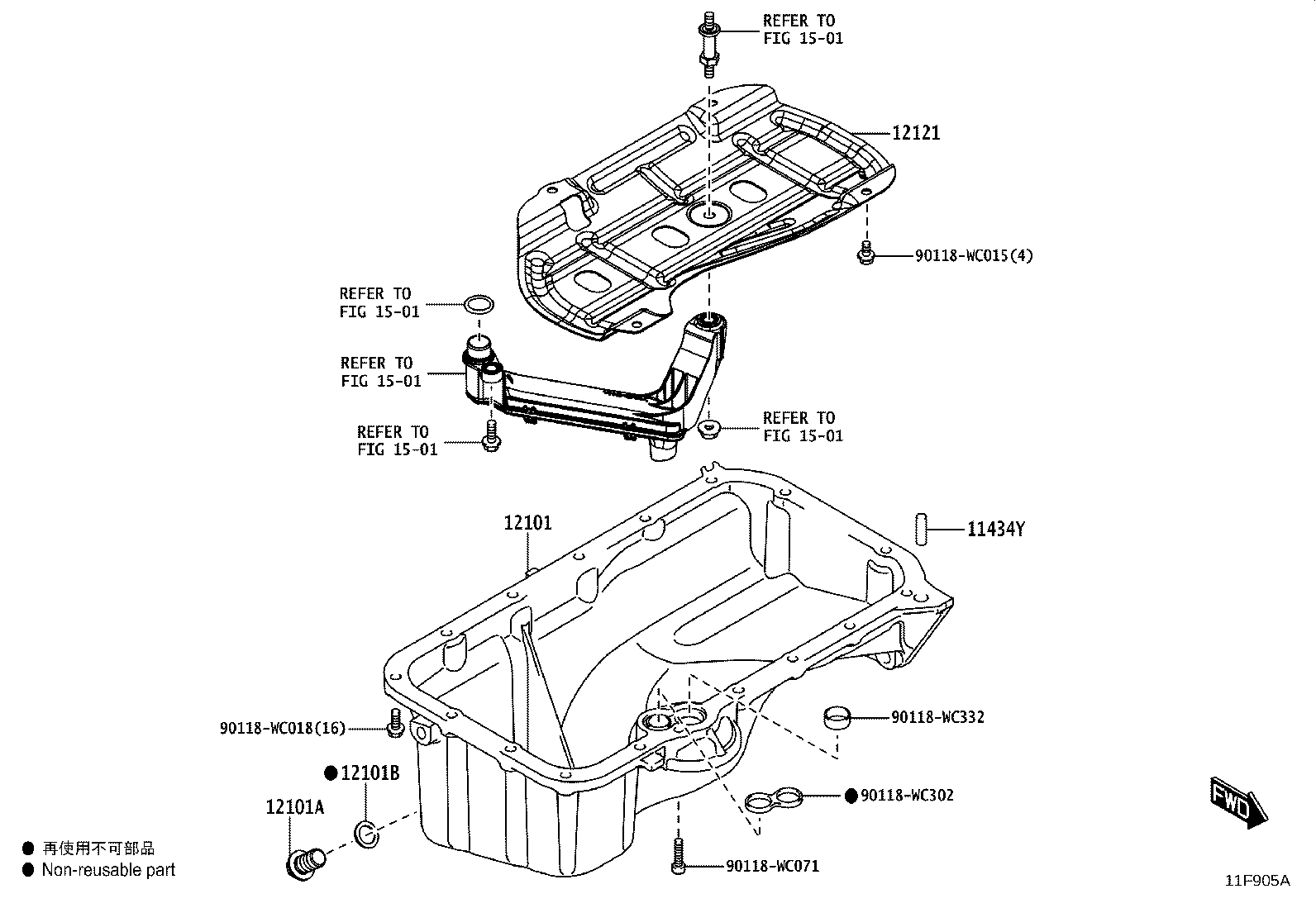

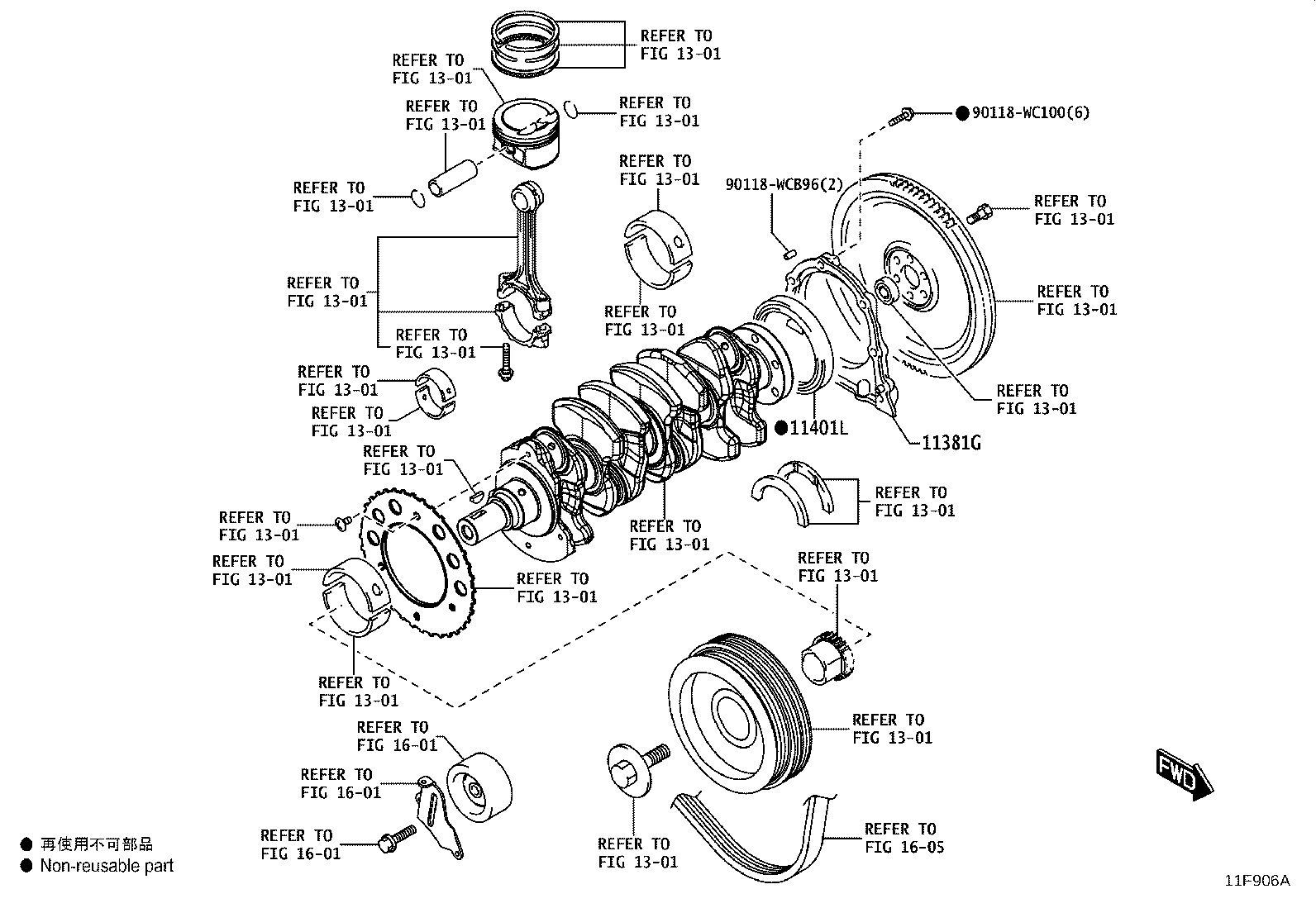

Figure 11F904 11F904 2021-07 → — Figure 11F905A 11F905A 2021-07 → — Figure 11F906A 11F906A 2021-07 → —

Part groups

PNCDescription
11381G Retainer, Engine Rear Oil Seal
11401 Block Sub-assy, Cylinder
11401E Gasket(FOR CYLINDER BLOCK PLUG)
11401L Seal, Engine Rear Oil
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11416A Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11434Y Pin, Straight(FOR OIL PAN)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12121 Plate, Oil Pan Baffle, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
