Toyota Belta
2021-07 → present · chassis K15B · catalogue 13A310 · General
Supported model
Data version 2022-05
Mounting

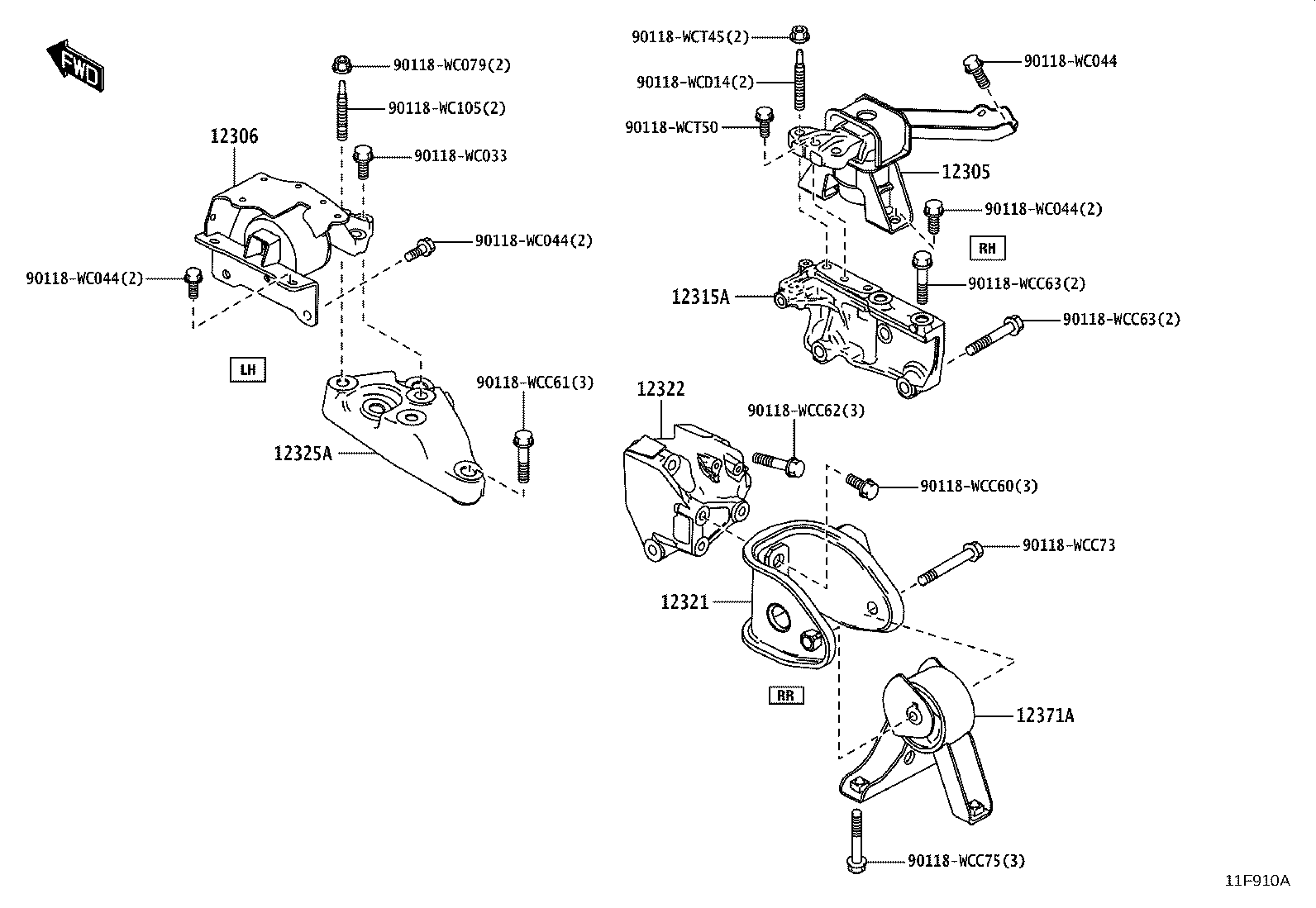

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12305 | Insulator Sub-assy, Engine Mounting, RH |
| 12306 | Insulator Sub-assy, Engine Mounting, LH |
| 12315A | Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) |
| 12321 | Bracket, Engine Mounting, Rear, NO.1 |
| 12322 | Bracket, Engine Mounting, Rear NO.2 |
| 12325A | Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 12371A | Insulator, Engine Mounting, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
