Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

9 part groups · 2 illustrations

Illustrations

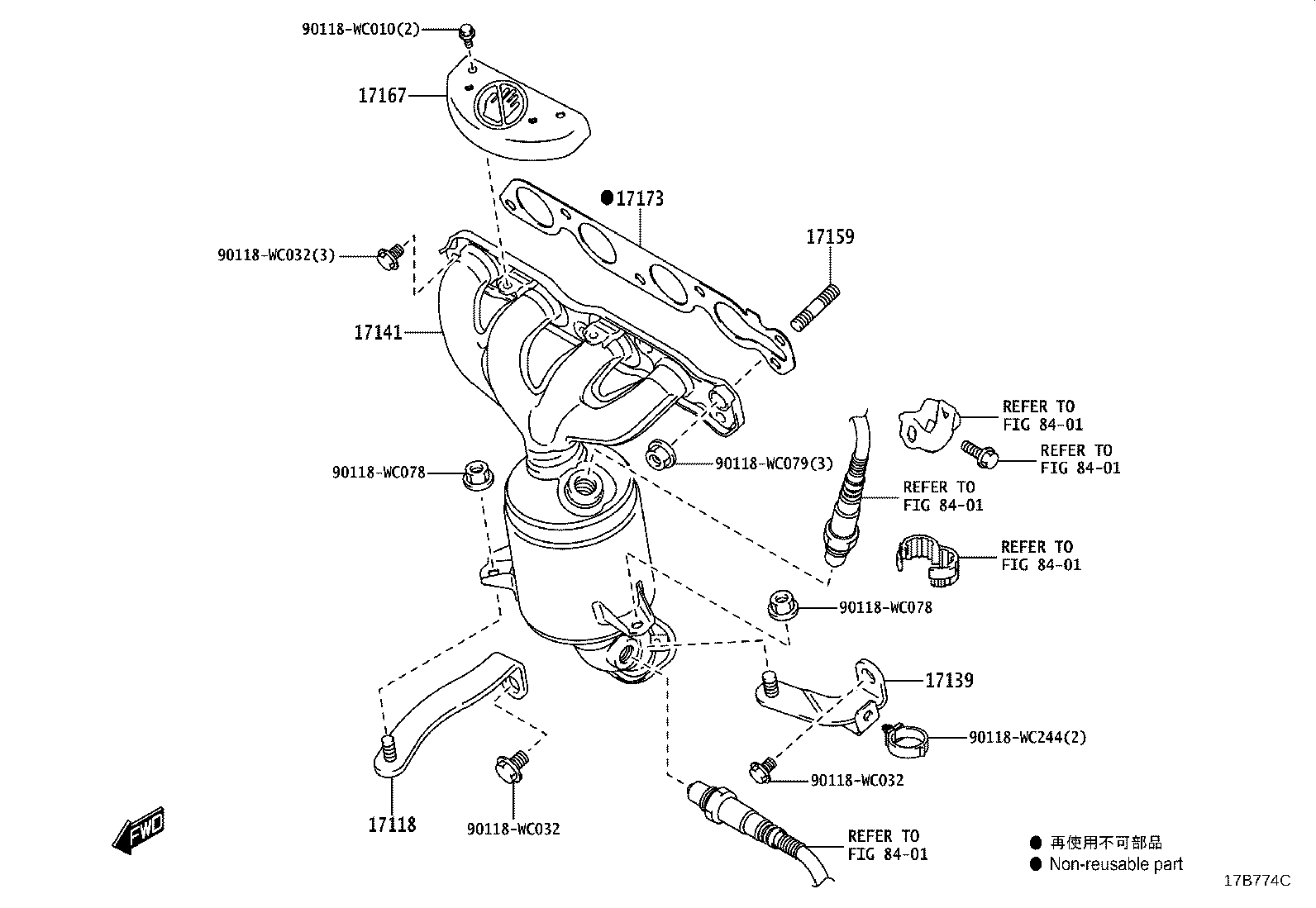

Figure 17B773A 17B773A 2021-07 → — Figure 17B774C 17B774C 2021-07 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
