Toyota Belta
2021-07 → present · chassis K15B · catalogue 13A310 · General
Supported model
Data version 2022-05
Shift Lever & Retainer
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

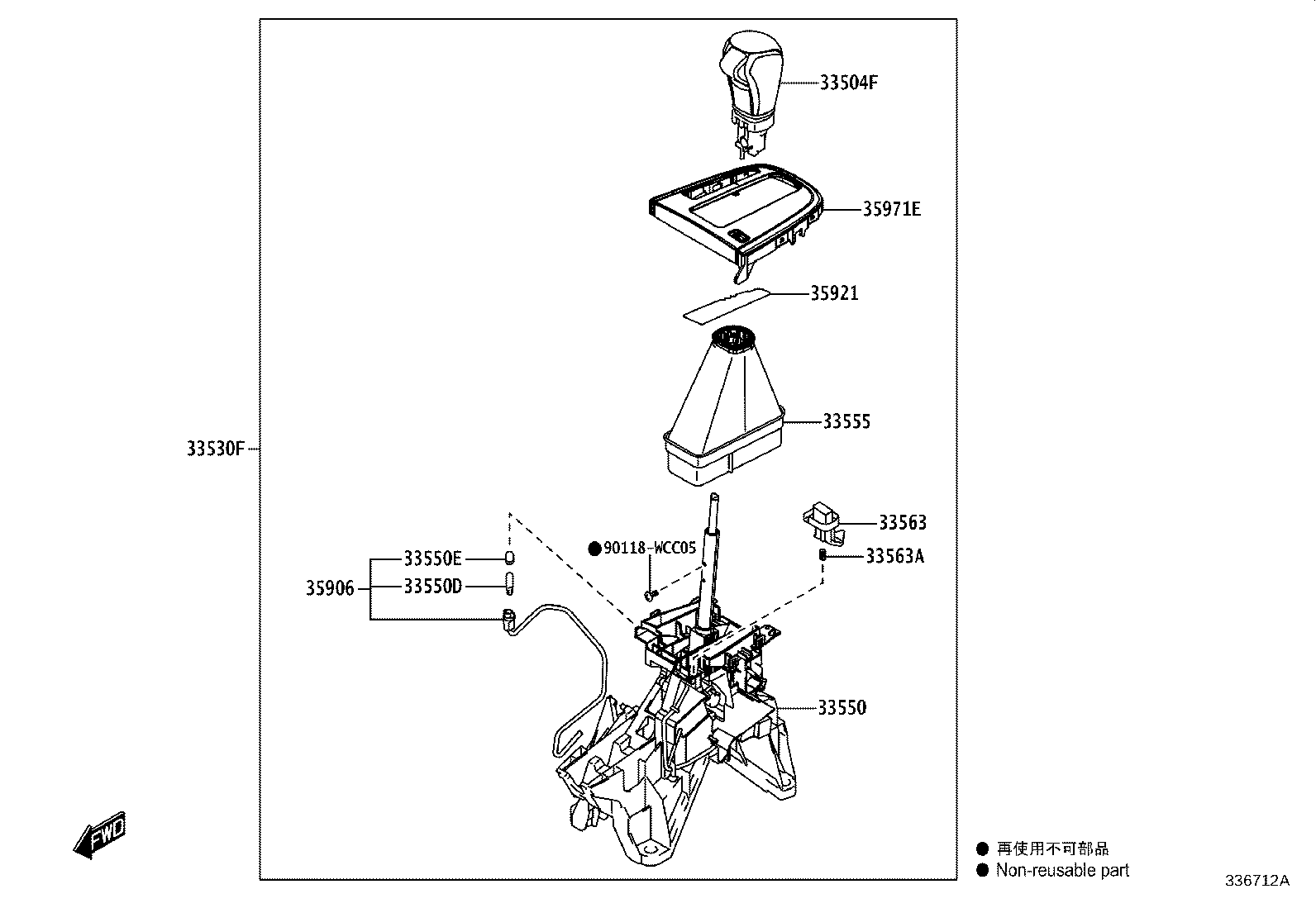

| 33504F | Knob Sub-assy, Shift Lever |
| 33524F | Bracket, Control Lever Housing Support (FOR FLOOR SHIFT) |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33550 | Floor Shift Assy, Transmission |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33555 | Boot, Shift Lever |
| 33563 | Button, Shift Lock Release |
| 33563A | Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON) |

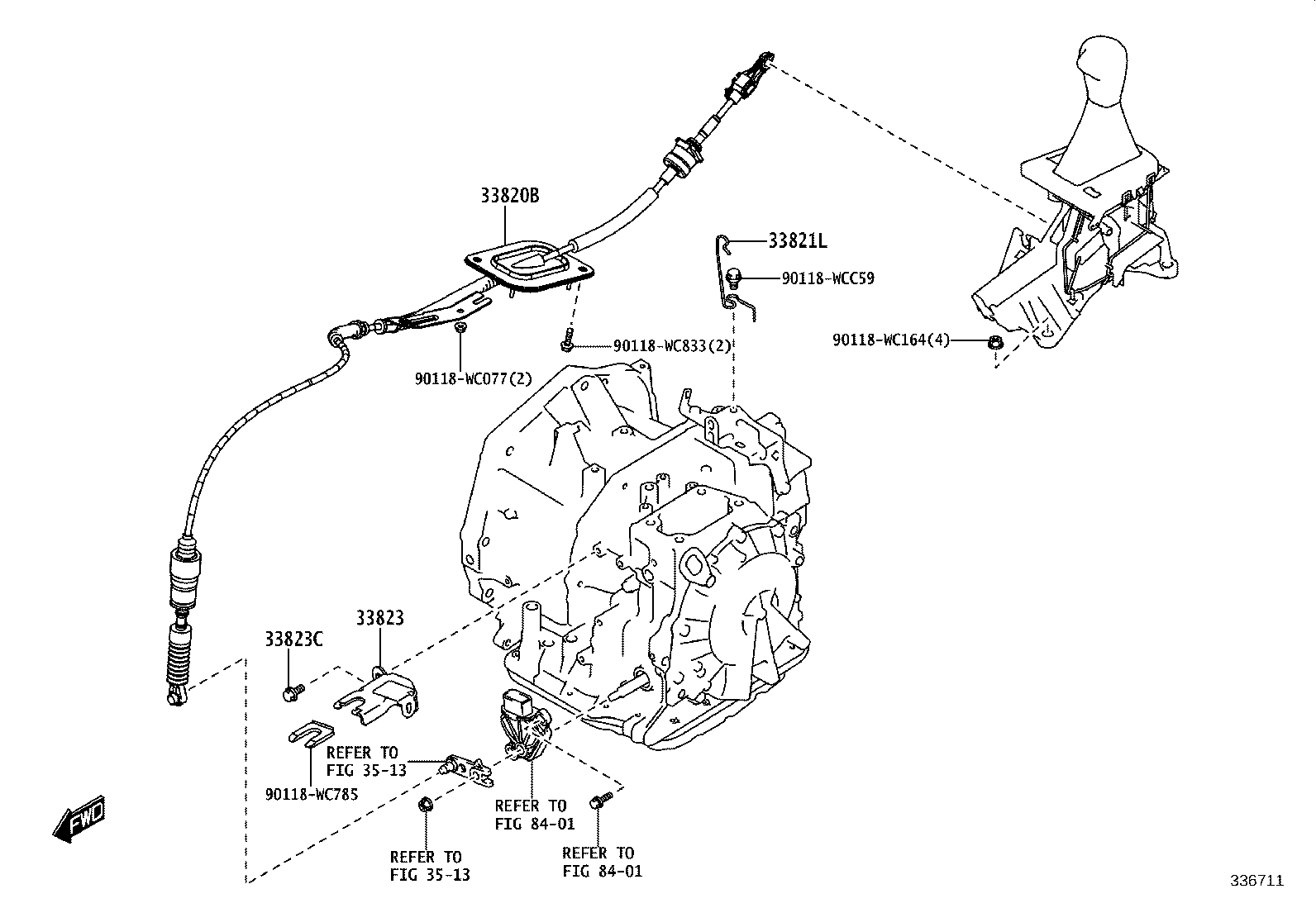

| 33820B | Cable Assy, Transmission Control |
| 33821L | Clamp |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33823C | Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) |
| 33880A | Cable Assy, Parking Lock (FOR FLOOR SHIFT) |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35971E | Housing, Position Indicator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
