Torque Converter, Front Oil Pump & Chain (ATM)

9 part groups · 2 illustrations

Illustrations

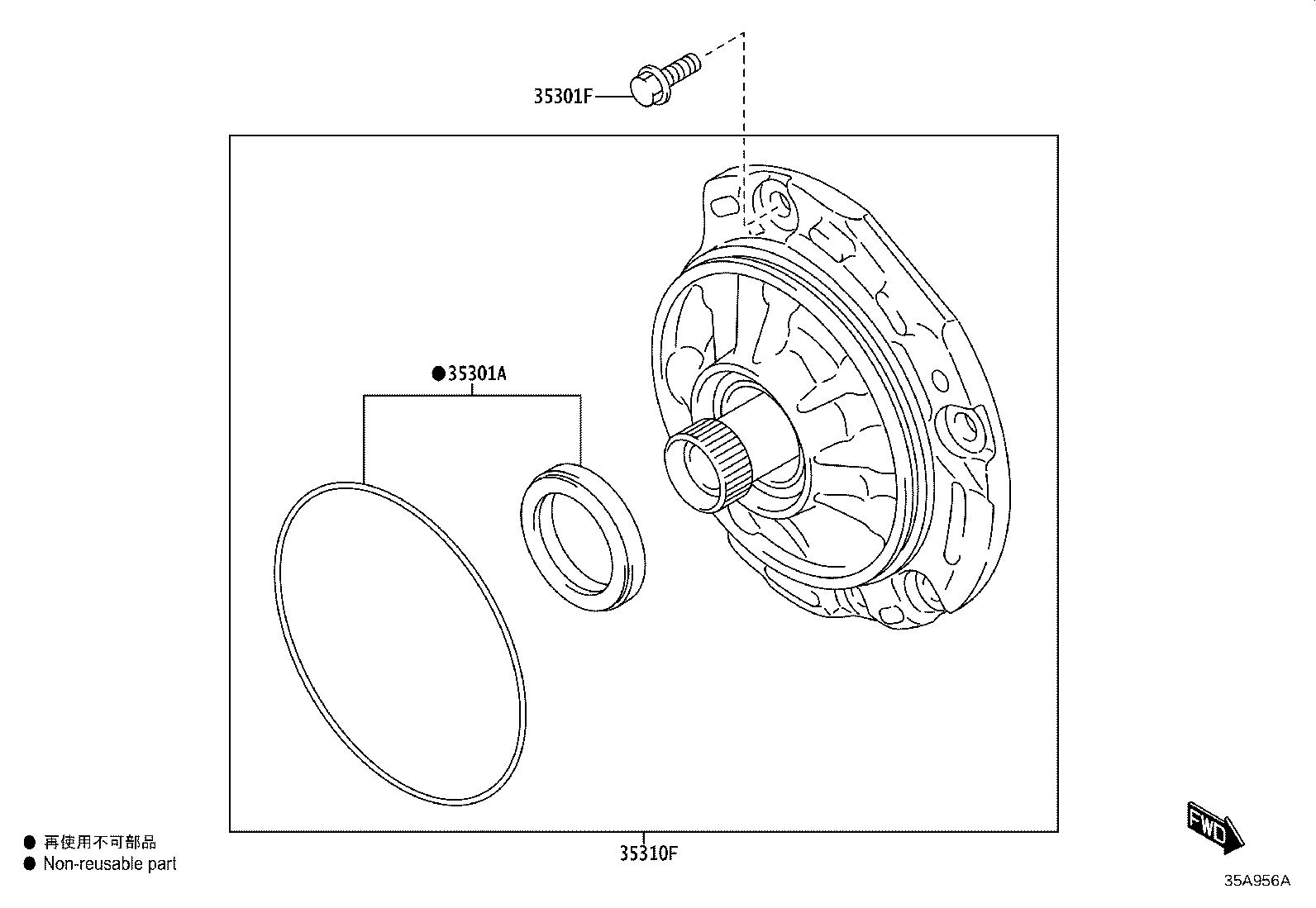

Figure 35A955A 35A955A 2021-07 → — Figure 35A956A 35A956A 2021-07 → —

Part groups

PNCDescription
32000 Converter Assy, Torque
32101 Gear Sub-assy, Drive Plate & Ring
32101A Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101C Bolt, Hexagon(FOR DRIVE PLATE SETTING)
32116 Spacer, Drive Plate, Front
32117 Spacer, Drive Plate, Rear
35301A Seal, Oil (FOR FRONT OIL PUMP)
35301F Bolt (FOR FRONT OIL PUMP SETTING)
35310F Pump Assy, Front Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
