Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Band & Multiple Disc Clutch (ATM)

14 part groups · 3 illustrations

Illustrations

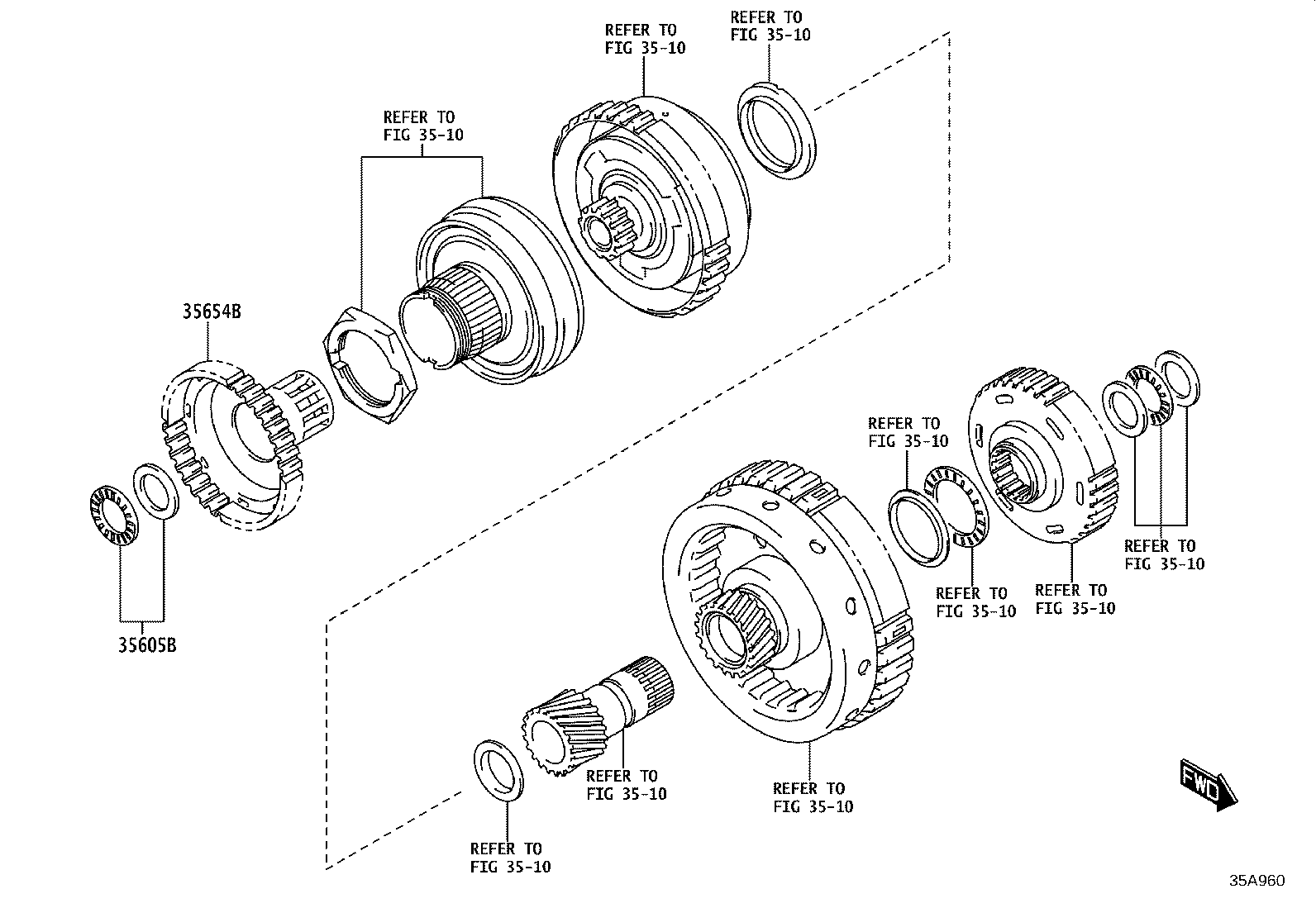

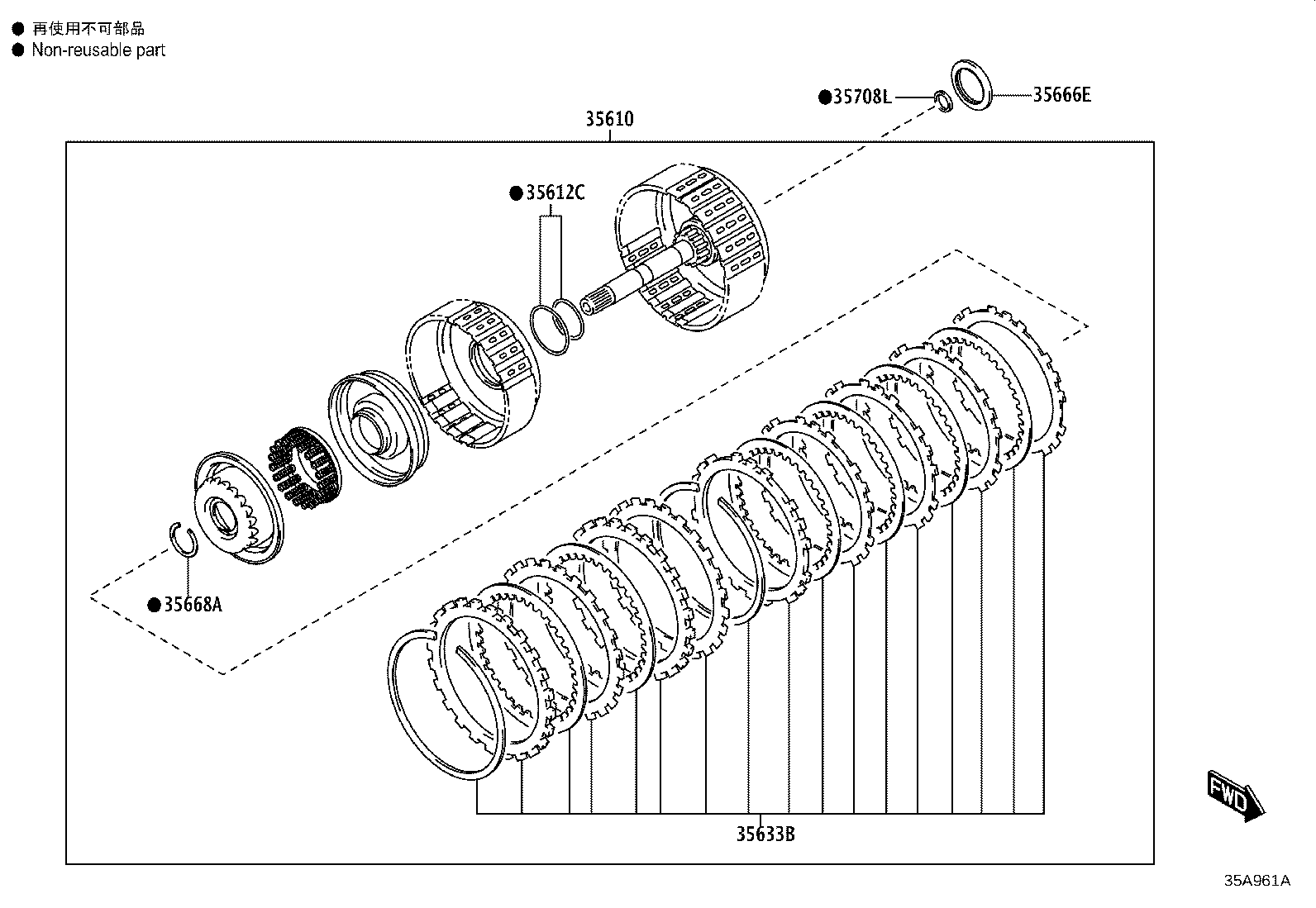

Figure 35A959A 35A959A 2021-07 → — Figure 35A960 35A960 2021-07 → — Figure 35A961A 35A961A 2021-07 → —

Part groups

PNCDescription
35605B Bearing, Thrust Needle Roller
35606C Ring, O (FOR DIRECT CLUTCH PISTON)
35606E Ring, Shaft Snap (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35610 Clutch Assy, Front Multiple Disc
35612C Ring, O(FOR FORWARD CLUTCH PISTON)
35633B Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
35650 Clutch Assy, Rear Multiple Disc
35654B Hub, Direct Clutch
35666E Balancer, Reverse Clutch
35667A Disk, Direct Clutch
35668A Ring, Snap(FOR CLUTCH BALANCER)
35701H Bearing, Thrust Needle Roller (FOR INPUT SHAFT)
35708L Ring, O (FOR INTERMEDIATE SHAFT)
35712A Ring, Input Shaft Oil Seal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
