Toyota Belta
2021-07 → present · chassis K15B · catalogue 13A310 · General
Supported model
Data version 2022-05

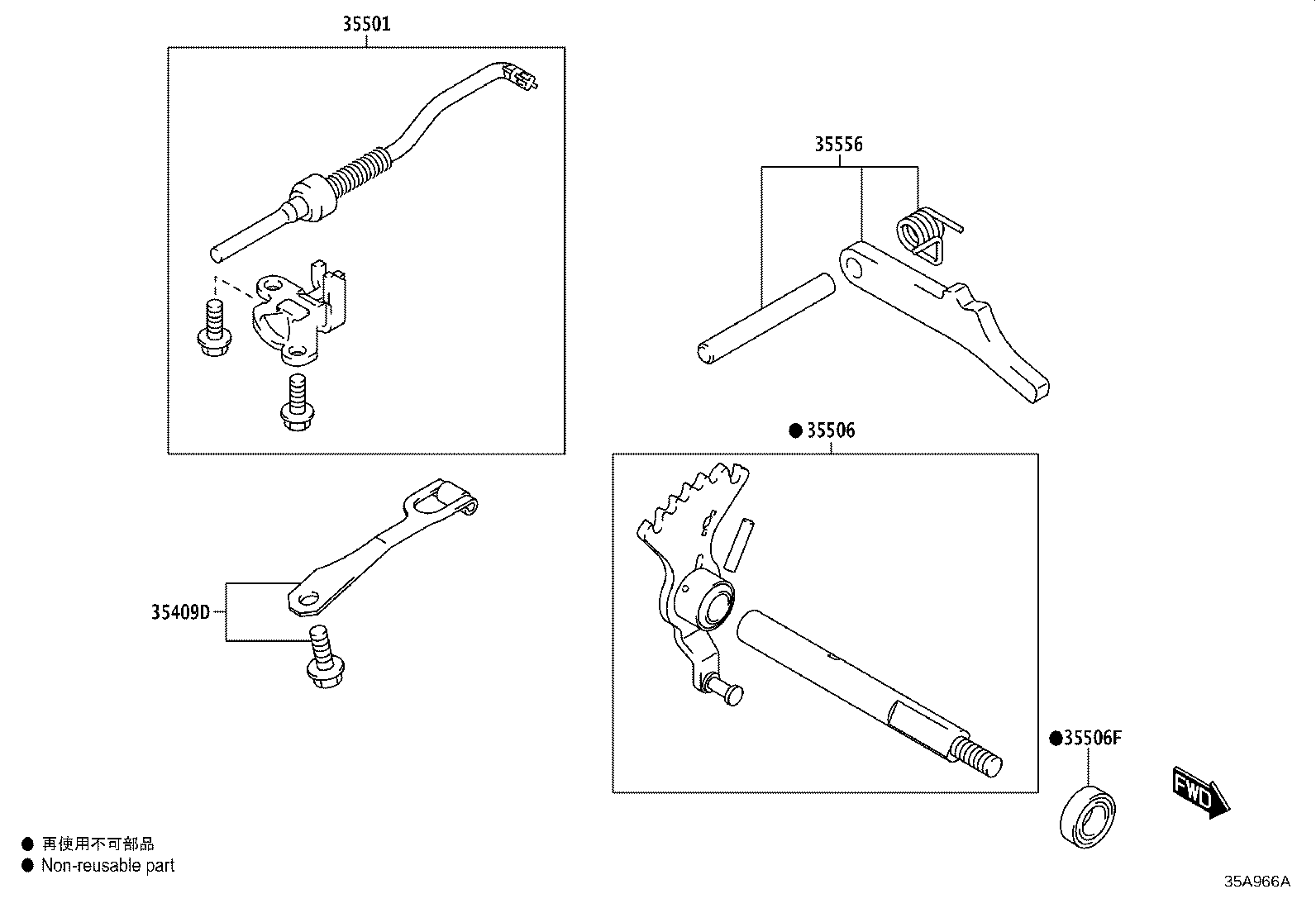

Throttle Link & Valve Lever (ATM)
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35409D | Spring Sub-assy, Manual Detent |
| 35501 | Rod Sub-assy, Parking Lock |
| 35506 | Shaft Sub-assy, Manual Valve Lever |
| 35506F | Seal, Oil (FOR MANUAL VALVE LEVER SHAFT) |
| 35556 | Shaft, Parking Lock Pawl |
| 35572A | Lever, Transmission Control Shaft |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
