Toyota Belta
2021-07 → present · chassis K15B · catalogue 13A310 · General
Supported model
Data version 2022-05
Front Axle Housing & Differential
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

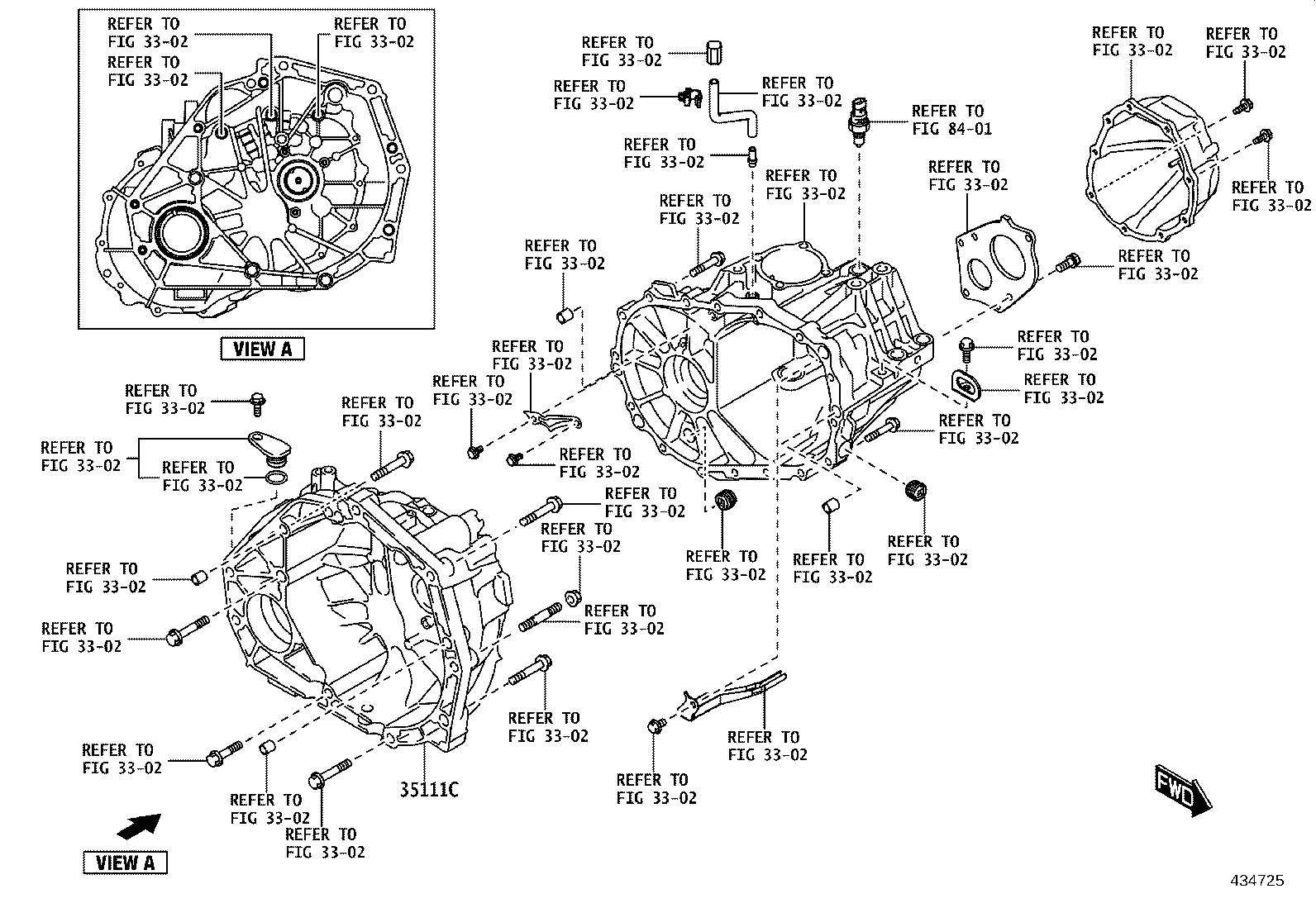

| 35111C | Housing, Transaxle |

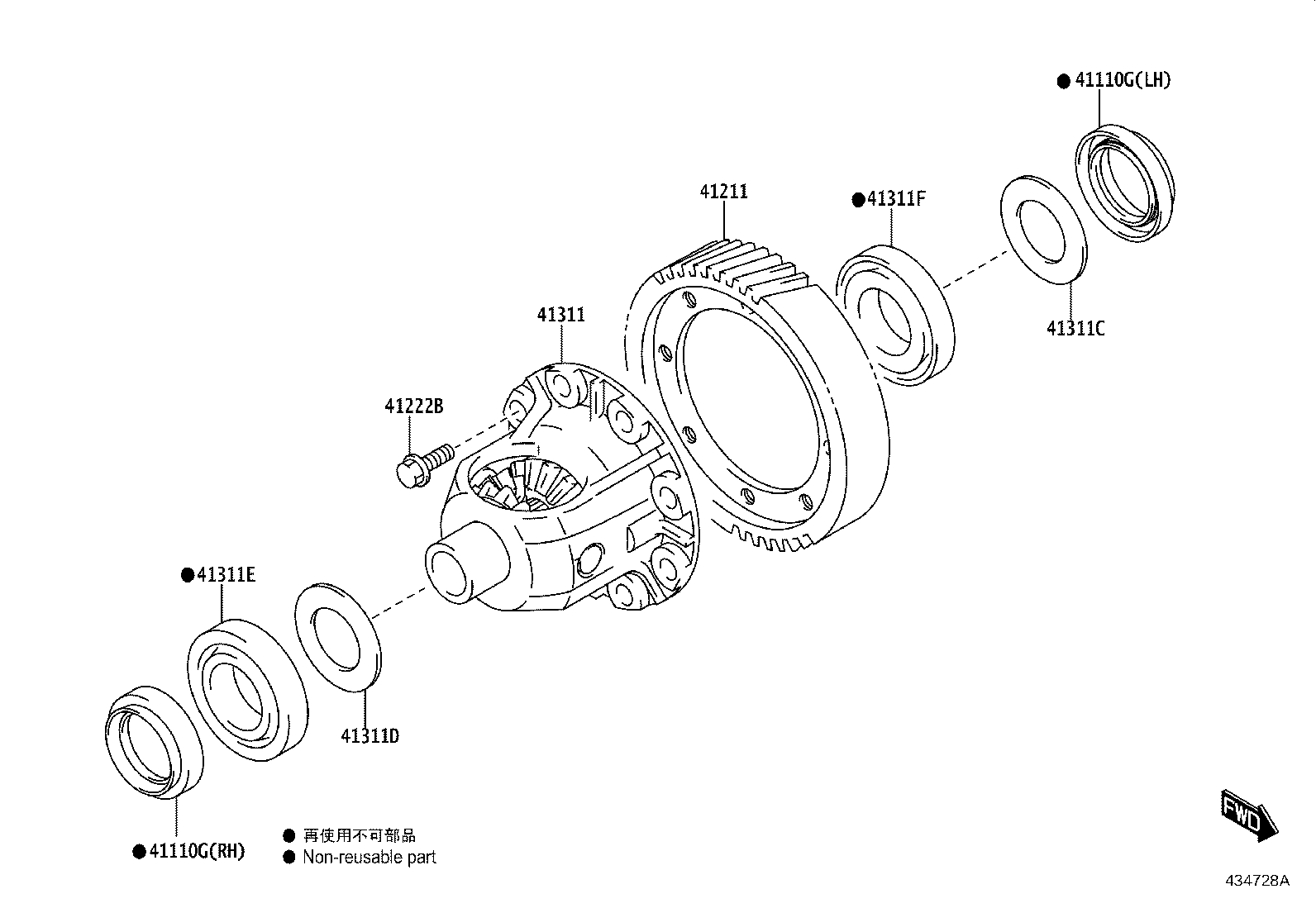

| 41110G | Seal, Oil (FOR DIFFERENTIAL SIDE) |
| 41211 | Pinion, Differential Drive |
| 41221 | Gear, Front Differential Ring |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41311 | Case, Front Differential |
| 41311C | Shim (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311D | Shim (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |

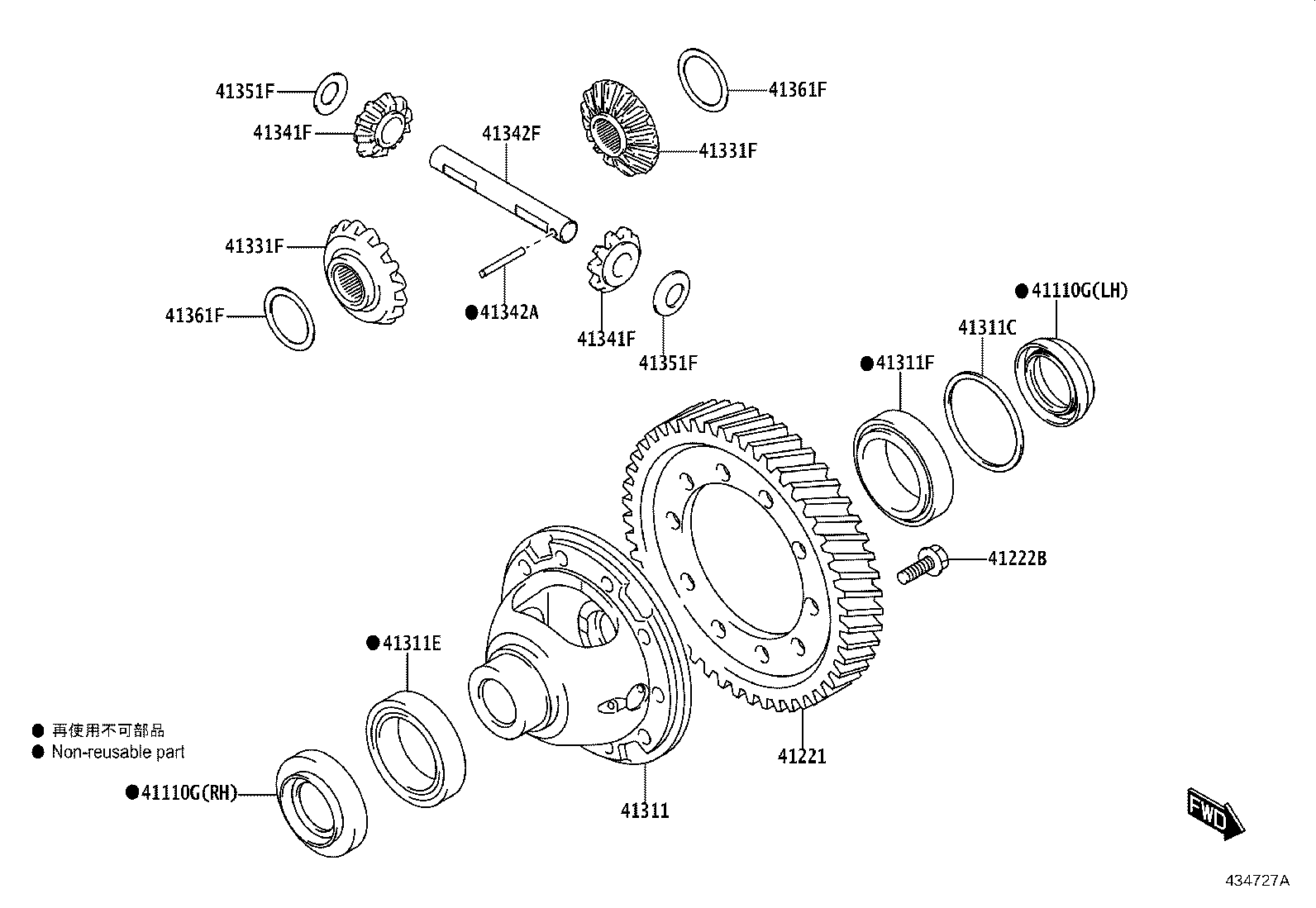

| 41331F | Gear, Front Differential Side |
| 41341F | Pinion, Front Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
