Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

10 part groups · 5 illustrations

Illustrations

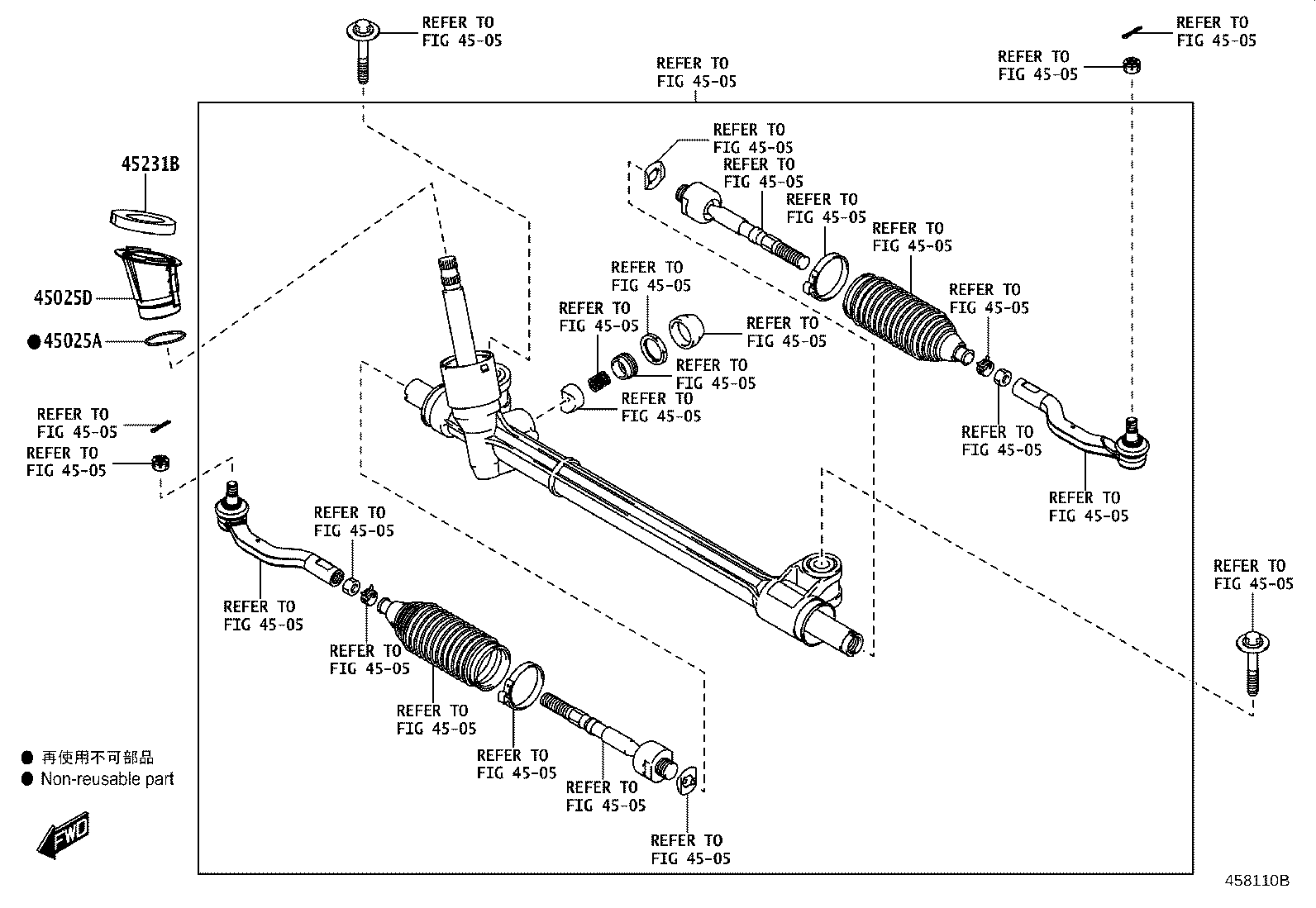

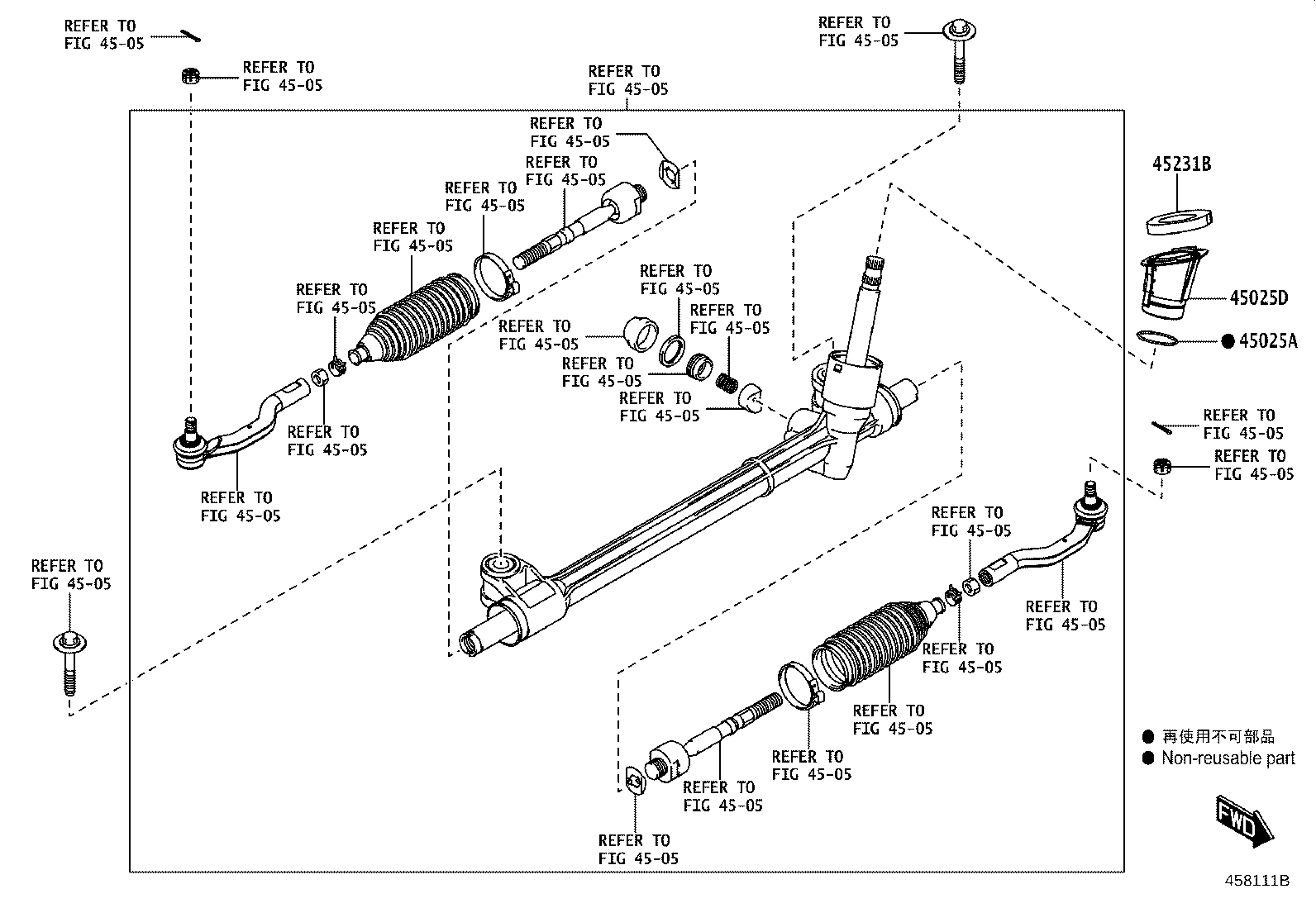

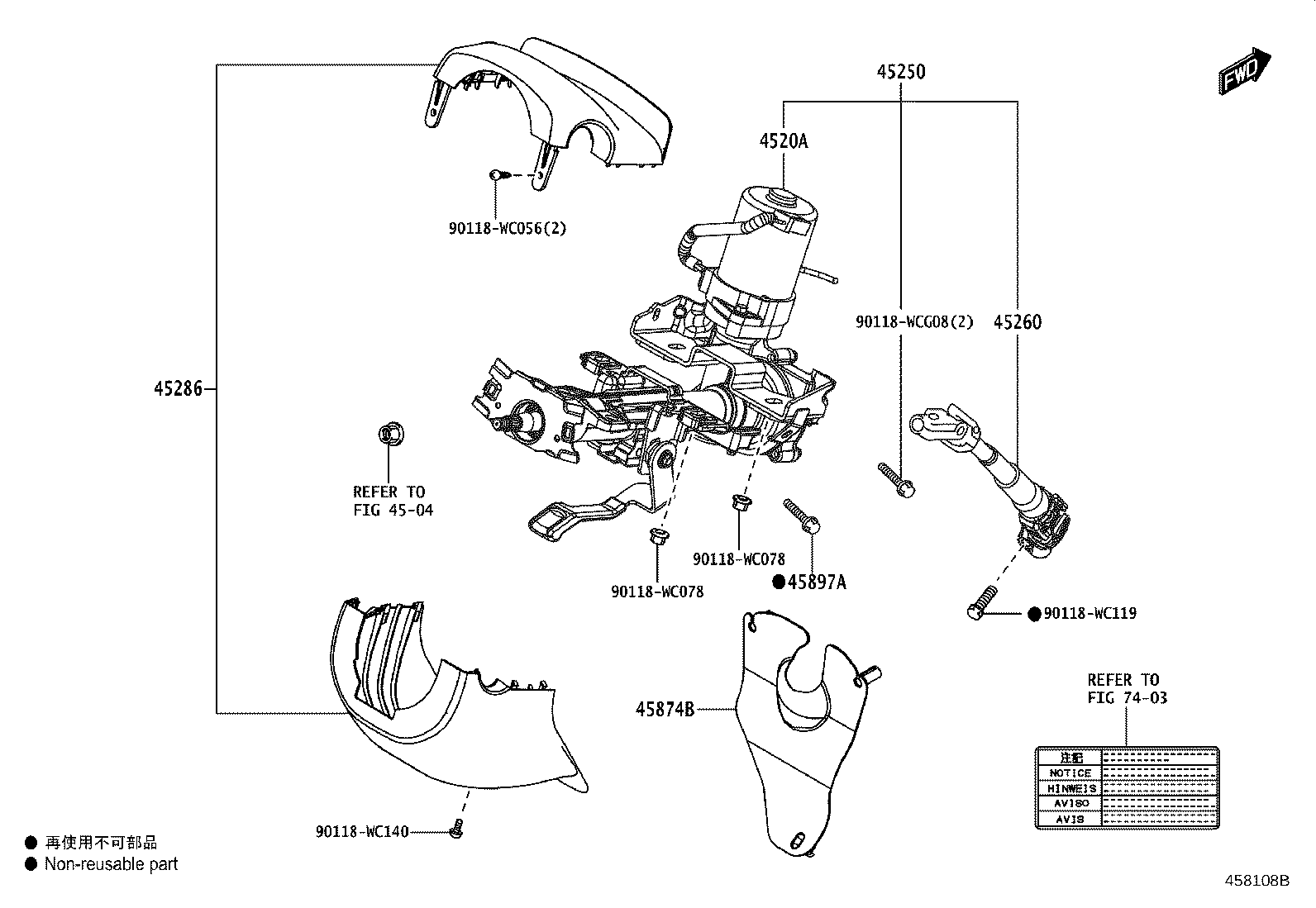

Figure 458107 458107 2021-07 → — Figure 458108B 458108B 2021-07 → — Figure 458109B 458109B 2021-07 → — Figure 458110B 458110B 2021-07 → — Figure 458111B 458111B 2021-07 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45025A Ring, O(FOR STEERING COLUMN HOLE COVER)
45025D Cover Sub-assy, Steering Column Hole, NO.1
4520A Column Sub-assy, Electric Power Steering
45231B Seal, Dust
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45874B Protector, Steering Column, NO.1
45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
