Toyota Belta
2021-07 → present · chassis K15B · catalogue 13A310 · General
Supported model
Data version 2022-05

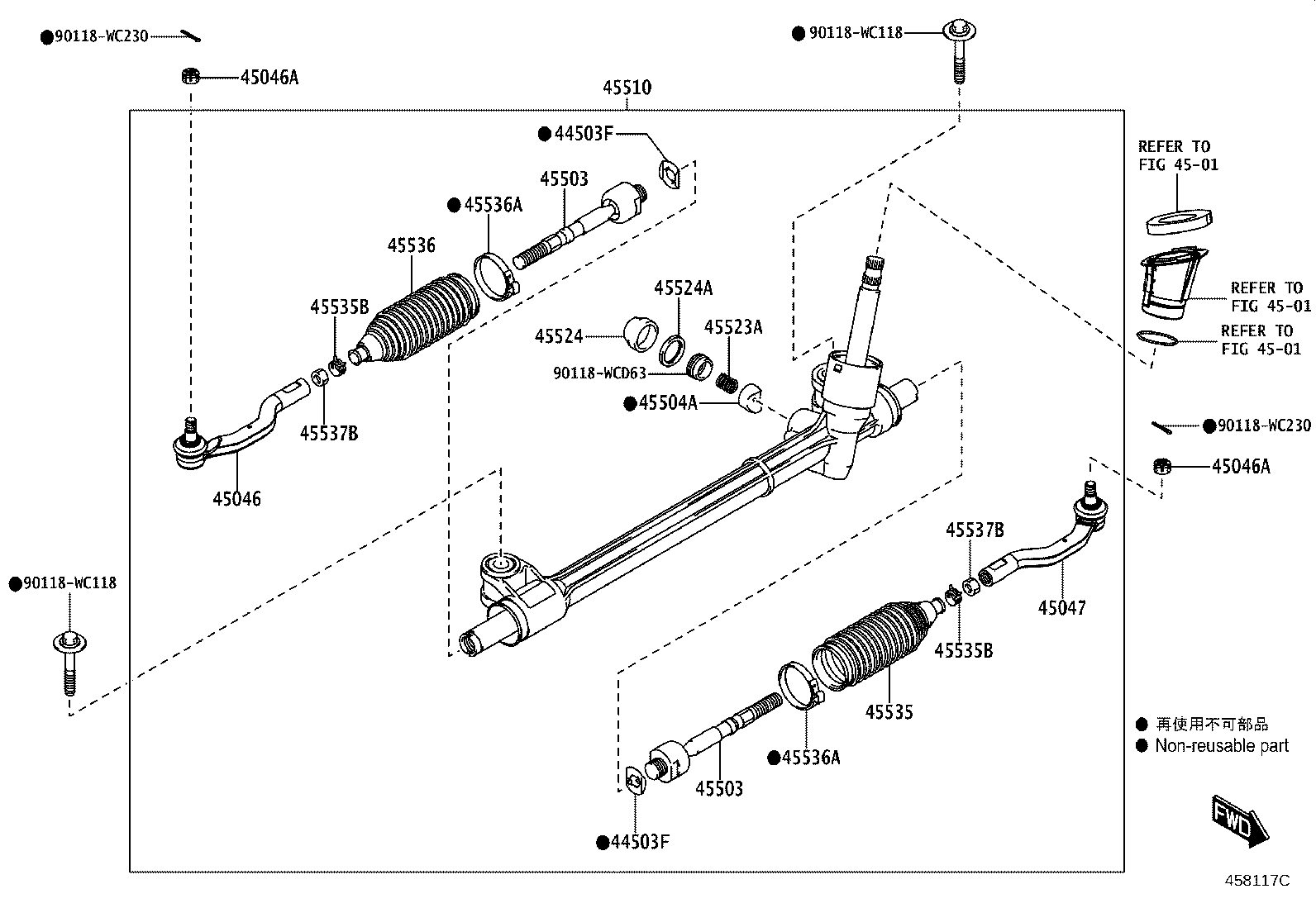

Front Steering Gear & Link
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44503F | Washer, Claw(FOR POWER STEERING RACK END) |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45503 | End Sub-assy, Steering Rack |
| 45504A | Guide Sub-assy, Rack |
| 45510 | Gear Assy, Steering |
| 45523A | Spring(FOR STEERING GEAR RACK GUIDE) |
| 45524 | Cap, Steering Rack Guide Spring |
| 45524A | Nut(FOR STEERING RACK GUIDE SPRING CAP) |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45536 | Boot, Steering Rack, NO.2 |
| 45536A | Clamp(FOR STEERING RACK BOOT NO.2) |
| 45537B | Nut, Rack End Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
