Brake Pedal & Bracket

9 part groups · 8 illustrations

Illustrations

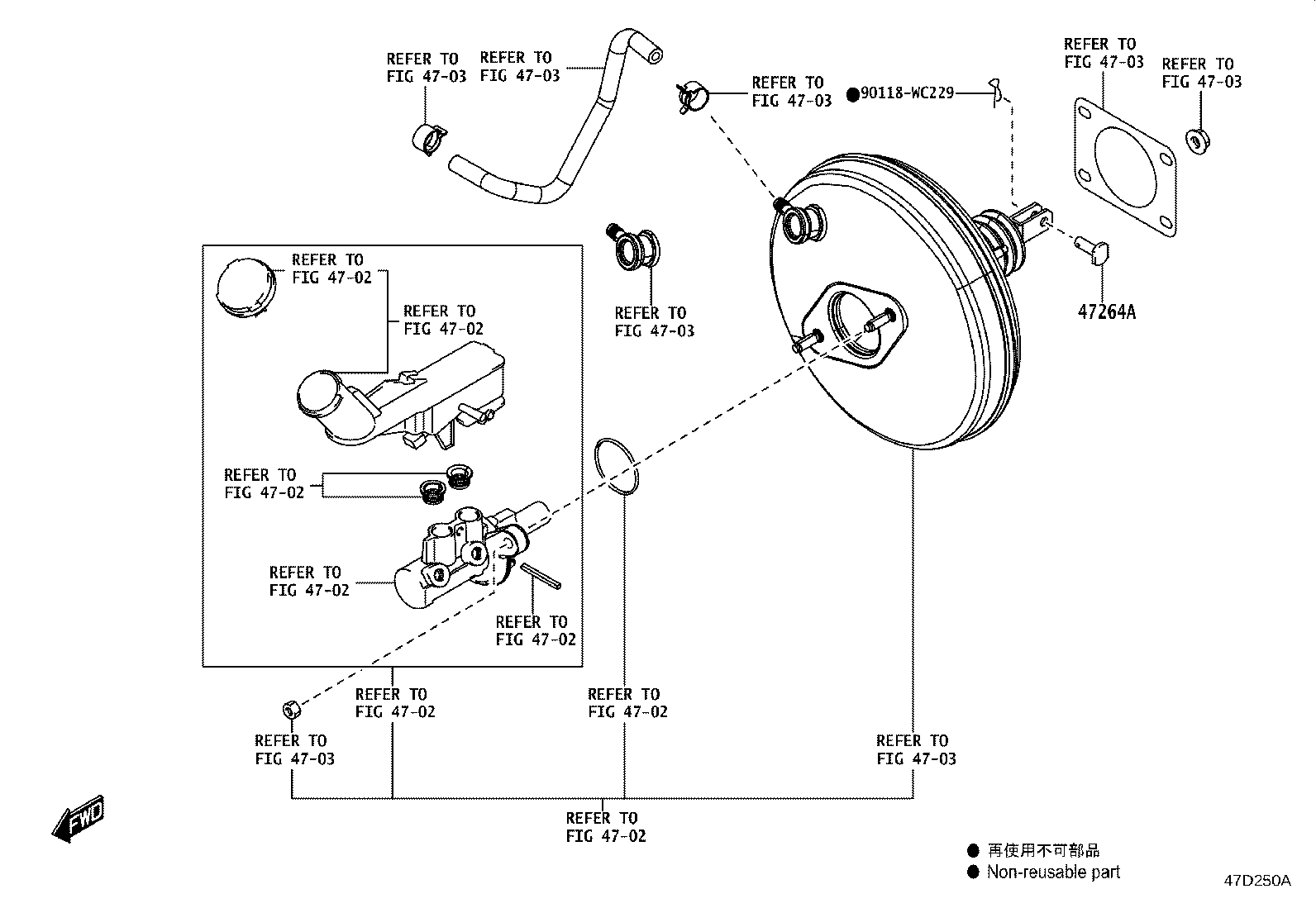

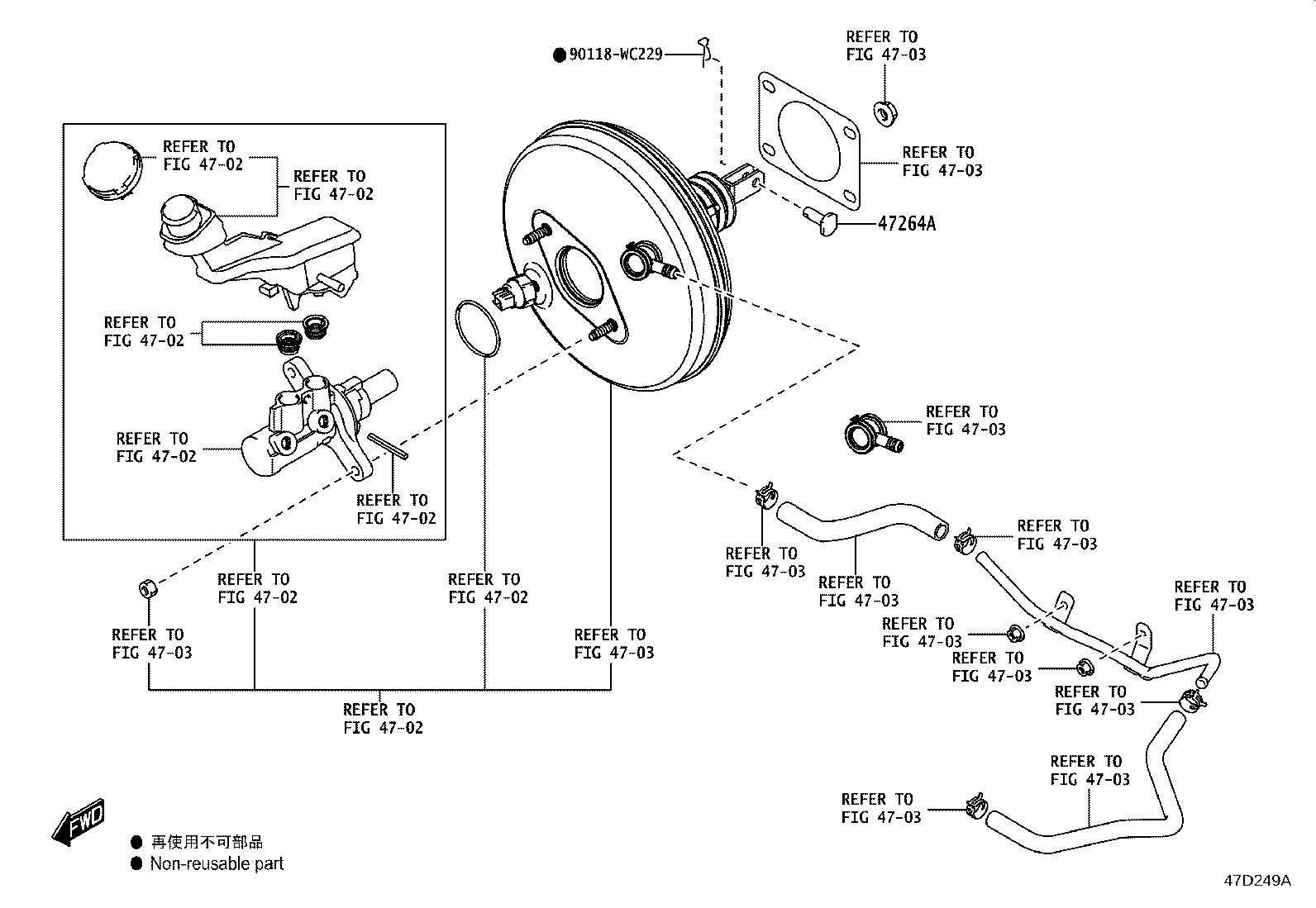

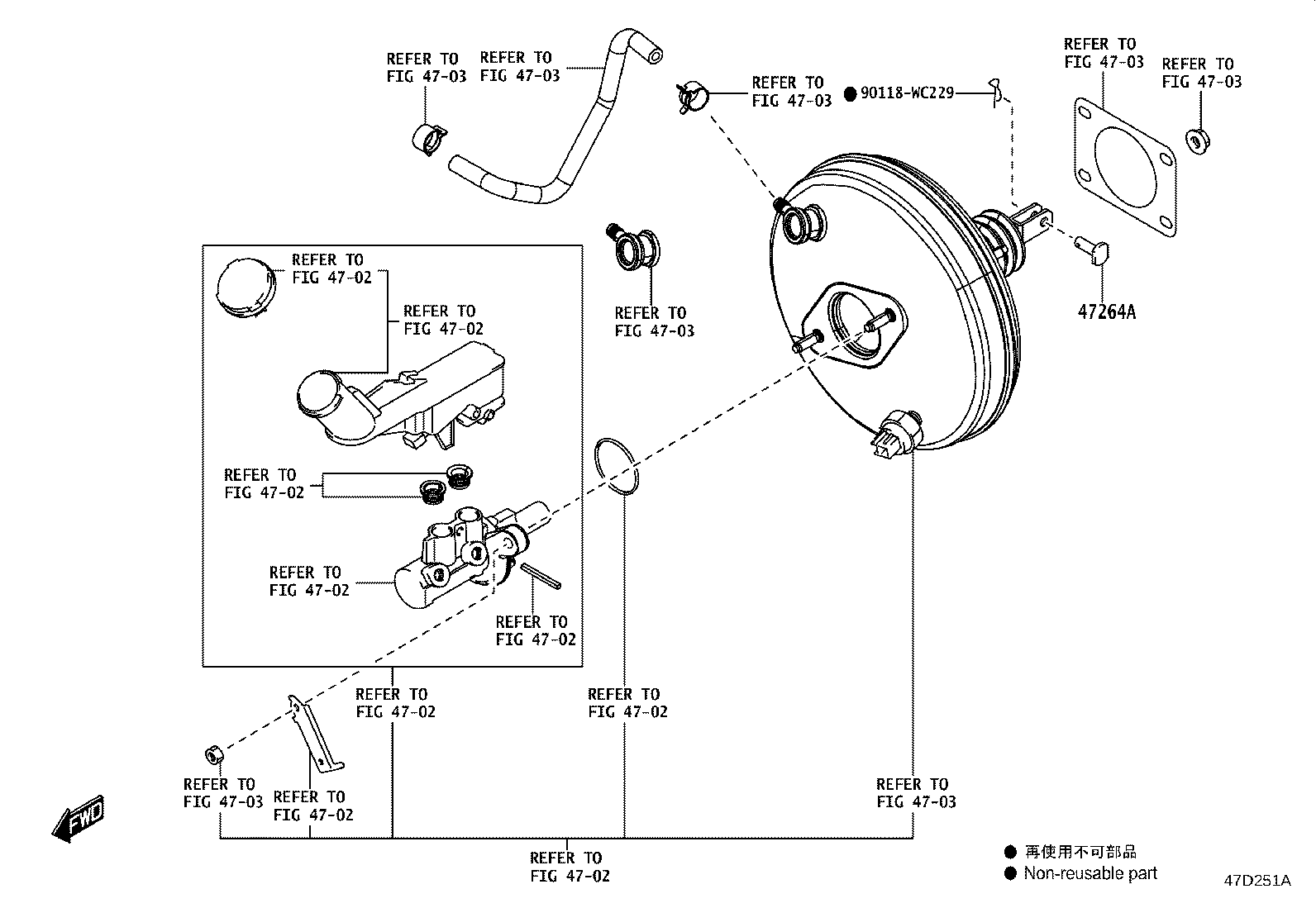

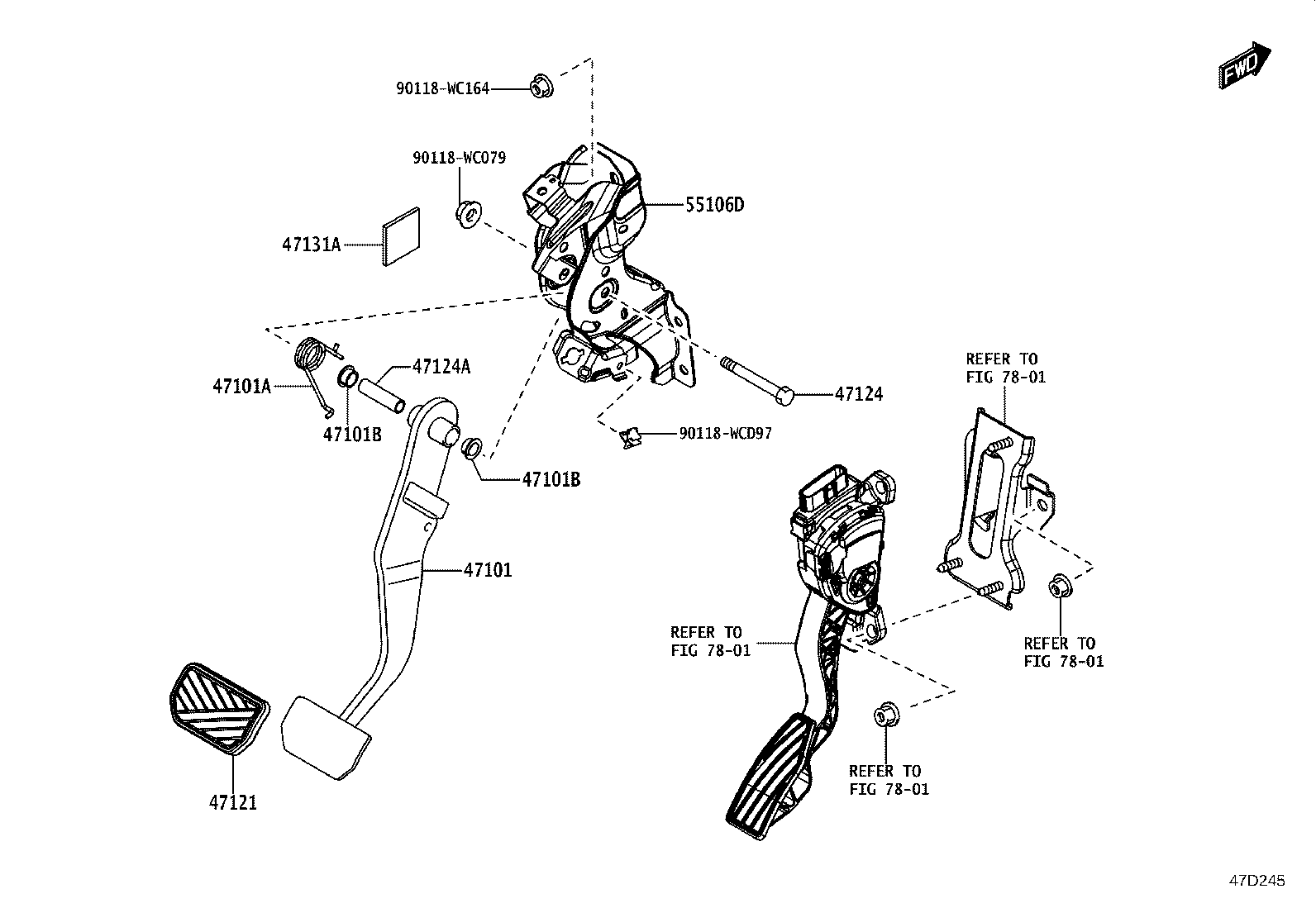

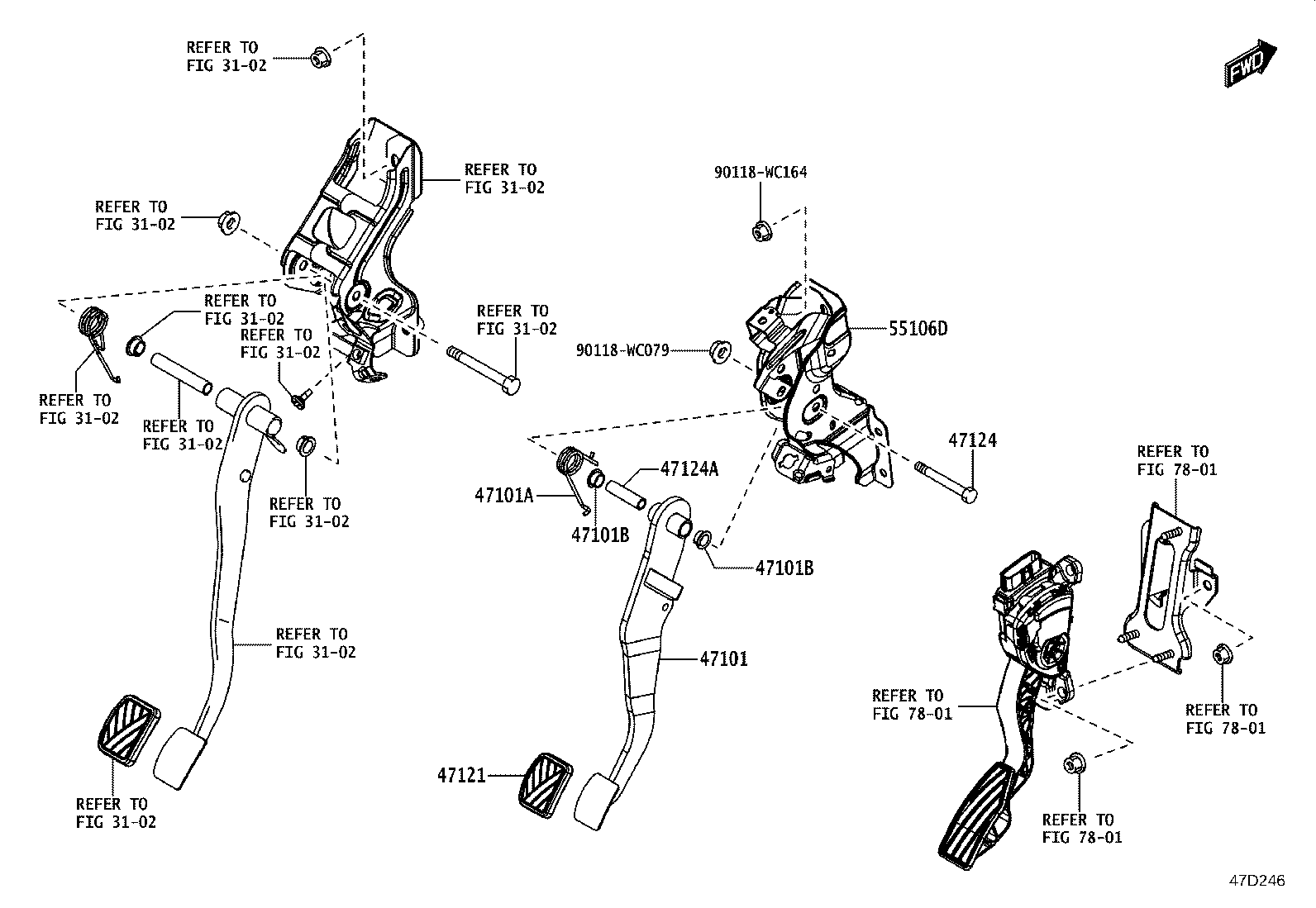

Figure 47D244 47D244 2021-07 → — Figure 47D245 47D245 2021-07 → — Figure 47D246 47D246 2021-07 → — Figure 47D247 47D247 2021-07 → — Figure 47D248A 47D248A 2021-07 → — Figure 47D249A 47D249A 2021-07 → — Figure 47D250A 47D250A 2021-07 → — Figure 47D251A 47D251A 2021-07 → —

Part groups

PNCDescription
47101 Pedal Sub-assy, Brake
47101A Spring(FOR BRAKE PEDAL RETURN)
47101B Bush(FOR BRAKE PEDAL)
47121 Pad, Brake Pedal
47124 Shaft, Brake Pedal
47124A Collar(FOR BRAKE PEDAL SHAFT)
47131A Cushion(FOR BRAKE PADAL STOPPER)
47264A Pin(FOR PUSH ROD)
55106D Bracket Sub-assy, Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
