Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

6 part groups · 4 illustrations

Illustrations

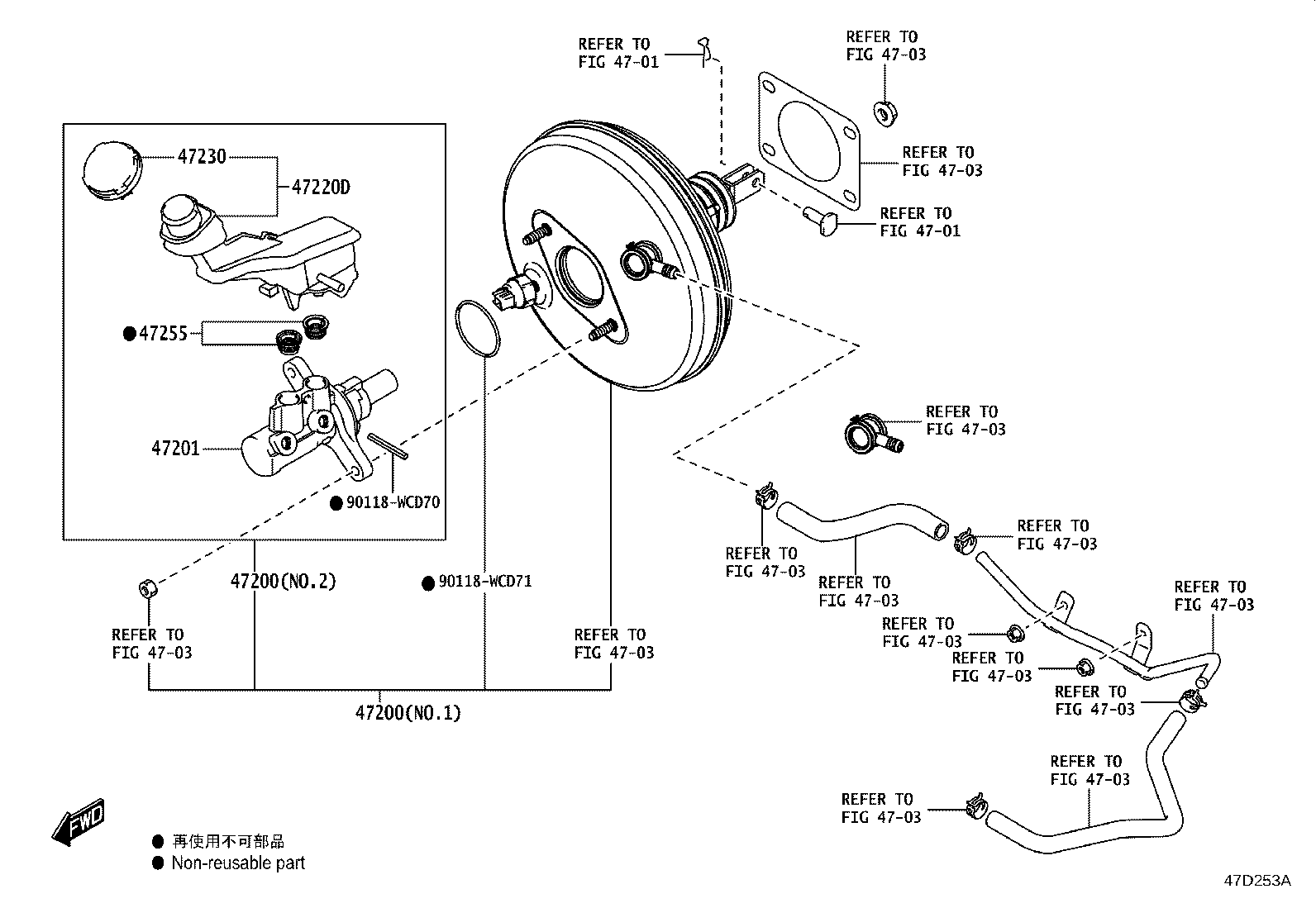

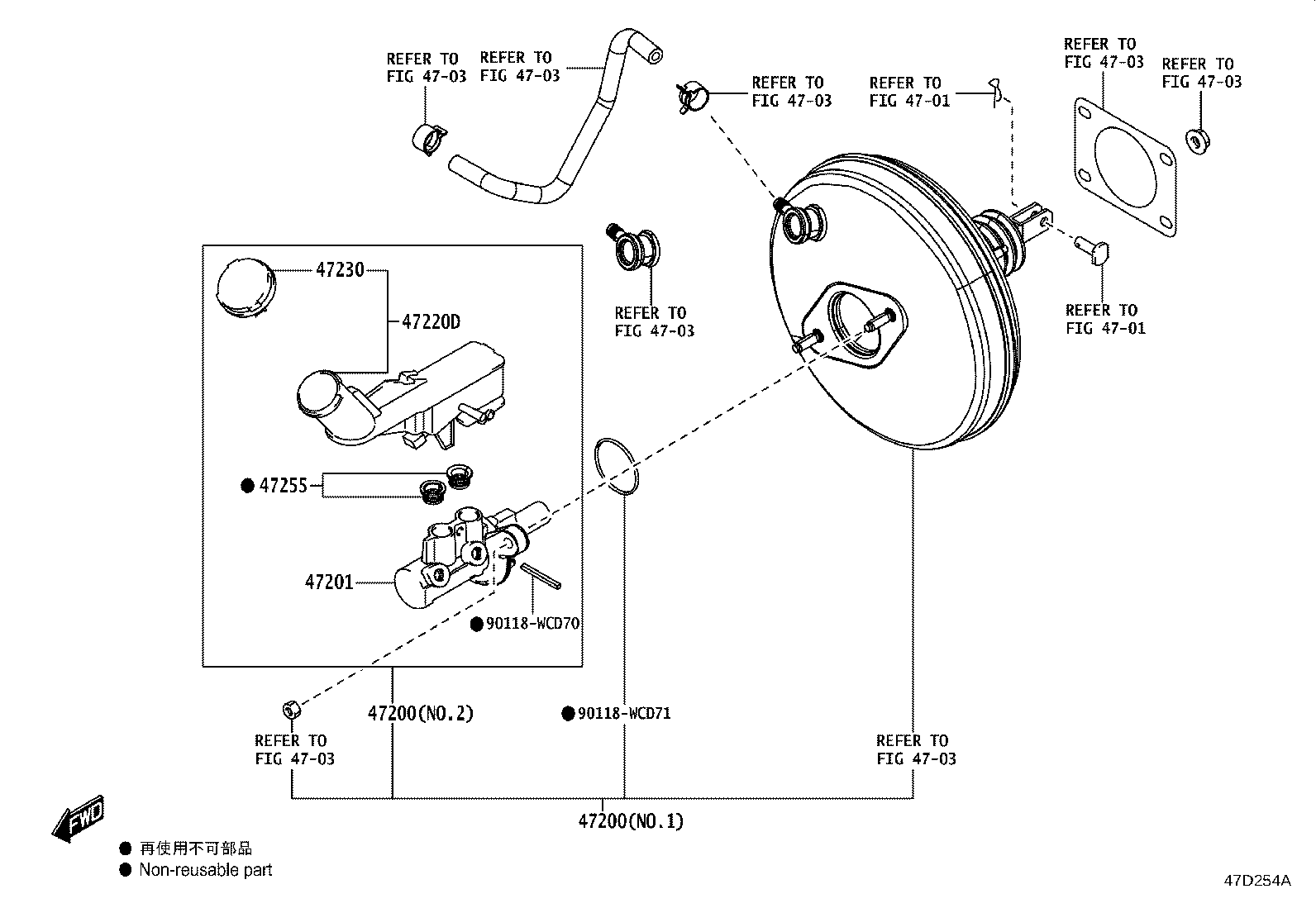

Figure 47D252A 47D252A 2021-07 → — Figure 47D253A 47D253A 2021-07 → — Figure 47D254A 47D254A 2021-07 → — Figure 47D255A 47D255A 2021-07 → —

Part groups

PNCDescription
47200 Cylinder Assy, Brake Master
47201 Cylinder Sub-assy, Brake Master
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47758E Bracket, Wire Clamp, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
