Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

10 part groups · 4 illustrations

Illustrations

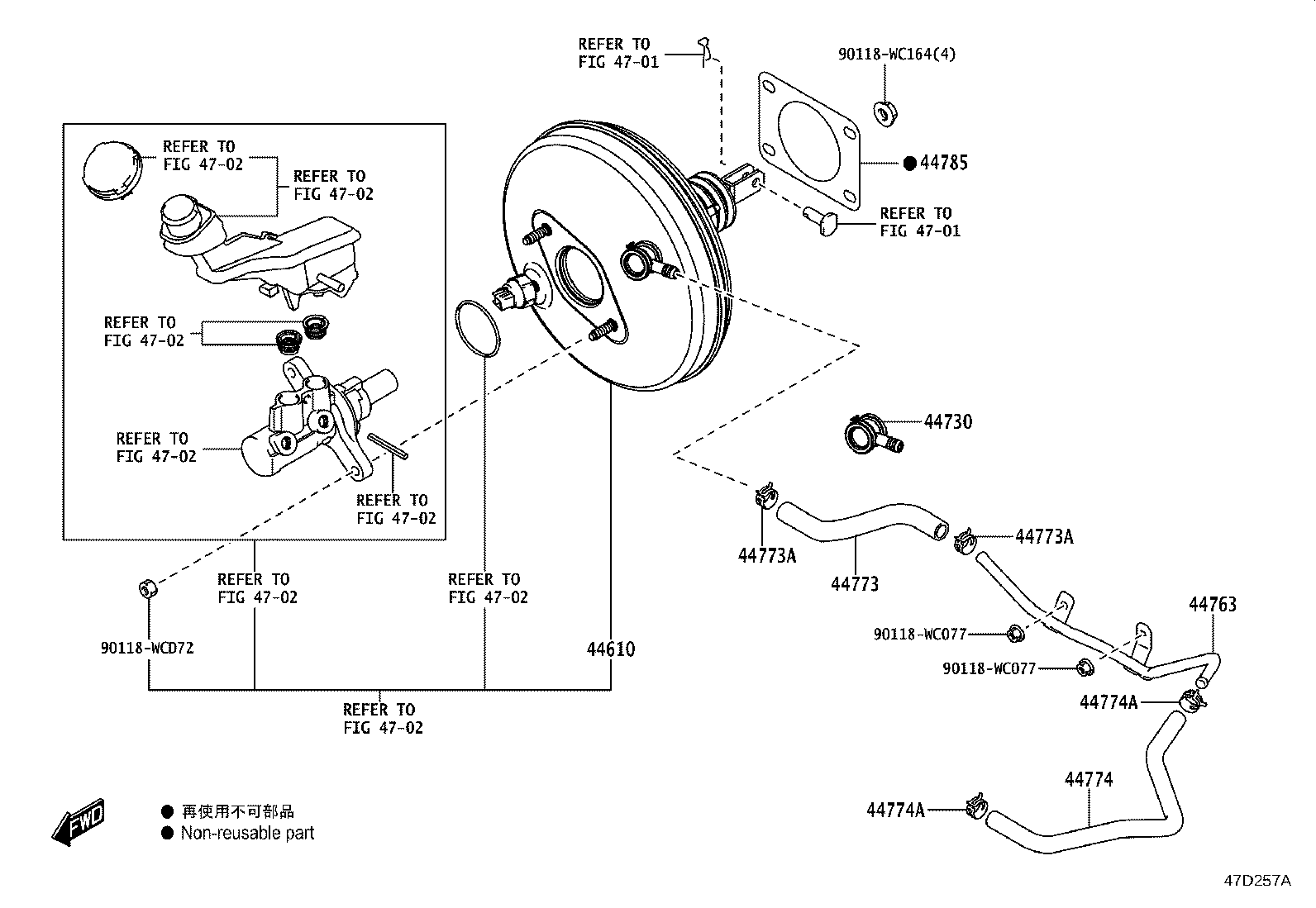

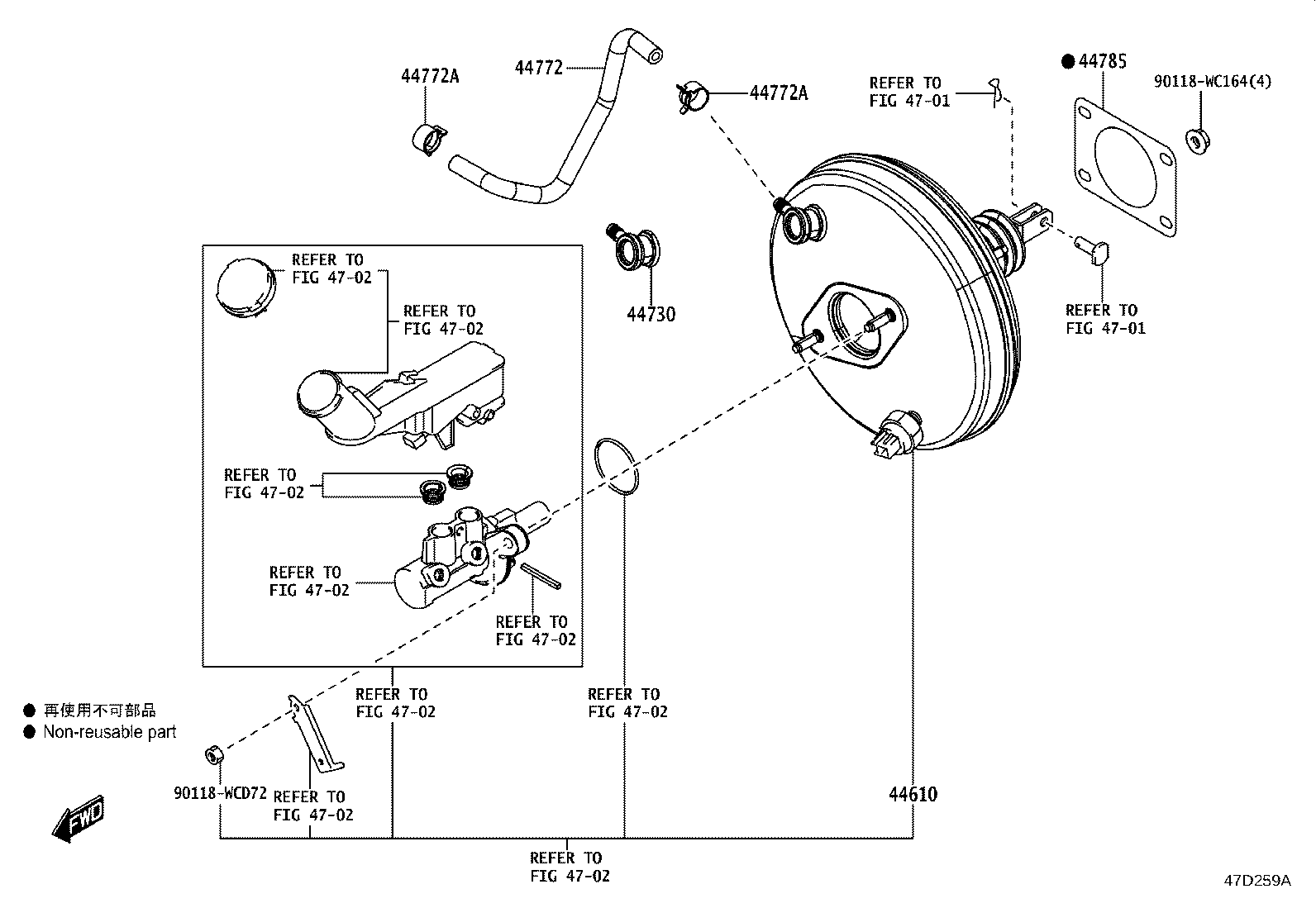

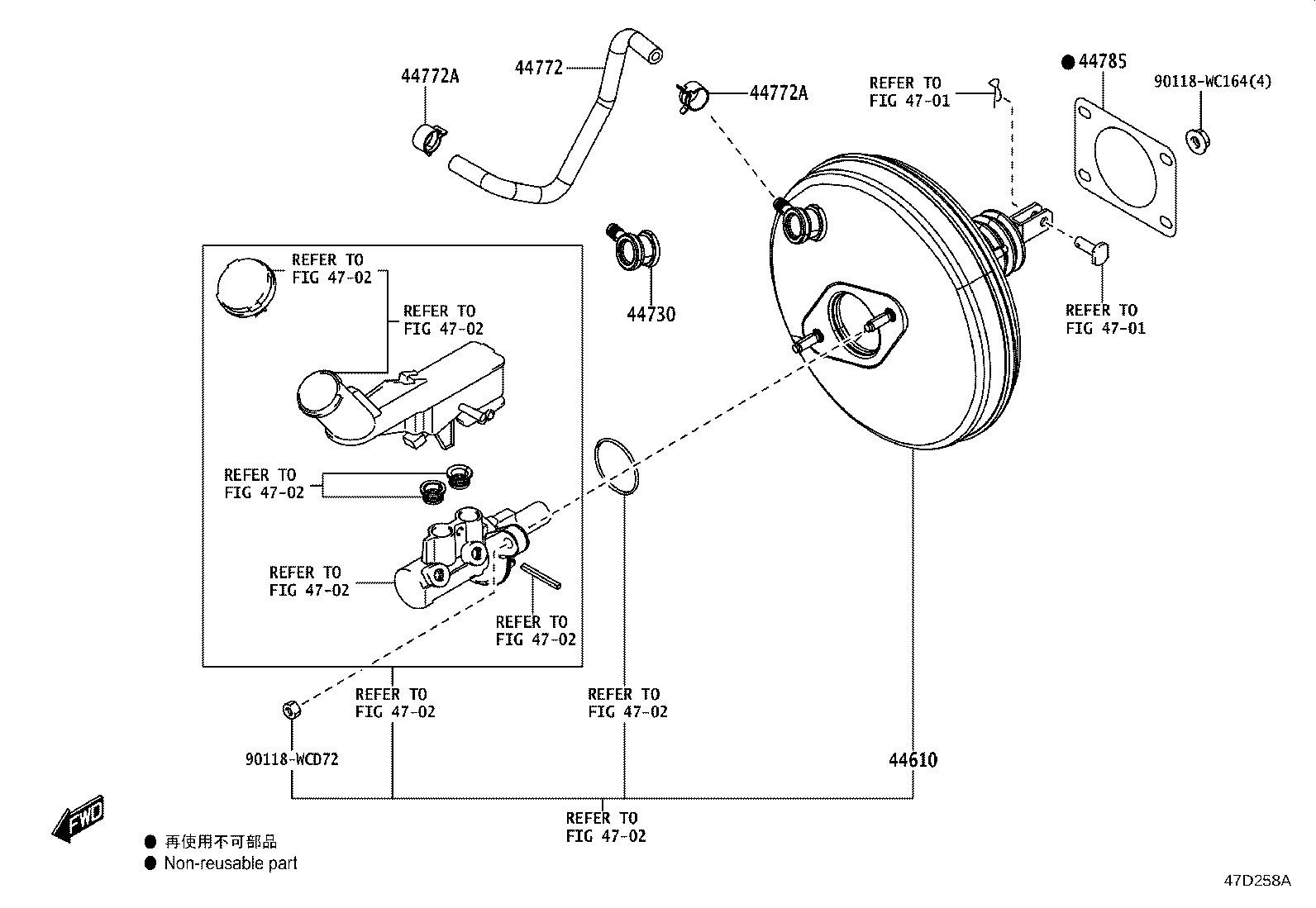

Figure 47D256A 47D256A 2021-07 → — Figure 47D257A 47D257A 2021-07 → — Figure 47D258A 47D258A 2021-07 → — Figure 47D259A 47D259A 2021-07 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44763 Tube, Booster Vacuum
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44773 Hose, Vacuum, NO.2
44773A Clip, NO.1(FOR VACUUM HOSE, NO.2)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
