Toyota Belta
2021-07 → present · chassis K15B · catalogue 13A310 · General
Supported model
Data version 2022-05

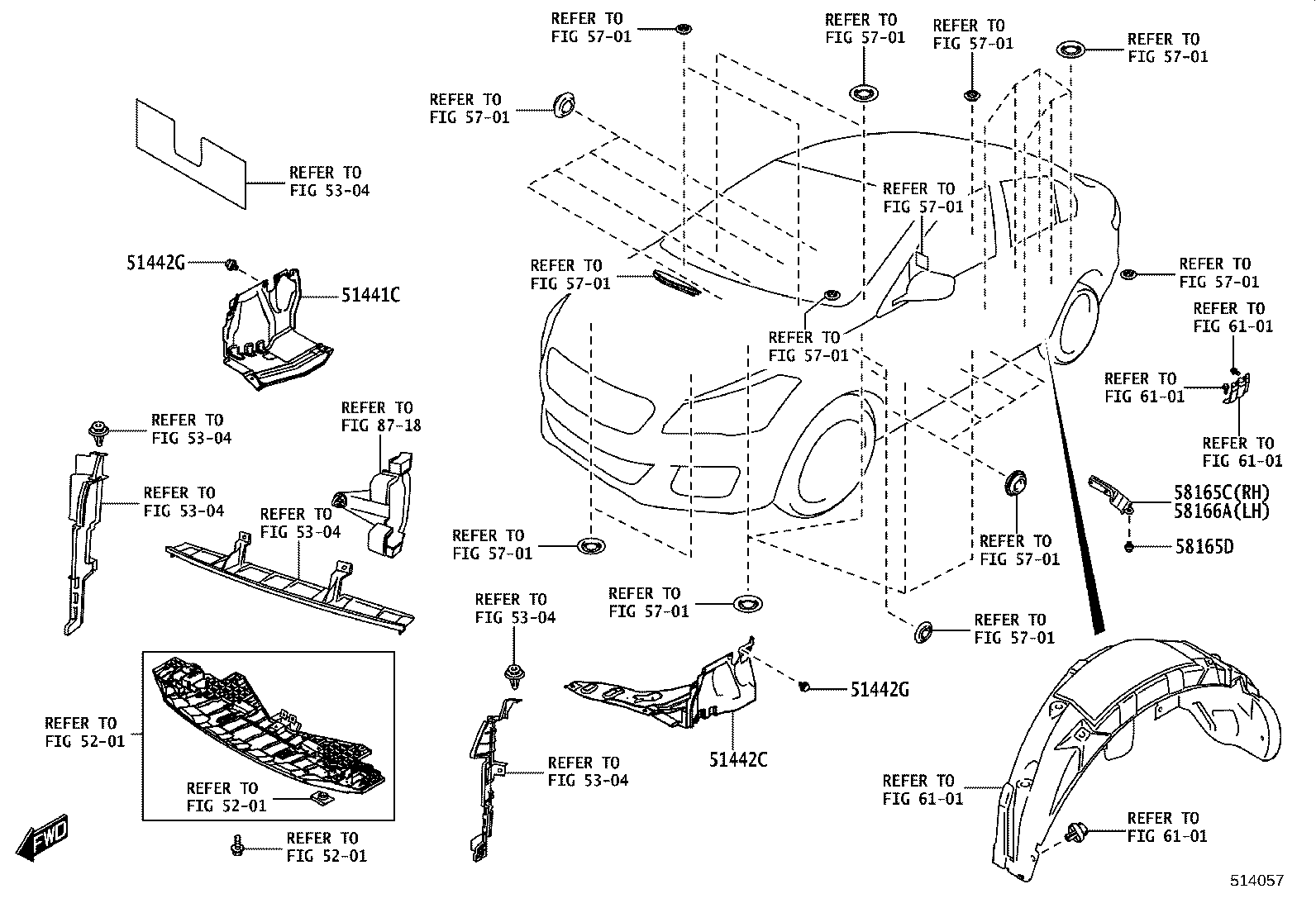

Suspension Crossmember & Under Cover
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51201A | Crossmember Sub-assy, Frame, Front |
| 51441C | Cover, Engine Under, RH |
| 51442C | Cover, Engine Under, LH |
| 51442G | Clip, Engine Under Cover, NO.1 |
| 58165C | Cover, Front Floor, RH |
| 58165D | Clip, Floor Cover |
| 58166A | Cover, Front Floor, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
