Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 3 illustrations

Illustrations

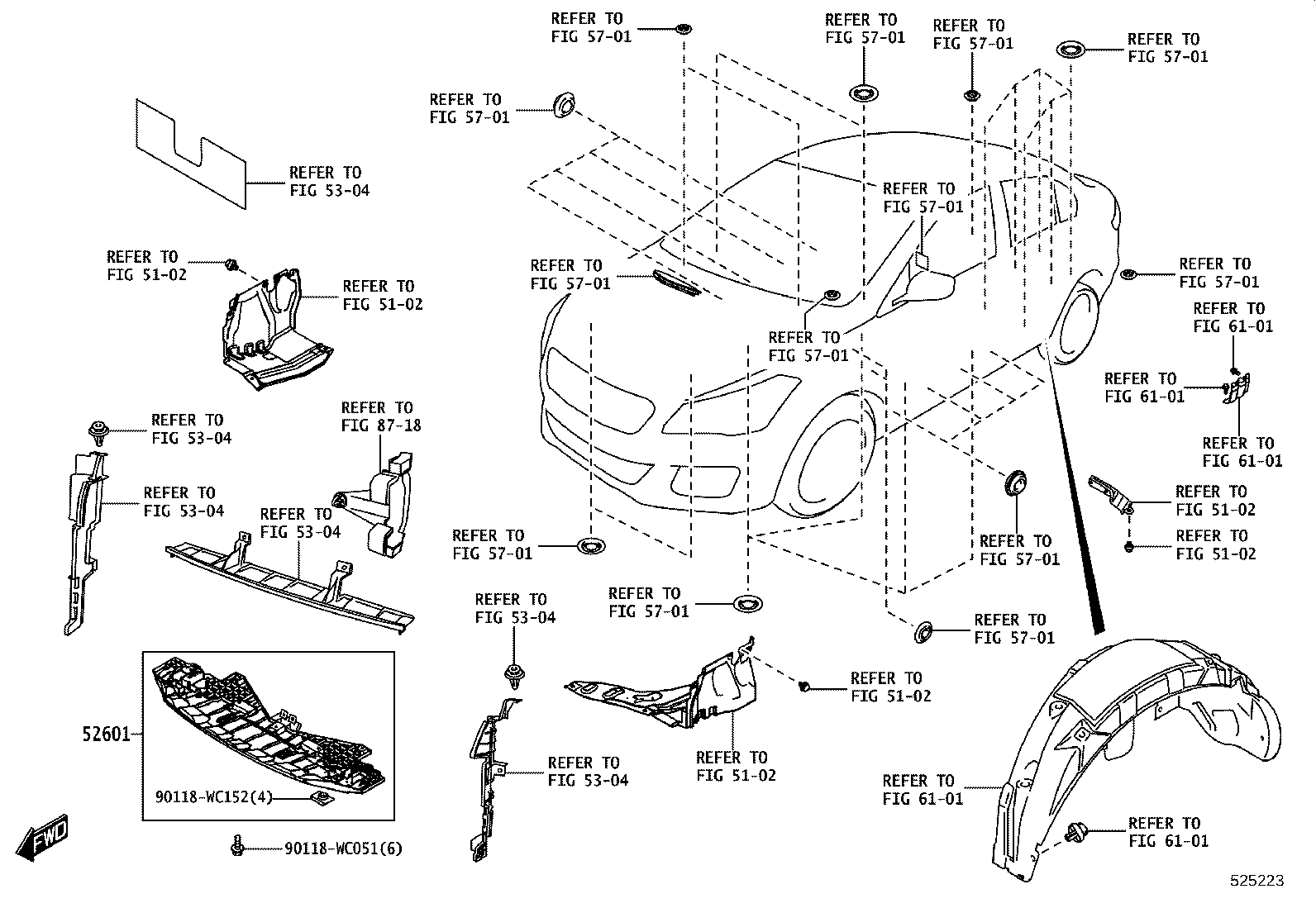

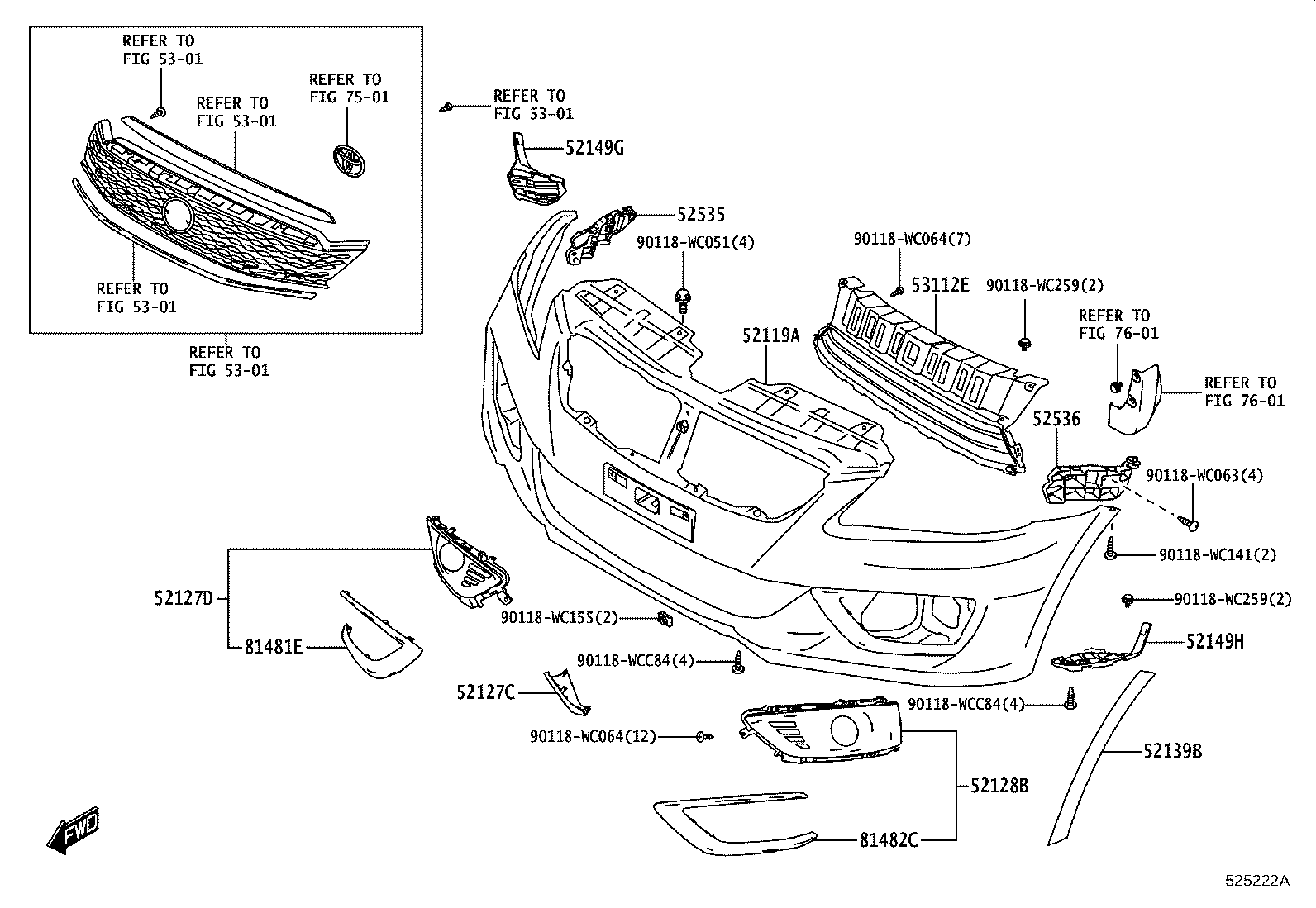

Figure 525221 525221 2021-07 → — Figure 525222A 525222A 2021-07 → — Figure 525223 525223 2021-07 → —

Part groups

PNCDescription
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52139B Brace, Front Bumper, Center
52149G Bracket, Front Bumper, Inner RH
52149H Bracket, Front Bumper, Inner LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52601 Absorber Sub-assy, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
