Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

13 part groups · 2 illustrations

Illustrations

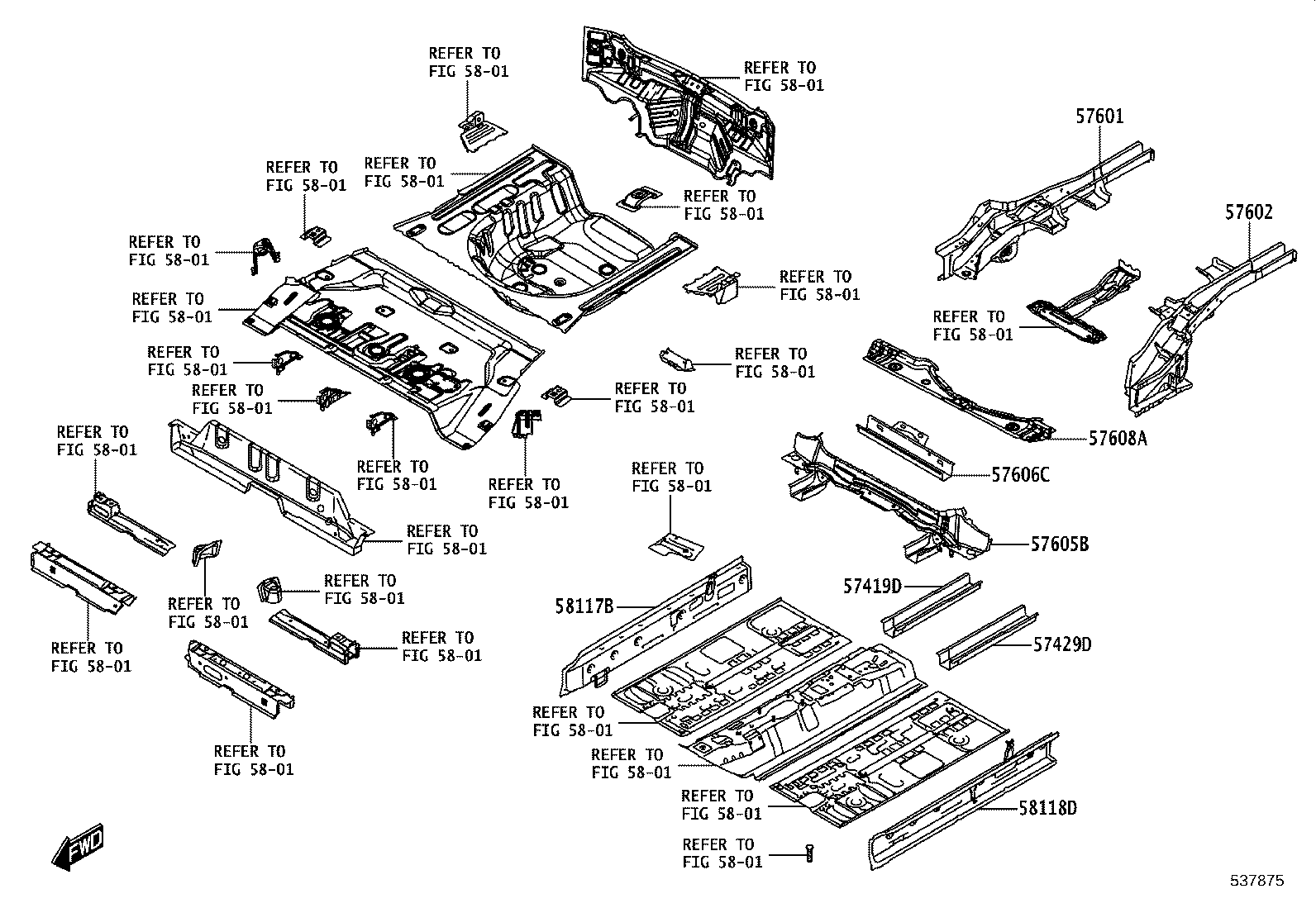

Figure 537874 537874 2021-07 → — Figure 537875 537875 2021-07 → —

Part groups

PNCDescription
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57197 Box, Torque, Front RH
57198 Box, Torque, Front LH
57419D Reinforcement, Front Floor Under, Rear RH
57429D Reinforcement, Front Floor Under, Rear LH
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57606C Member Sub-assy, Rear Floor Cross, NO.2
57608A Member Sub-assy, Rear Floor Cross, NO.4
58117B Reinforcement, Front Floor Side, RH
58118D Reinforcement, Front Floor Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
