Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

13 part groups · 4 illustrations

Illustrations

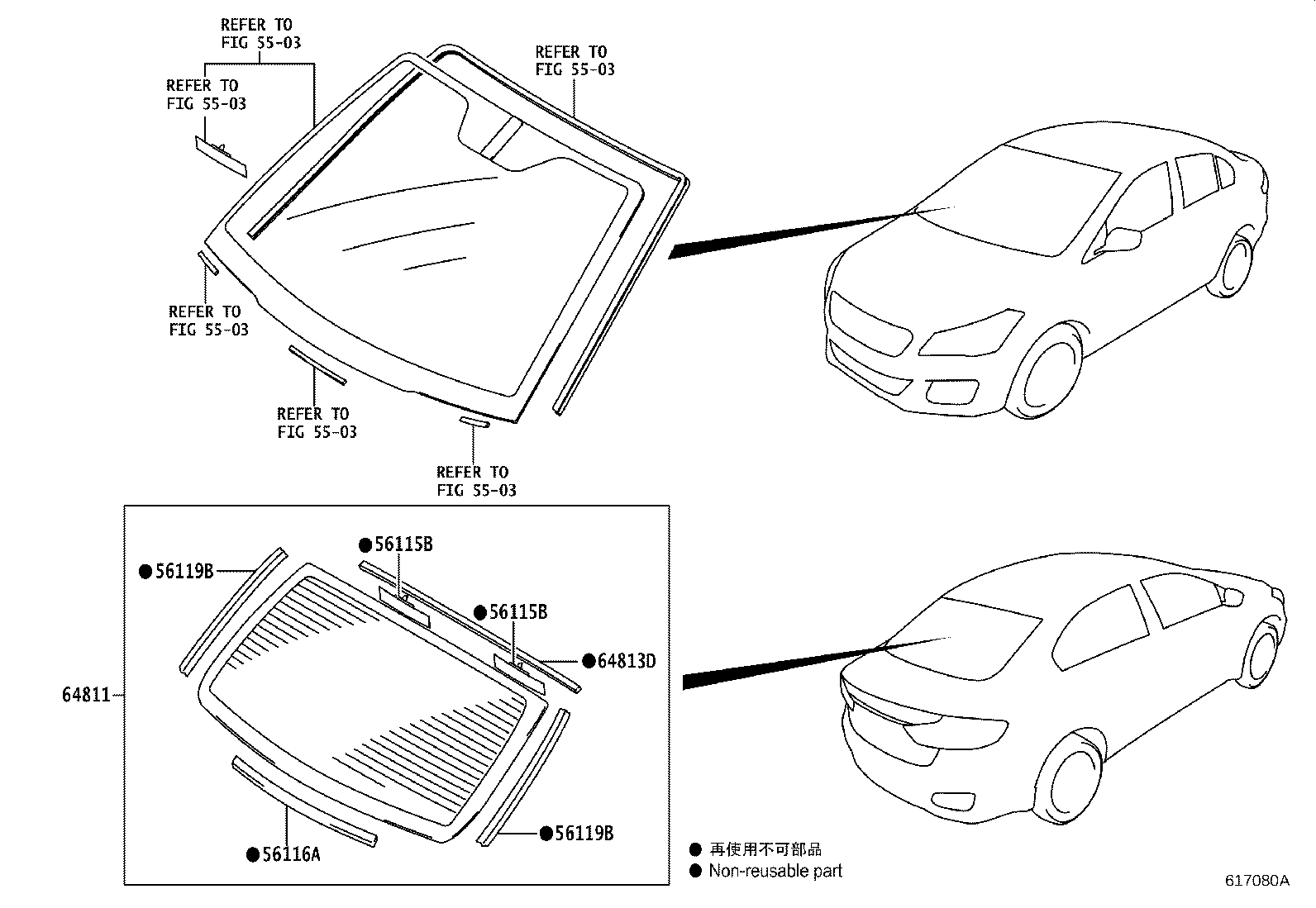

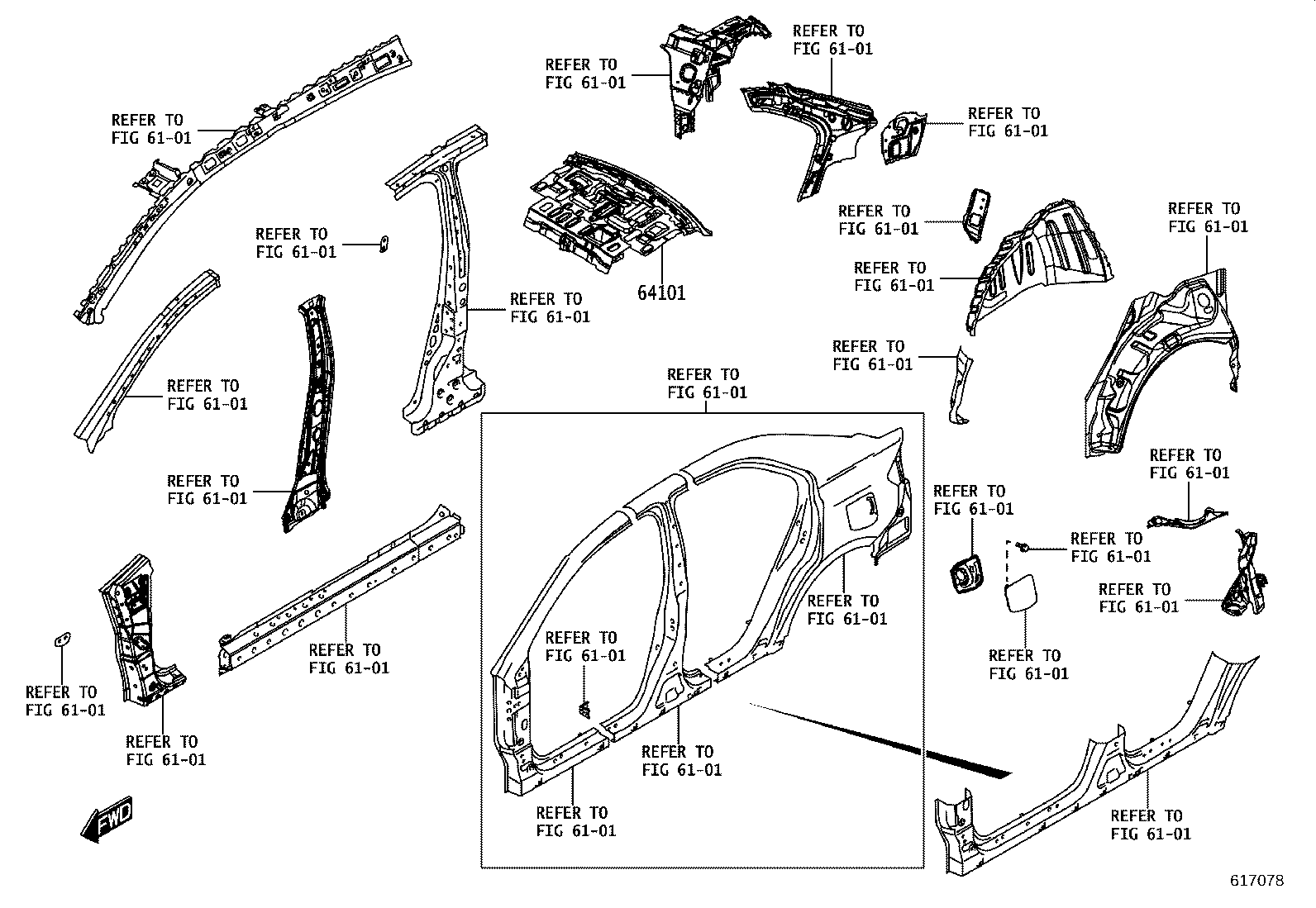

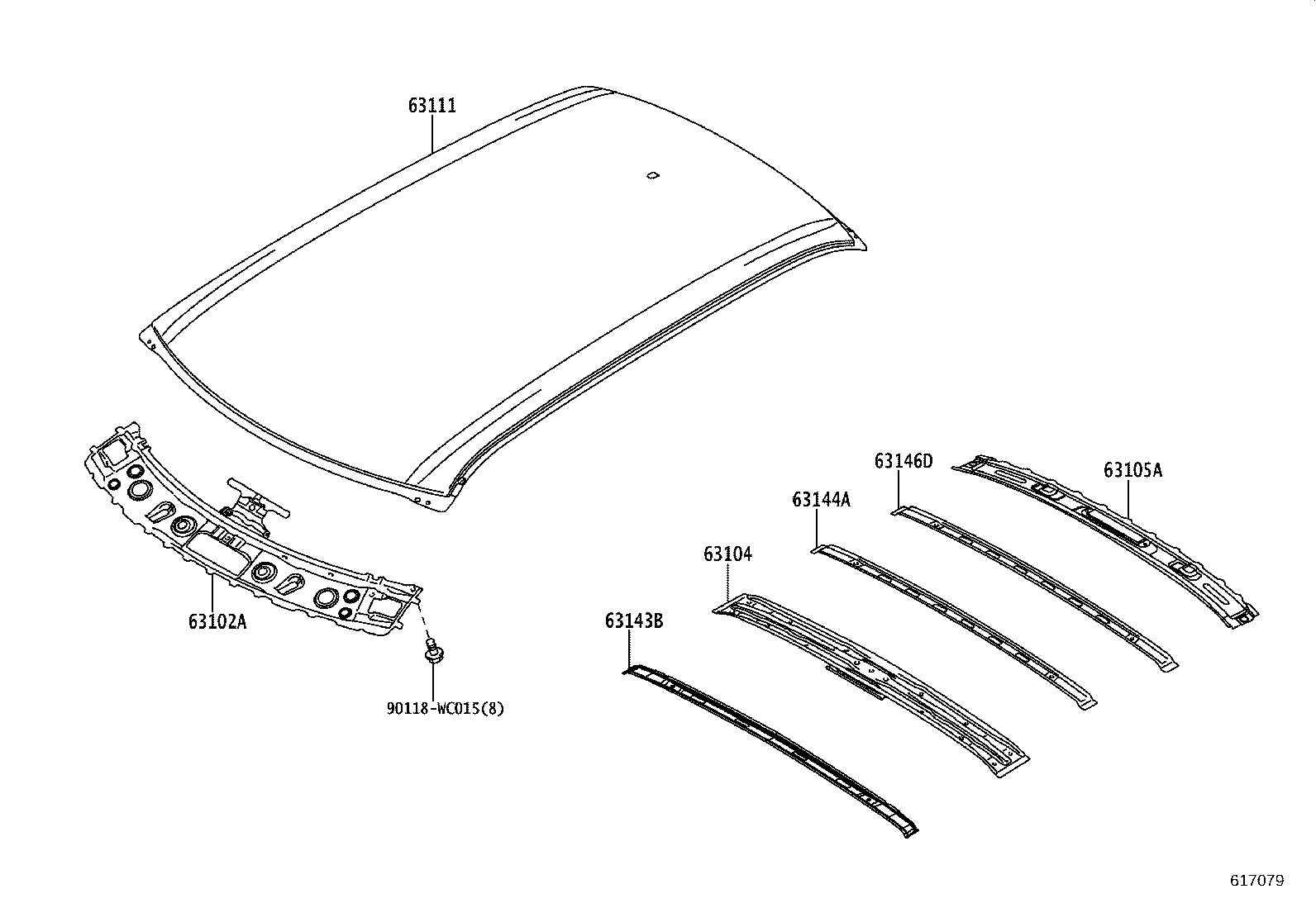

Figure 617077 617077 2021-07 → — Figure 617078 617078 2021-07 → — Figure 617079 617079 2021-07 → — Figure 617080A 617080A 2021-07 → —

Part groups

PNCDescription
56115B Stopper, Back Window Glass, NO.1
56116A Spacer, Windshield Glass
56119B Dam, Back Window Glass Adhesive
63102A Panel Sub-assy, Windshield Header
63104 Reinforcement Sub-assy, Roof Panel, Center
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63146D Reinforcement, Roof Panel, NO.6
64101 Panel Sub-assy, Upper Back
64811 Glass, Back Window
64813D Dam, Back Window Glass Adhesive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
