Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

25 part groups · 5 illustrations

Illustrations

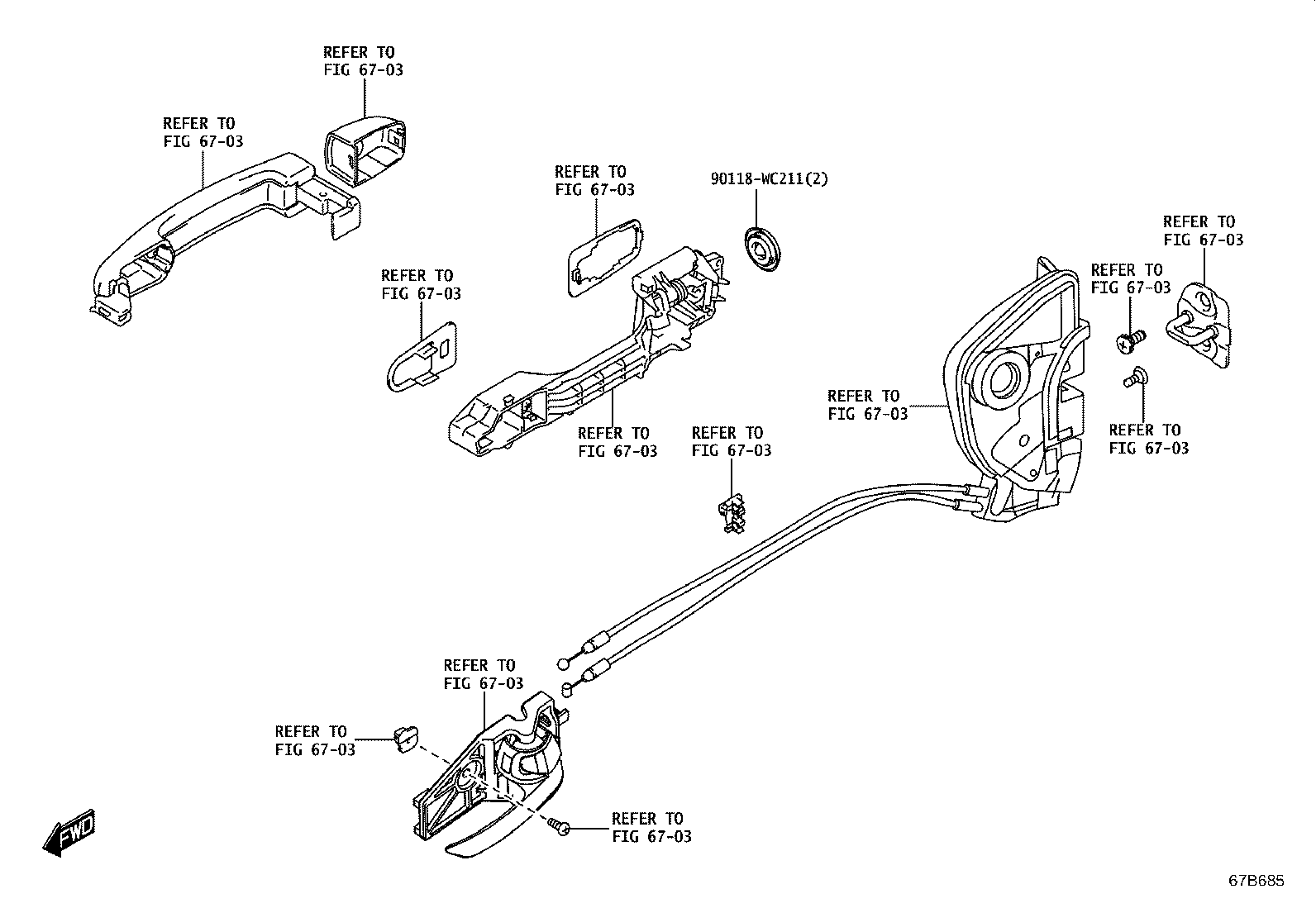

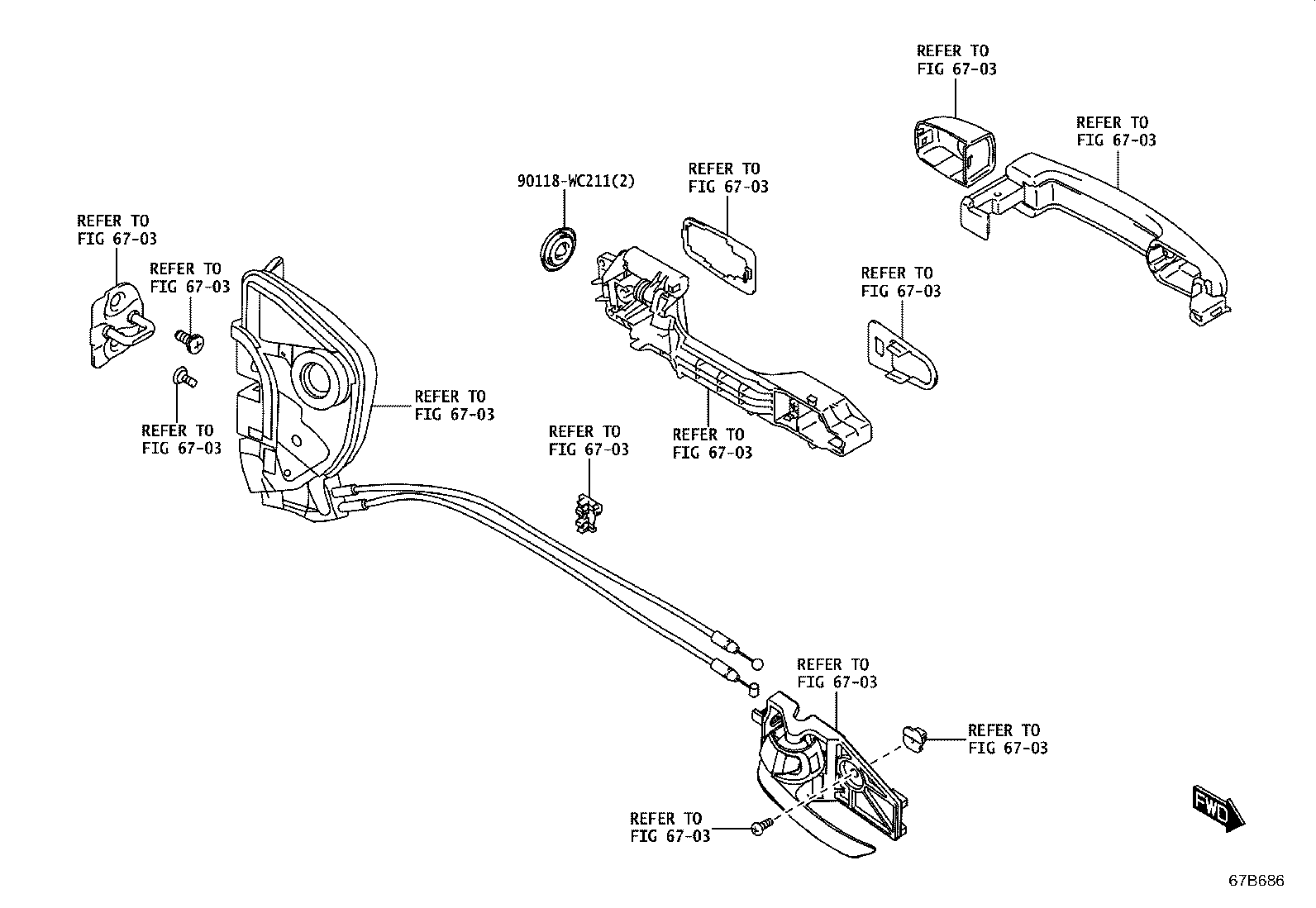

Figure 67B683A 67B683A 2021-07 → — Figure 67B684 67B684 2021-07 → — Figure 67B685 67B685 2021-07 → — Figure 67B686 67B686 2021-07 → — Figure 67B687 67B687 2021-07 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67601 Board Sub-assy, Front Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67625A Bracket, Front Door Trim, NO.1
67626A Bracket, Door Trim, NO.2
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH

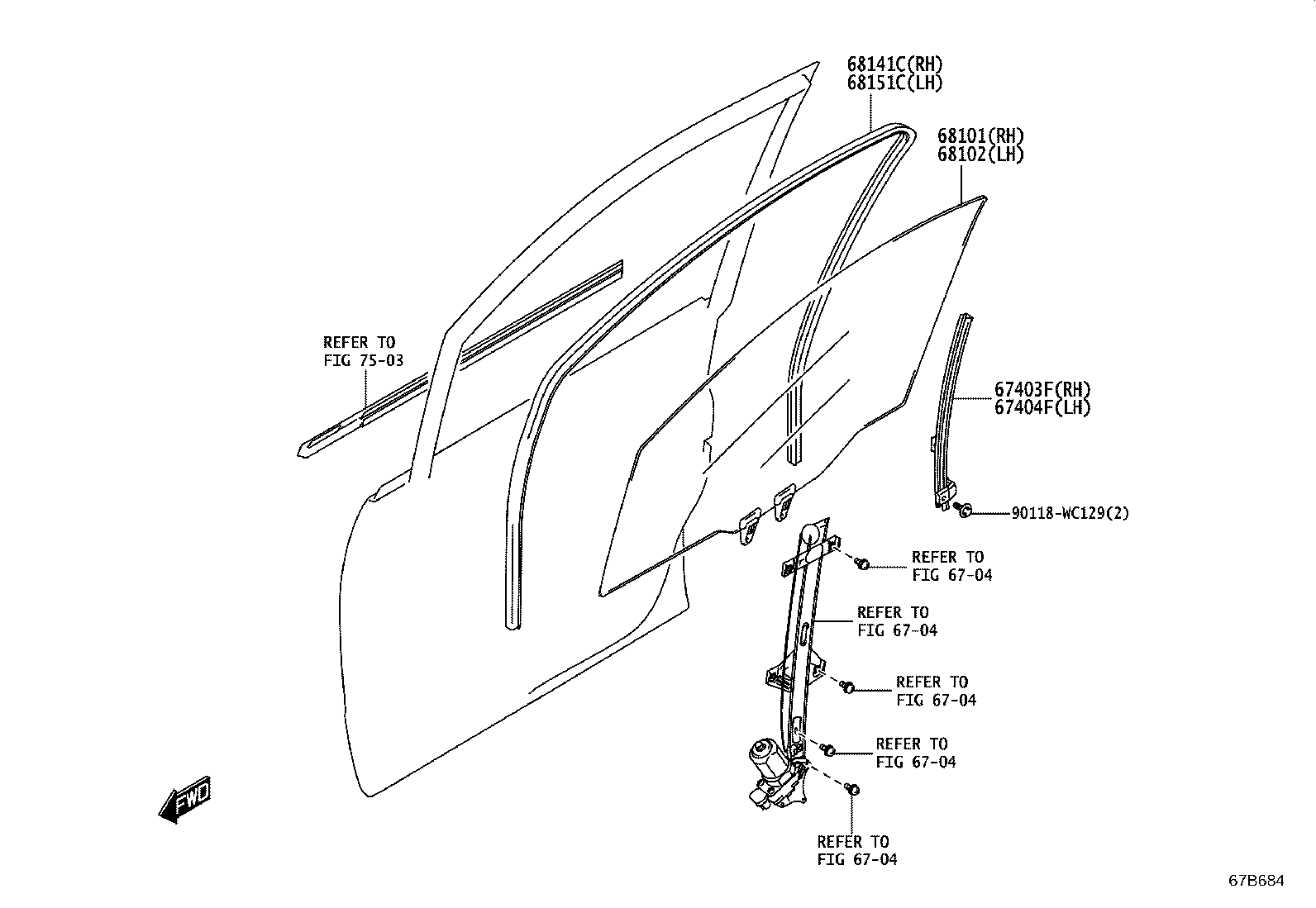

68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68151C Run, Front Door Glass, LH
68171B Weatherstrip, Front Door Glass, Inner RH
68172A Weatherstrip, Front Door Glass, Inner LH
68610B Check Assy, Front Door, RH
68620 Check Assy, Front Door, LH
75921C Tape, Black Out, NO.1 RH
75922M Tape, Black Out, NO.1 LH

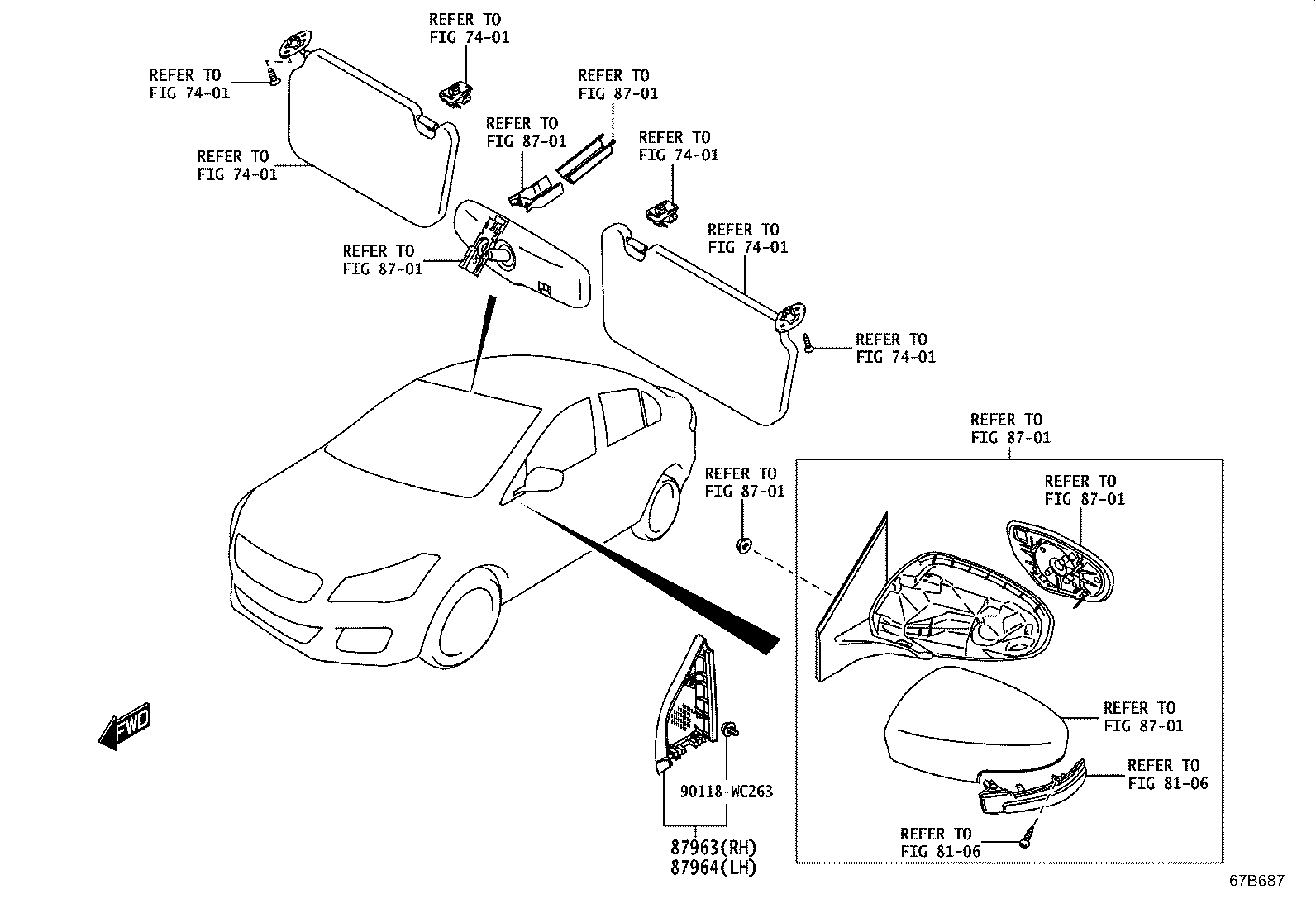

87963 Cover, Outer Mirror Install Hole, RH
87964 Cover, Outer Mirror Install Hole, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
