Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

16 part groups · 3 illustrations

Illustrations

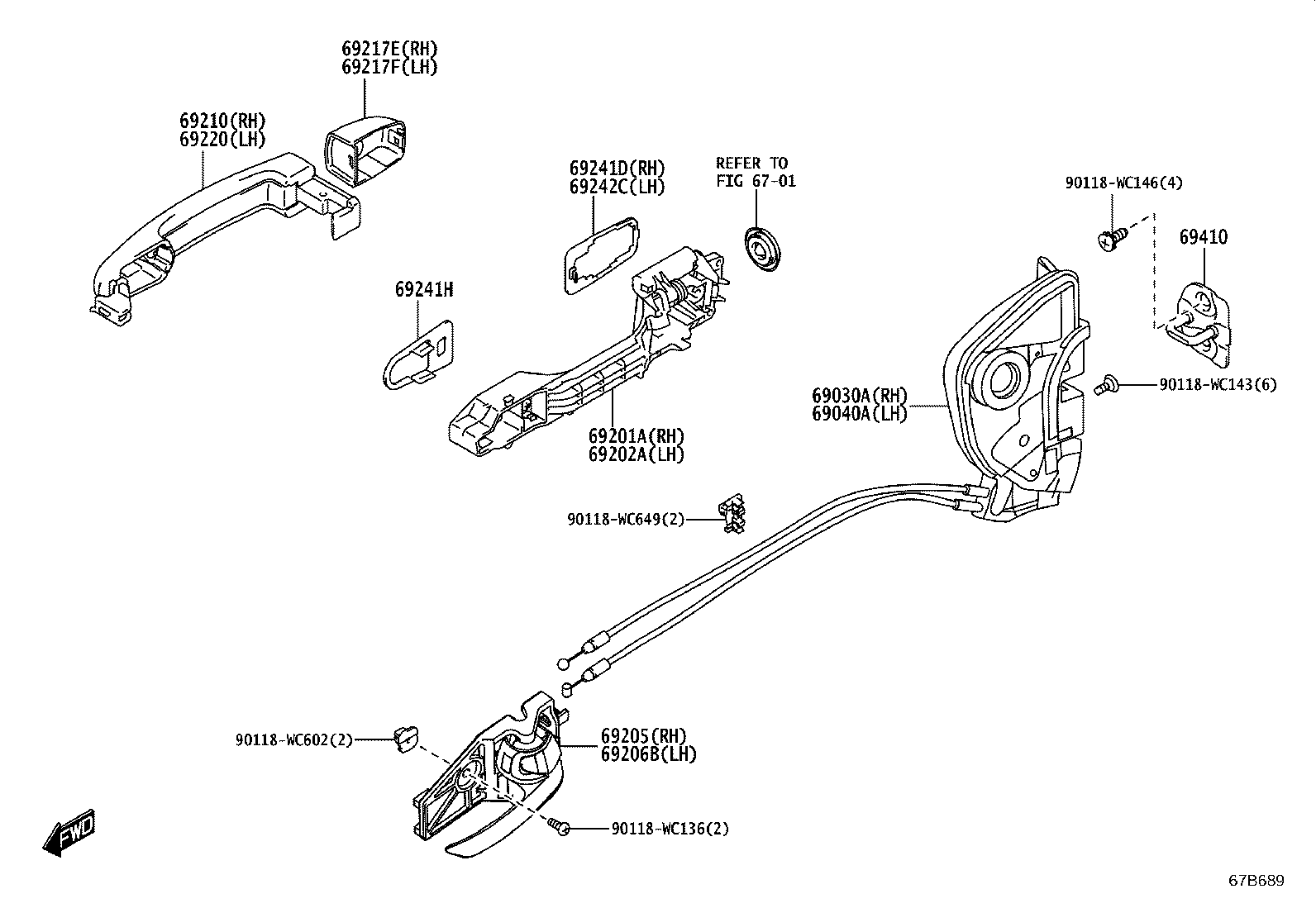

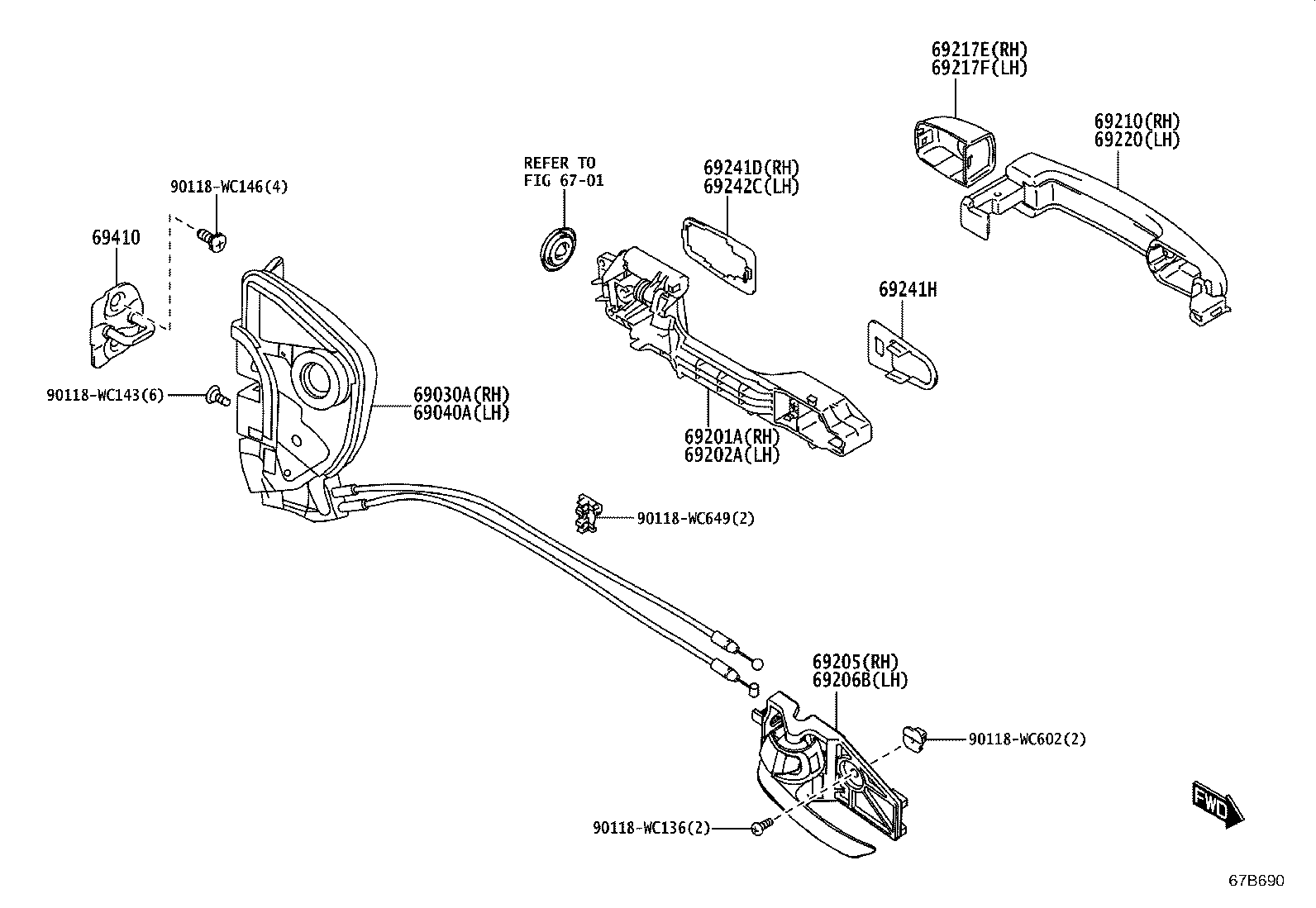

Figure 67B688A 67B688A 2021-07 → — Figure 67B689 67B689 2021-07 → — Figure 67B690 67B690 2021-07 → —

Part groups

PNCDescription
69030A Lock Assy, Front Door W/Motor, RH
69040A Lock Assy, Front Door W/Motor, LH
69201A Frame Sub-assy, Front Door Outside Handle, RH
69202A Frame Sub-assy, Front Door Outside Handle, LH
69205 Handle Sub-assy, Front Door Inside, RH
69206B Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69217E Cover, Front Door Outside Handle, RH
69217F Cover, Front Door Outside Handle, LH
69220 Handle Assy, Front Door Outside, LH
69241D Pad, Front Door Outside Handle, RH
69241H Pad, Front Door Outside Handle, Front
69242C Pad, Front Door Outside Handle, LH
69277B Bezel, Front Door Inside Handle, RH
69278B Bezel, Front Door Inside Handle, LH
69410 Plate Assy, Front Door Lock Striker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
