Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

9 part groups · 3 illustrations

Illustrations

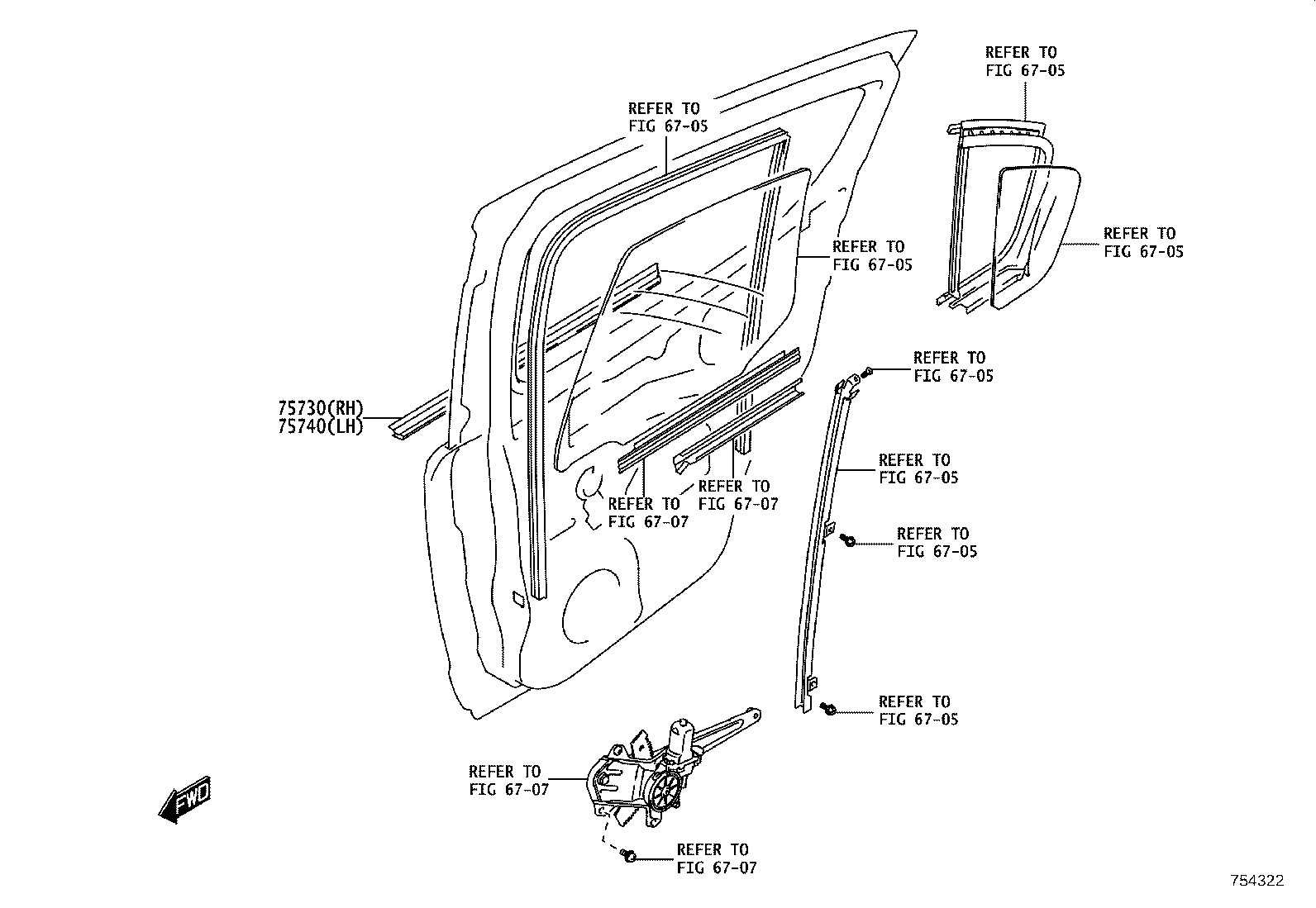

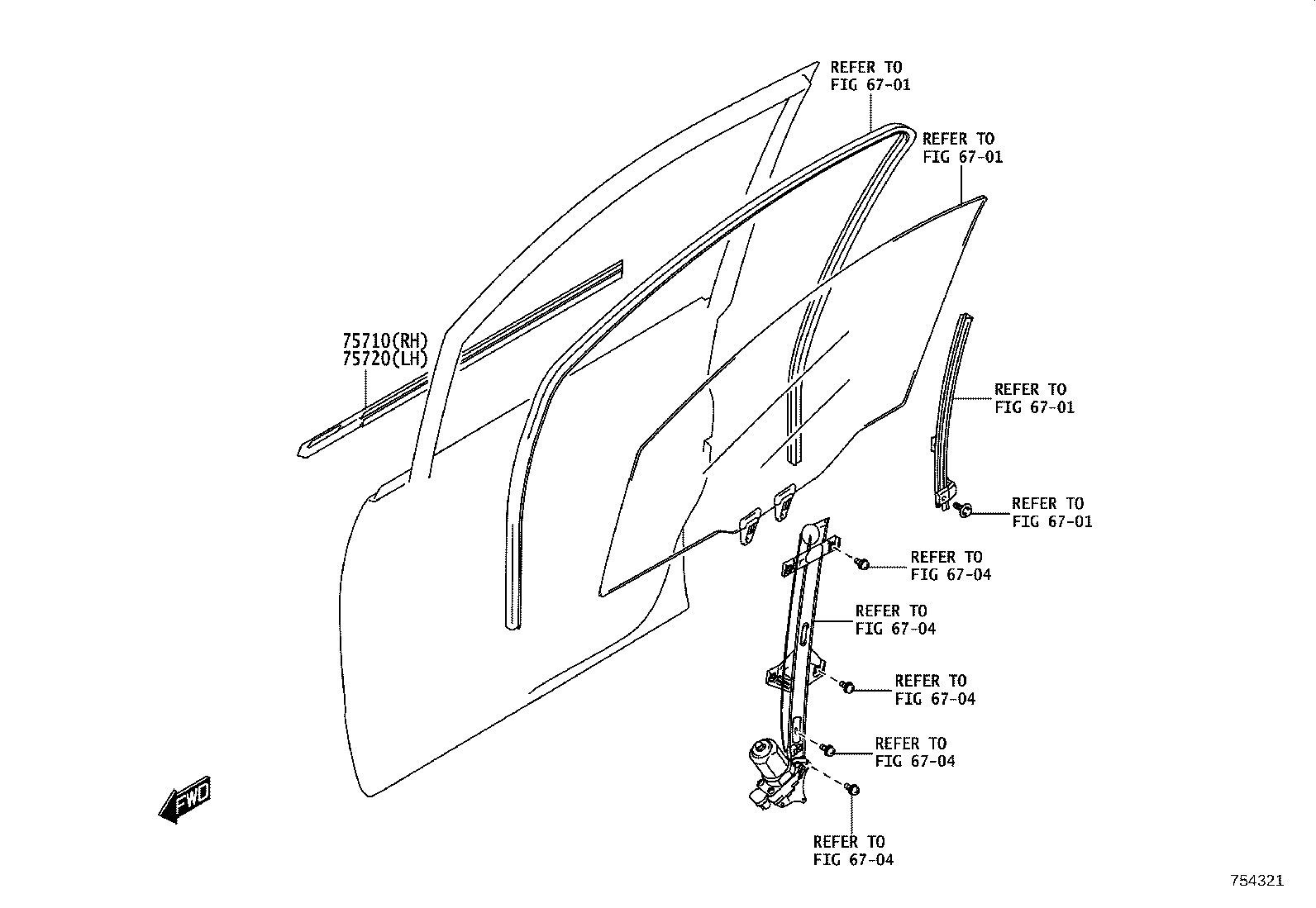

Figure 754320A 754320A 2021-07 → — Figure 754321 754321 2021-07 → — Figure 754322 754322 2021-07 → —

Part groups

PNCDescription
60117 Cover Sub-assy, Front Pillar, Upr RH
60118 Cover Sub-assy, Front Pillar, Upr LH
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75561A Clip, Roof Drip Side Finish Moulding
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75740 Moulding Assy, Rear Door Belt, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
