Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

9 part groups · 2 illustrations

Illustrations

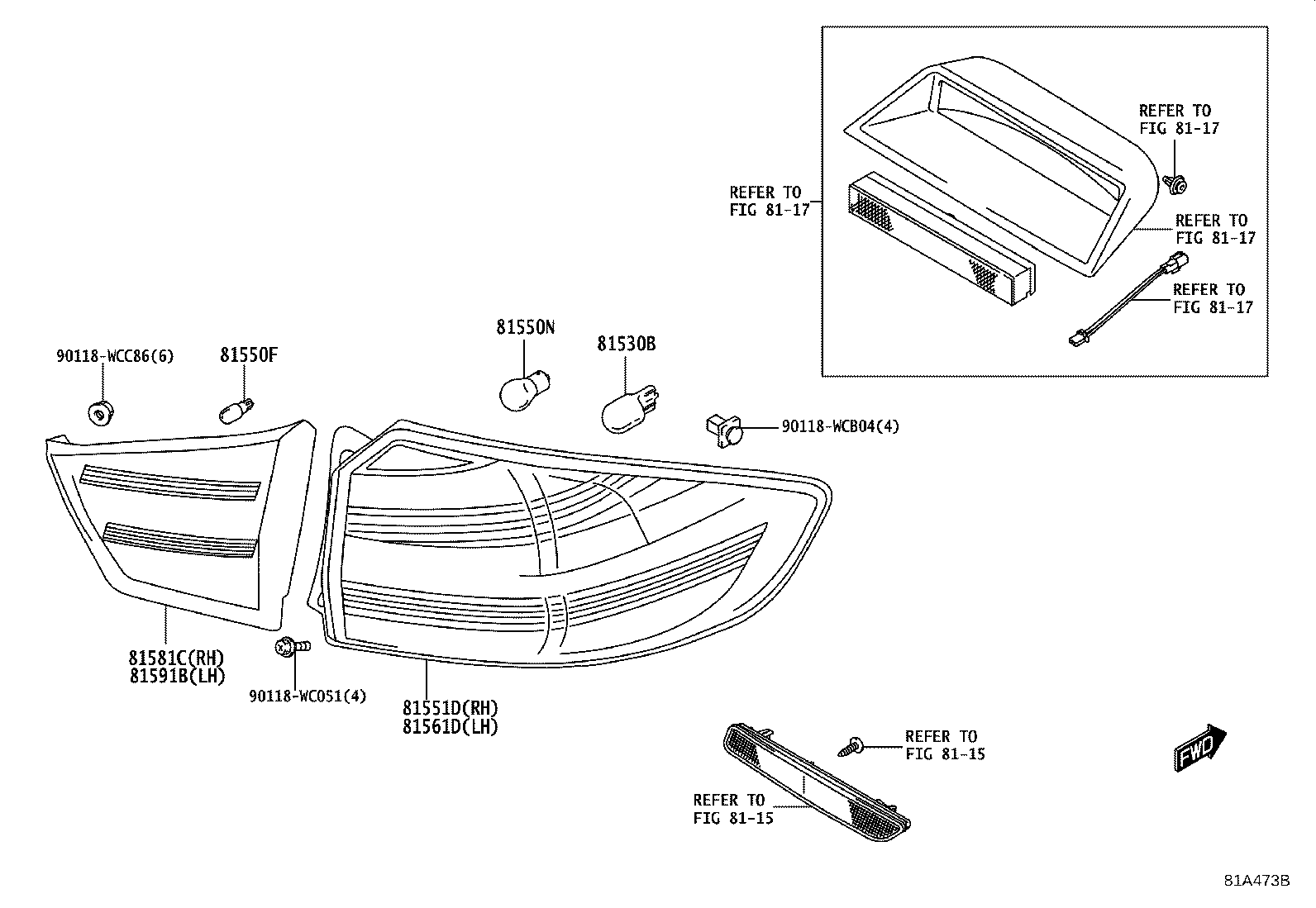

Figure 81A472B 81A472B 2021-07 → — Figure 81A473B 81A473B 2021-07 → —

Part groups

PNCDescription
81530B Bulb, Rear Turn Signal Lamp
81550F Bulb, Taillamp
81550N Bulb, Back UP Lamp
81550P Socket, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81555H Socket & Wire, Rear Combination Lamp
81561D Lens & Body, Rear Combination Lamp, LH
81581C Lens And Body, Rear Lamp, RH
81591B Lens And Body, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
