Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

21 part groups · 4 illustrations

Illustrations

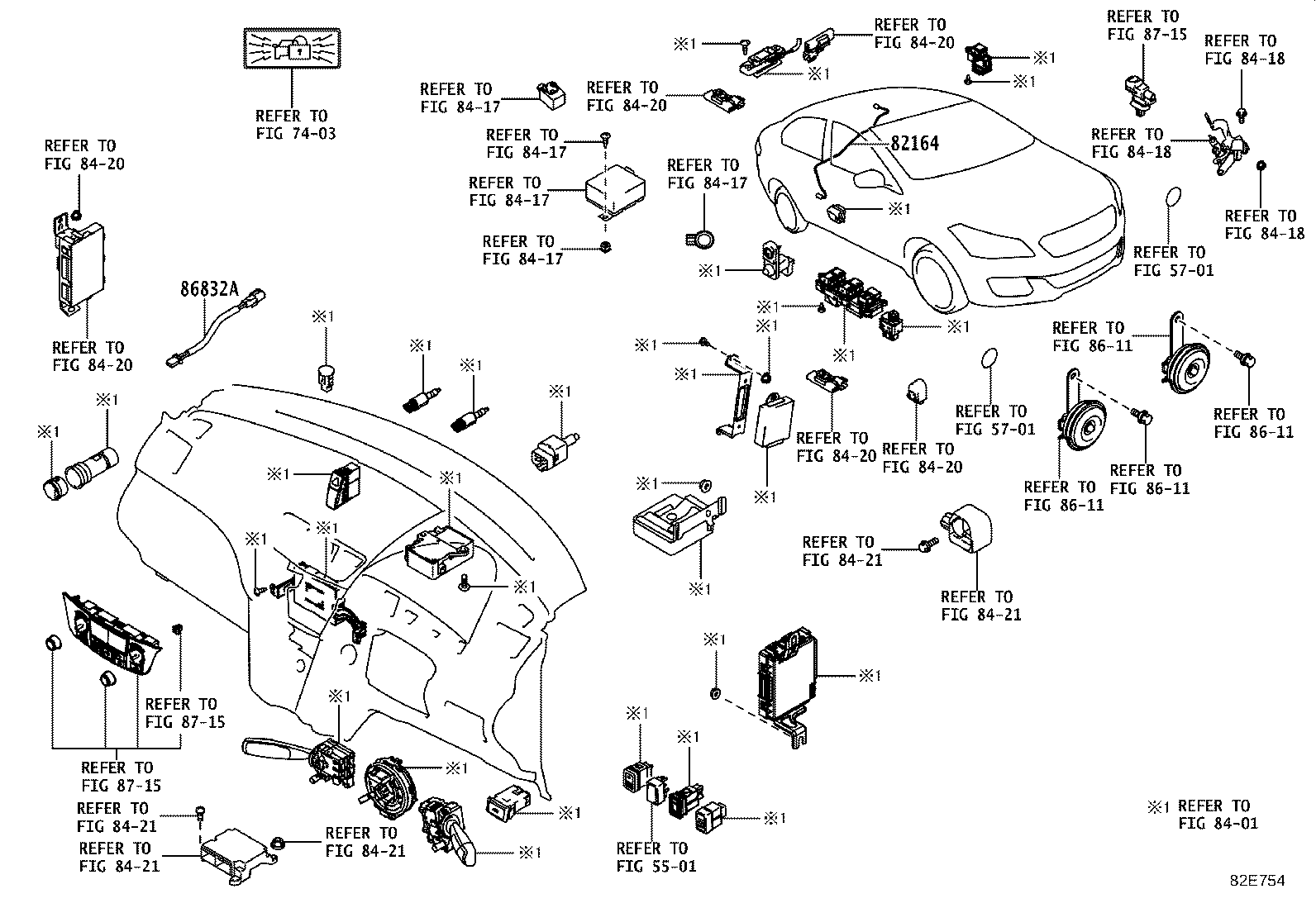

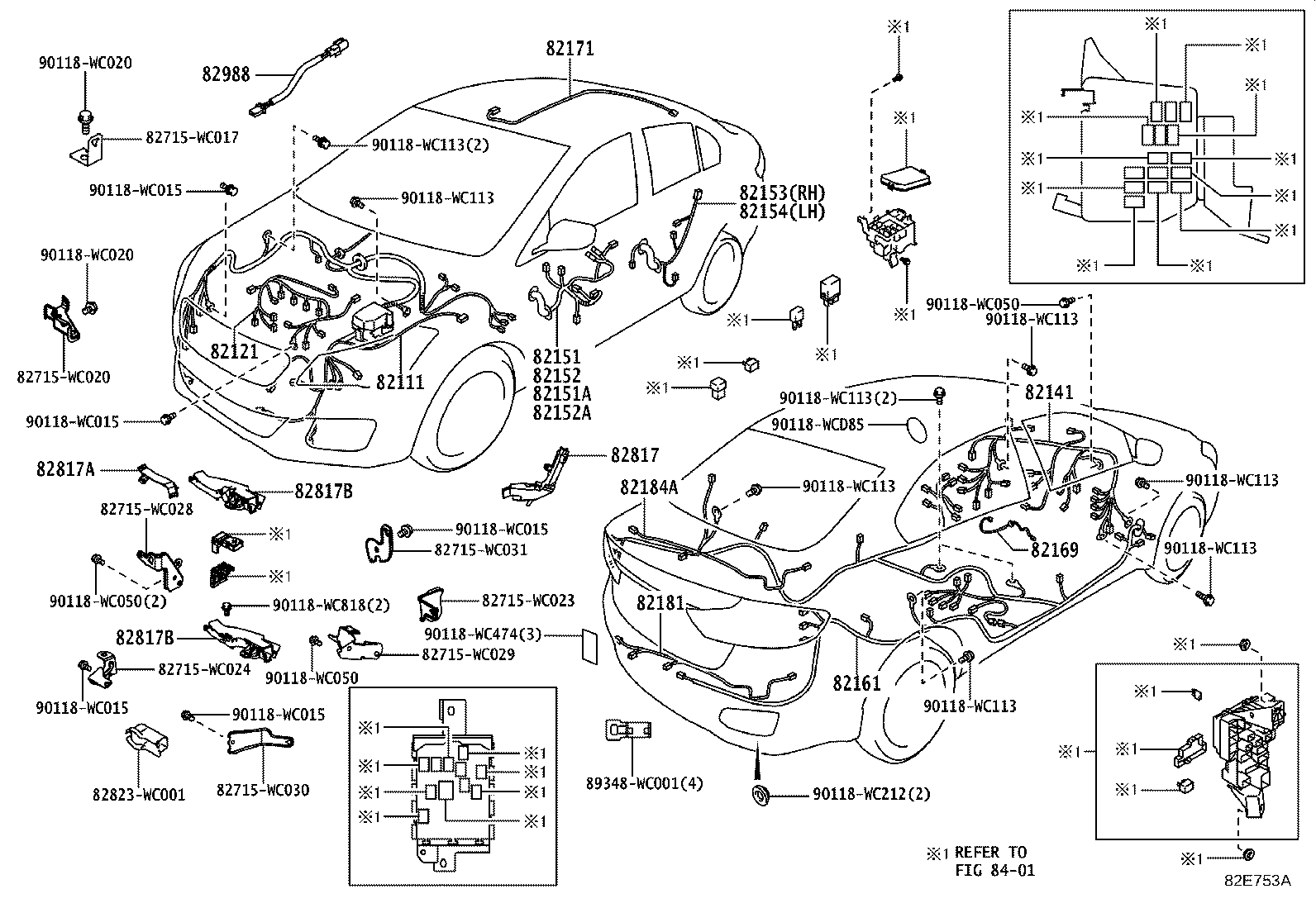

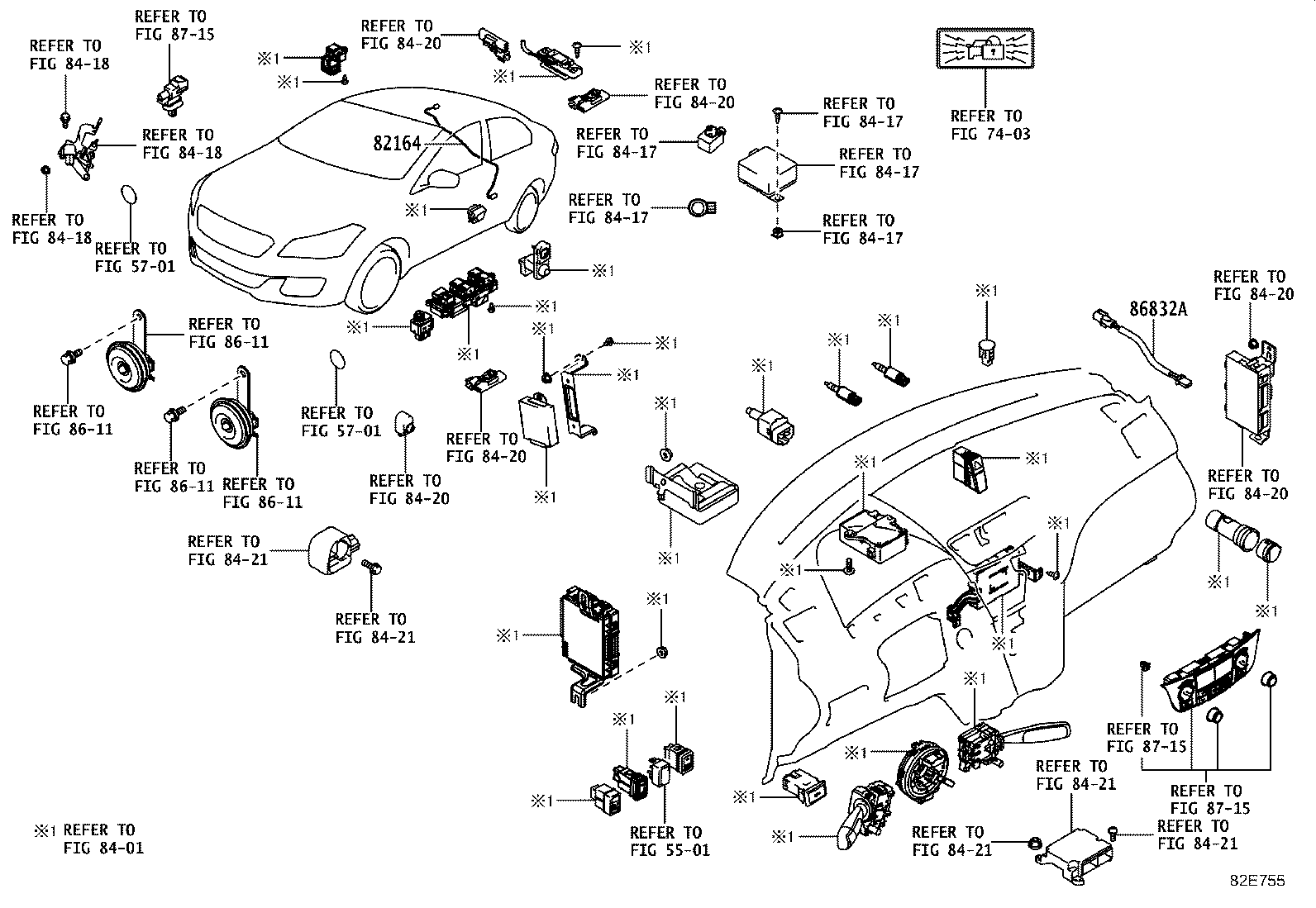

Figure 82E752 82E752 2021-07 → — Figure 82E753A 82E753A 2021-07 → — Figure 82E754 82E754 2021-07 → — Figure 82E755 82E755 2021-07 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82164 Wire, Frame
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184A Wire, Luggage Room, NO.4
82280A Wire Assy, Battery TO Cowl Top Side
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82988 Wire, Airbag Repair
86832A Wire, Accessory Socket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
