Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

48 part groups · 18 illustrations

Illustrations

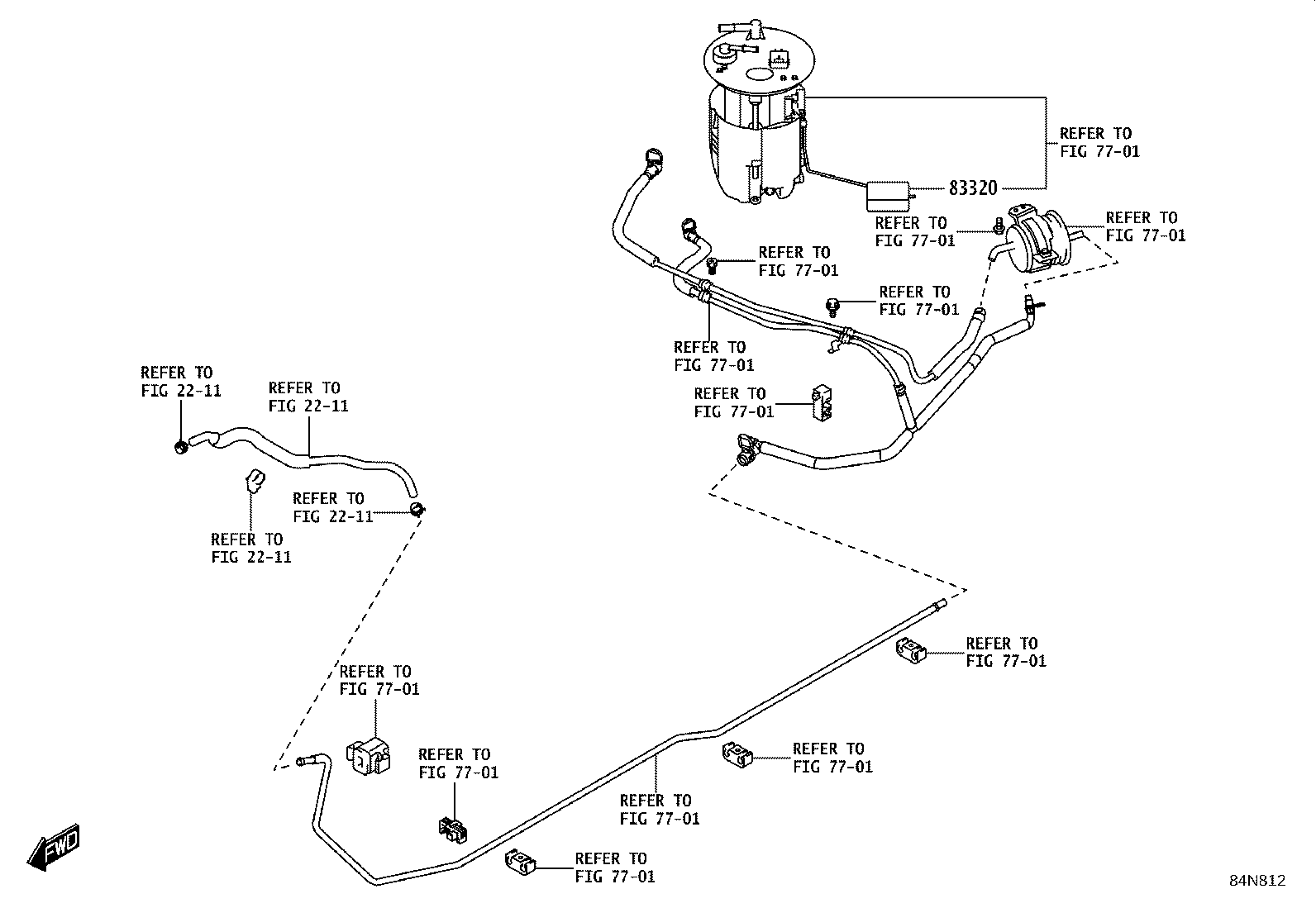

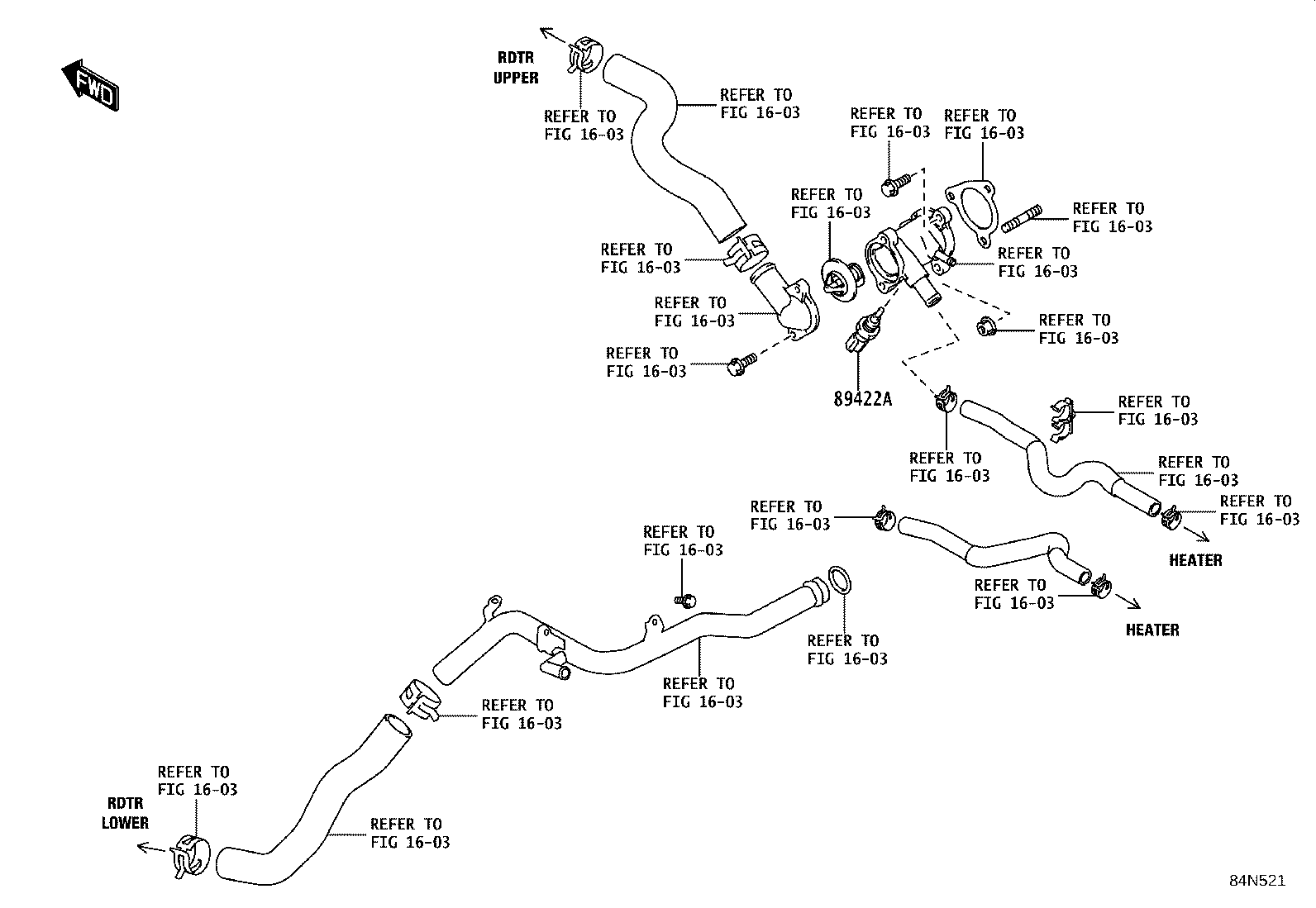

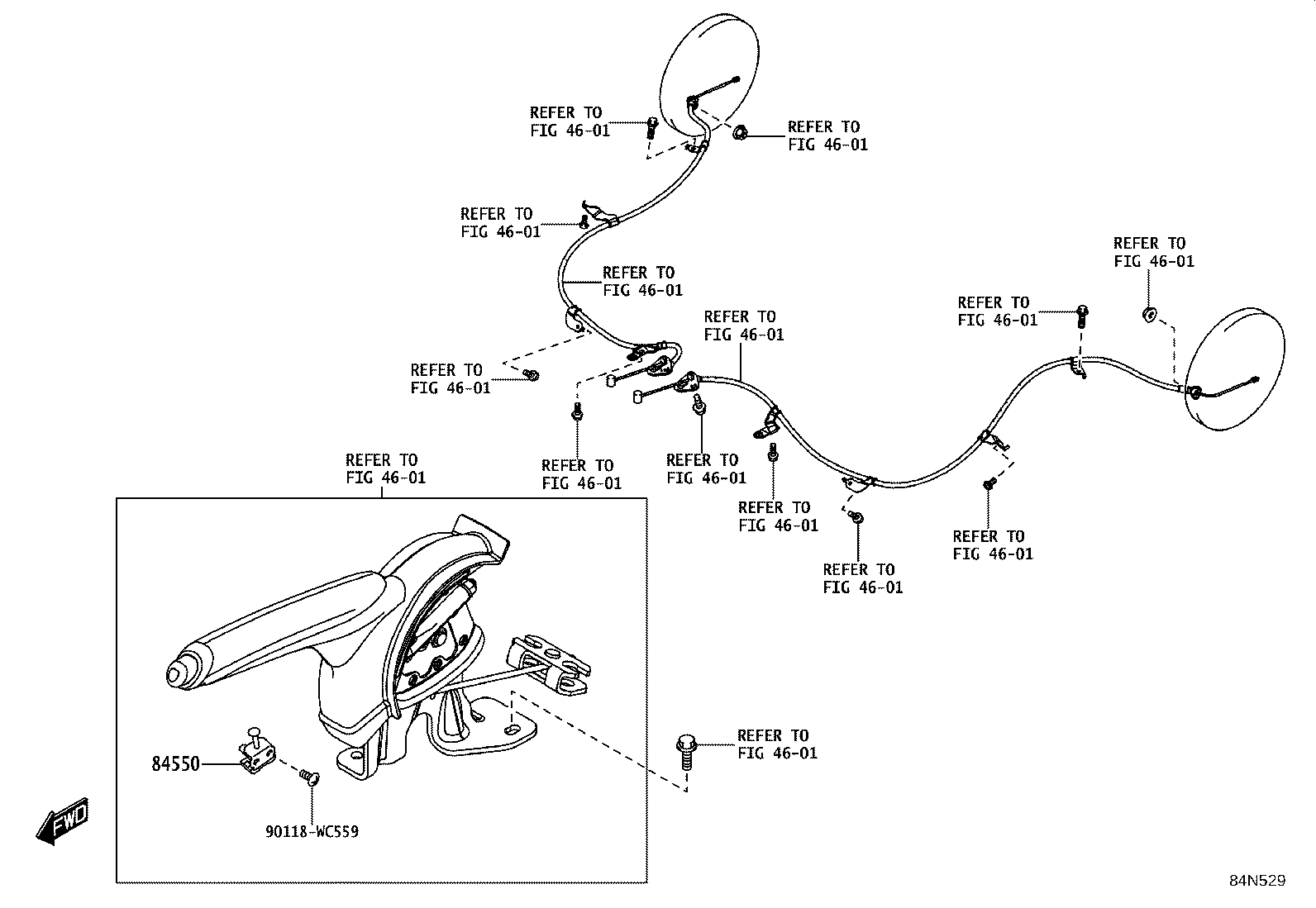

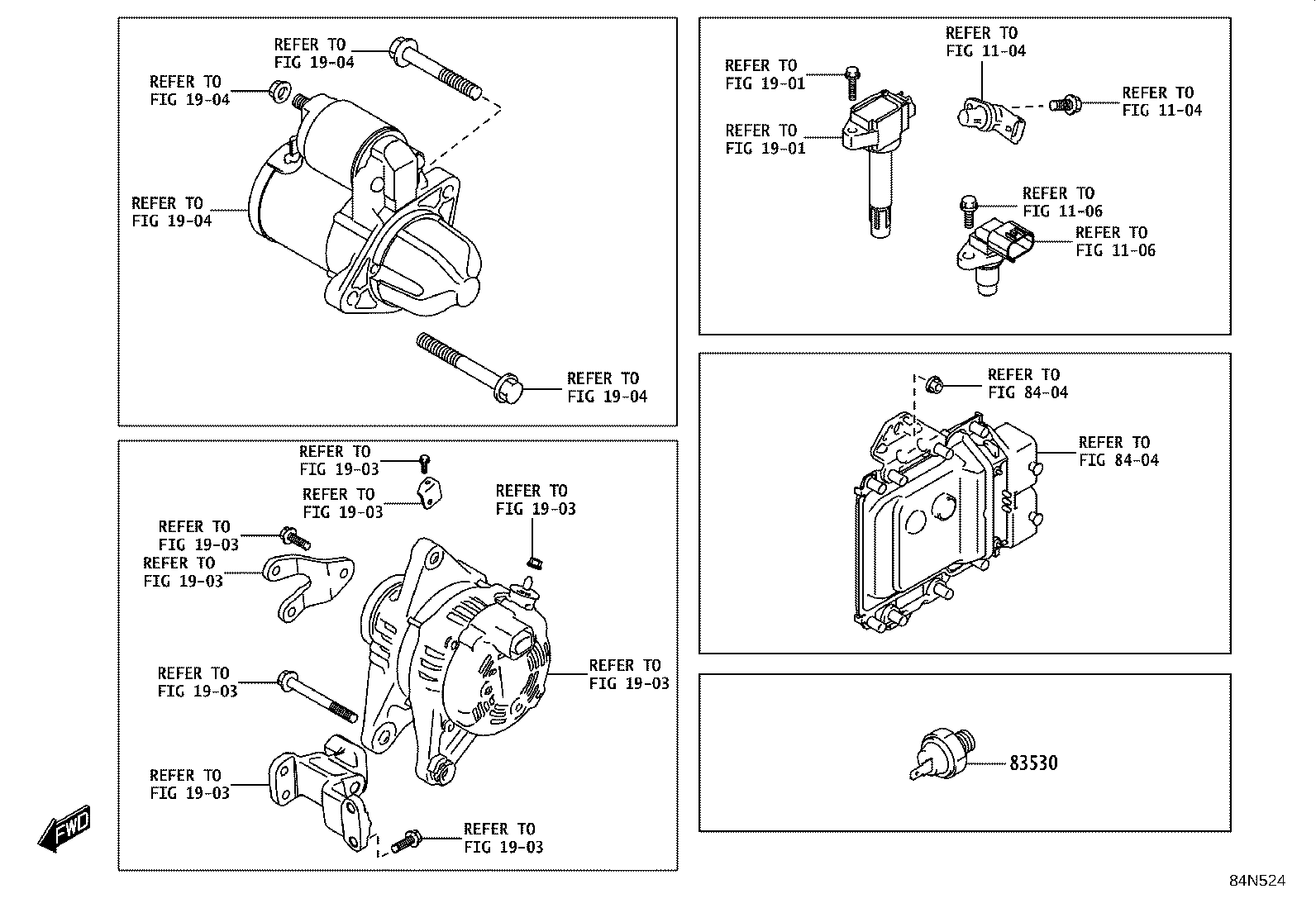

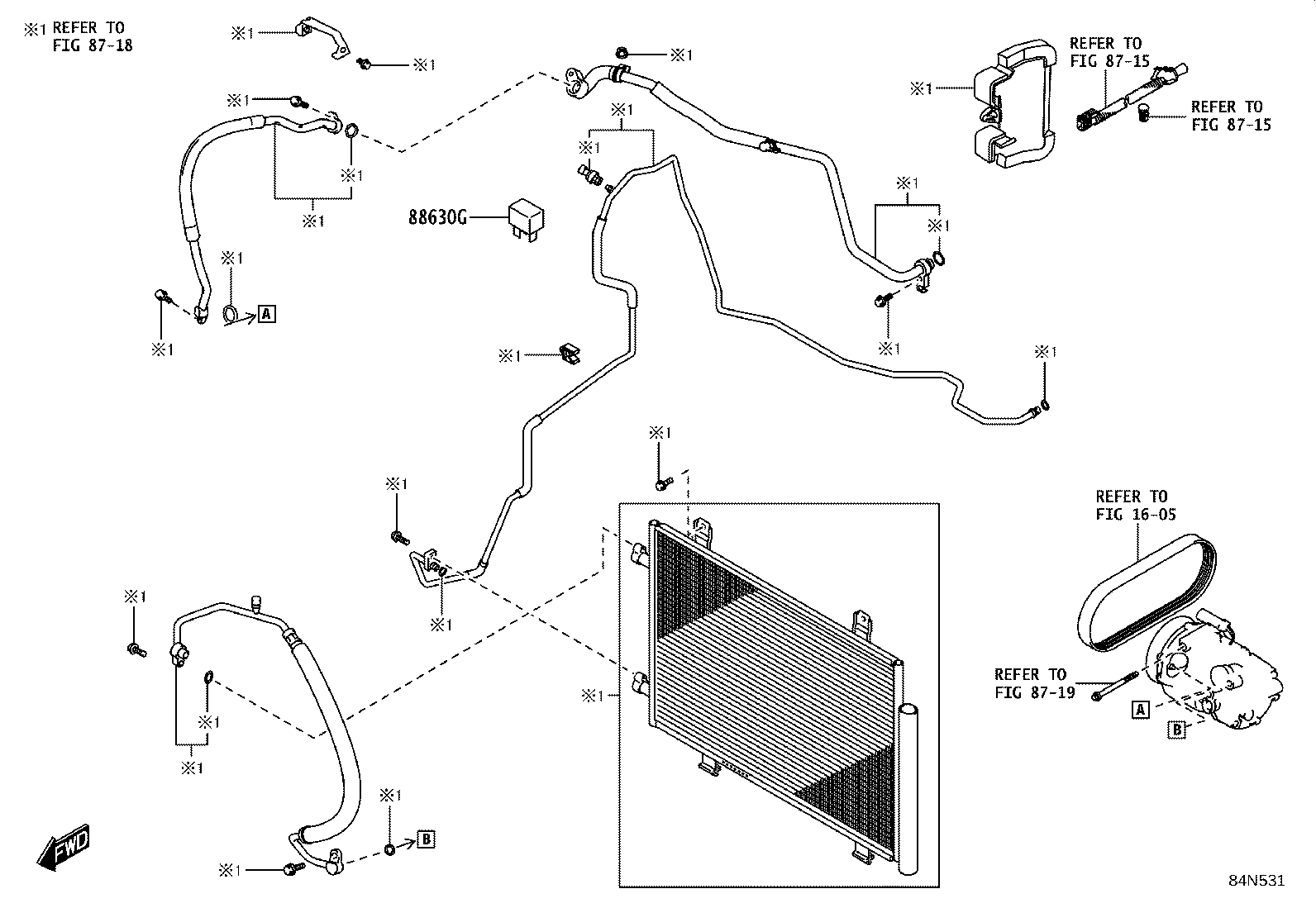

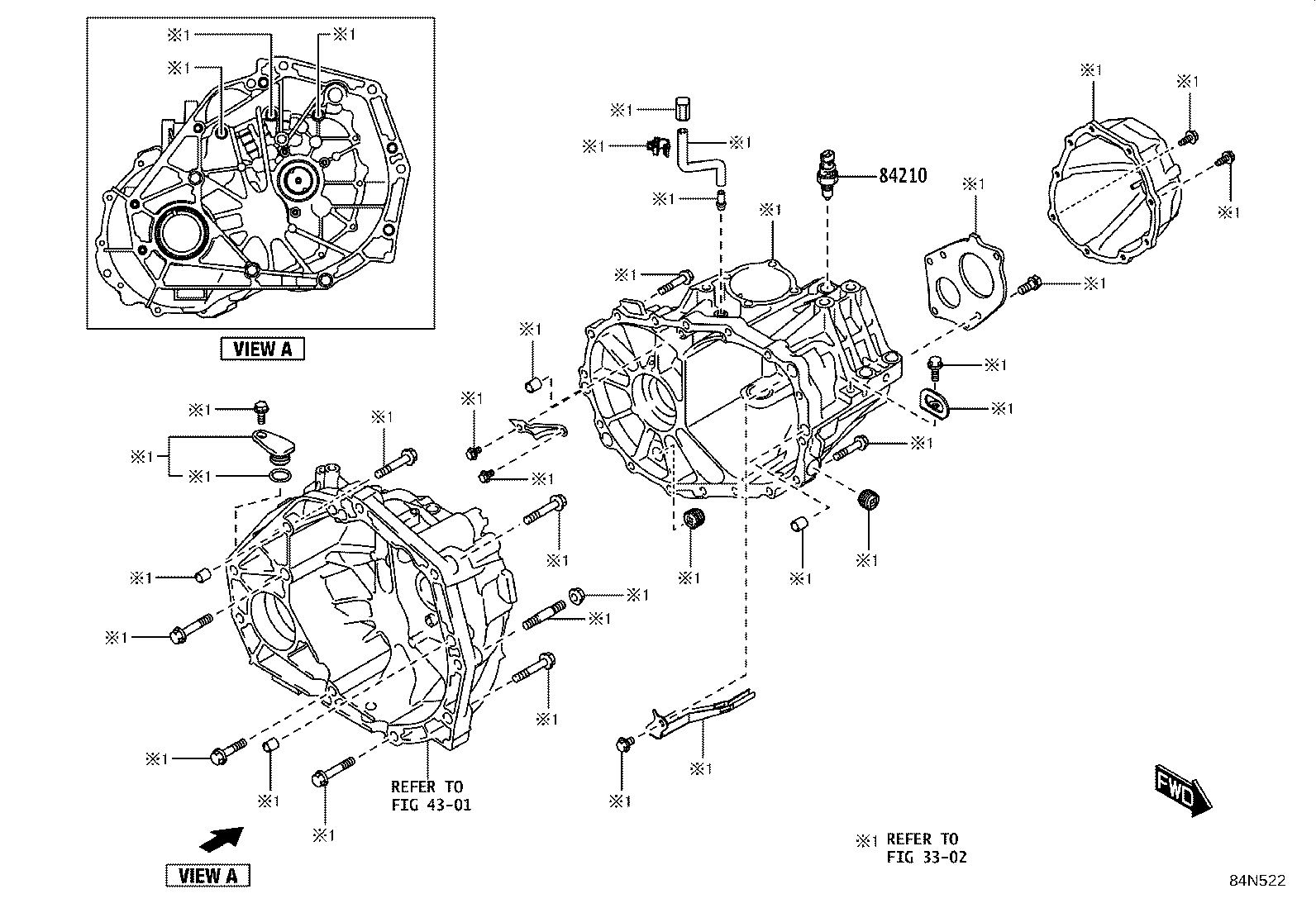

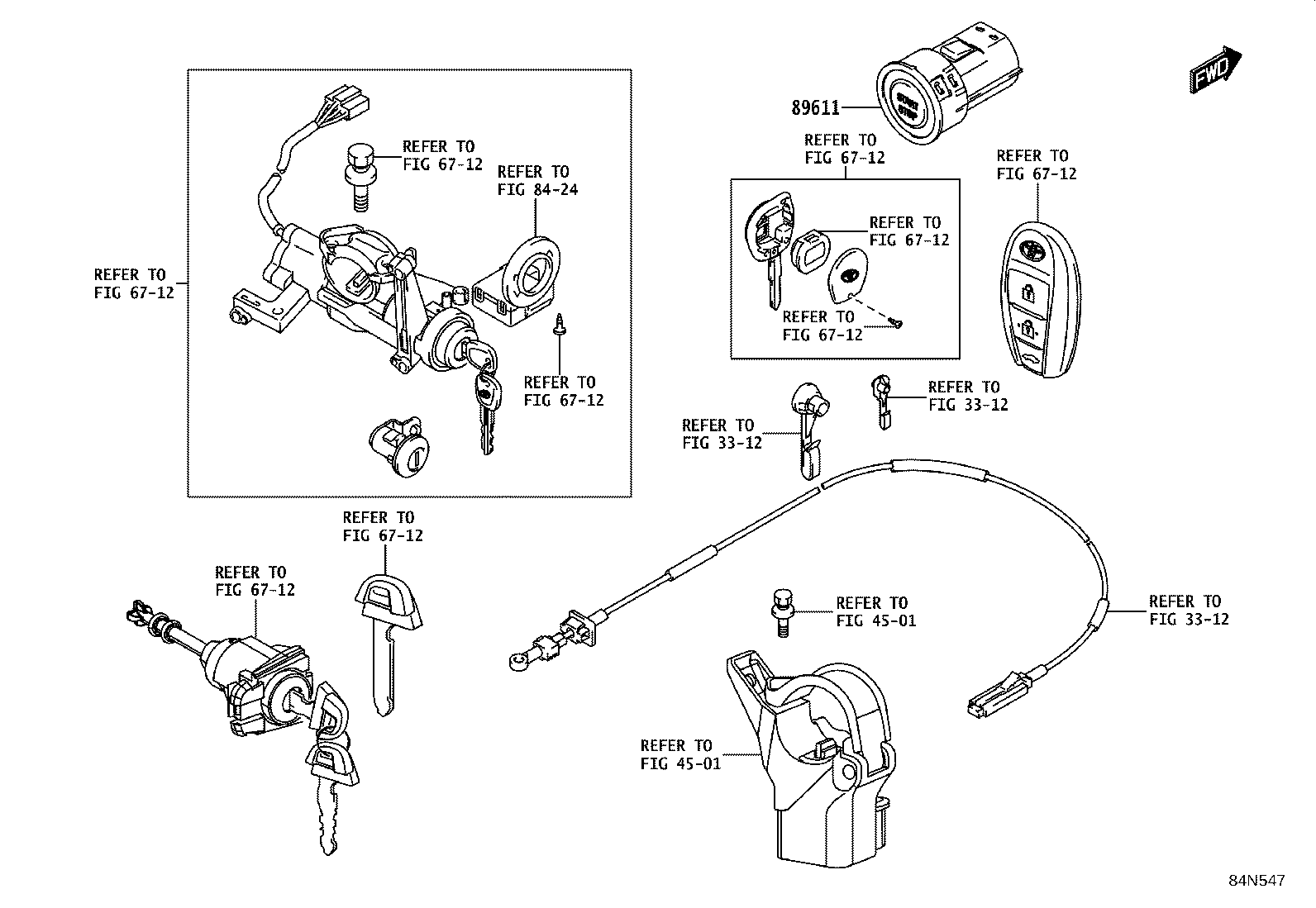

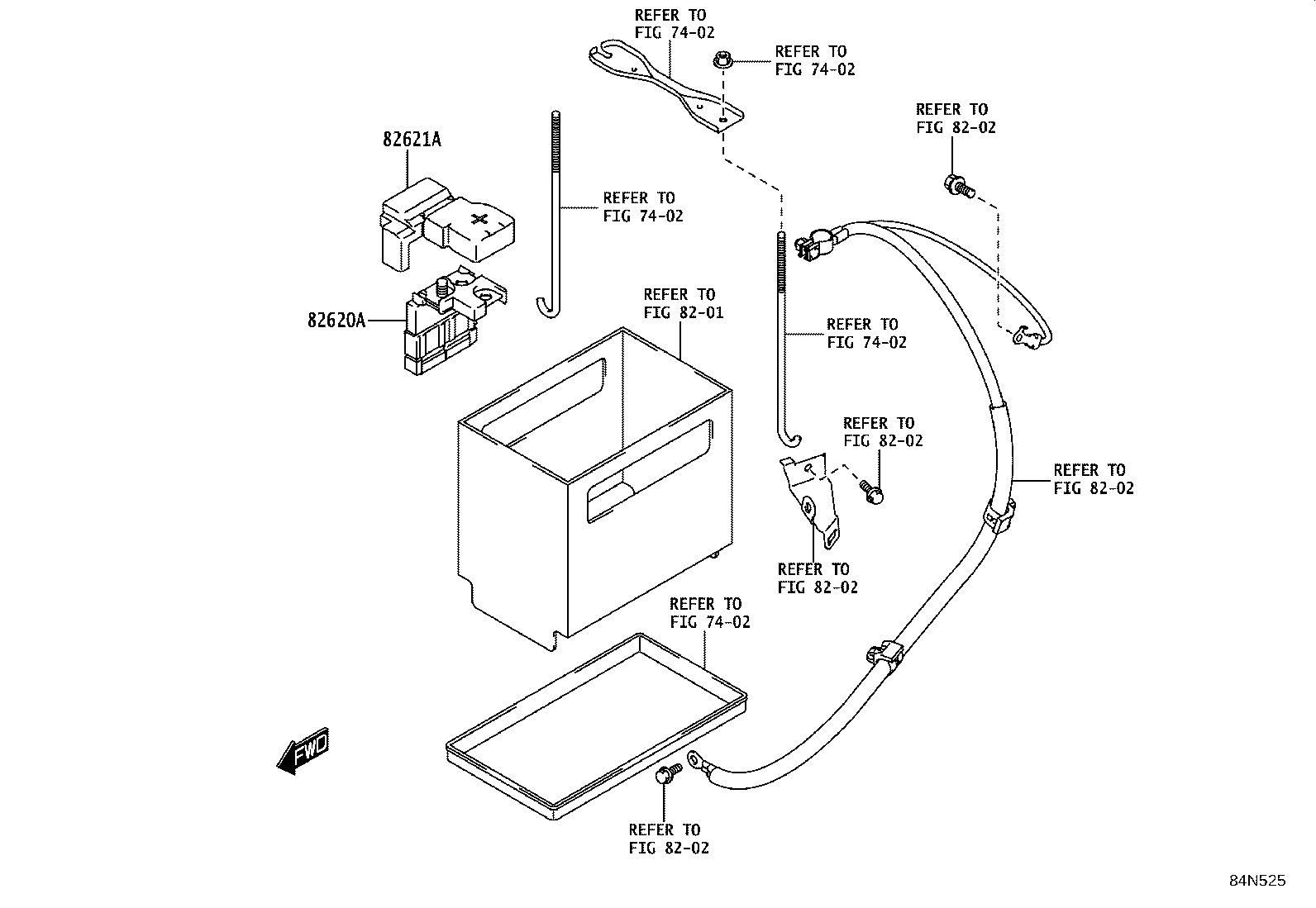

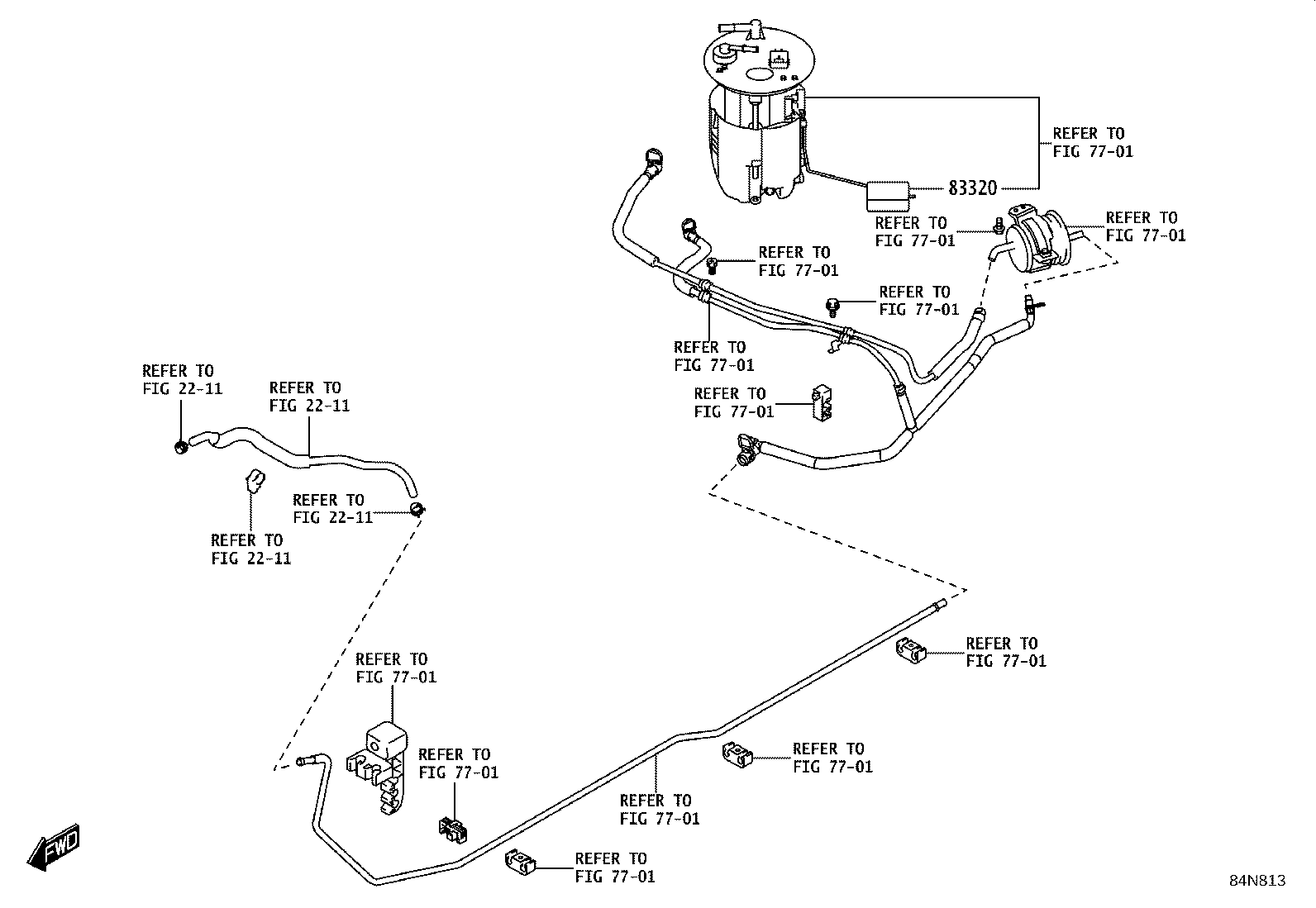

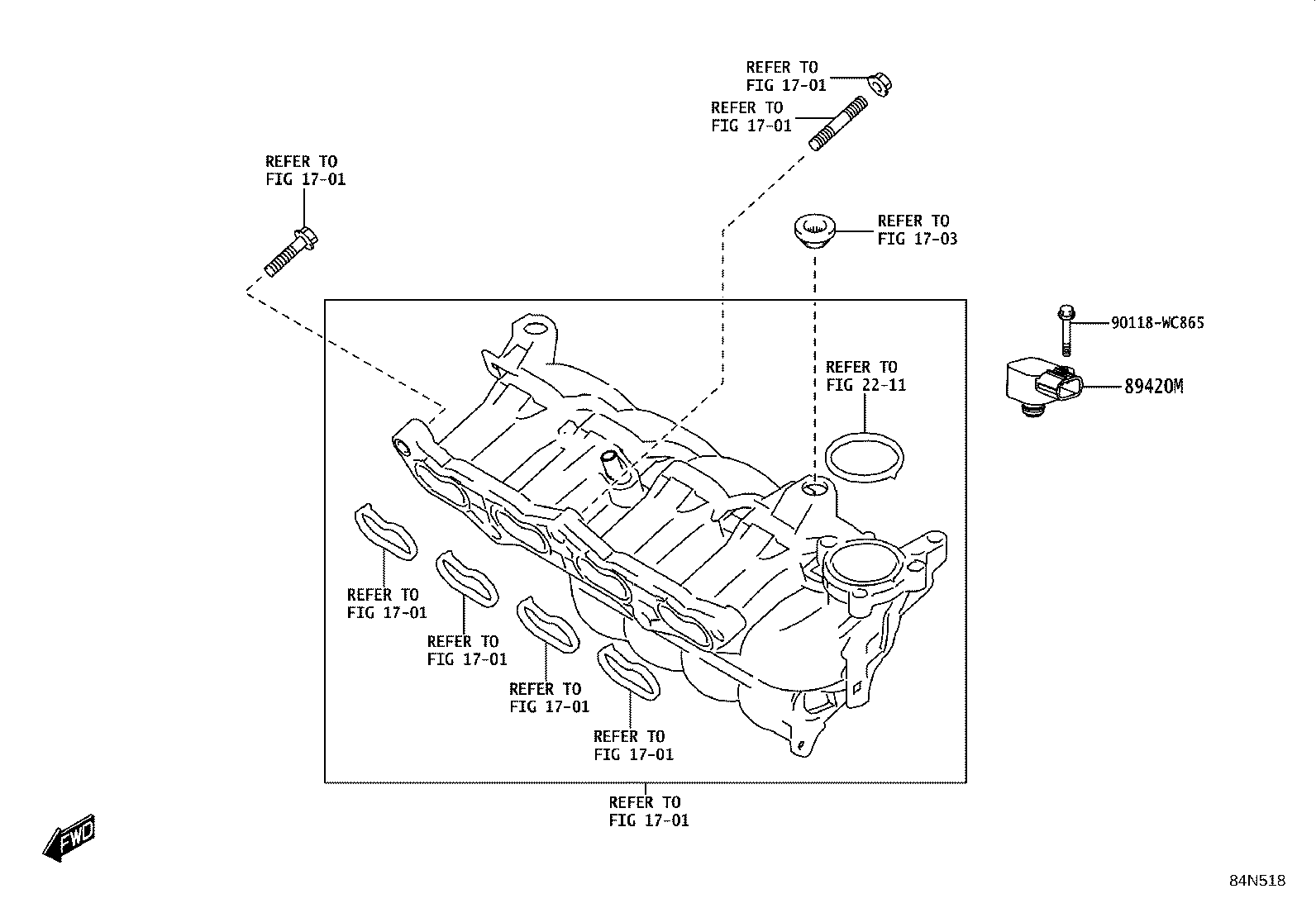

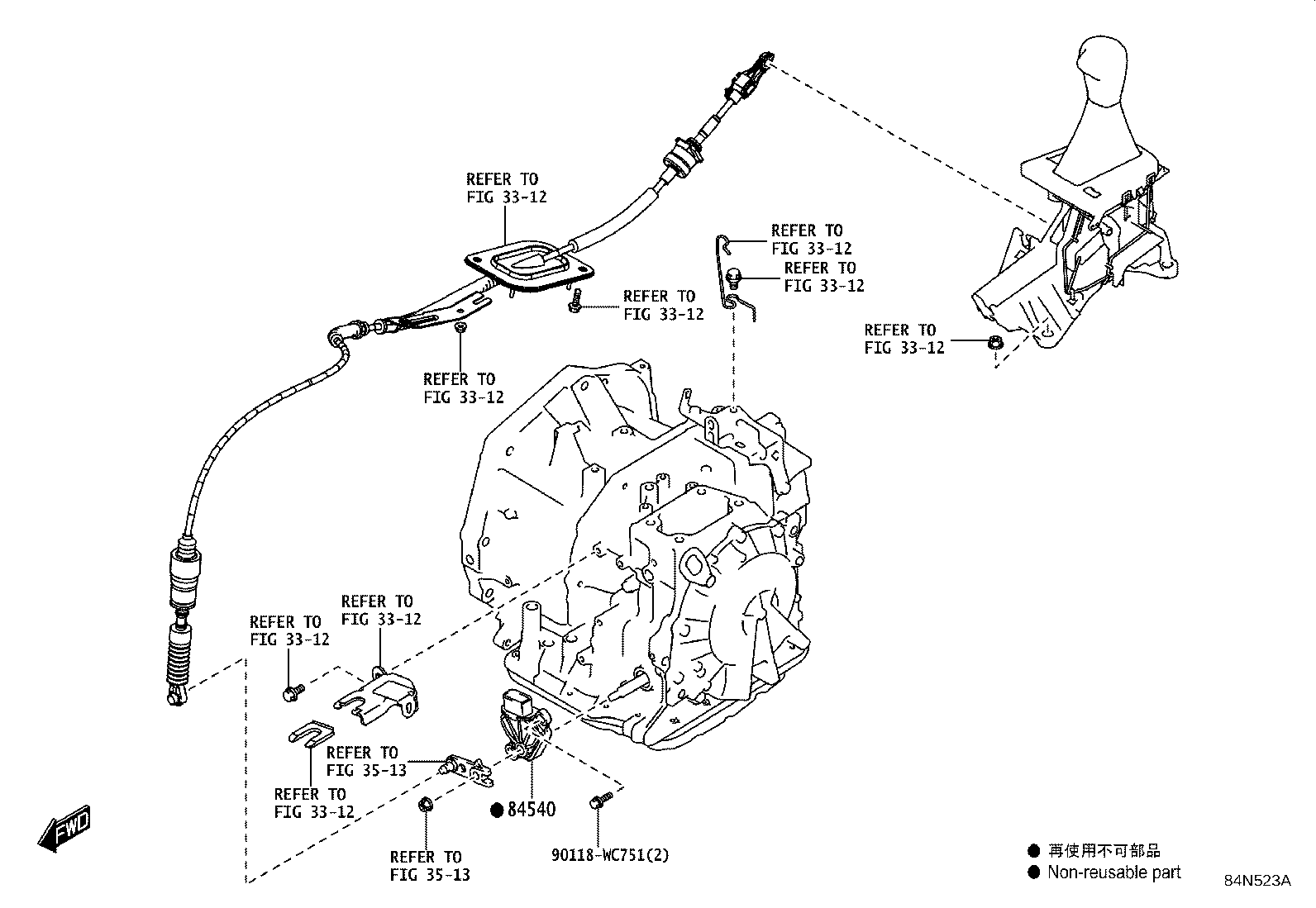

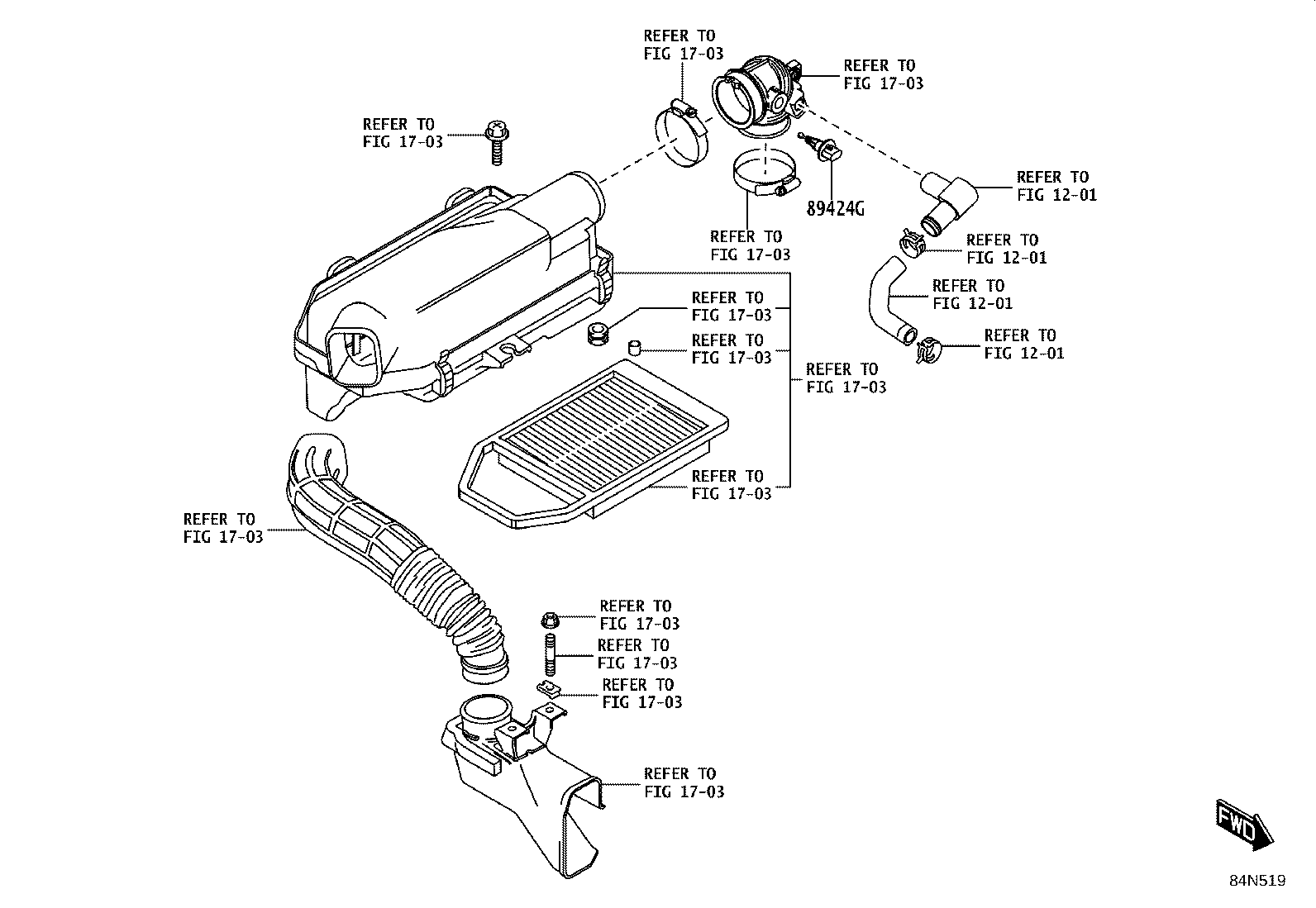

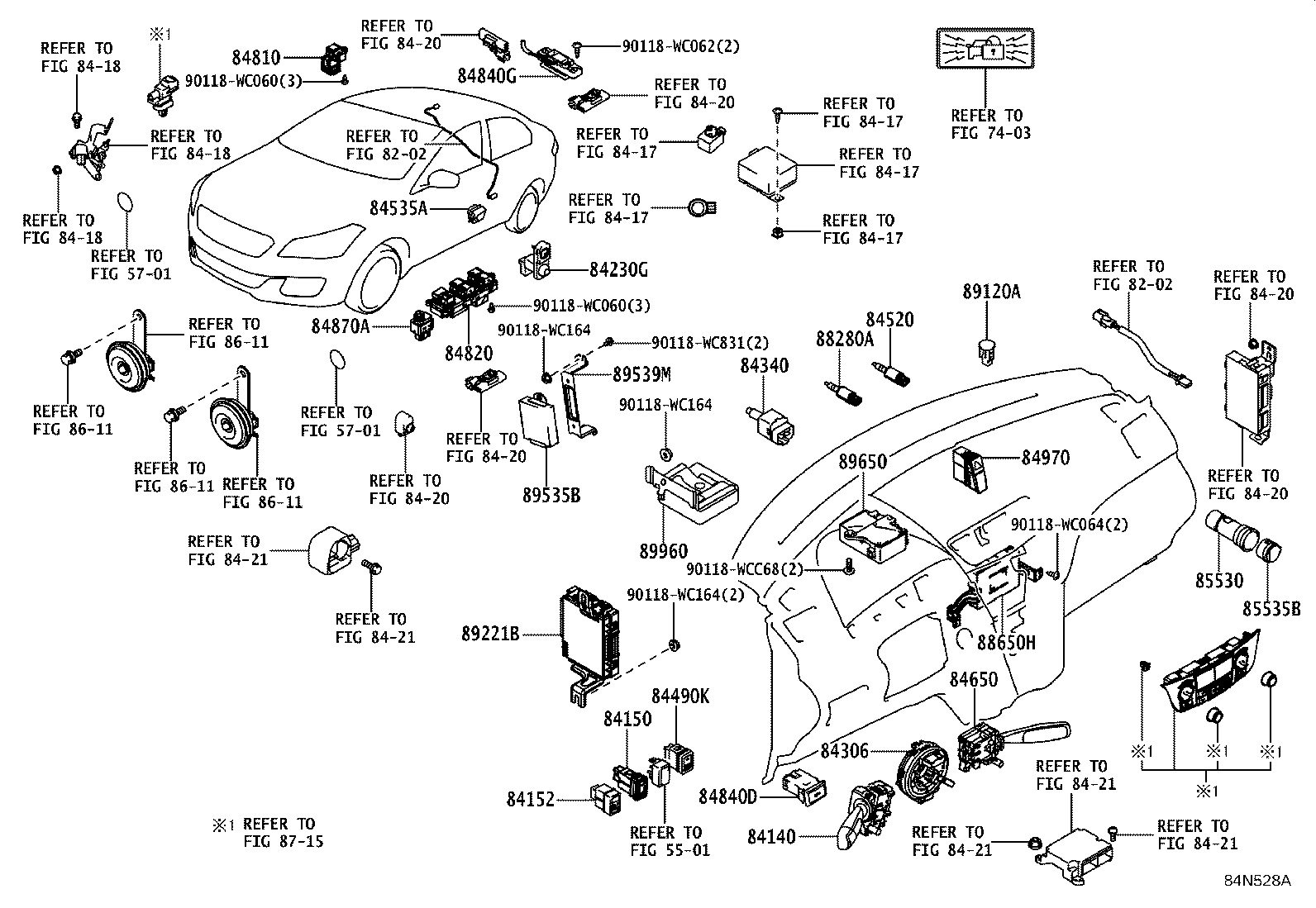

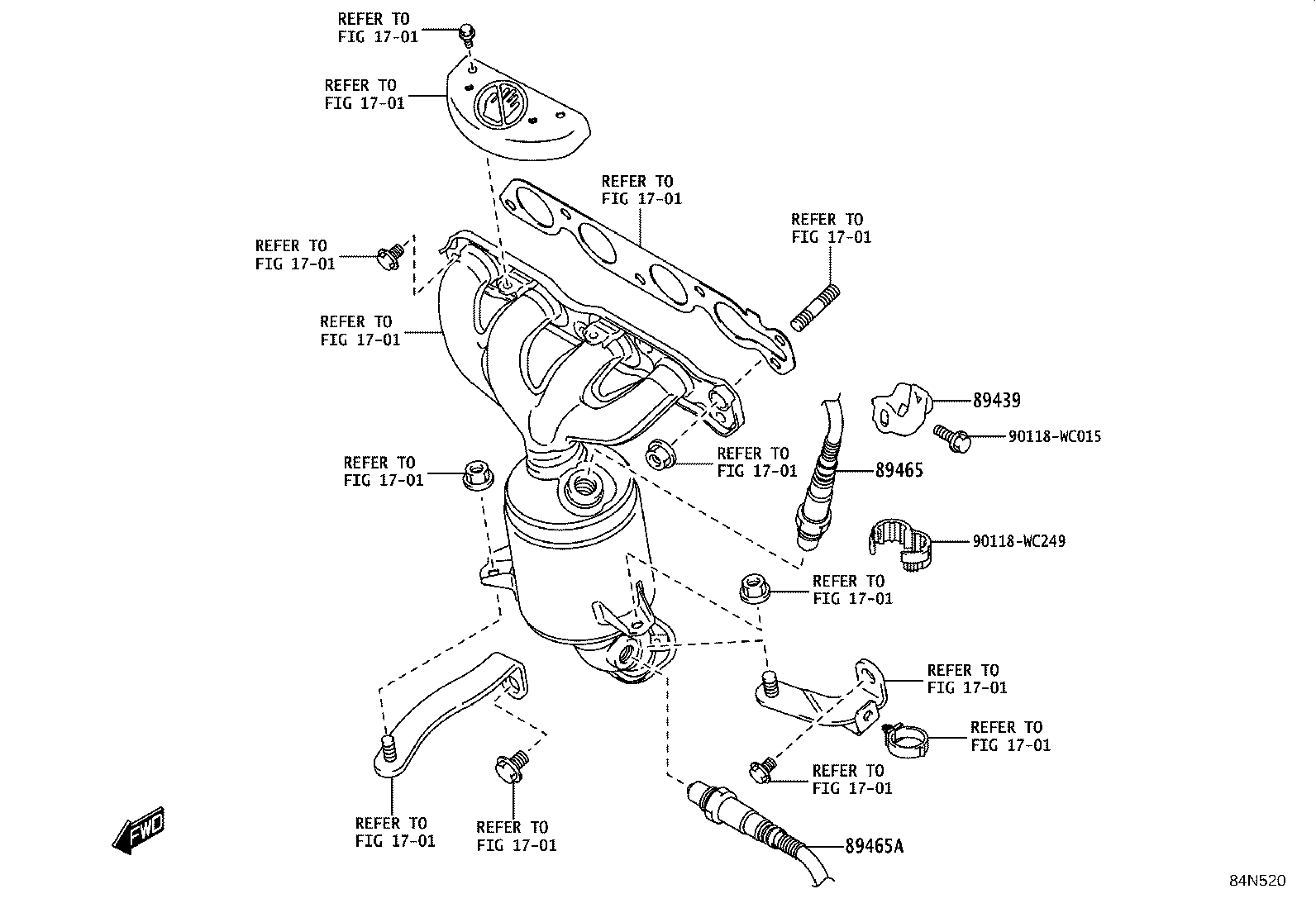

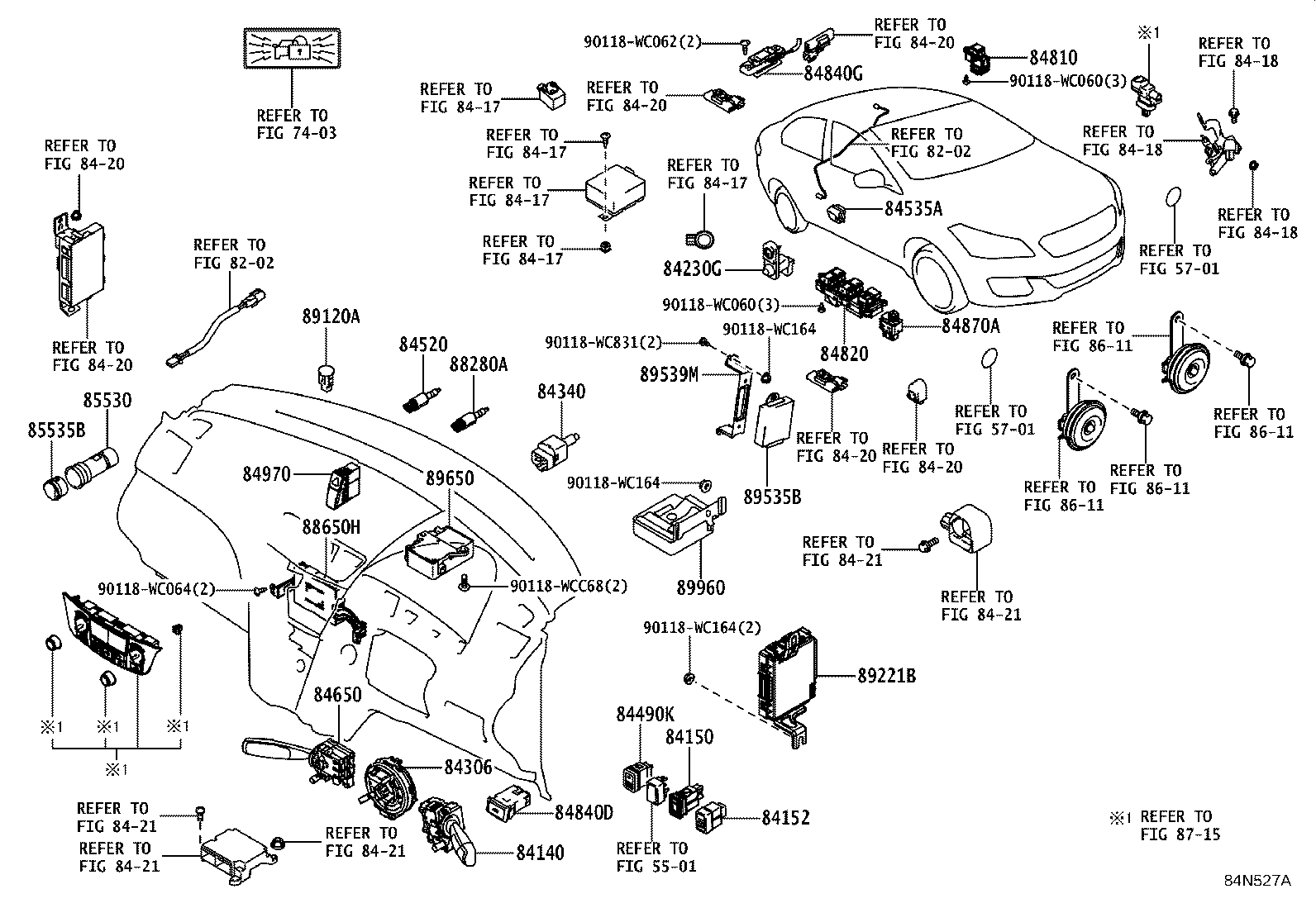

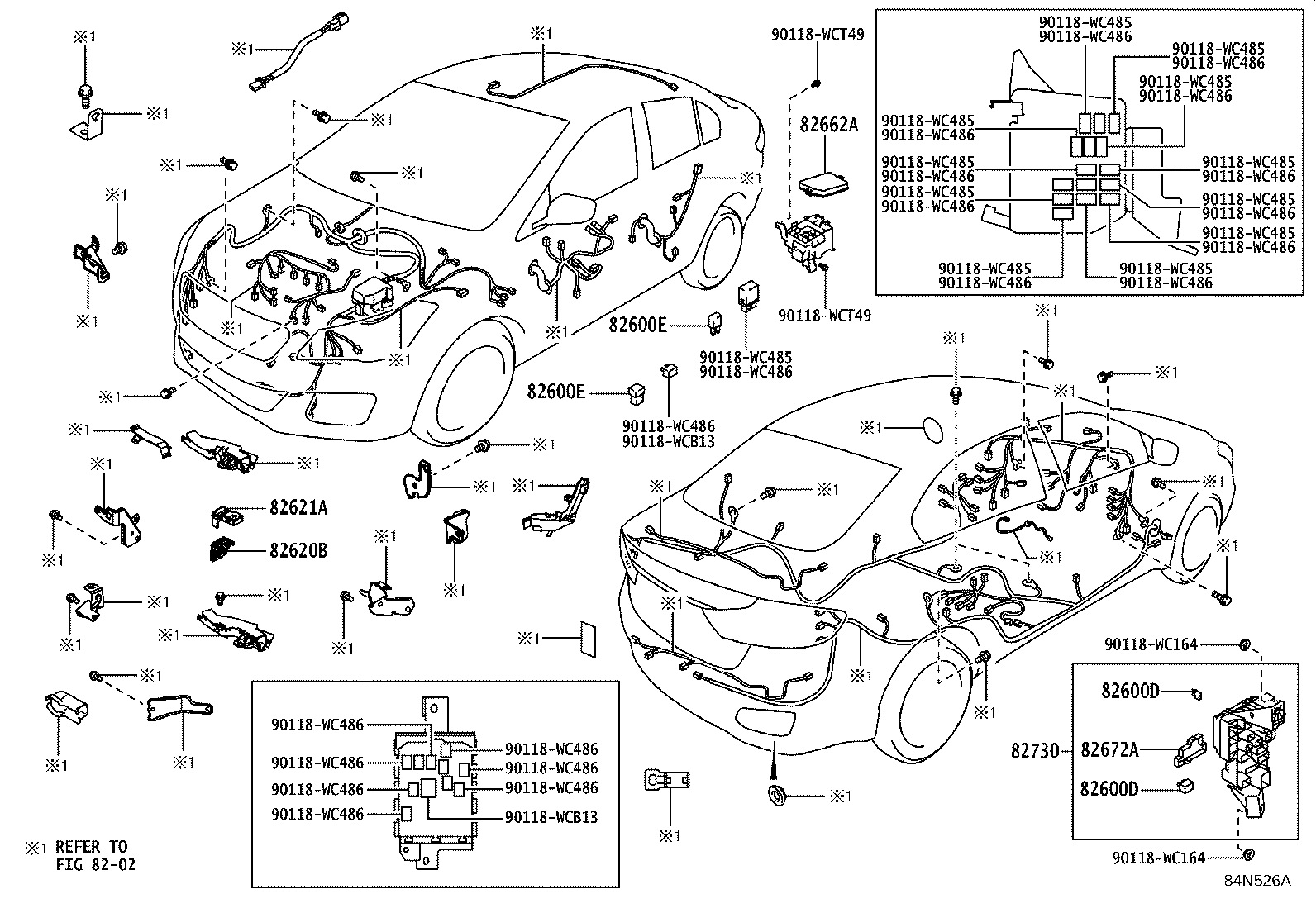

Figure 84N517 84N517 2021-07 → — Figure 84N518 84N518 2021-07 → — Figure 84N519 84N519 2021-07 → — Figure 84N520 84N520 2021-07 → — Figure 84N812 84N812 2021-07 → — Figure 84N813 84N813 2021-07 → — Figure 84N521 84N521 2021-07 → — Figure 84N522 84N522 2021-07 → — Figure 84N523A 84N523A 2021-07 → — Figure 84N524 84N524 2021-07 → — Figure 84N525 84N525 2021-07 → — Figure 84N526B 84N526B 2021-07 → — Figure 84N527A 84N527A 2021-07 → — Figure 84N528A 84N528A 2021-07 → — Figure 84N547 84N547 2021-07 → — Figure 84N529 84N529 2021-07 → — Figure 84N530 84N530 2021-07 → — Figure 84N531 84N531 2021-07 → —

Part groups

PNCDescription
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82621A Cover, Fusible Link
82662A Cover, Relay Block, Upper, NO.1
82672A Cover, Junction Block
82730 Block Assy, Instrument Panel Junction
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84140 Switch Assy, Headlamp Dimmer
84150 Switch Assy, Fog Lamp
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84230G Switch Assy, Courtesy Lamp
84306 Cable Sub-assy, Spiral
84340 Switch Assy, Stop Lamp
84490K Switch Assy, Back Sonar
84520 Switch Assy, Clutch Start
84535A Switch, Door Lock
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84840D Switch Assy, Luggage Door Opening
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84970 Switch Assy, Combination
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
88280A Switch Assy, Clutch
88630G Relay Assy, Cooler
88650H Amplifier Assy, Air Conditioner
89120A Sensor, Automatic Light Control
89221B Computer, Body
89420M Sensor Assy, Air Pressure
89422A Sensor, Water Temperature
89424G Sensor, Inlet Air Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89535B Computer, Transmission Control
89539M Bracket, Transmission Control Computer, NO.1
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
