Factory parts data · Europe

Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

3 part groups · 2 illustrations

Illustrations

868796 2021-07 → —

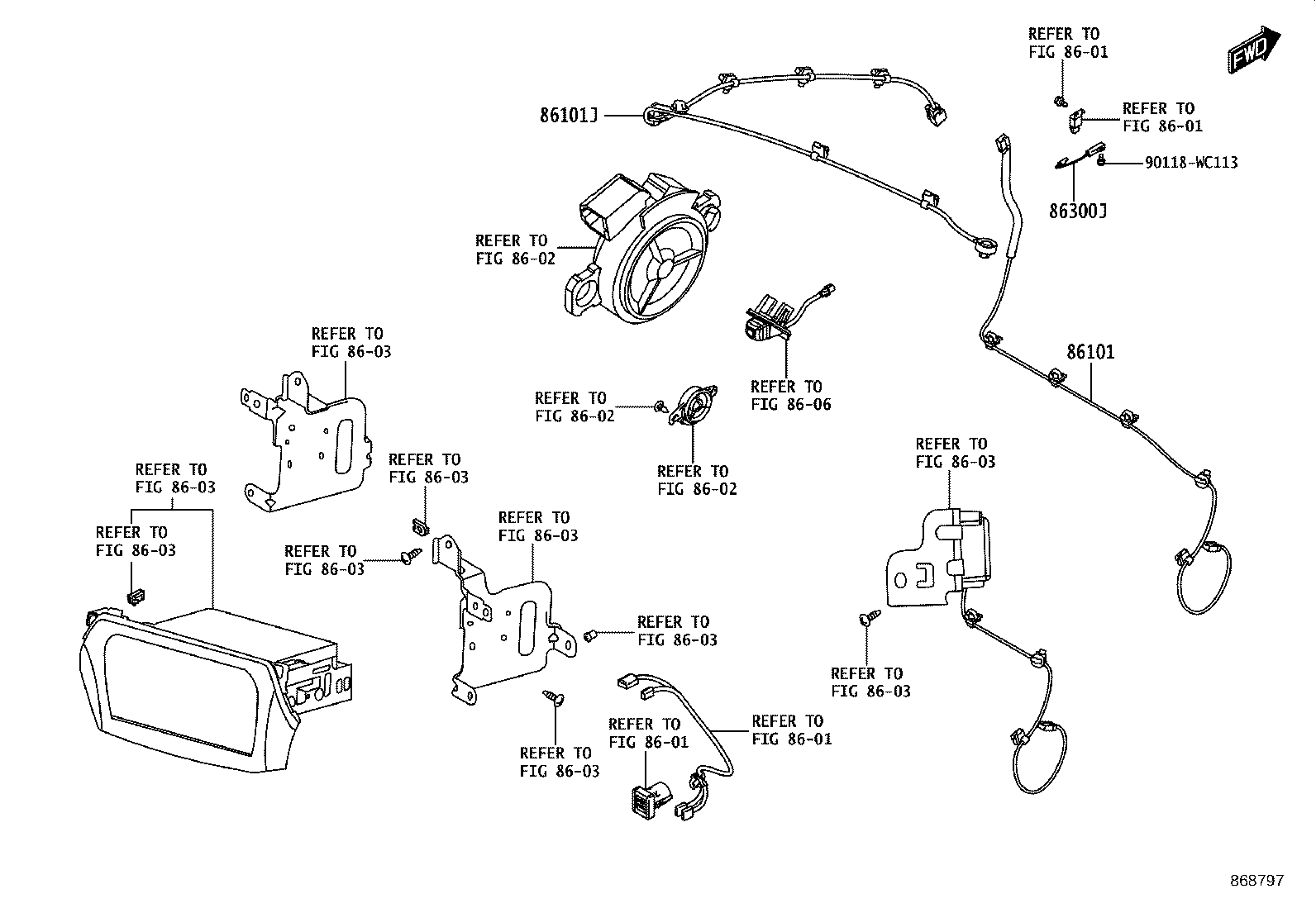

868797 2021-07 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86101J	Cord Sub-assy, Antenna, NO.2
86300J	Antenna Assy, Roof

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
