Toyota Belta

2021-07 → present · chassis K15B · catalogue 13A310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

18 part groups · 9 illustrations

Illustrations

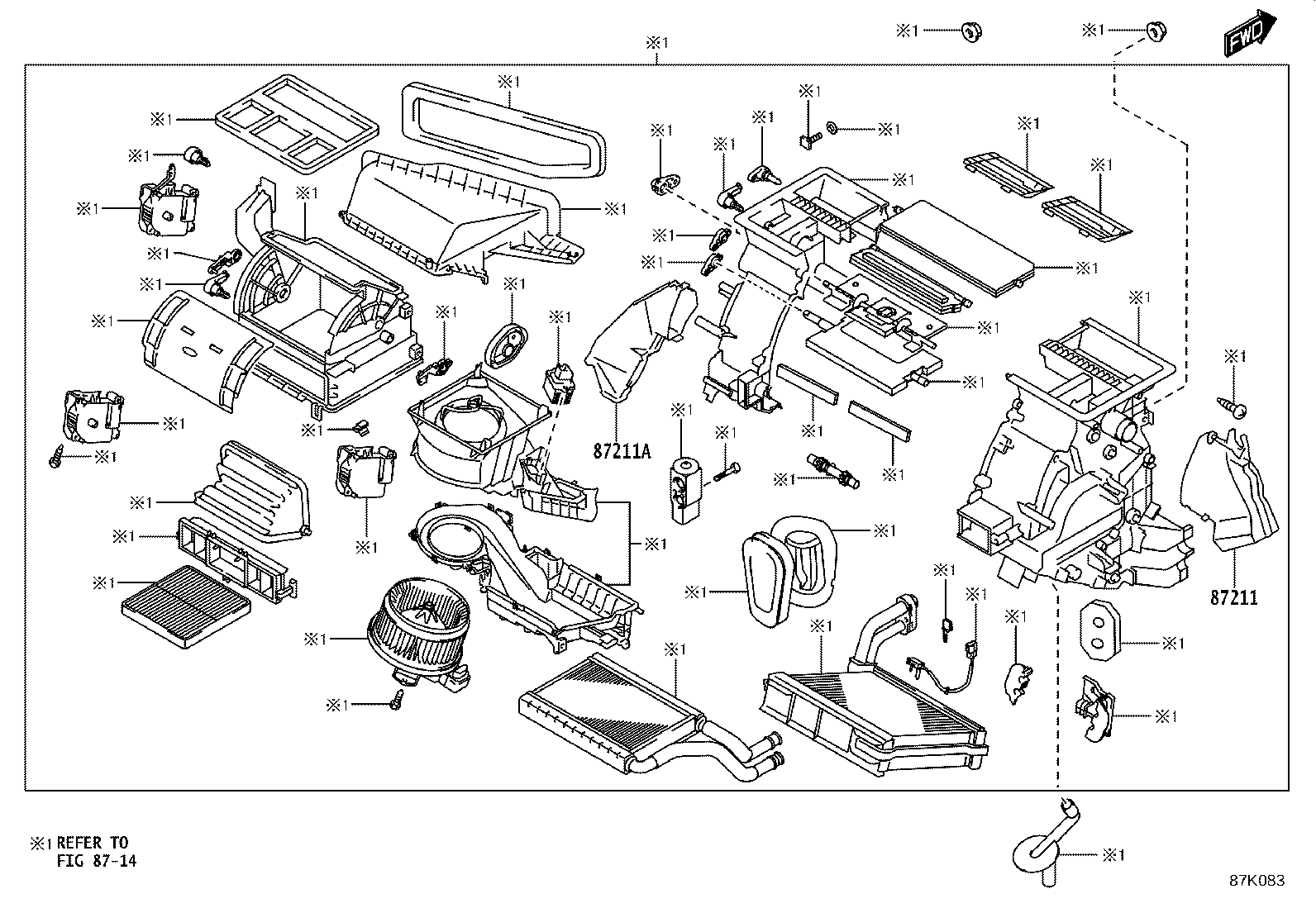

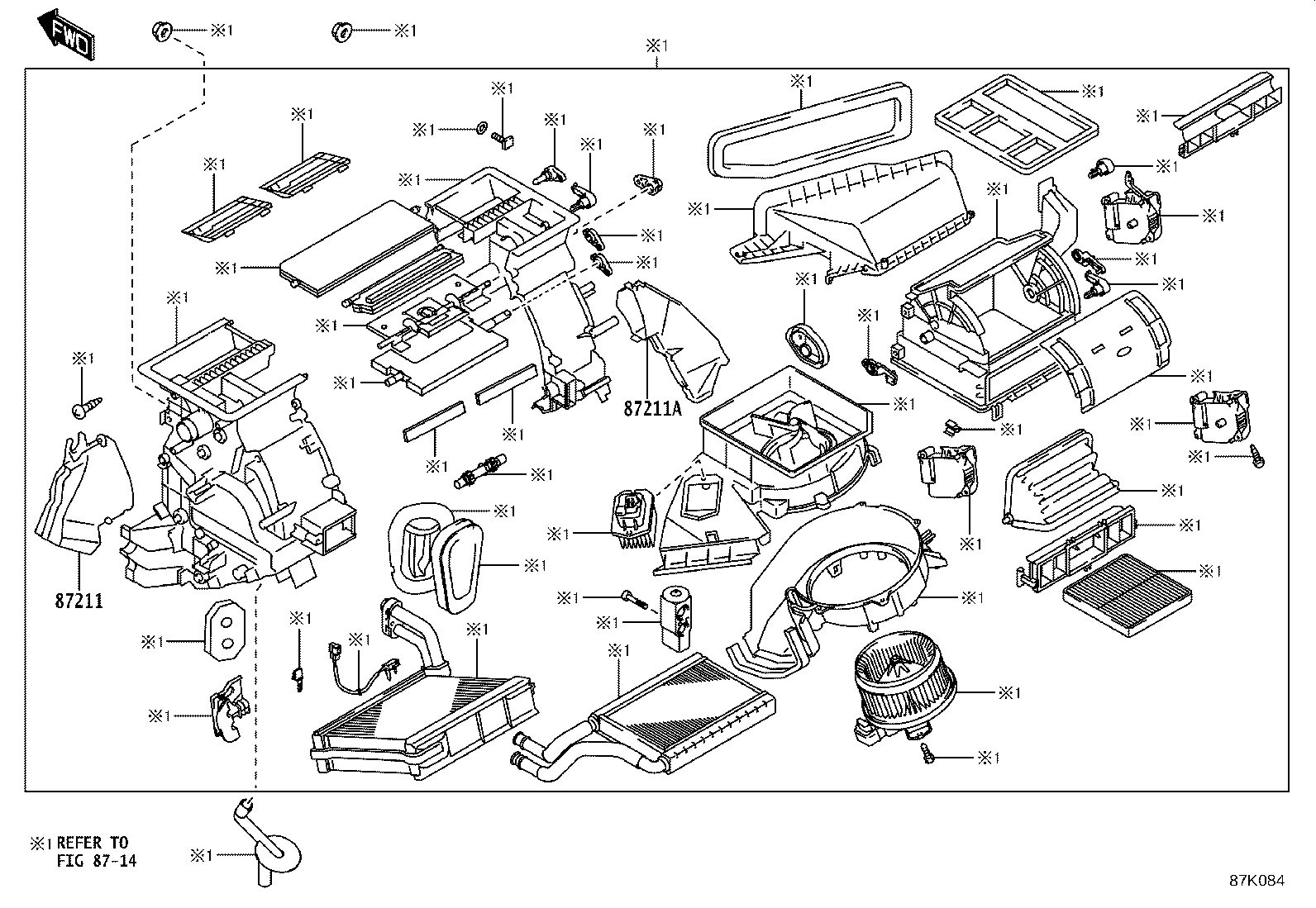

Figure 87K079A 87K079A 2021-07 → — Figure 87K080A 87K080A 2021-07 → — Figure 87K081 87K081 2021-07 → — Figure 87K082 87K082 2021-07 → — Figure 87K083 87K083 2021-07 → — Figure 87K084 87K084 2021-07 → — Figure 87K085 87K085 2021-07 → — Figure 87K086 87K086 2021-07 → — Figure 87K087 87K087 2021-07 → —

Part groups

PNCDescription

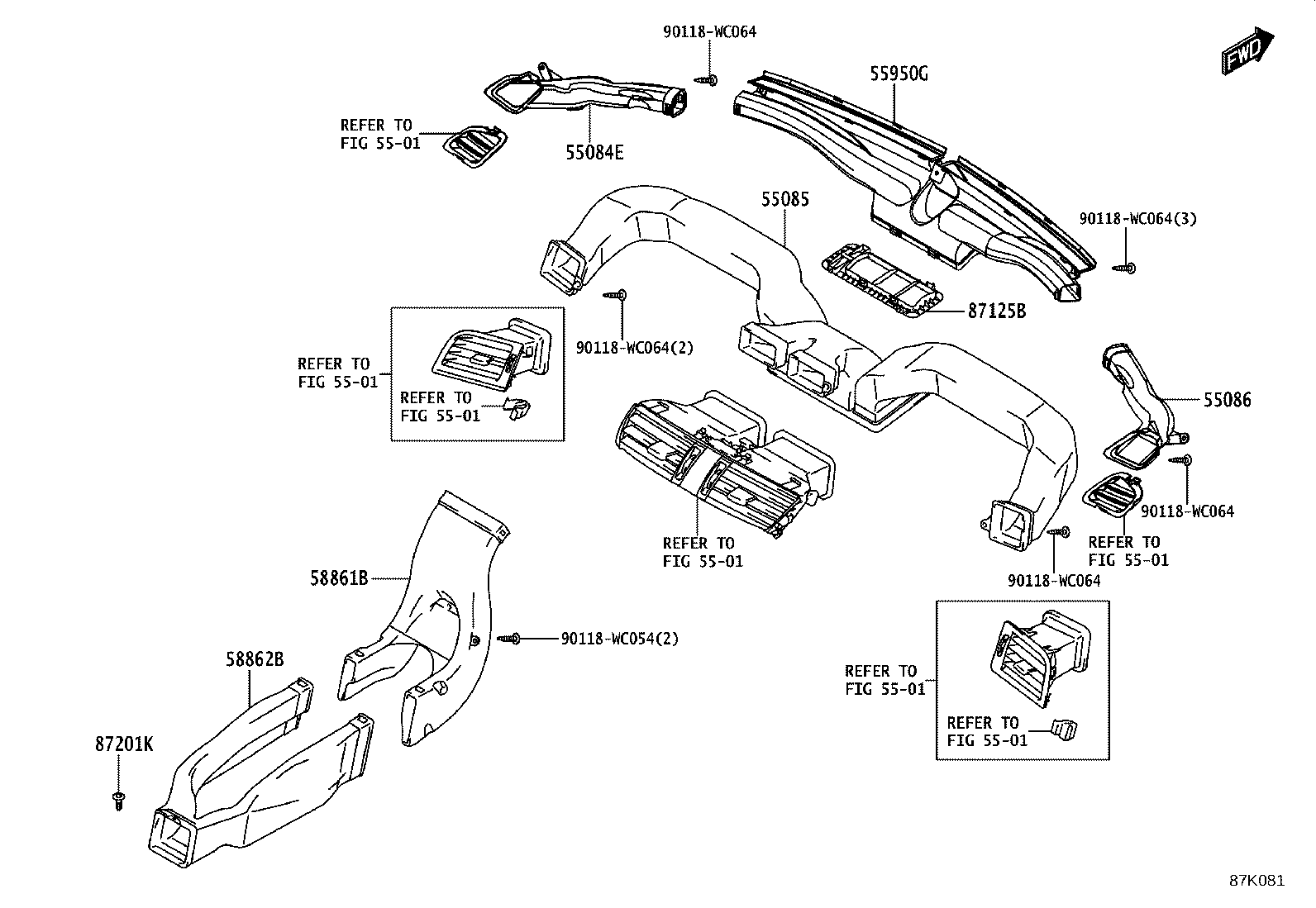

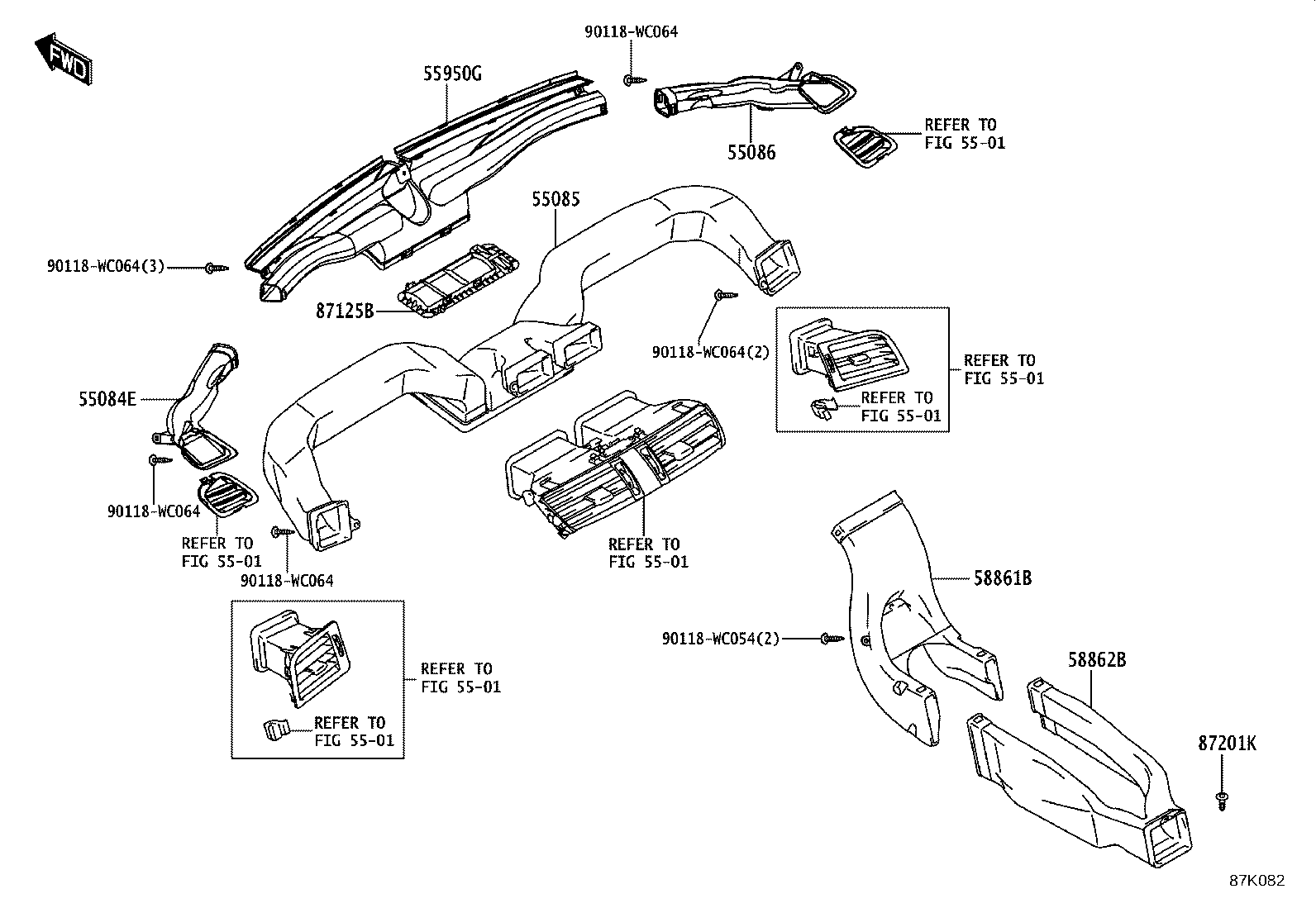

55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3

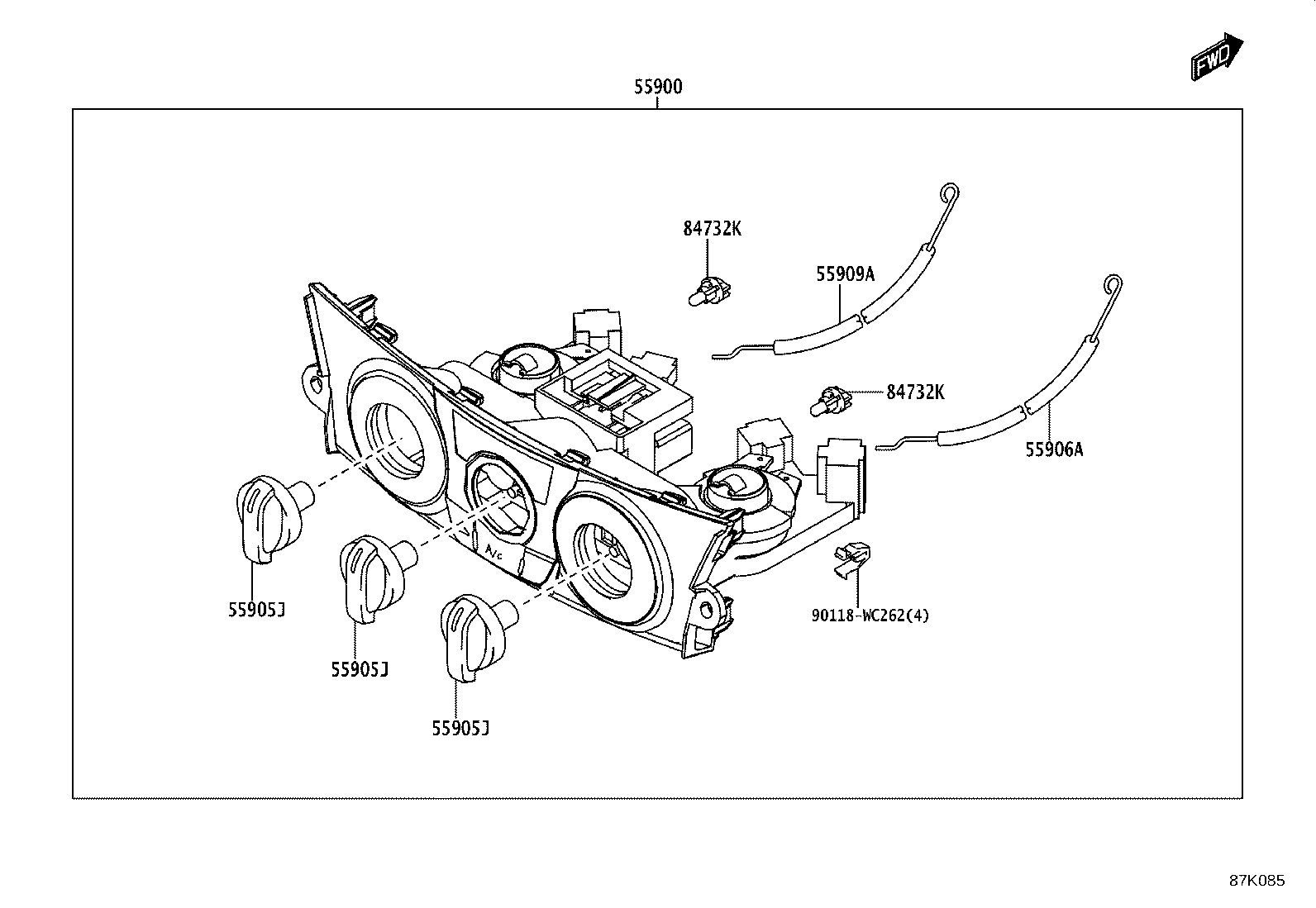

55900 Control Assy, Air Conditioner
55905J Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
84732K Bulb, Heater Blower Switch
87125B Grille, Heater Air Outlet
87201K Clip (FOR AIR DUCT)
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2

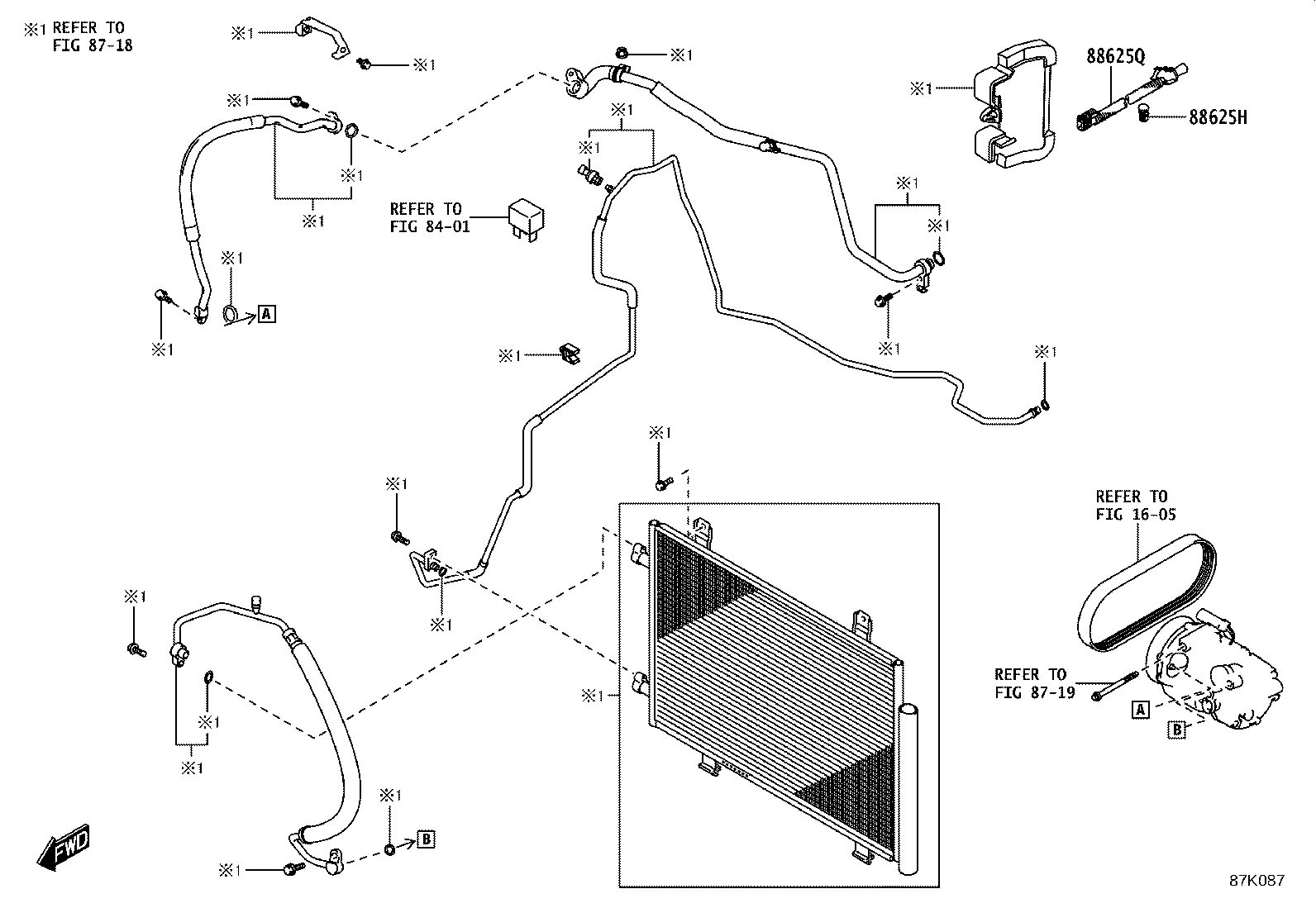

88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)

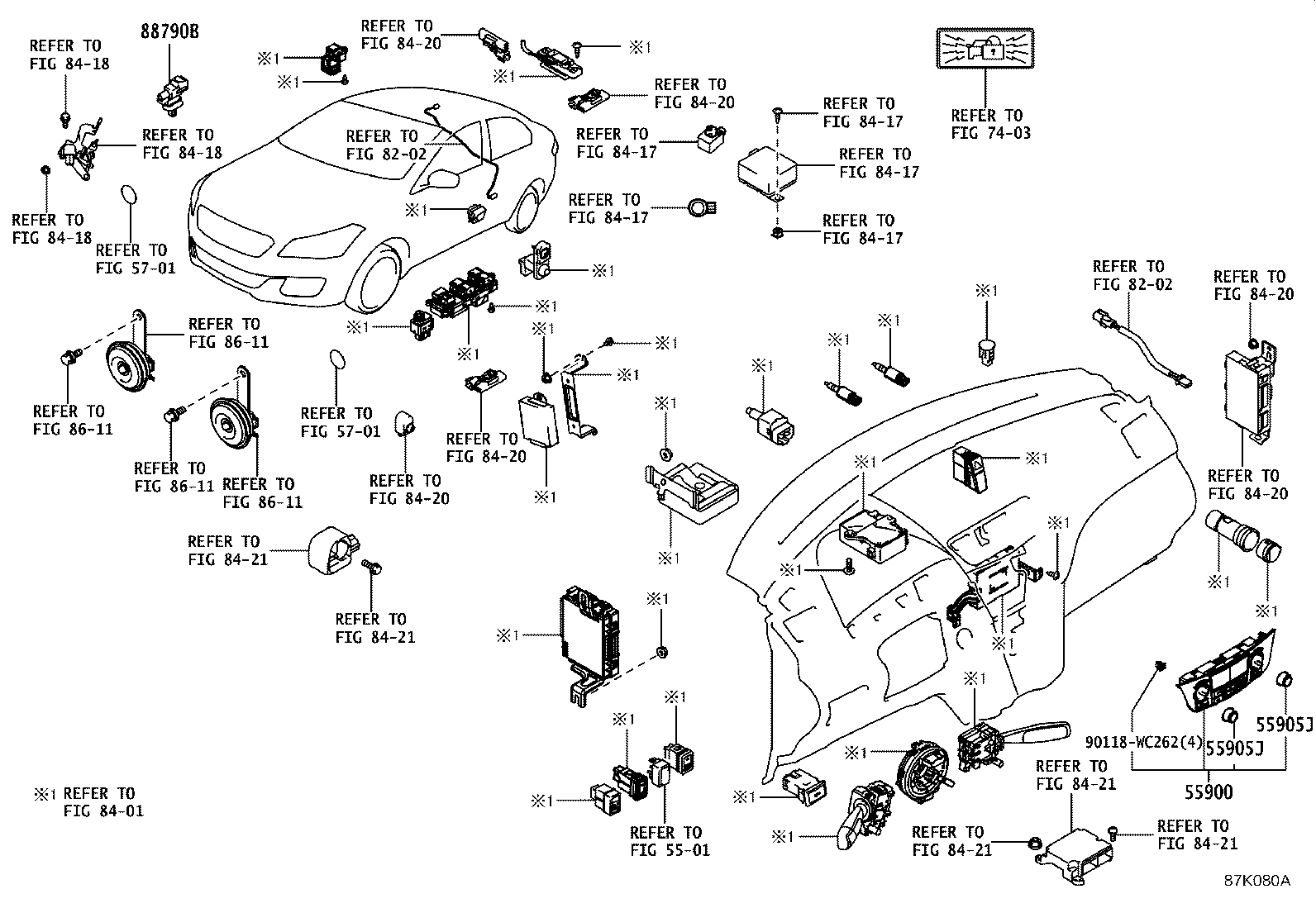

88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
