Heating & Air Conditioning - Cooler Piping

14 part groups · 3 illustrations

Illustrations

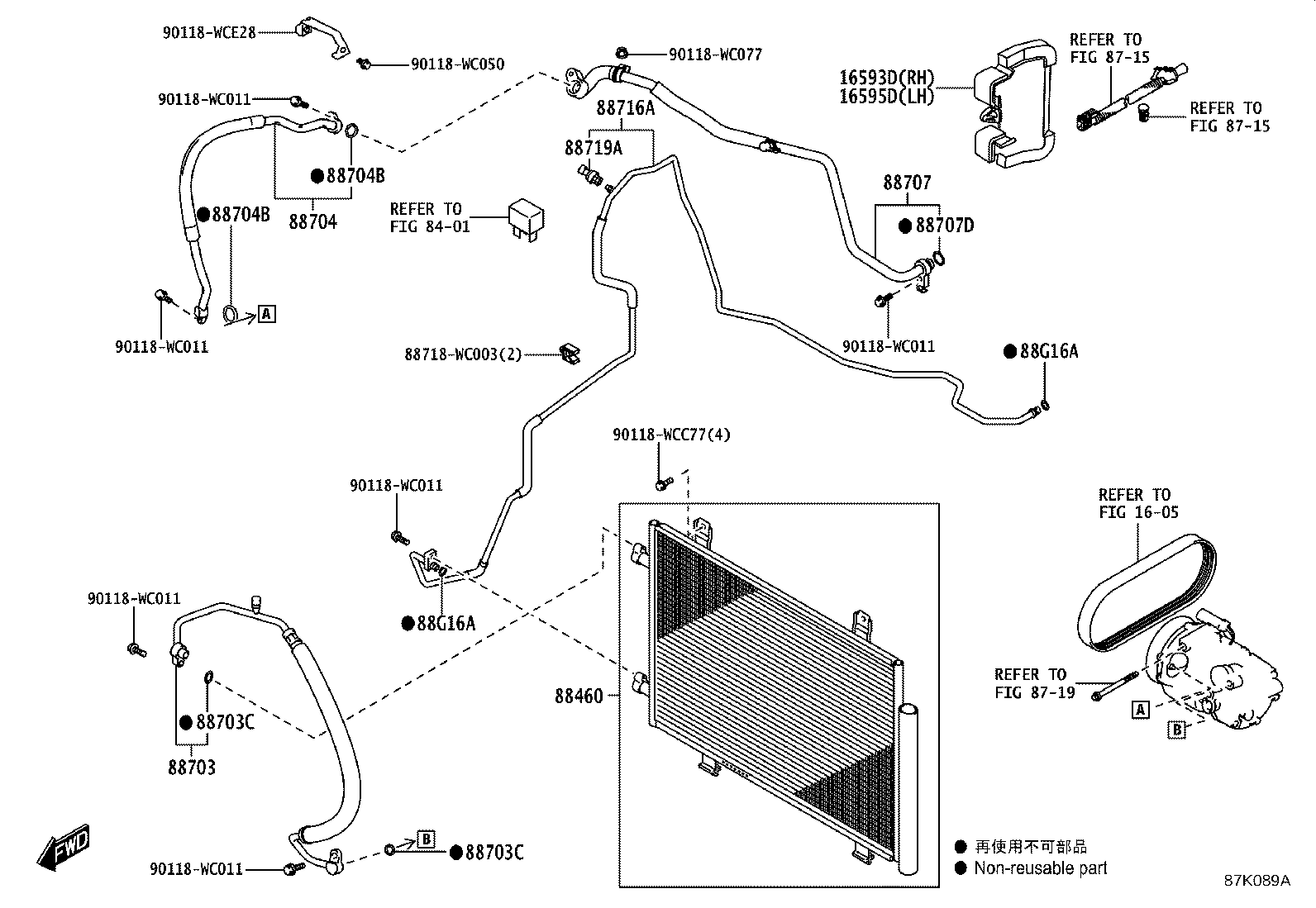

Figure 87K088 87K088 2021-07 → — Figure 87K089A 87K089A 2021-07 → — Figure 87K090A 87K090A 2021-07 → —

Part groups

PNCDescription
16593D Guide, Radiator Air, NO.1 RH
16595D Guide, Radiator Air, NO.1 LH
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88707 Pipe Sub-assy, Suction
88707D Ring, O(FOR SUCTION TUBE)
88716A Pipe, Cooler Refrigerant Liquid, A
88719A Sensor, Air Conditioner Pressure
88G16A Ring, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
