Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01
Cylinder Block
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

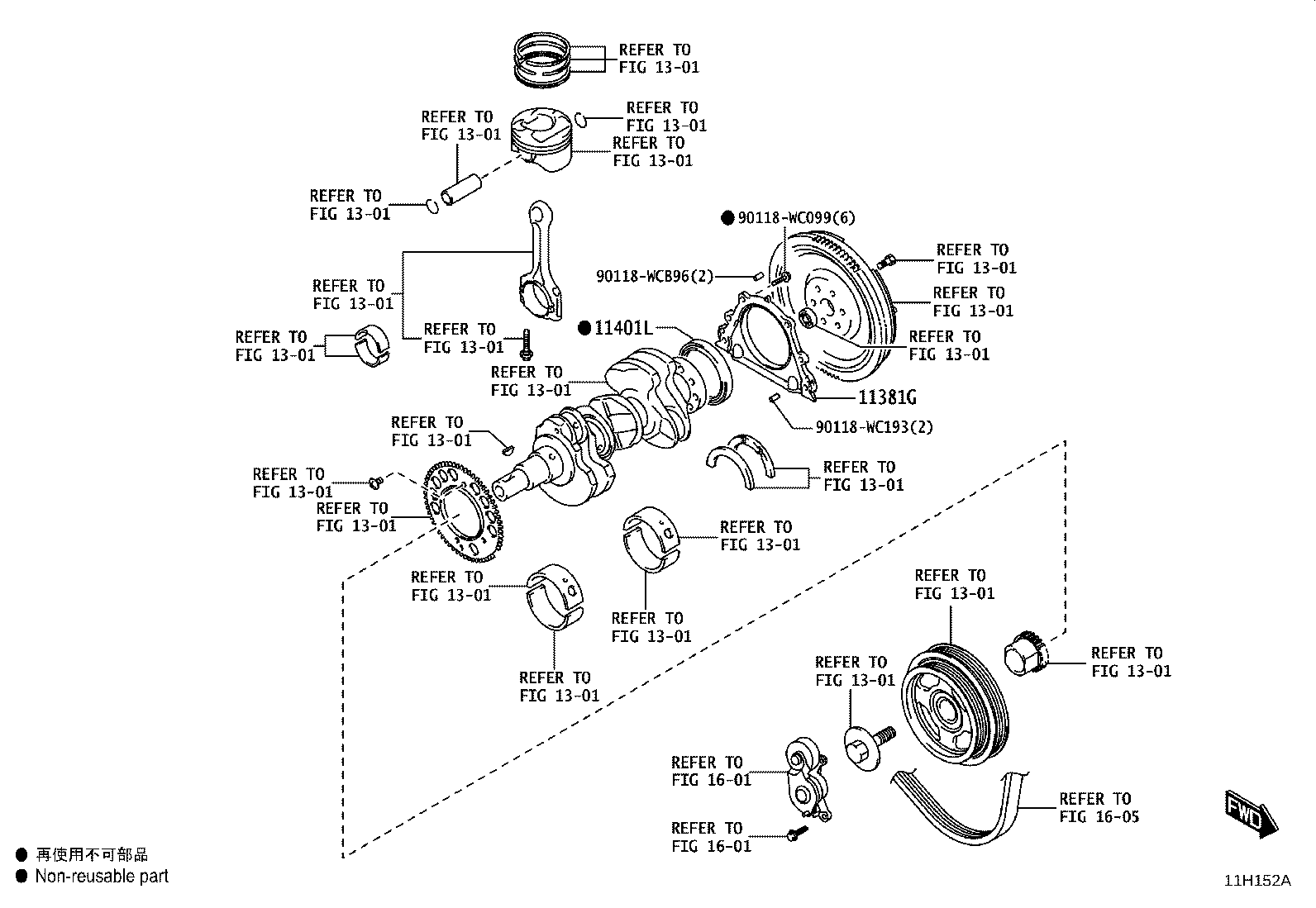

| 11381G | Retainer, Engine Rear Oil Seal |
| 11401 | Block Sub-assy, Cylinder |
| 11401E | Gasket(FOR CYLINDER BLOCK PLUG) |
| 11401G | Sensor, Crank Position |
| 11401L | Seal, Engine Rear Oil |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11416A | Pin, Ring(FOR CRANKSHAFT BEARING CAP SET) |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11434Y | Pin, Straight(FOR OIL PAN) |

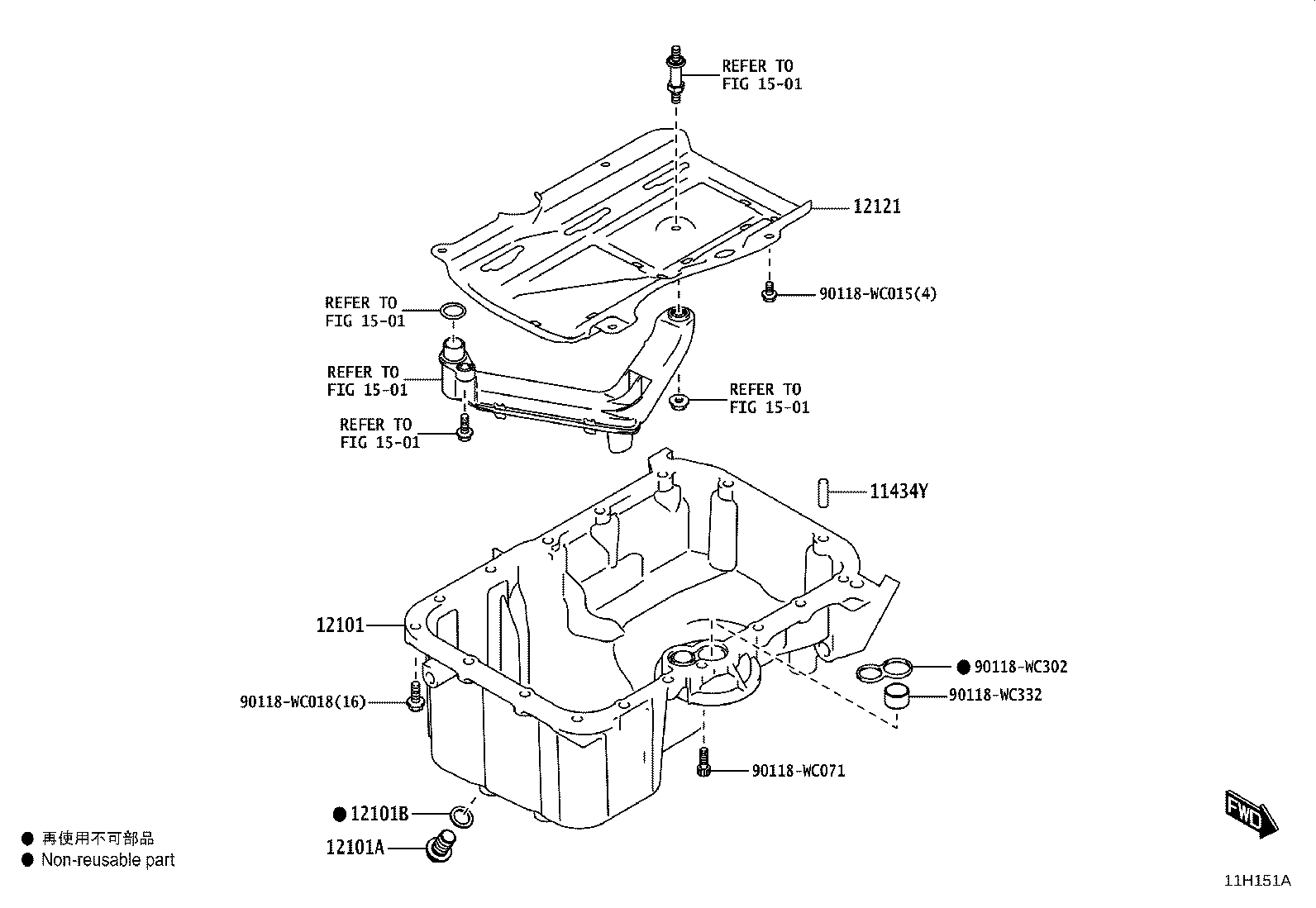

| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12121 | Plate, Oil Pan Baffle, NO.1 |
| 15709 | Nozzle Sub-assy, Oil, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
