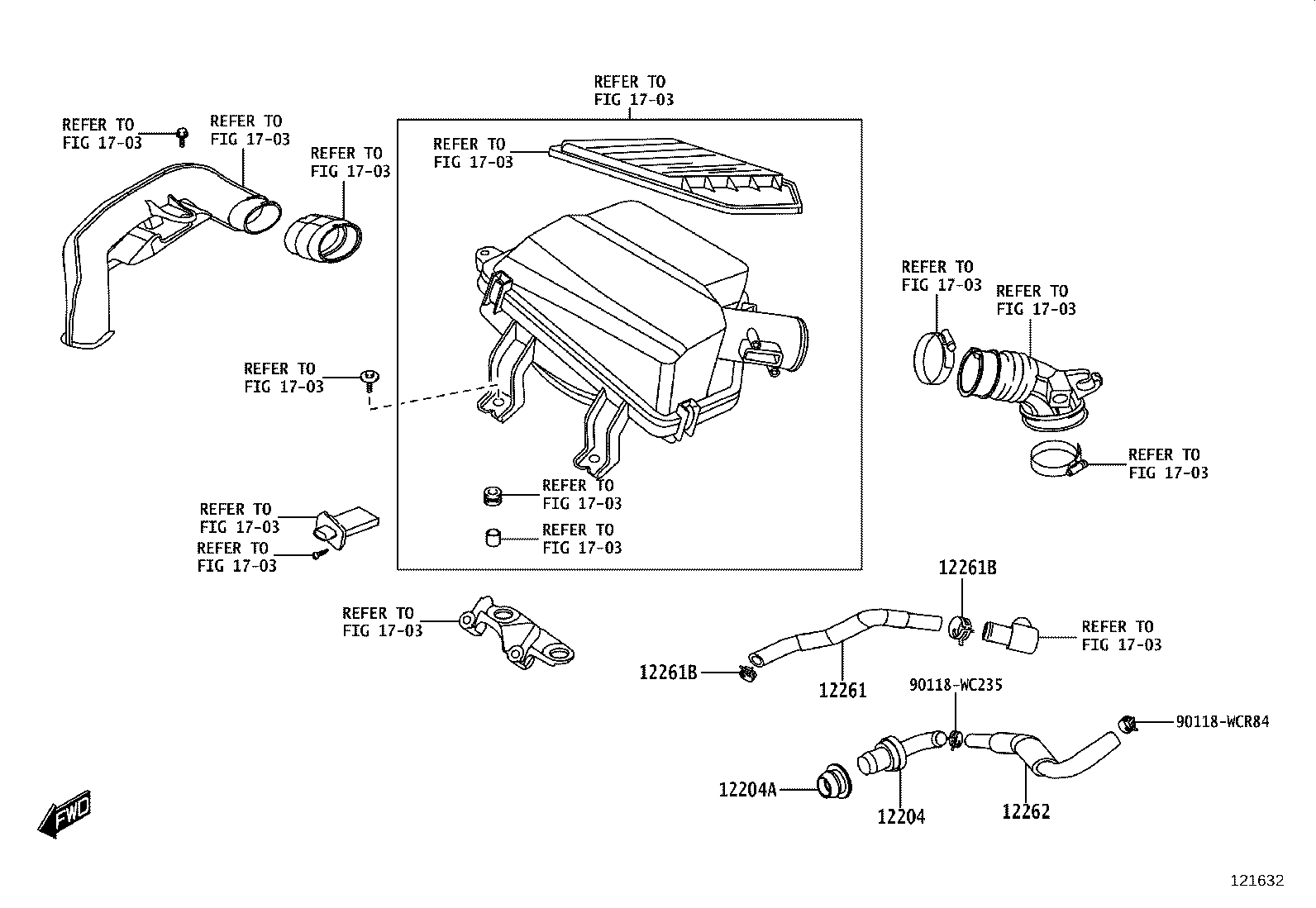

Ventilation Hose
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12204A | Grommet(FOR VENTILATION SYSTEM) |
| 12205 | Case Sub-assy, Ventilation |
| 12261 | Hose, Ventilation |
| 12261B | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12273B | Gasket, Oil Separator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
