Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01

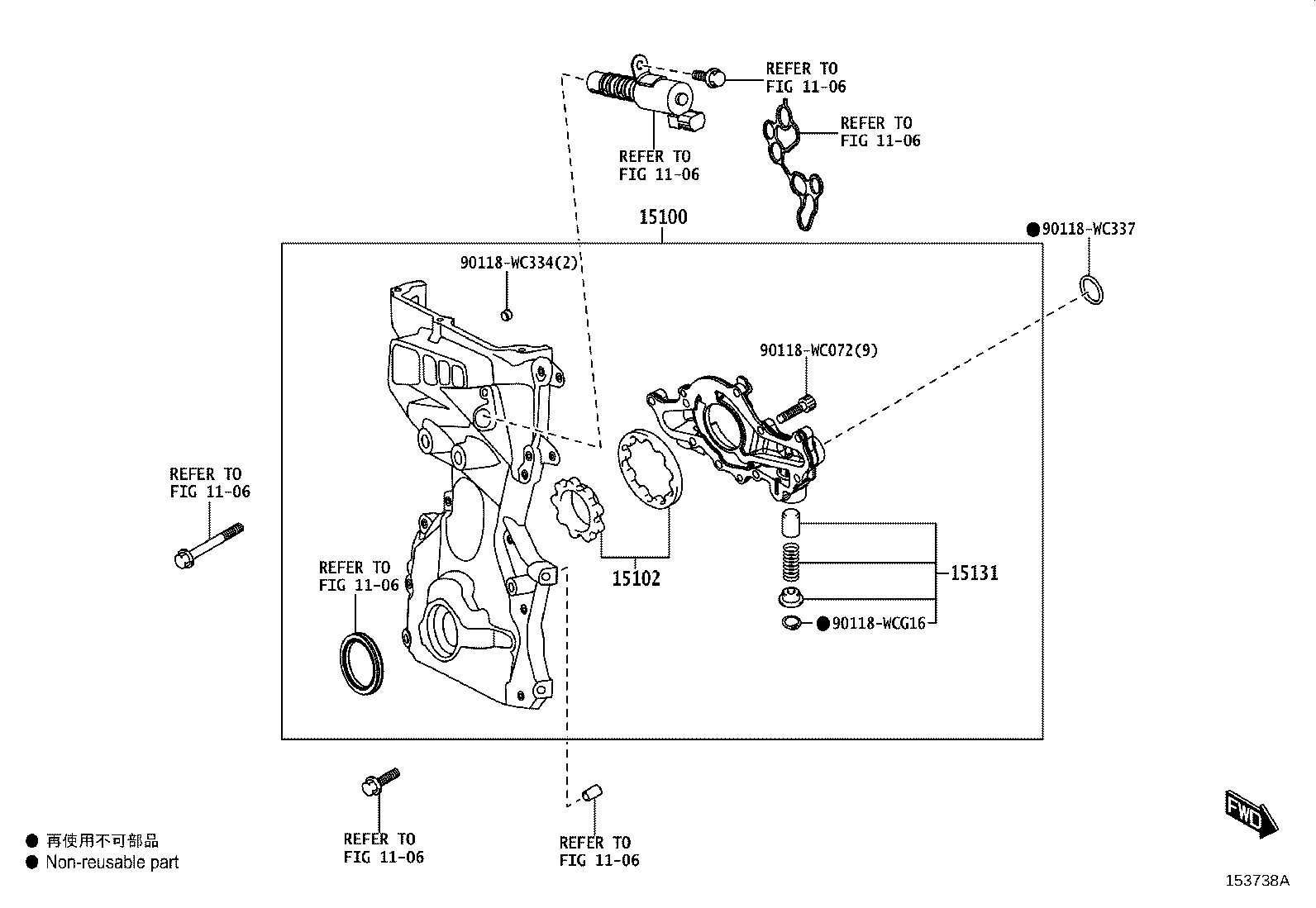

Engine Oil Pump
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15100 | Pump Assy, Oil |
| 15102 | Rotor Set, Oil Pump |
| 15104 | Strainer Sub-assy, Oil |
| 15104E | Bolt, Stud(FOR OIL STRAINER) |
| 15131 | Valve, Oil Pump Relief |
| 15147 | Gasket, Oil Strainer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
