Toyota Vitz

2023-01 → present · chassis K10C · catalogue 13B310 · General

Supported model Data version 2023-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

11 part groups · 2 illustrations

Illustrations

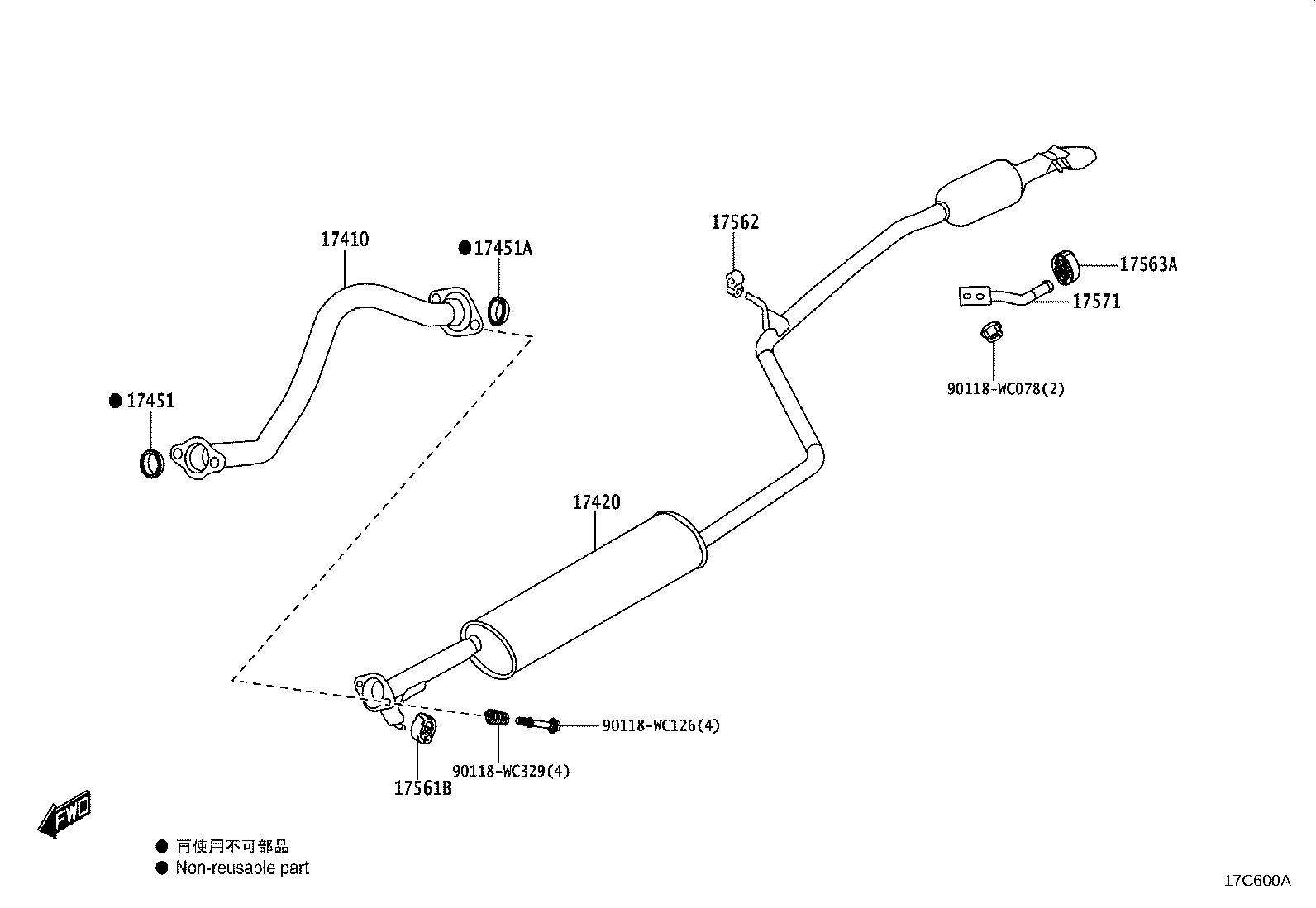

Figure 17C599A 17C599A 2023-01 → — Figure 17C600A 17C600A 2023-01 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400D Bracket, Catalytic Converter Support
17400G Gasket, Catalyzer Inlet
17410 Pipe Assy, Exhaust, Front
17420 Pipe Assy, Exhaust, Center
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17571 Bracket, Exhaust Pipe Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
