Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01

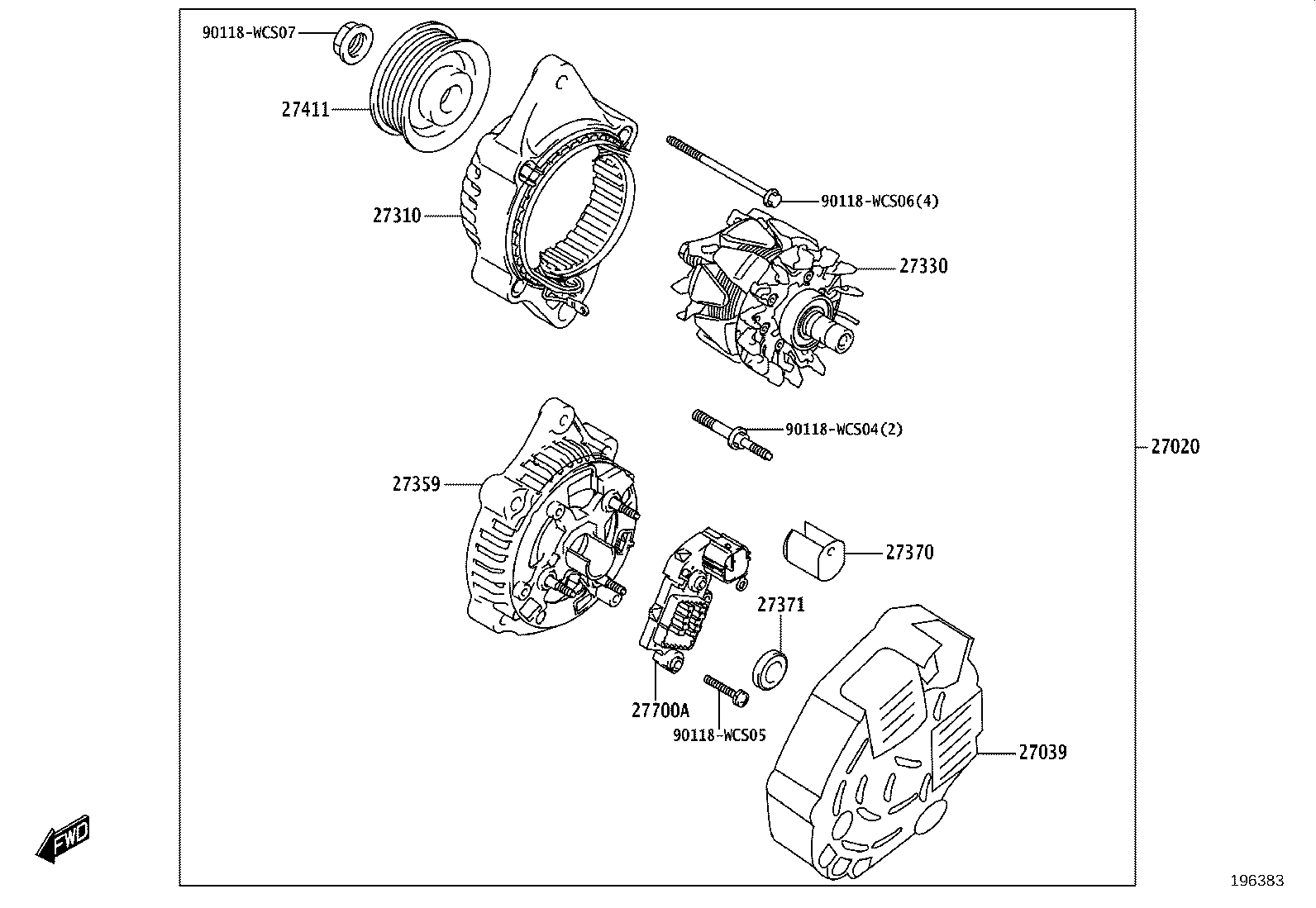

Alternator
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16381D | Bar, Fan Belt Adjusting |
| 27020 | Alternator Assy |
| 27039 | Cover, Alternator Rear End |
| 27310 | Frame Assy, Drive End, Alternator |
| 27330 | Rotor Assy, Alternator |
| 27359 | Frame, Alternator Rectifier End |
| 27370 | Holder Assy, Alternator Brush |
| 27371 | Brush, Alternator |
| 27411 | Pulley, Alternator |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
