Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01

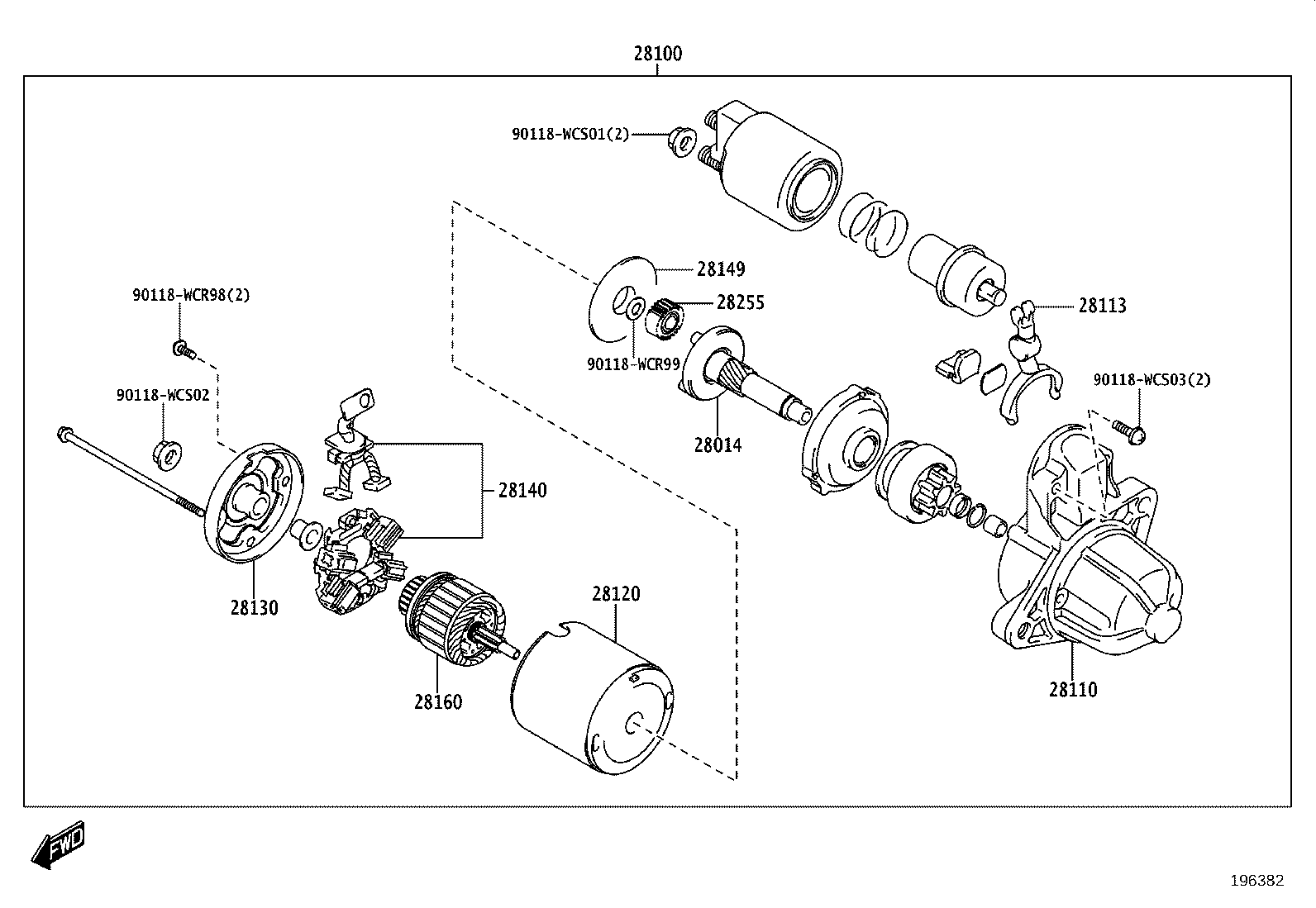

Starter
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28014 | Shaft Sub-assy, Planet Carrier |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28113 | Lever, Starter Pinion Drive |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28140 | Holder Assy, Starter Brush |
| 28149 | Plate, Starter |
| 28160 | Armature Assy, Starter |
| 28255 | Gear, Planet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
