Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01
Fuel Injection System
7 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

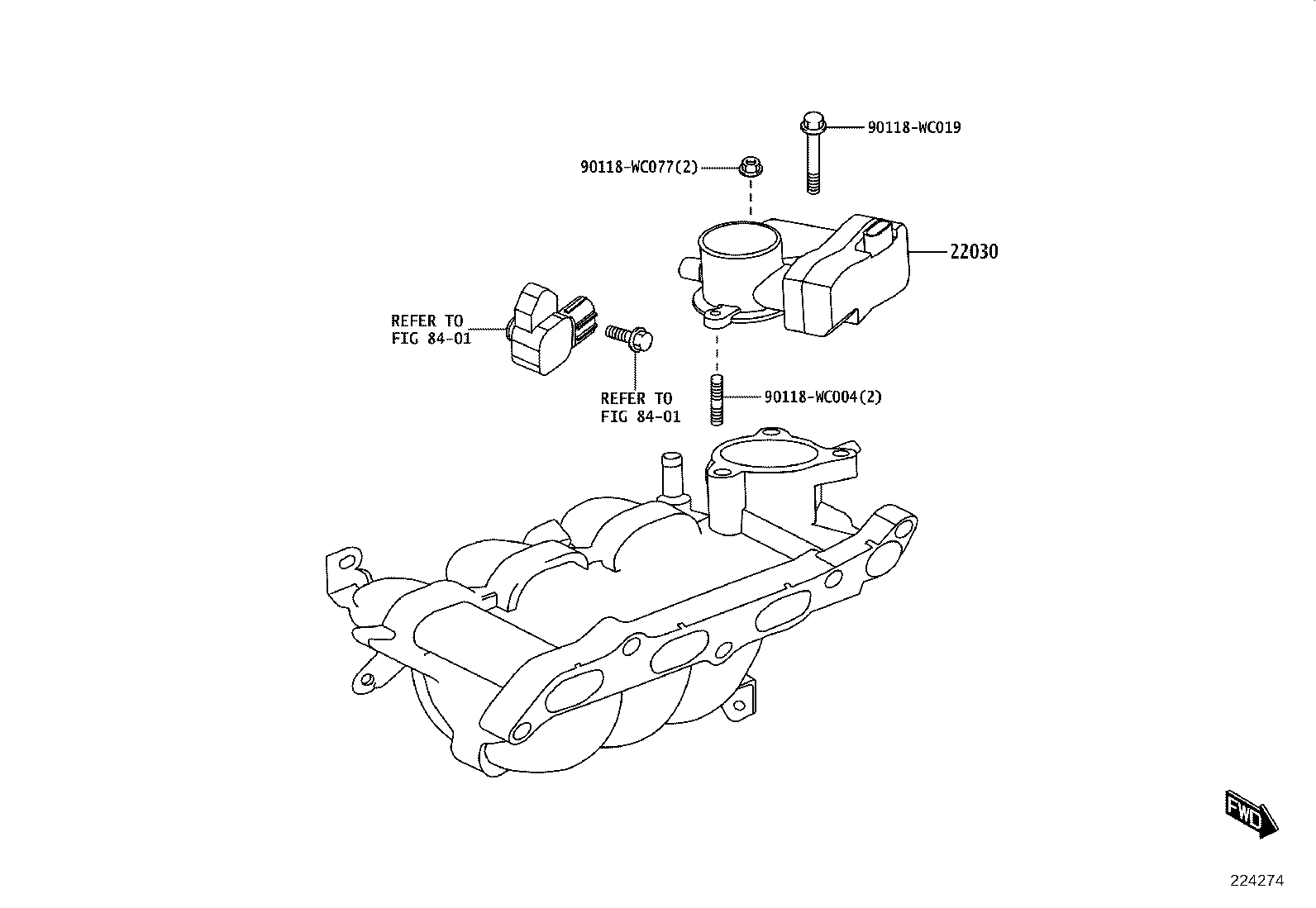

| 22030 | Body Assy, Throttle W/Throttle Position Sensor |
| 22271 | Gasket, Throttle Body |

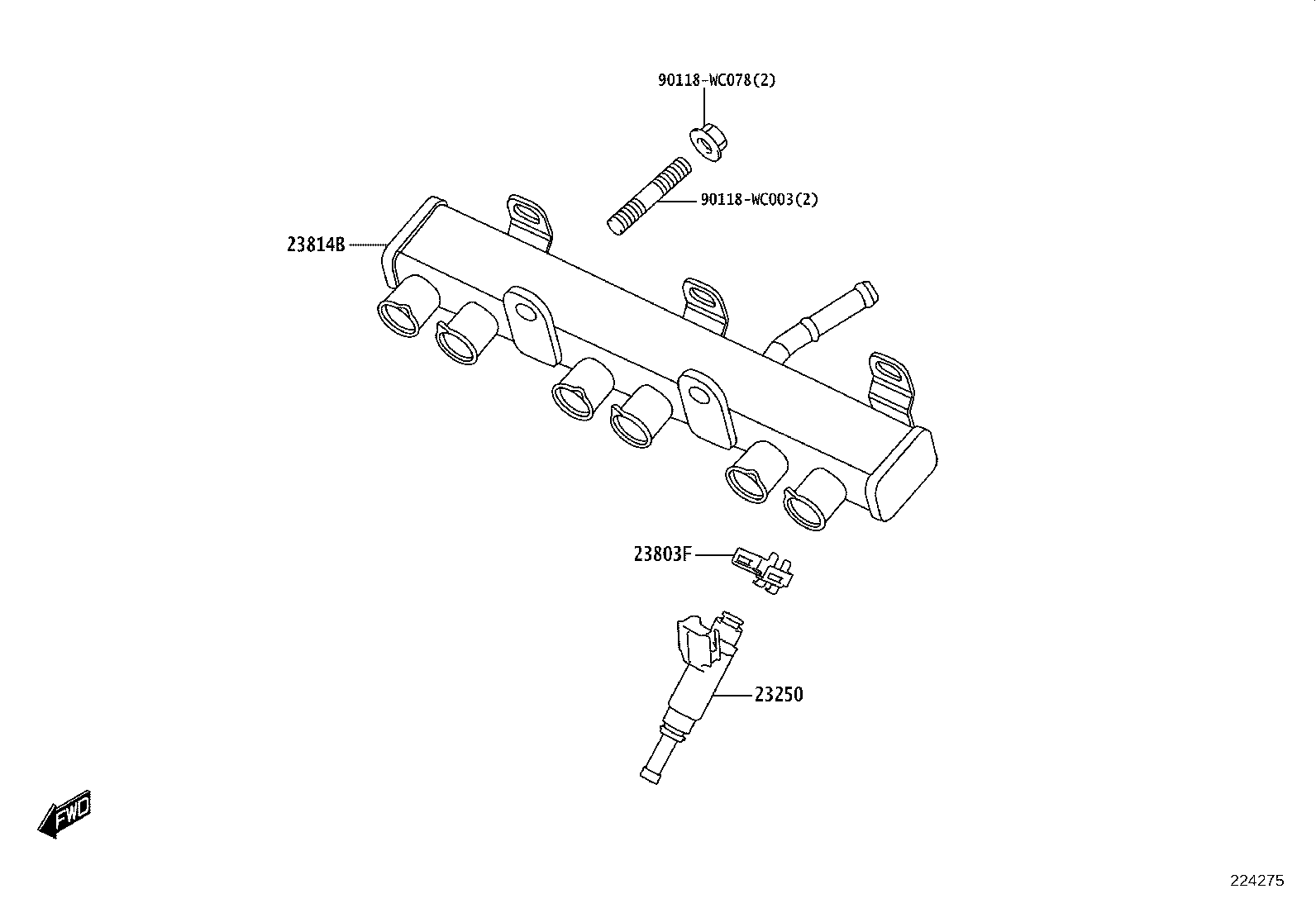

| 23250 | Injector Assy, Fuel |

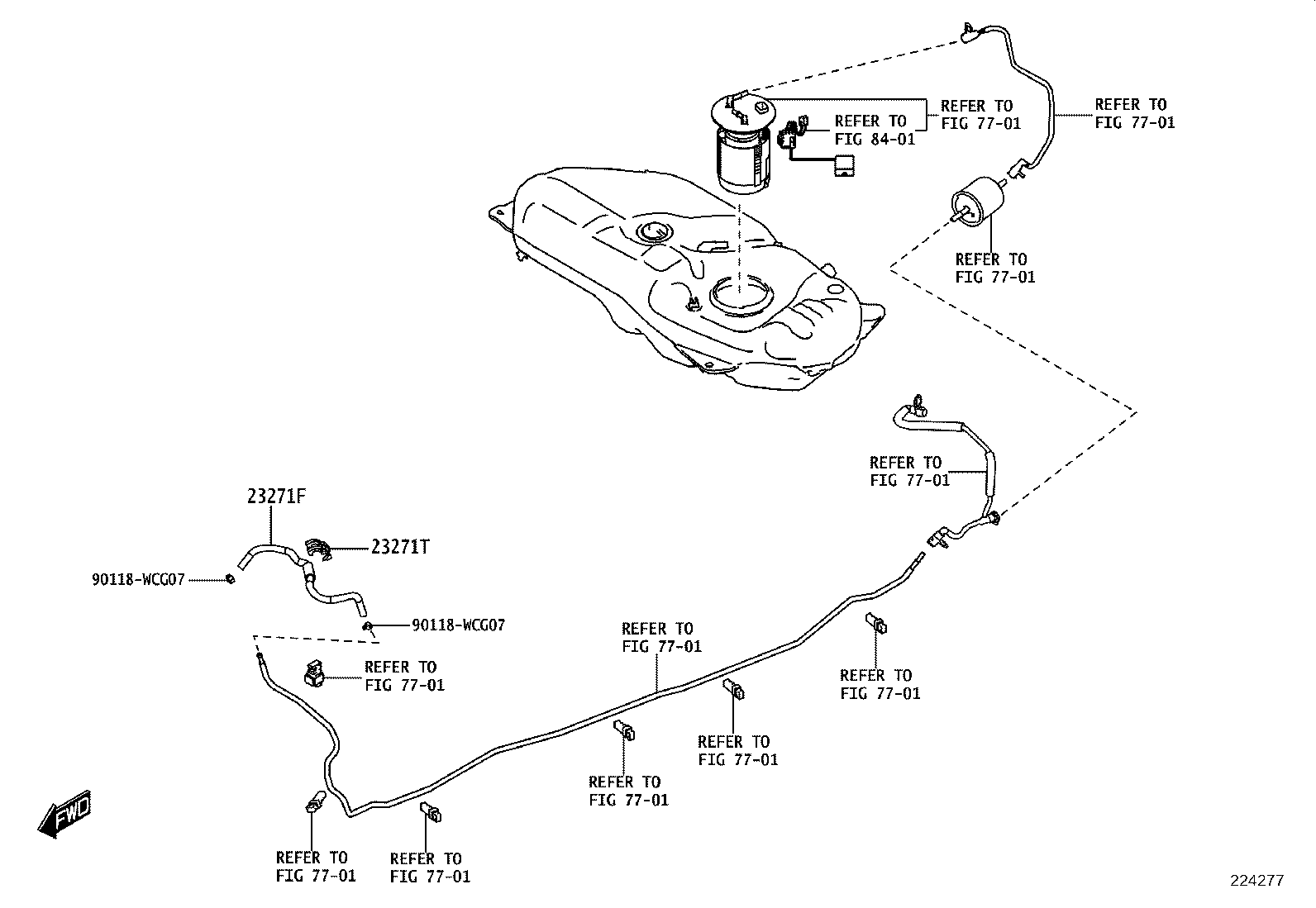

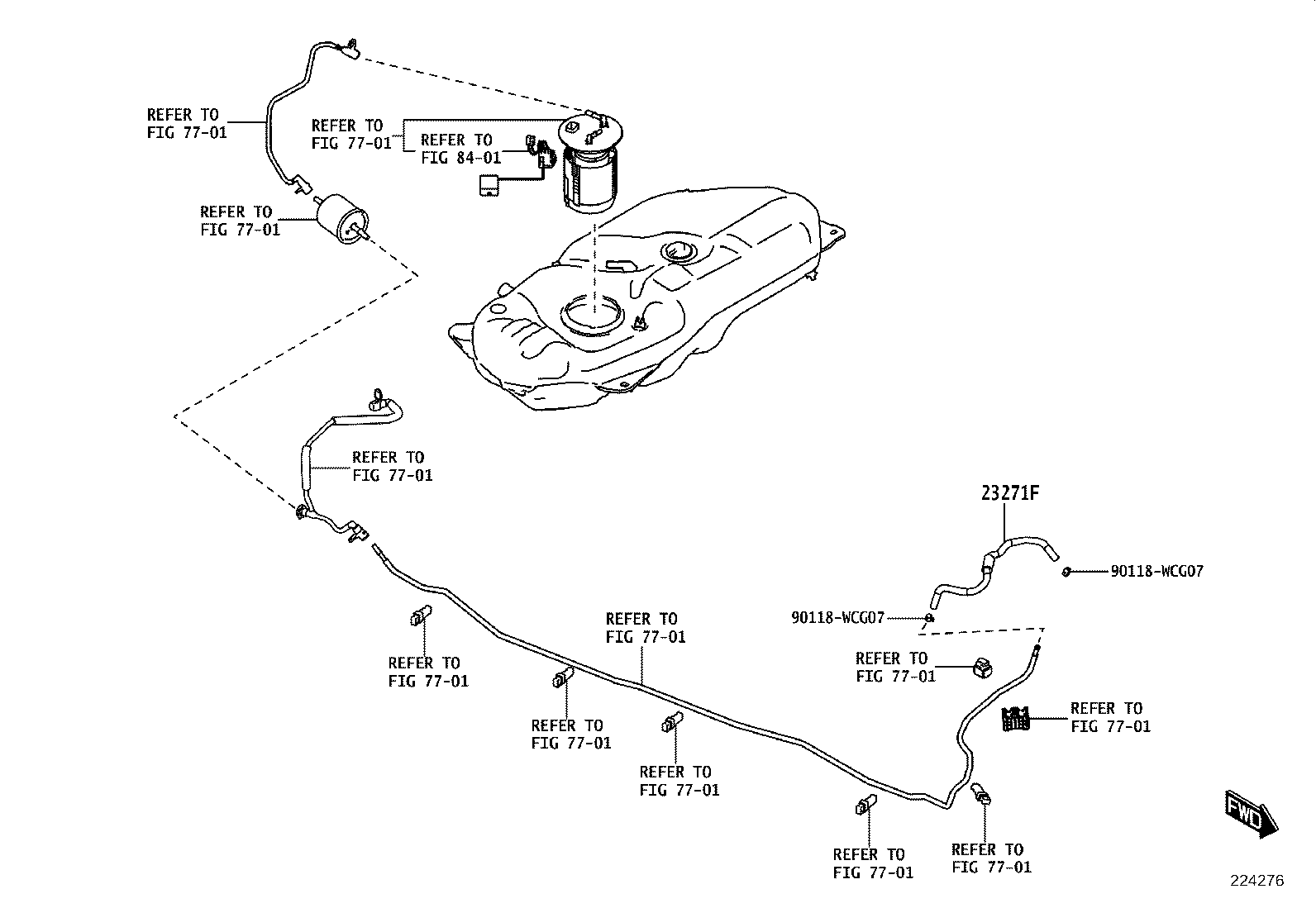

| 23271F | Hose, Fuel |
| 23271T | Clamp OR Clip(FOR FUEL HOSE) |
| 23803F | Clip |
| 23814B | Pipe, Fuel Delivery |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
