Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01

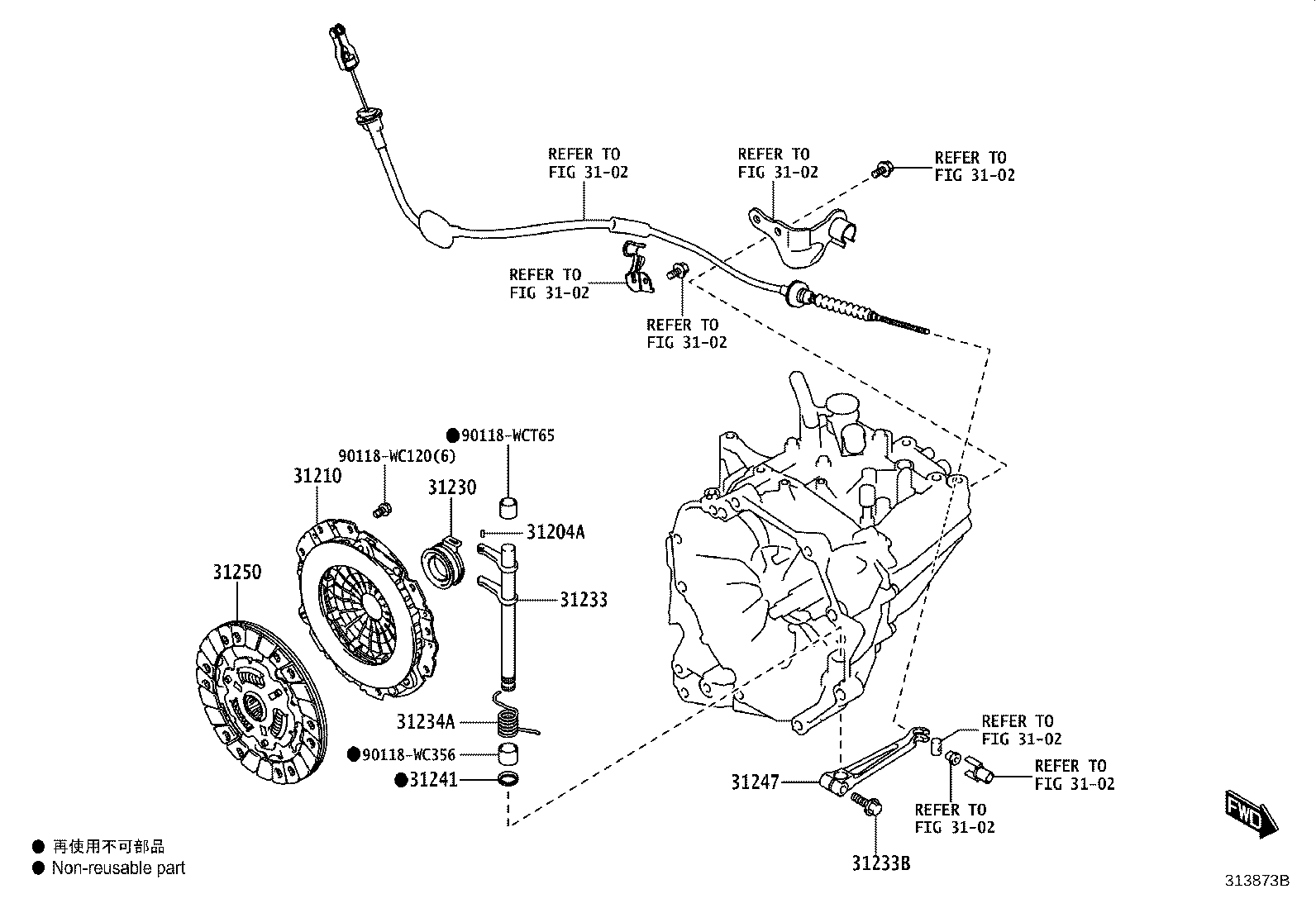

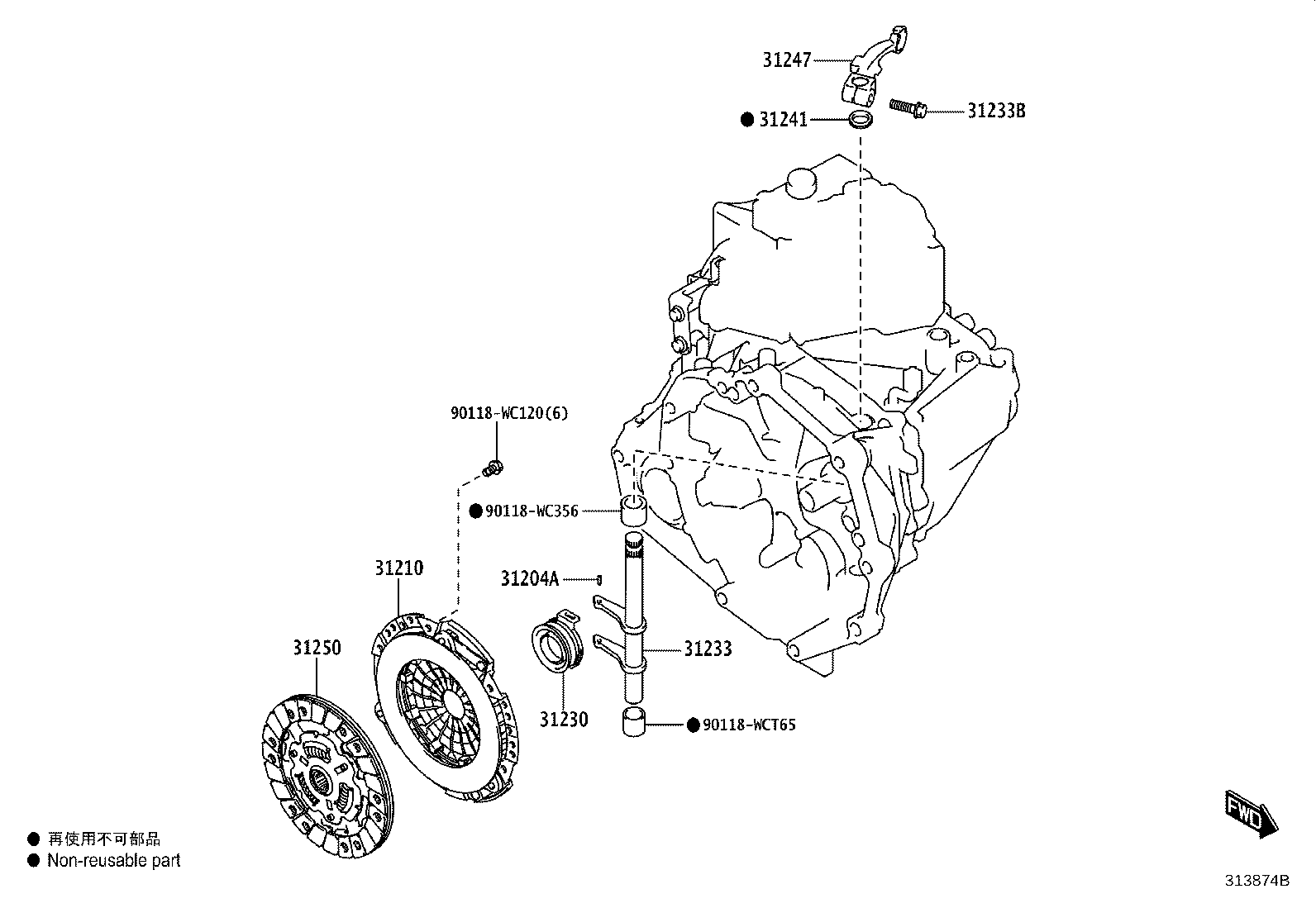

Clutch & Release Fork
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 31204A | Pin(FOR CLUTCH RELEASE FORK) |
| 31210 | Cover Assy, Clutch |
| 31230 | Bearing Assy, Clutch Release |
| 31233 | Fork, Clutch Release |
| 31233B | Bolt(FOR RELEASE FORK & RELEASE LEVER SETTING) |
| 31234A | Spring, Release Fork Support |
| 31241 | Seal, Clutch Release Fork Dust |
| 31247 | Lever, Clutch Release Fork |
| 31250 | Disc Assy, Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
