Toyota Vitz
2023-01 → present · chassis K10C · catalogue 13B310 · General
Supported model
Data version 2023-01

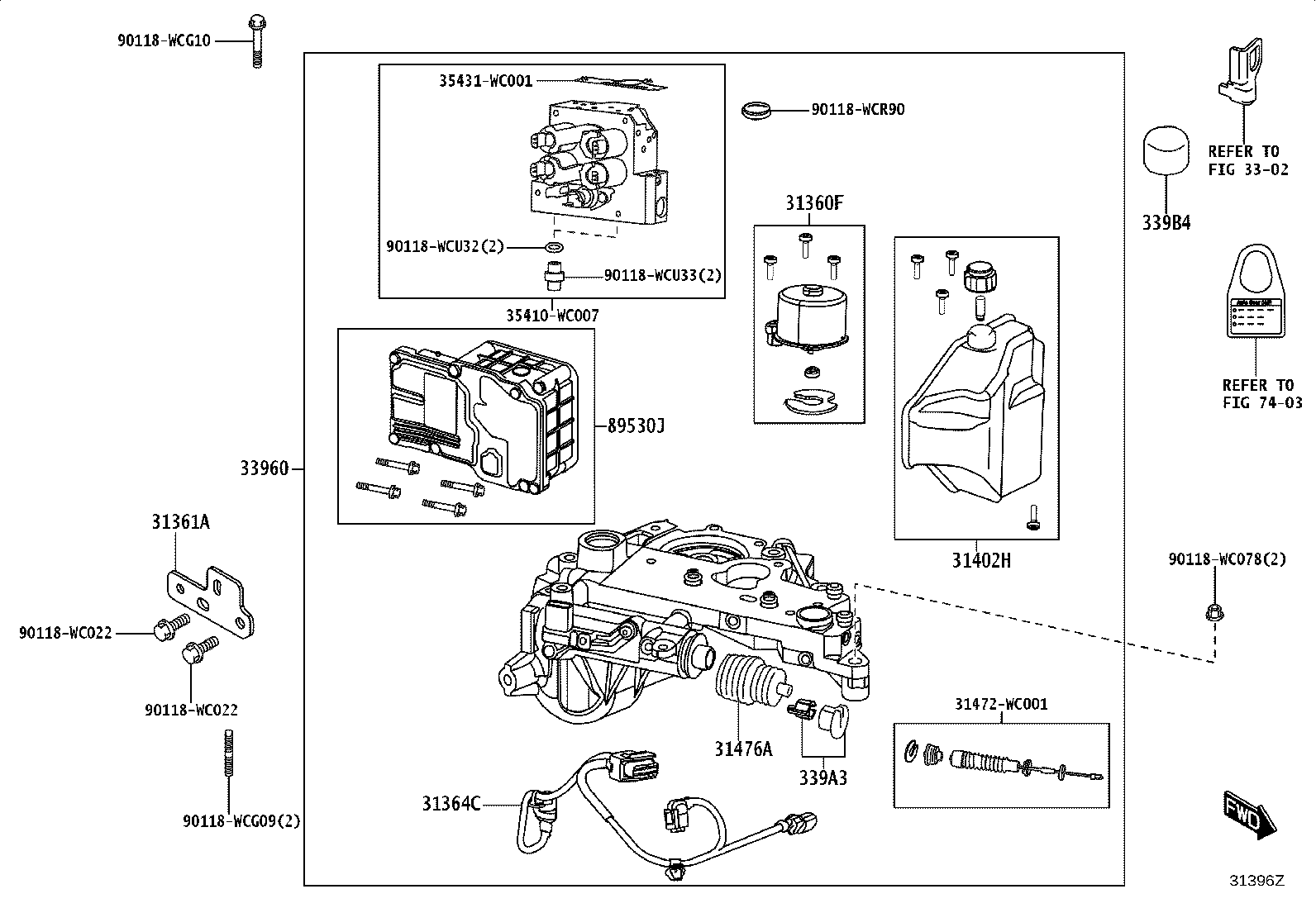

Pump & Actuator, Sequential OR Multi-mode Manual Transaxle
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31360F | Pump Assy, Sequential Transmission |
| 31361A | Bracket, Sequential Transmission Pump |
| 31364C | Wire, Sequential Transmission |
| 31402H | Tank Set, Oil |
| 31476A | Boot, Clutch Actuator |
| 33960 | Actuator Assy, Sequential Transmission |
| 339A3 | Holder, Transmission Actuator |
| 339B4 | Cover, Trans Actuator Cylinder |
| 89530J | Controller Set, Amt |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
