Toyota Vitz

2023-01 → present · chassis K10C · catalogue 13B310 · General

Supported model Data version 2023-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Gear Shift Fork & Lever Shaft (MTM)

6 part groups · 2 illustrations

Illustrations

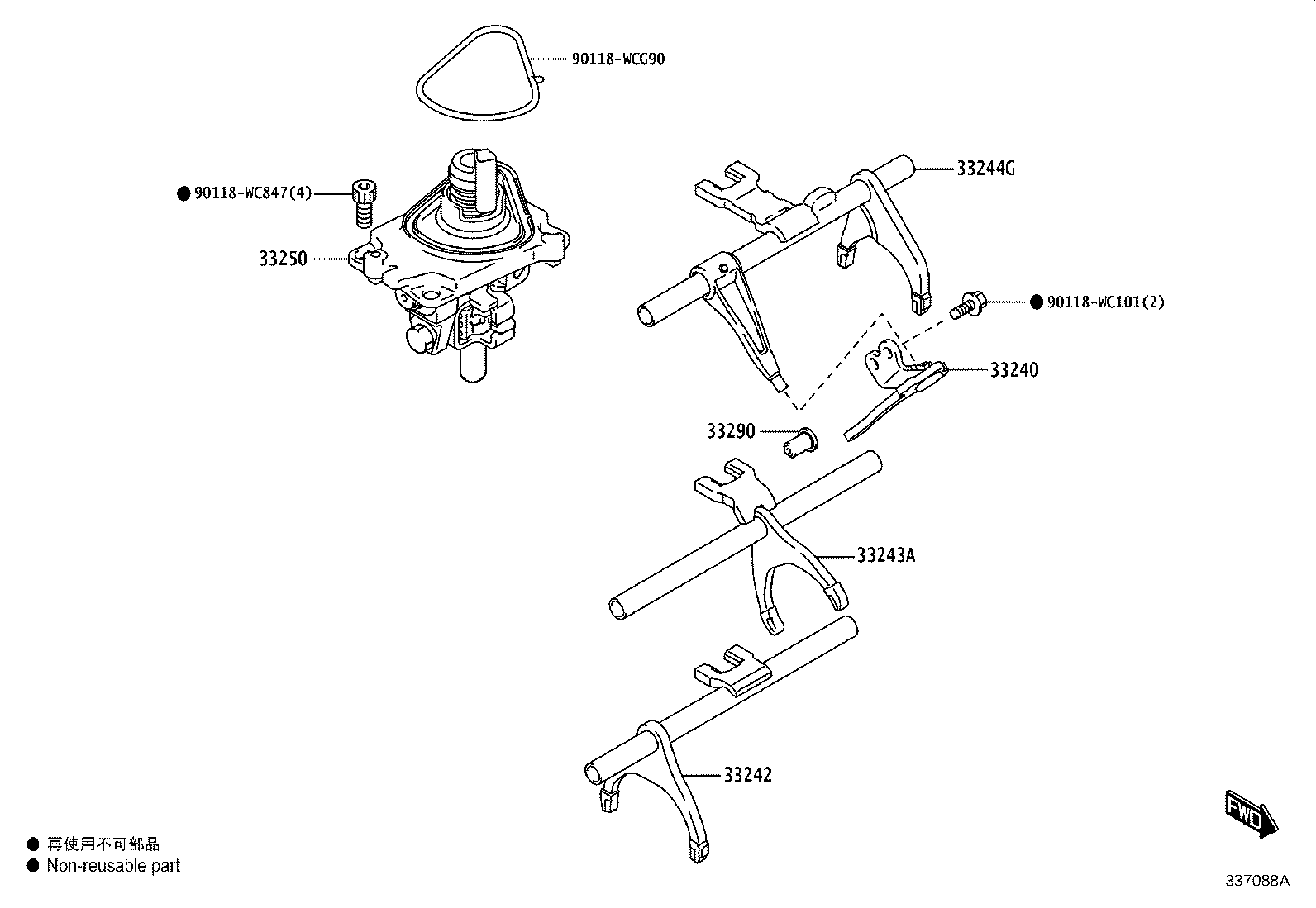

Figure 337087A 337087A 2023-01 → — Figure 337088A 337088A 2023-01 → —

Part groups

PNCDescription
33240 Bracket Assy, Reverse Shift Arm
33242 Shaft, Gear Shift Fork, NO.1
33243A Shaft, Gear Shift Fork, NO.2
33244G Shaft, Gear Shift Fork, NO.3
33250 Shaft Assy, Shift & Select Lever
33290 Ball Assy, Lock, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
